Description

Brief Product Description

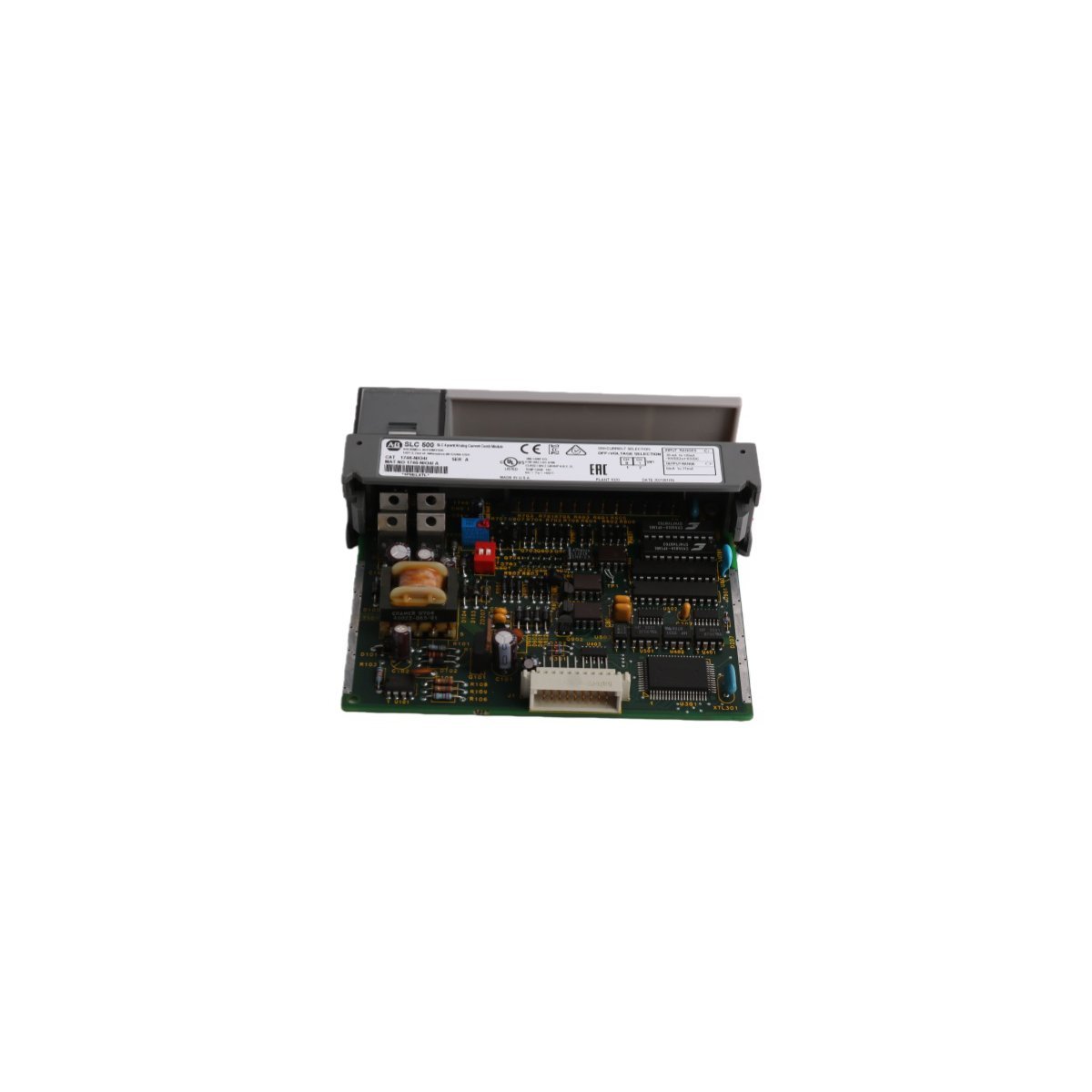

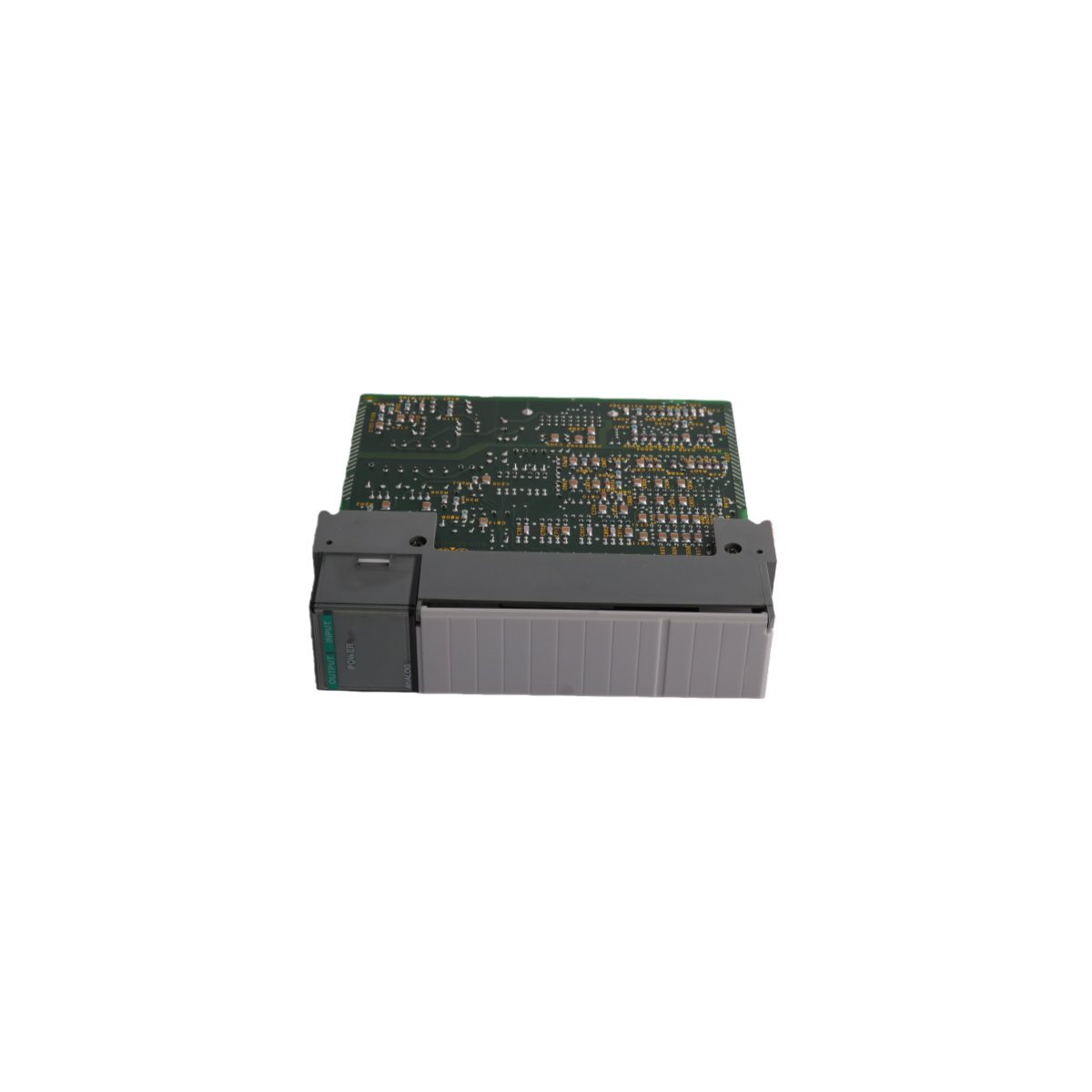

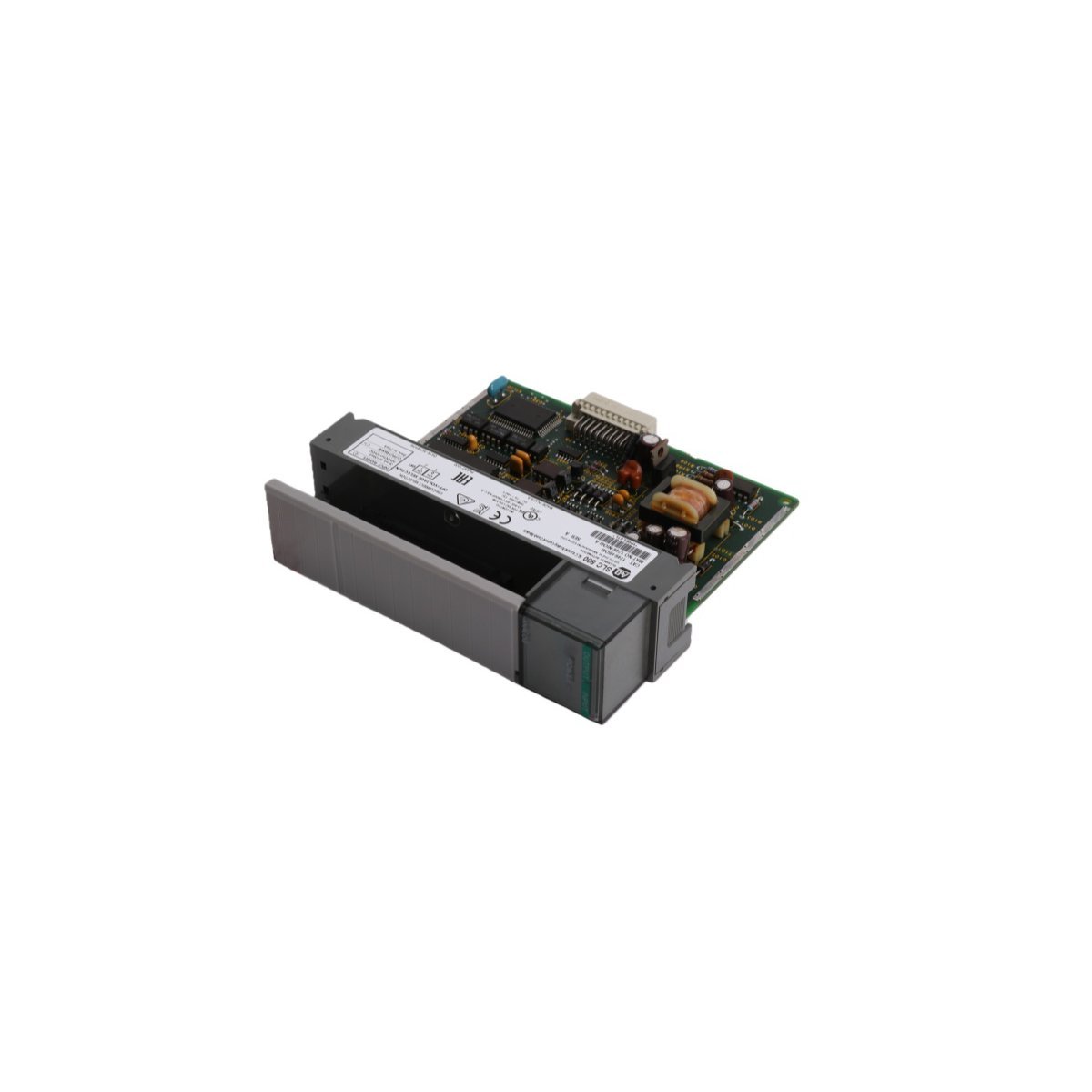

The Allen-Bradley 1746-NIO4I is a high-resolution combination analog module designed for the SLC 500 platform, featuring two universal inputs and two dedicated current outputs. This single-slot solution provides precise signal acquisition and actuator control for complex process loops.

Integrated Analog Control in a Single-Slot Design

The Allen-Bradley 1746-NIO4I significantly optimizes control cabinet space by consolidating input and output functions into a single SLC 500 module. This combination unit houses two high-resolution input channels and two sourcing current outputs, allowing engineers to manage a complete control loop with one hardware component. The module interfaces directly with the SLC backplane, translating physical world variables into digital data for the processor. Because it handles both sensing and command delivery, the 1746-NIO4I reduces the total module count required for applications like temperature regulation, pressure monitoring, and flow control.

Versatile Signal Configuration and Precision

Each input on the 1746-NIO4I offers independent software configuration, enabling the module to bridge diverse field devices without hardware modifications. Users can set inputs to accept either $\pm10$V DC voltage signals or 0–20 mA current loops. Meanwhile, the dual output channels provide a stabilized 4–20 mA signal, ideal for driving proportional valves, dampers, and variable speed drives. The module employs advanced noise rejection filters and electrical isolation to maintain high-fidelity signal transmission. Consequently, the 1746-NIO4I delivers stable performance in heavy industrial environments where electromagnetic interference often degrades signal accuracy.

Streamlined System Integration and Maintenance

Rockwell Automation designed the 1746-NIO4I for effortless deployment within the RSLogix programming environment. The software provides intuitive configuration screens where technicians can define scaling parameters and diagnostic alerts without manual calibration. The module draws its operating power from both the 5V and 24V DC backplane rails, ensuring a reliable power supply through the chassis power supply unit. Furthermore, the removable terminal block allows for quick module replacement without disconnecting field wiring, which drastically reduces potential downtime during maintenance cycles. Its robust American-made construction ensures long-term reliability in process automation and machinery control sectors.

Key Technical Characteristics

• High-Resolution Combination: Features 2 analog inputs and 2 current-only analog outputs.
• Universal Input Selection: Supports voltage or current inputs via software configuration.
• Dedicated Current Outputs: Provides dual 4–20 mA sourcing outputs for process actuators.
• Space-Efficient Form Factor: Occupies only one slot in any 1746 SLC modular chassis.
• Enhanced Signal Integrity: Built-in isolation protects backplane logic from field-side electrical noise.
• Real-Time Diagnostics: LED indicators provide immediate visual feedback on module status and power.

Technical Specifications
