Brief Product Description

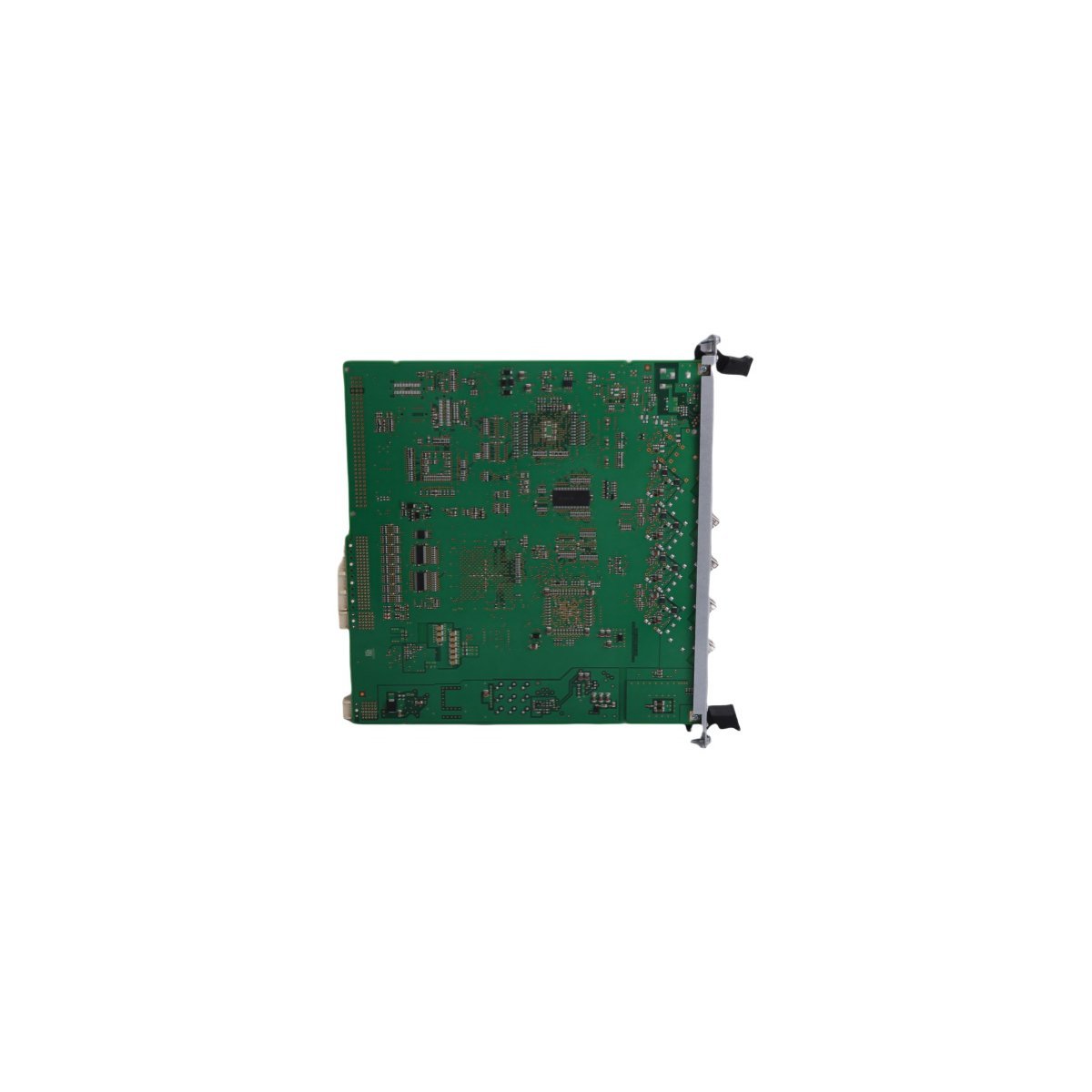

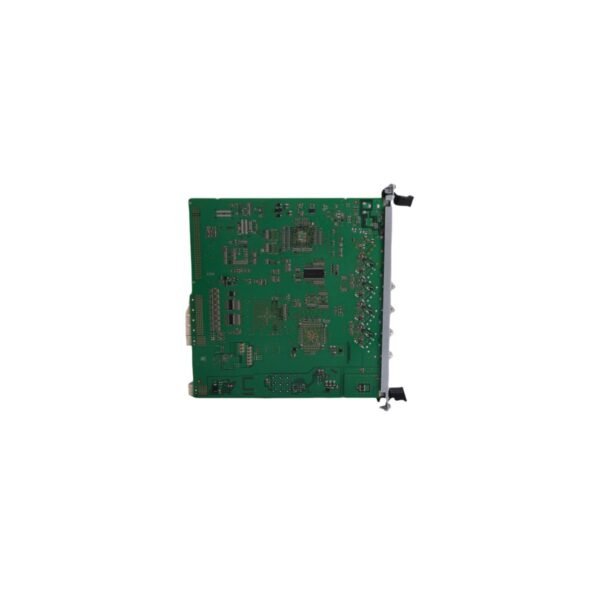

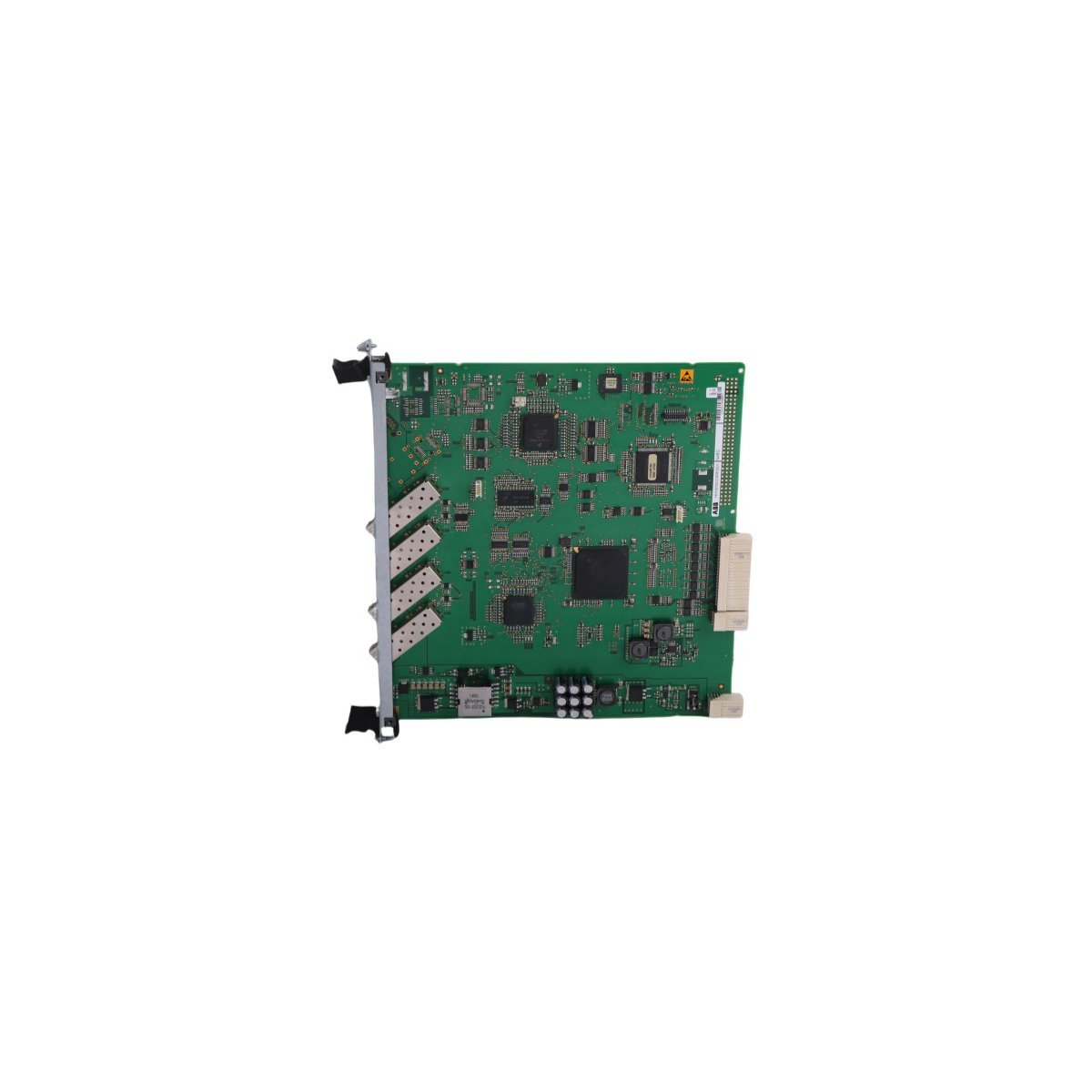

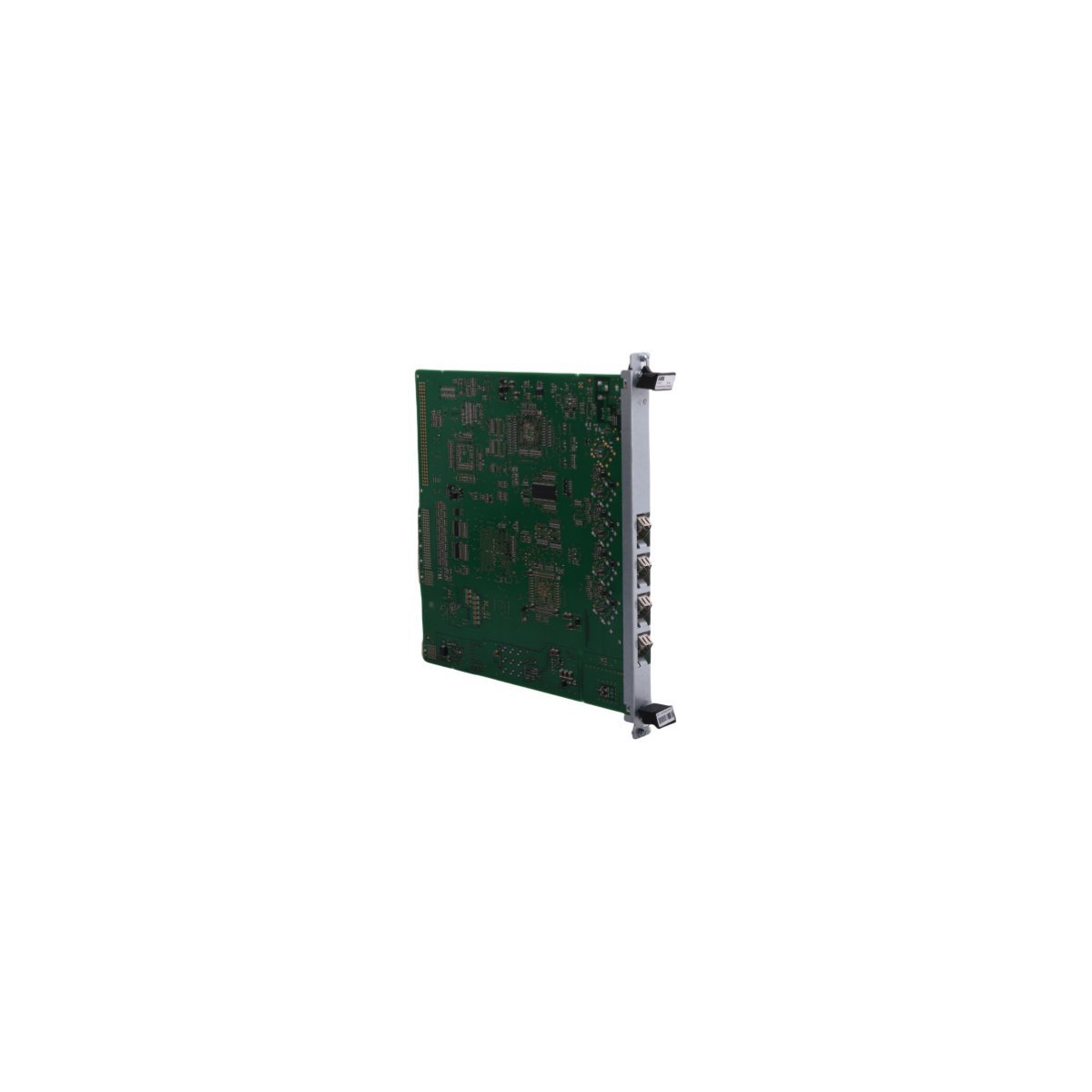

The ABB 1KHW002238R0001 (N4BG) / 1KHW002237R0001 (OPIC1 R1A) is a specialized power supply and interface PCB designed for precision bay control systems. This multi-layered circuit board regulates power distribution and facilitates high-speed data logic within distributed control system (DCS) architectures.

Precision Power Management and Signal Integration

The 1KHW002238R0001 N4BG serves as a foundational power supply interface within ABB’s high-voltage bay control infrastructure. By integrating the OPIC1 R1A (1KHW002237R0001) hardware, this board manages the complex task of distributing regulated power to sensitive microprocessor-based protection components. It utilizes a high-speed processing architecture to synchronize internal logic with external control commands, ensuring that substation automation remains responsive. Consequently, this synergy between power regulation and signal processing allows for superior accuracy in machinery and grid monitoring.

Optimized Resilience for Industrial Environments

ABB engineered this PCB assembly to maintain peak performance while operating in the presence of significant electromagnetic noise and high thermal loads. The board features industrial-grade protective coatings and robust circuitry that prevent electrical drift, which is essential for maintaining the integrity of 24/7 industrial processes. Furthermore, the compact 26.1 cm footprint enables maintenance teams to install the module in high-density rack configurations without compromising airflow or thermal management. This focus on physical and electrical durability directly translates to a lower total cost of ownership through extended service life.

Safety Protocols and Network Connectivity

Safety and connectivity drive the design of the OPIC1 R1A module. The board incorporates active hardware protections against electrical overloads and short circuits, effectively shielding both the personnel and the connected secondary equipment. In addition to its safety features, the module provides extensive communication options to ensure seamless interoperability with other DCS components and Ethernet routers. By facilitating rapid data exchange and transparent system diagnostics, the 1KHW002238R0001 helps operators identify irregularities early, preventing costly downtime and enhancing overall plant safety.

Key Technical Characteristics

• Integrated Power Regulation: Combines the 1KHW002238R0001 and 1KHW002237R0001 components for consolidated power management.
• High-Speed Processing: Features an onboard processor capable of handling rapid logic execution for bay control.
• Enhanced Data Integrity: Utilizes multi-layer shielding to mitigate EMI and signal cross-talk in substation environments.
• Modular Integration: Supports flexible system expansion within ABB Advant or similar DCS architectures.
• Comprehensive Safety Circuitry: Built-in surge and overload protection prevents damage to upstream control hardware.
• Professional Grade PCB: Constructed with high-frequency laminates for stable performance across broad temperature ranges.
