Description

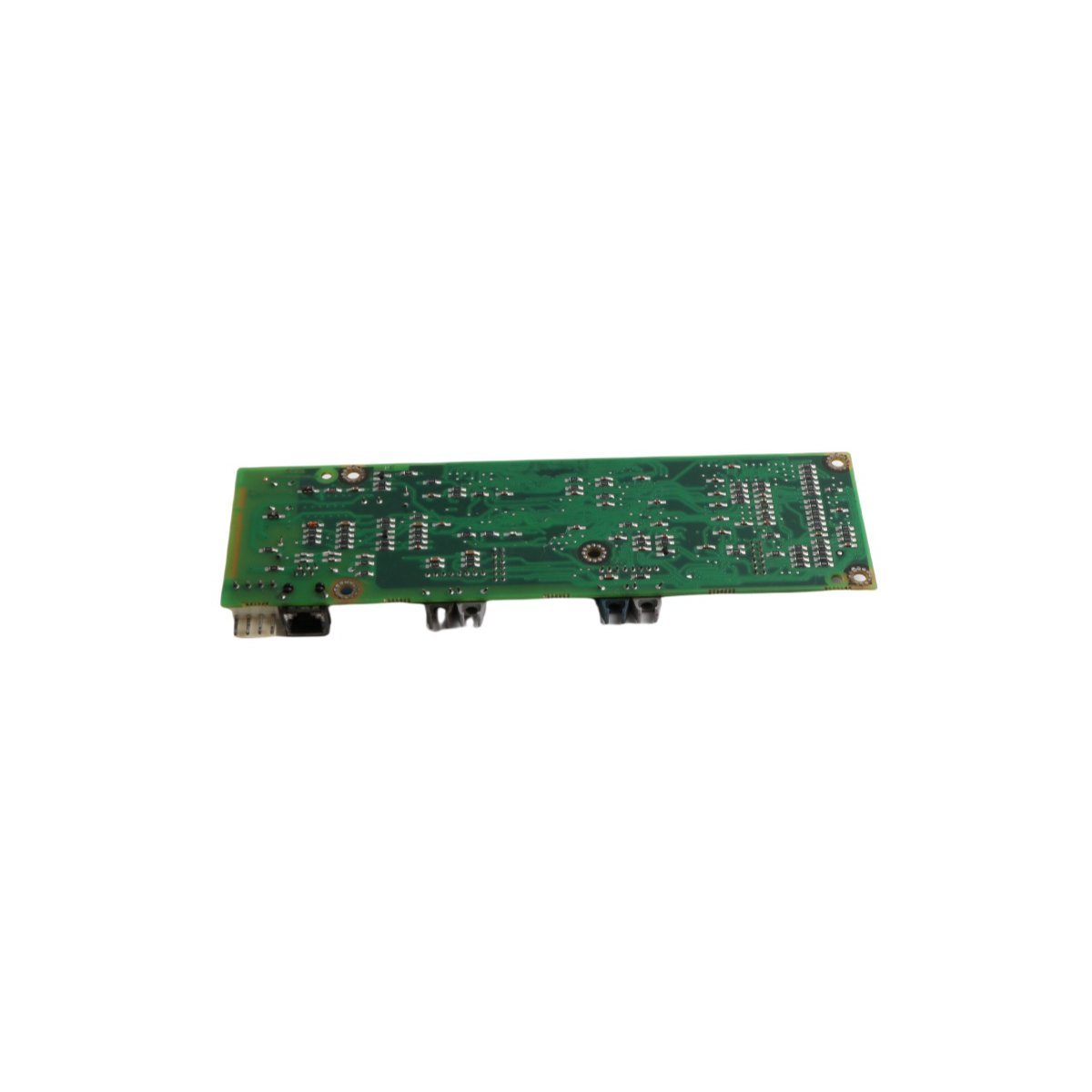

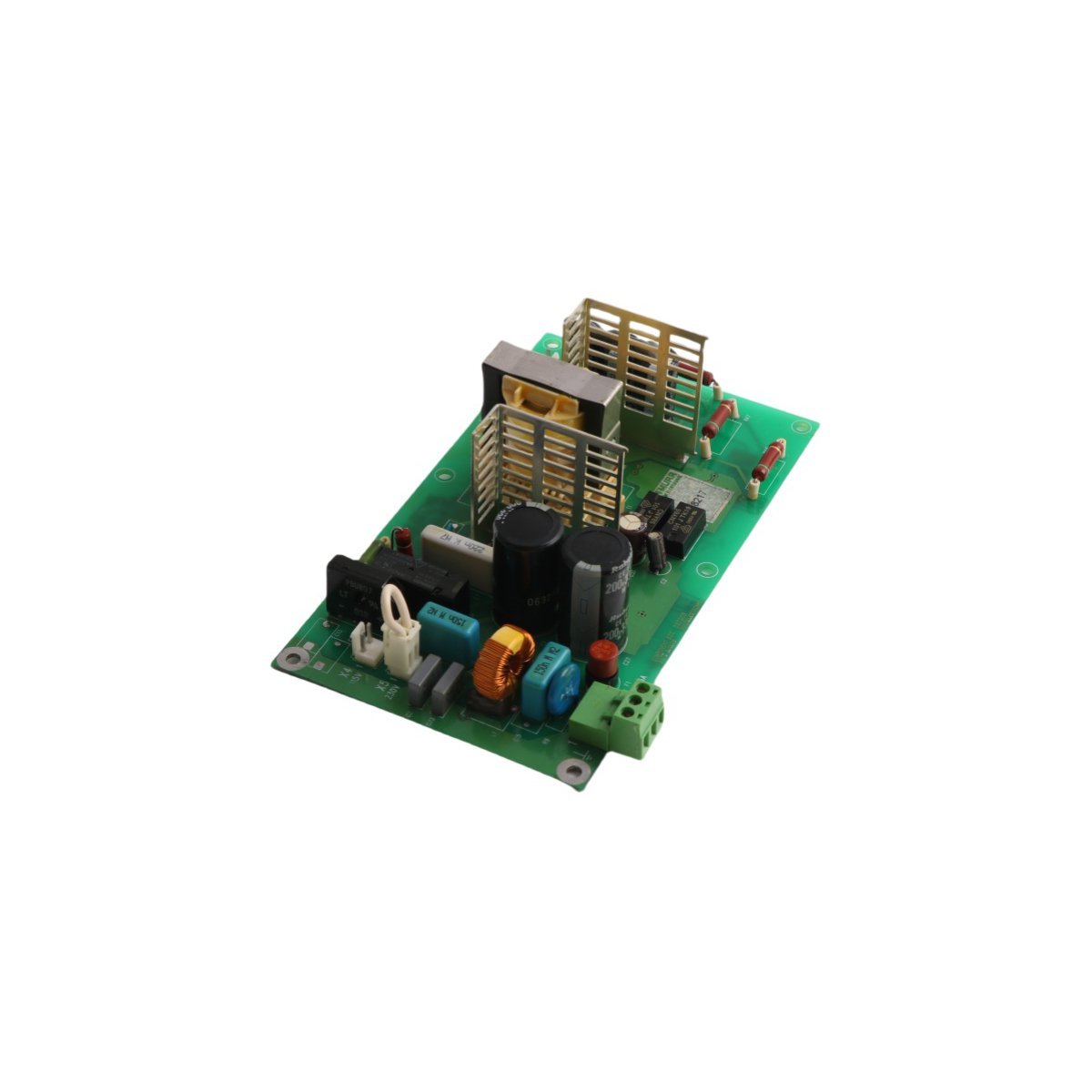

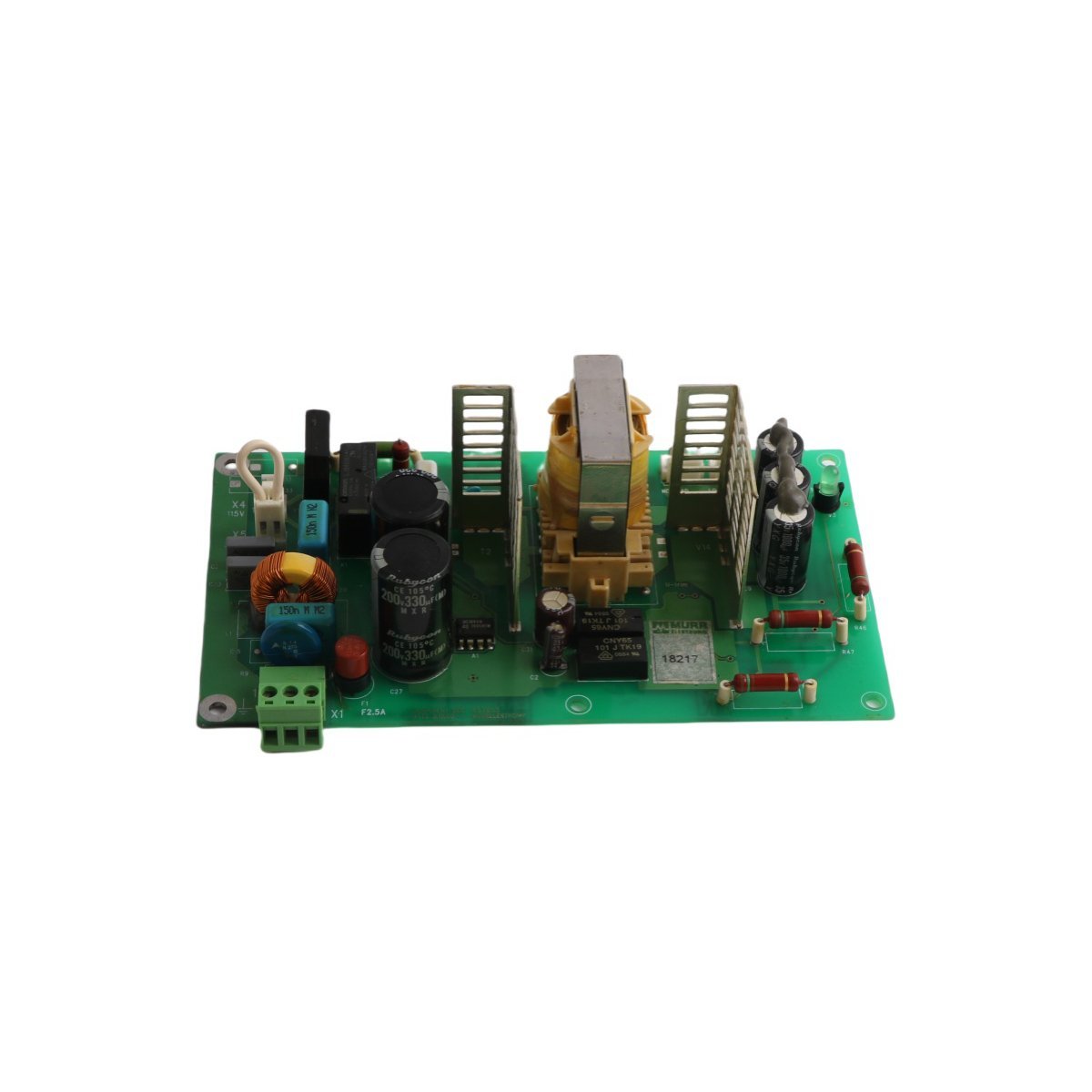

The ABB NGPS-11 serves as a specialized power supply unit for the ACS 600 drive series. This module converts incoming energy to stable DC power for internal control circuits. Engineers designed this unit with a 92% efficiency rating to minimize energy loss. Consequently, the module generates very little waste heat during standard operation. This thermal efficiency directly supports the longevity of neighboring electronic components. It remains a critical part for maintaining consistent drive performance in heavy industries.

Advanced Thermal Management and Installation

Proper cooling remains vital for the NGPS-11 when installed in industrial control cabinets. The module performs reliably across a temperature range of -25°C to +70°C. In standard IP22 enclosures, natural convection typically provides sufficient cooling for the unit. However, high-protection IP54 cabinets may require forced air or heat exchangers. Installers must ensure that hot exhaust air does not recirculate into the intake. This careful airflow management prevents localized overheating and ensures continuous system availability.

Technical Specifications

System Reliability and Protection Features

Redundancy and safety define the electrical architecture of the NGPS-11 power module. The hardware features a dual-redundant input design to prevent system failure. If one power source drops, the secondary input maintains uninterrupted operation. Furthermore, integrated short-circuit protection shields the module from downstream electrical faults. This robust protection makes it ideal for dense panel layouts with high component concentration. The compact form factor allows for easy DIN-rail mounting in restricted spaces.

Specialized Drive and DCS Applications

This power module excels in demanding environments like power plants and factories. It provides the precise 24V DC output required for sophisticated control cards. Moreover, the NGPS-11 adapts to various cooling strategies including liquid-cooled systems. Its rugged construction withstands the vibrations and electrical noise common in drive suites. By stabilizing control power, the module prevents logic errors and unexpected drive trips. It serves as a foundational element for reliable industrial automation infrastructure.
