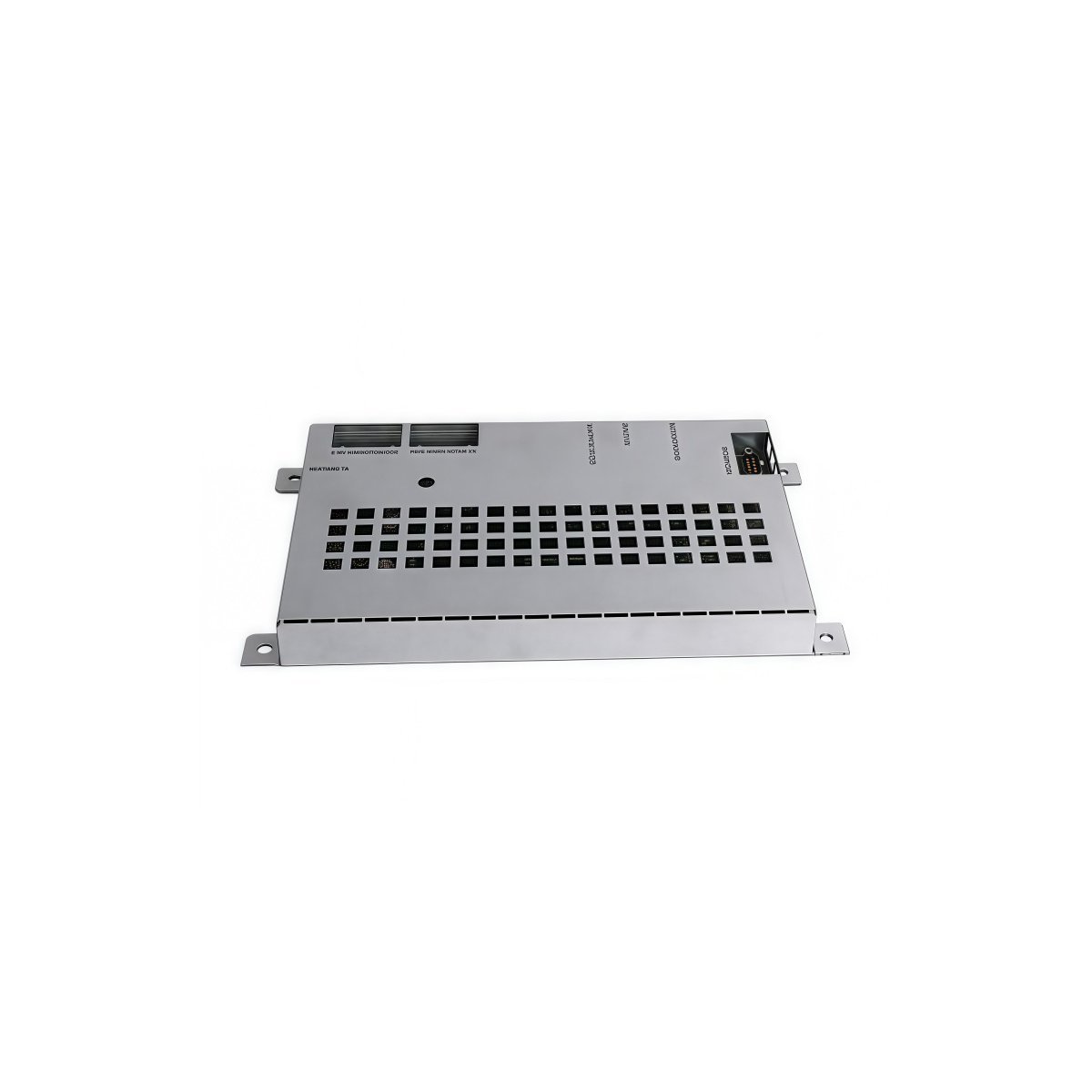

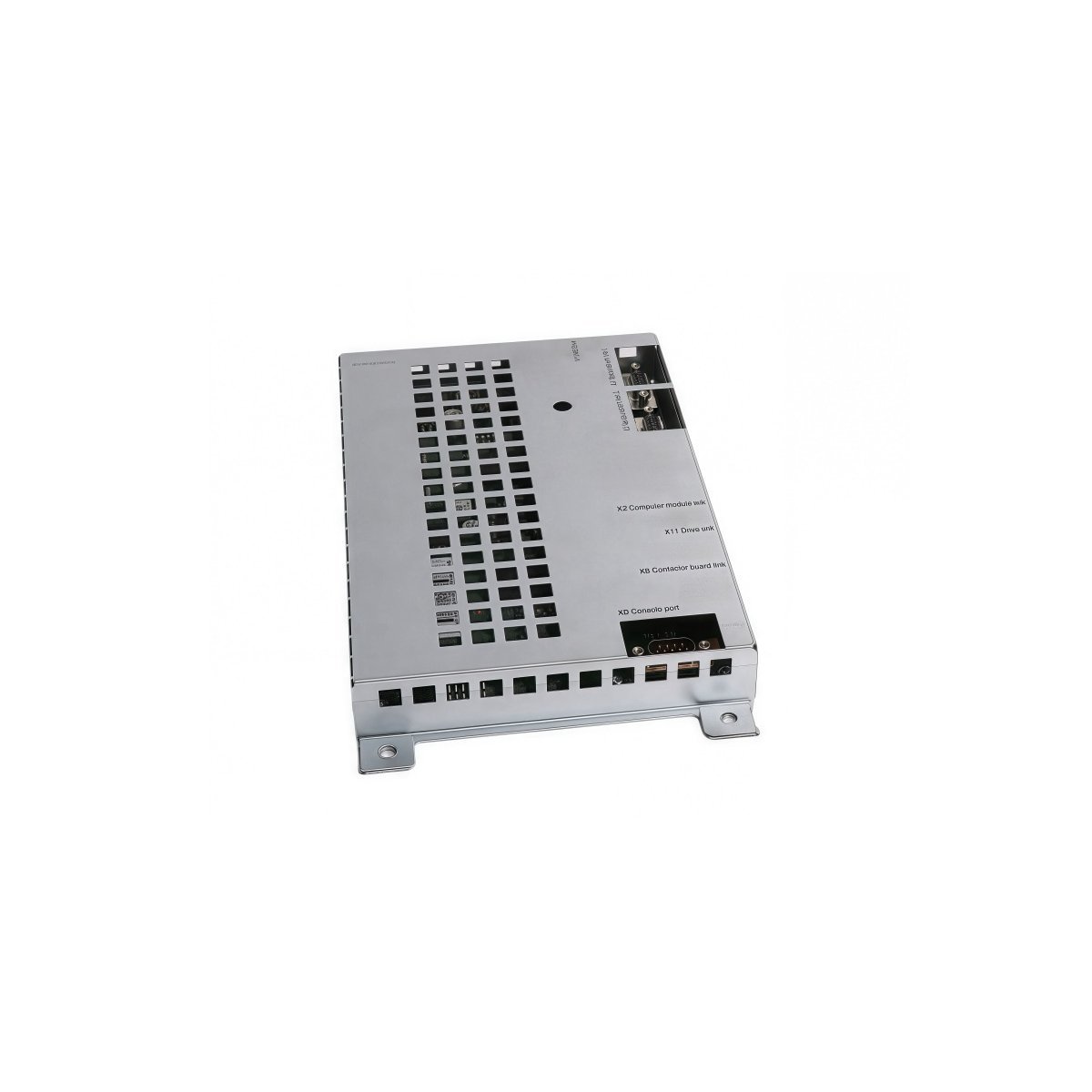

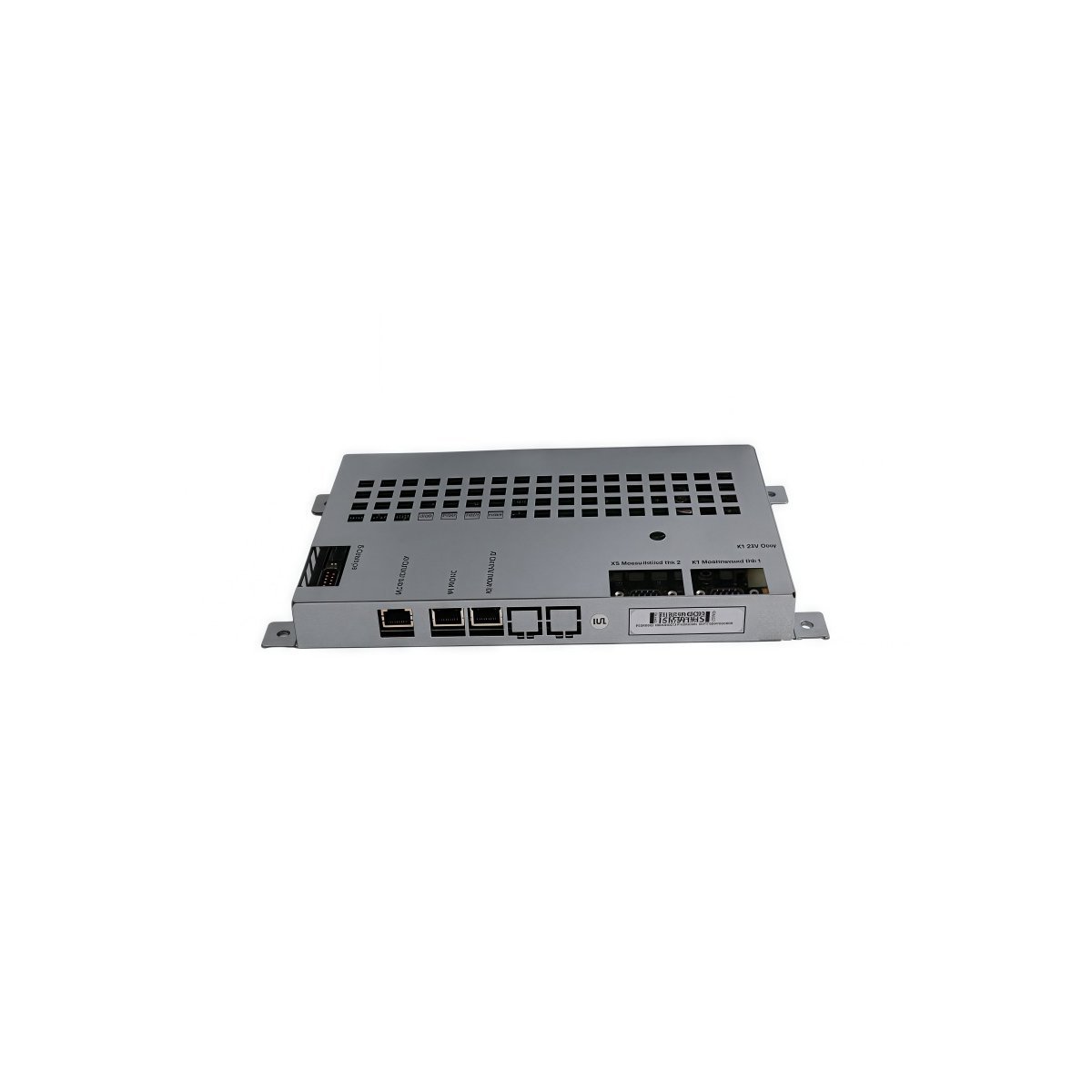

The ABB DSQC668 (3HAC029157-001) is a specialized Axis Computer designed for the IRC5 robot controller, managing precision motion and multi-axis synchronization. It features a rugged aluminum housing for superior thermal management and durability in heavy-duty industrial automation environments.

Core Processing for IRC5 Robotic Motion

The ABB DSQC668, identified by part number 3HAC029157-001, serves as the primary computational engine for axis control within the IRC5 robot controller framework. This module processes complex motion algorithms and coordinate transformations required for high-precision robotic movements. By offloading these intensive calculations from the main CPU, the DSQC668 ensures deterministic response times and smooth path planning for the robot arm. This dedicated processing capability allows the IRC5 system to maintain tight tolerances and high-speed operation across multiple degrees of freedom simultaneously.

Rugged Thermal Management and Physical Protection

Industrial environments often subject electronic components to high temperatures and physical stress. Consequently, ABB engineers the DSQC668 with a high-grade aluminum alloy housing. This material choice provides exceptional mechanical protection against vibration and wear while serving as a highly effective heat sink. Because the module manages intense data processing, the aluminum enclosure facilitates rapid heat dissipation, preventing thermal throttling and ensuring long-term hardware reliability. This robust physical design makes the unit particularly suitable for demanding sectors such as automotive welding, foundries, and heavy-material handling.

System Integration and Replacement Standards

As an integral part of the IRC5 spare parts ecosystem, the DSQC668 integrates seamlessly with other system components, including the main computer, drive units, and power supplies. It communicates through specialized internal buses to synchronize the movements of the manipulator with peripheral equipment. Although this specific model was officially discontinued on December 31, 2018, it remains a critical legacy component for maintaining the existing global fleet of IRC5-controlled robots. The module supports quick-swap installation, which allows maintenance teams to restore robotic functionality with minimal production downtime.

Key Technical Characteristics

• Precision Axis Management: Executes high-speed motion control and multi-axis synchronization for IRC5 manipulators.
• Aluminum Alloy Construction: Enhances structural integrity and provides superior thermal dissipation for internal electronics.
• Seamless IRC5 Compatibility: Designed for native operation with DSQC series power supplies and drive units.
• Industrial Resilience: Resistant to corrosion, heat, and electromagnetic interference typical of manufacturing floors.
• Optimized Form Factor: Compact dimensions (26.8×14.8×2.8cm) allow for streamlined installation within the controller cabinet.
• Verified Performance: Built to rigorous Swedish engineering standards for use in mission-critical automation.
