Description

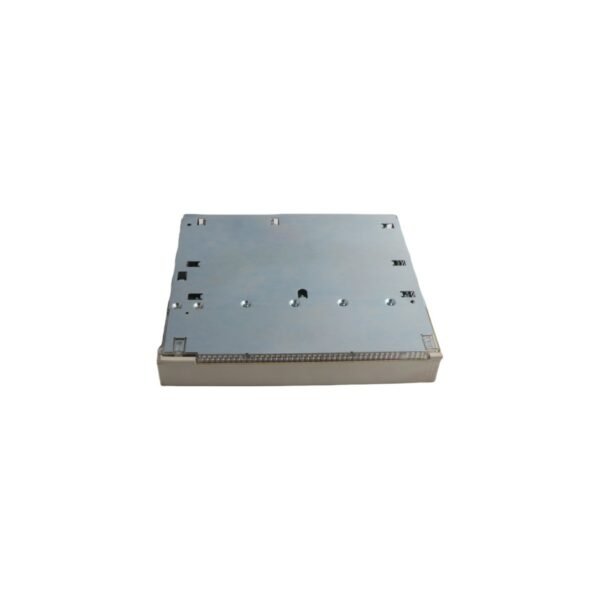

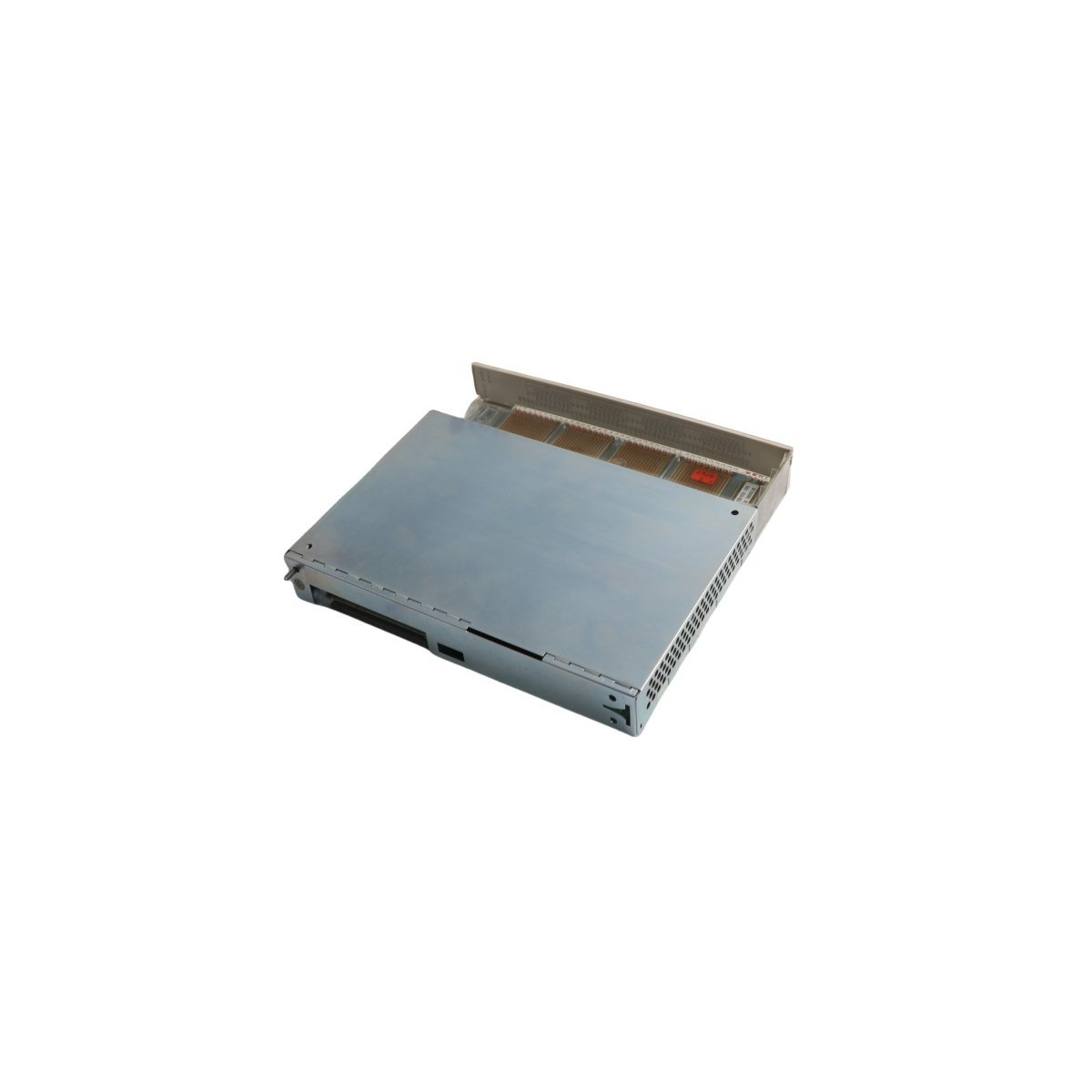

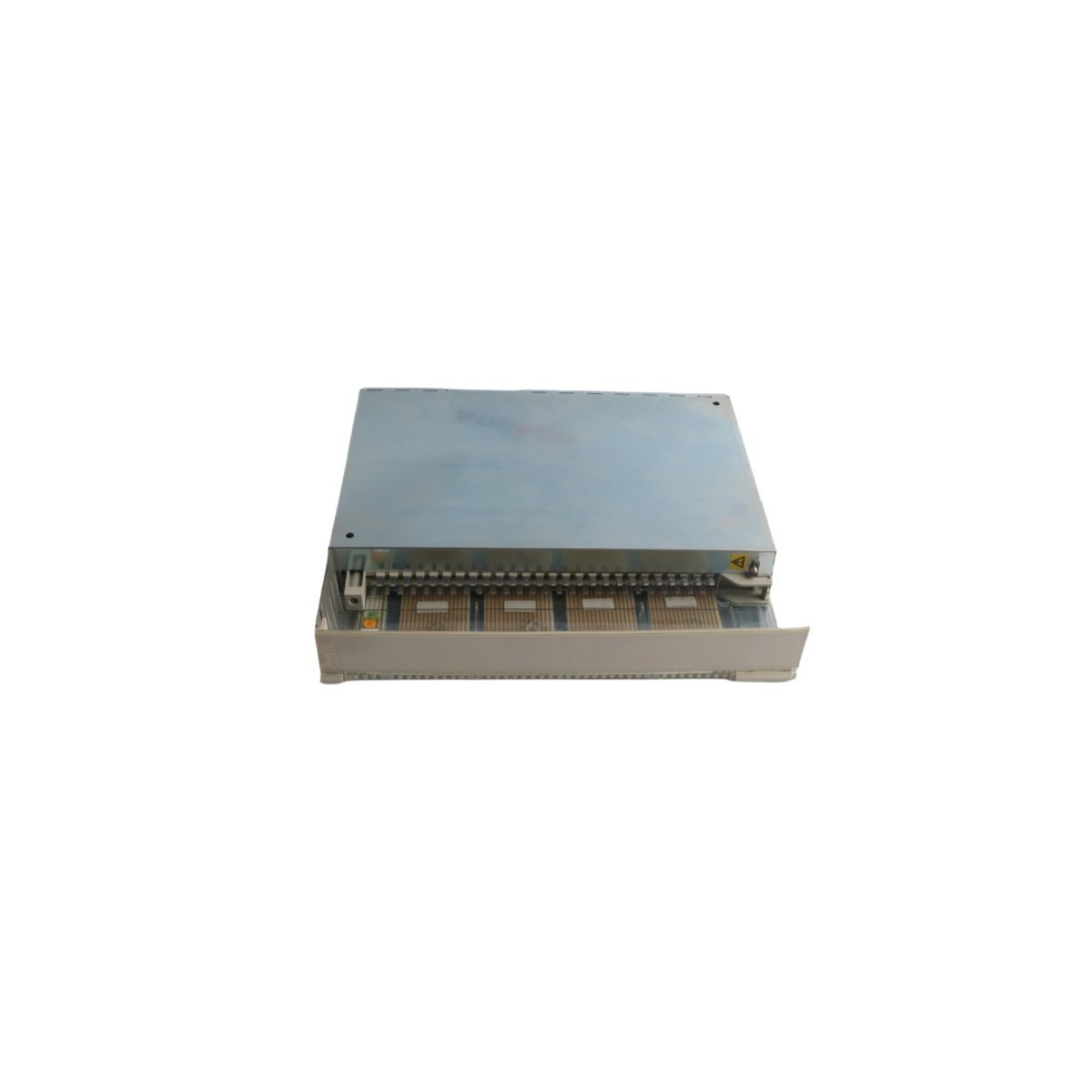

The ABB DO610 (3BHT300006R1) serves as a robust digital interface within the S600 I/O series. This module provides 32 isolated 24V DC output channels for industrial automation control. It converts internal logic signals into electrical power to drive field actuators.

Operators typically use the DO610 to manage solenoid valves, motor starters, and indicating lamps. The hardware utilizes high-performance switching circuitry to ensure operational precision. Consequently, the module maintains superior signal integrity in high-density DCS environments.

Technical Specification Overview

Operational Reliability and Durability

ABB manufactures the DO610 using a durable aluminum alloy frame for enhanced protection. This design provides excellent thermal dissipation for consistent performance during heavy duty cycles. The module functions reliably across temperatures ranging from -20°C to +60°C.

Internal diagnostics monitor the status of each output channel in real time. Because the unit supports Modbus RTU communication, it integrates easily with existing network protocols. This compatibility streamlines process monitoring and simplifies maintenance routines.

Installation and System Integration

The panel-mount design allows for straightforward installation within standard industrial control cabinets. Compact dimensions help engineers maximize available space in high-density racks. Furthermore, the modular architecture permits quick hardware swaps to reduce system downtime.

This module meets strict international standards for electromagnetic compatibility and safety. It provides a scalable solution for complex plant automation requirements. Reliable Swedish engineering ensures a long service life in demanding manufacturing plants.
