Description

Brief Product Description

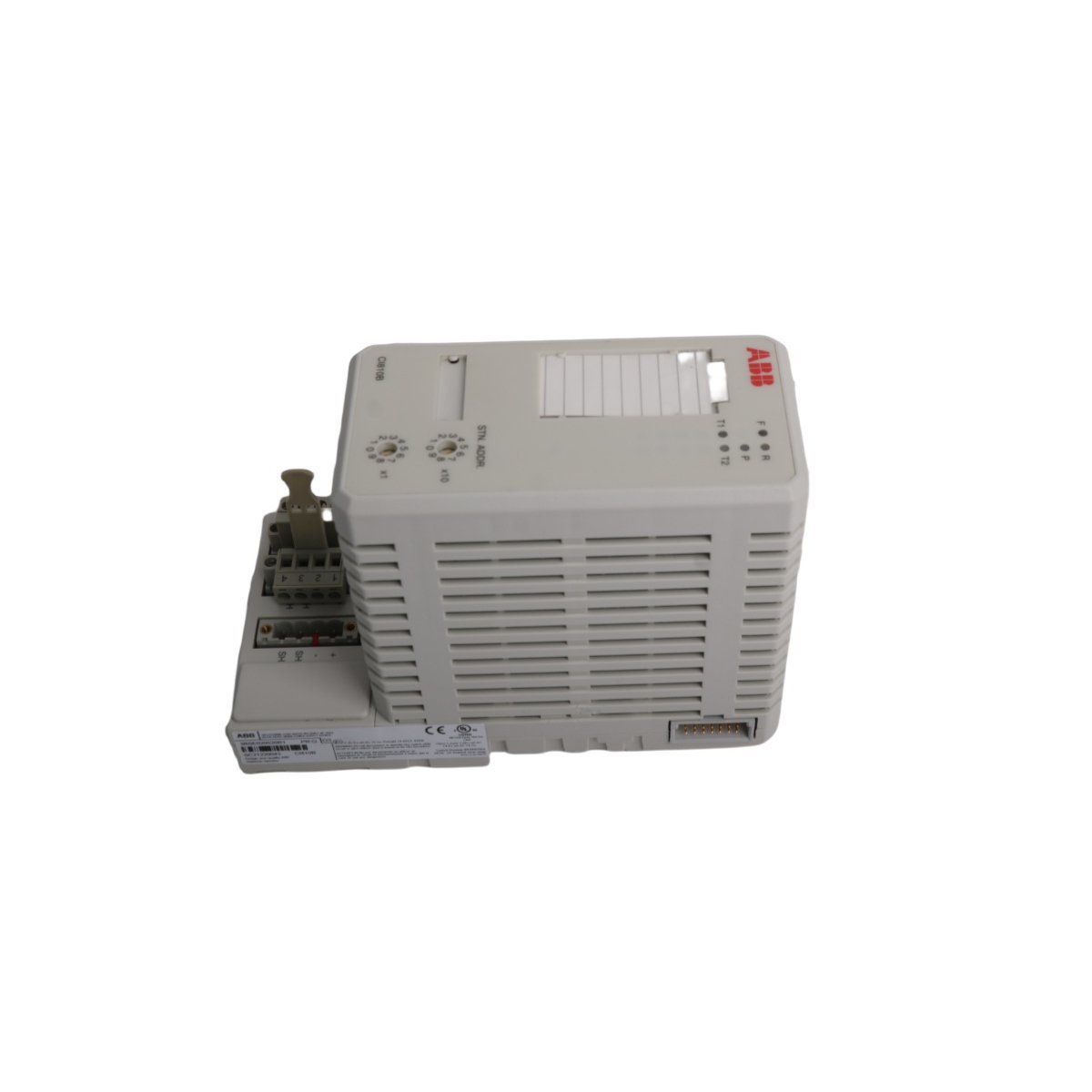

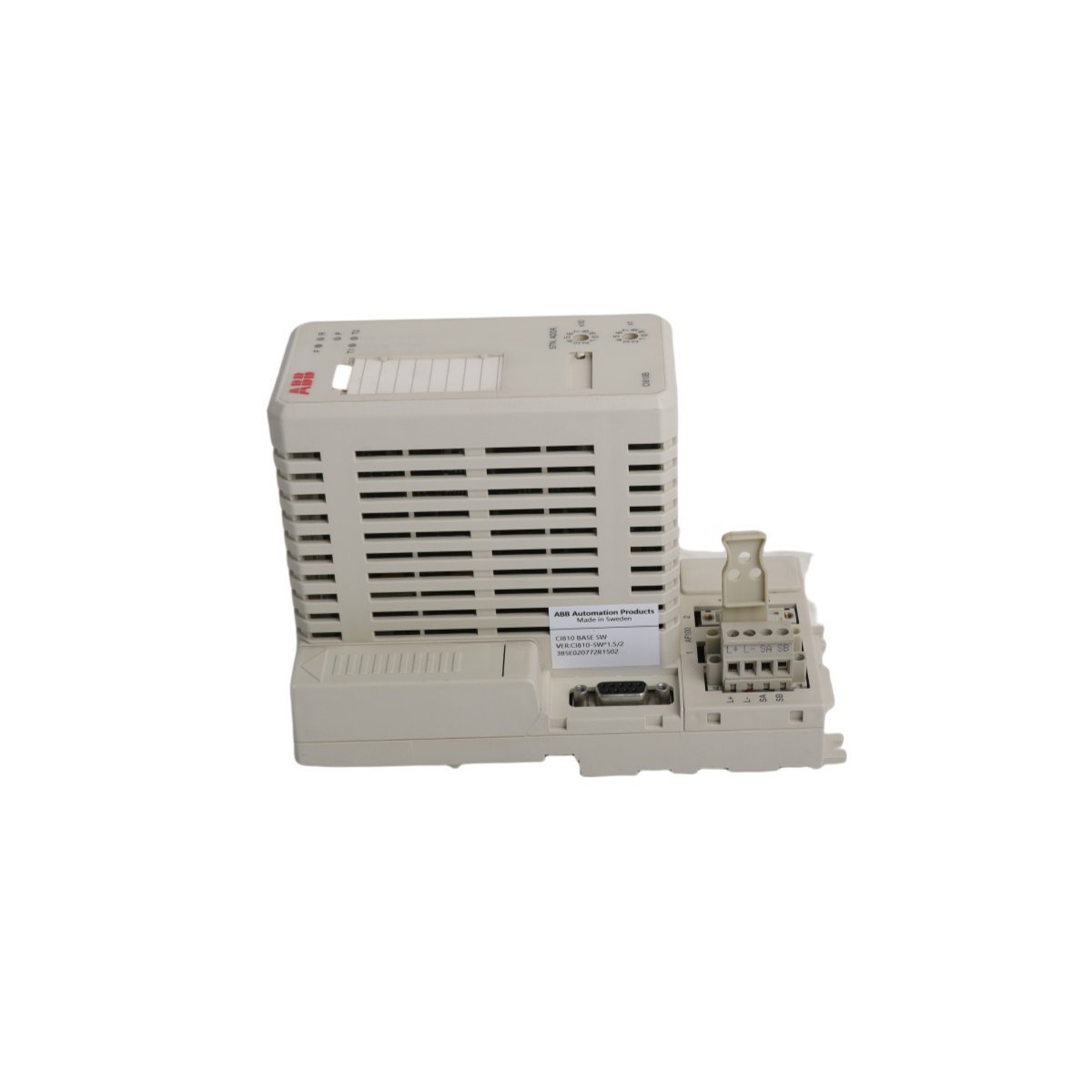

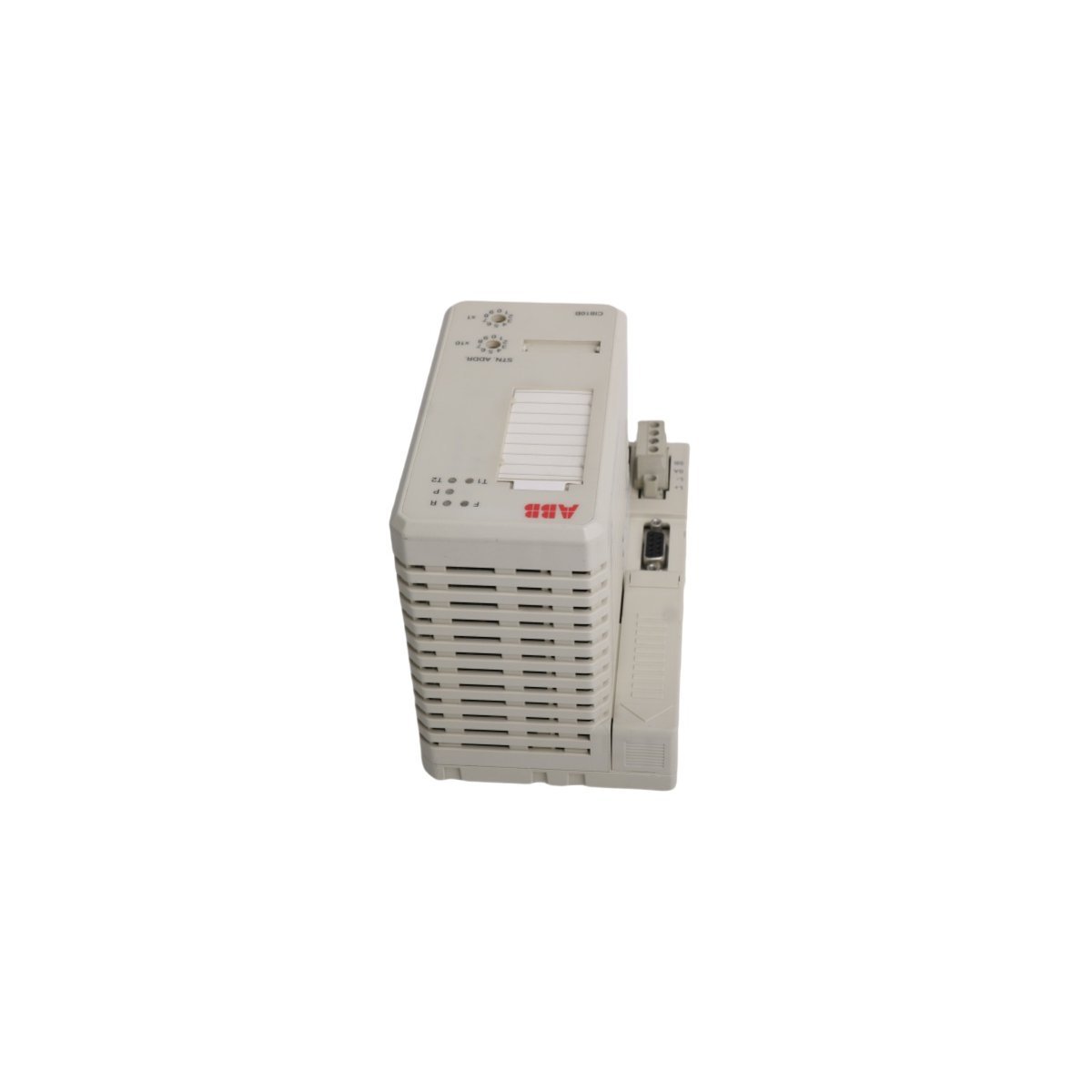

The ABB CI810B 3BSE020520R1 is a high-speed PROFIBUS DP communication interface designed for the S800 I/O system and System 800xA architecture. It facilitates transparent data exchange between the controller backplane and distributed field devices, supporting transmission speeds up to 12 Mbps for mission-critical process automation.

Product Description

High-Speed Data Integration for System 800xA

The ABB CI810B (3BSE020520R1) functions as a high-performance gateway within the ABB System 800xA environment, specifically engineered to manage PROFIBUS DP connectivity. This module converts internal system protocols into standard fieldbus signals, allowing the central controller to supervise distributed S800 I/O stations and third-party intelligent devices. By supporting transmission rates up to 12 Mbps, the CI810B ensures that time-sensitive process variables reach the control logic without latency. Consequently, this interface module provides the backbone for high-speed digital communication in complex industrial networks.

Enhanced System Reliability and Redundancy

Engineers prioritize the CI810B for applications requiring maximum uptime and fault tolerance. The module supports redundant configurations, which allows for secondary interface units to take over communication duties instantaneously if the primary link fails. This capability proves essential in continuous manufacturing processes and batch operations where data loss leads to production stops. Furthermore, the CI810B integrates seamlessly with ABB’s Aspect Object technology. This integration ensures that every field instrument appears as a functional object within the DCS, providing operators with unified access to diagnostics, maintenance records, and real-time performance data.

Industrial Durability and Simplified Installation

The 3BSE020520R1 features a compact, modular design that snaps directly onto standard DIN rails, significantly reducing cabinet space requirements and installation time. ABB manufactured this unit in Sweden using high-grade components to ensure long-term stability in demanding industrial climates. Additionally, the module includes comprehensive LED status indicators for power, run, and error states, which facilitates rapid onsite troubleshooting. By bridging legacy PROFIBUS assets with modern 800xA control strategies, the CI810B helps facilities achieve digital transformation while maintaining the integrity of their existing field infrastructure.

Technical Specifications
