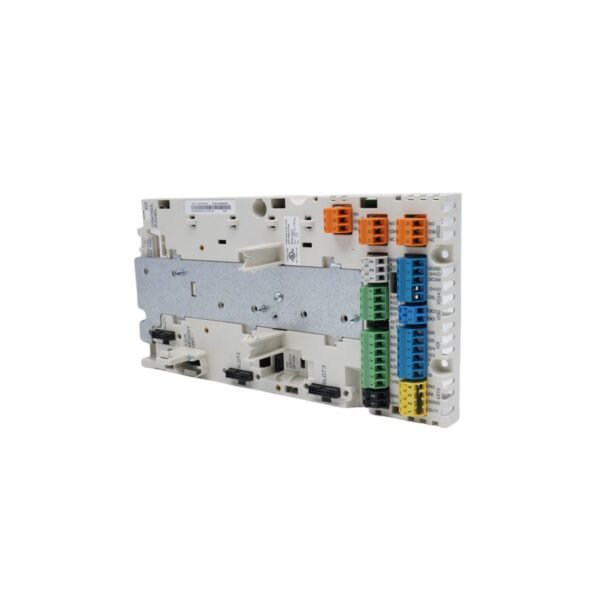

ABB ACS880 Series Control Unit ZCU-12 PN 3AXD50000005751
The ZCU-12 3AXD50000005751 is a specialized control module for the ABB ACS880-11 drive system. It provides the essential processing power for Direct Torque Control (DTC) and manages various I/O interfaces, ensuring precision regulation for induction, permanent magnet, and synchronous reluctance motors in demanding industrial environments.
Description
ABB ZCU-12 Drive Control Unit 3AXD50000005751
The ZCU-12 3AXD50000005751 is a high-performance processing hub designed to manage the intelligence and motor control logic of ABB ACS880 series industrial drives.
Technical Functionality
The ZCU-12 (Order Number: 3AXD50000005751) serves as the primary intelligence center for the ACS880-11 drive lineup. This unit executes complex control algorithms that allow for extreme precision in speed and torque management. Because it utilizes ABB’s proprietary Direct Torque Control (DTC) technology, the ZCU-12 enables the drive to respond to load changes with millisecond accuracy, which significantly improves overall process stability.
Furthermore, the ZCU-12 3AXD50000005751 manages all communication between the power plate and the user interfaces. It supports multiple expansion slots for fieldbus adapters, encoder feedback modules, and I/O extension modules. Consequently, this flexibility allows engineers to customize the drive’s behavior for specific heavy-duty applications such as cranes, extruders, or centrifugal pumps.
Key Technical Characteristics
- Universal Motor Support: Seamlessly controls AC induction motors, permanent magnet motors, and high-efficiency servomotors.
- Integrated Logic: Features built-in firmware capabilities for handling complex drive sequences and safety functions.
- Connectivity Options: Provides dedicated ports for the control panel, PC tools, and standard drive-to-drive links.
- Thermal Management: Designed with optimized heat dissipation to maintain logic integrity during high-load operations.
- Installation Efficiency: Features a standardized mounting footprint for rapid integration into the ACS880 chassis.
Product Specifications
| Specification | Details |
| Manufacturer | ABB |
| Model Number | ZCU-12 |
| Order Code | 3AXD50000005751 |
| Compatibility | ACS880-11 Drive Systems |
| Unit Weight | 0.58 kg |
| Dimensions | 12.0 x 27.2 x 8.5 cm |
| Country of Origin | Sweden |
Industrial Applications
The ZCU-12 control unit is primarily deployed where high dynamic performance is mandatory. Major application areas include:
- Automation and Robotics: Managing precision motion profiles for high-speed production lines.
- Heavy Manufacturing: Coordinating torque for metal processing and paper machines.
- Material Handling: Driving hoisting and travel movements in complex crane systems.
Additional information
| Weight | 0.58 kg |
|---|---|
| Country of Origin | Sweden |
| Dimension | 12, 27.2 x 8.5 x 13.9 cm |
