Description

Brief Product Description

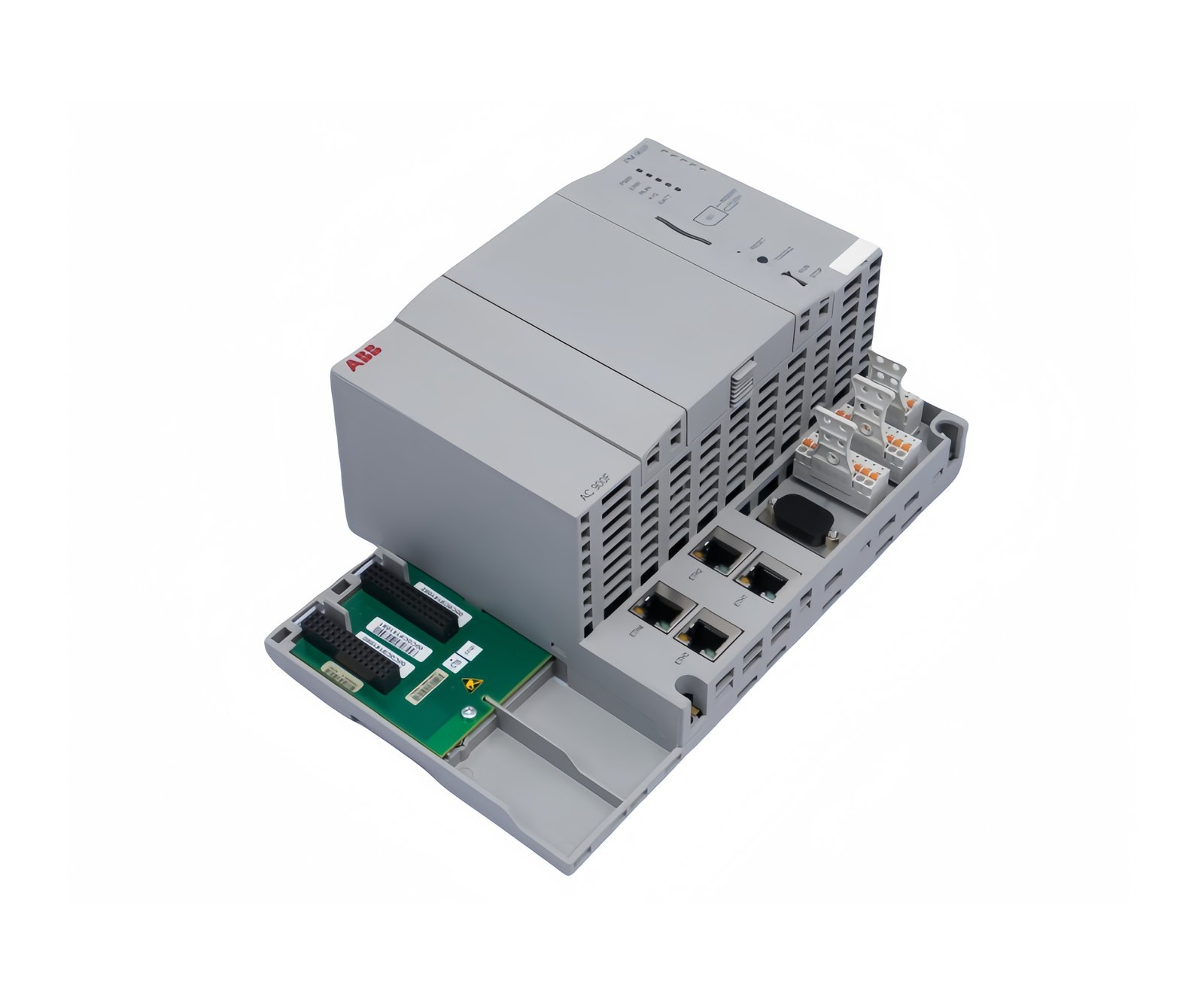

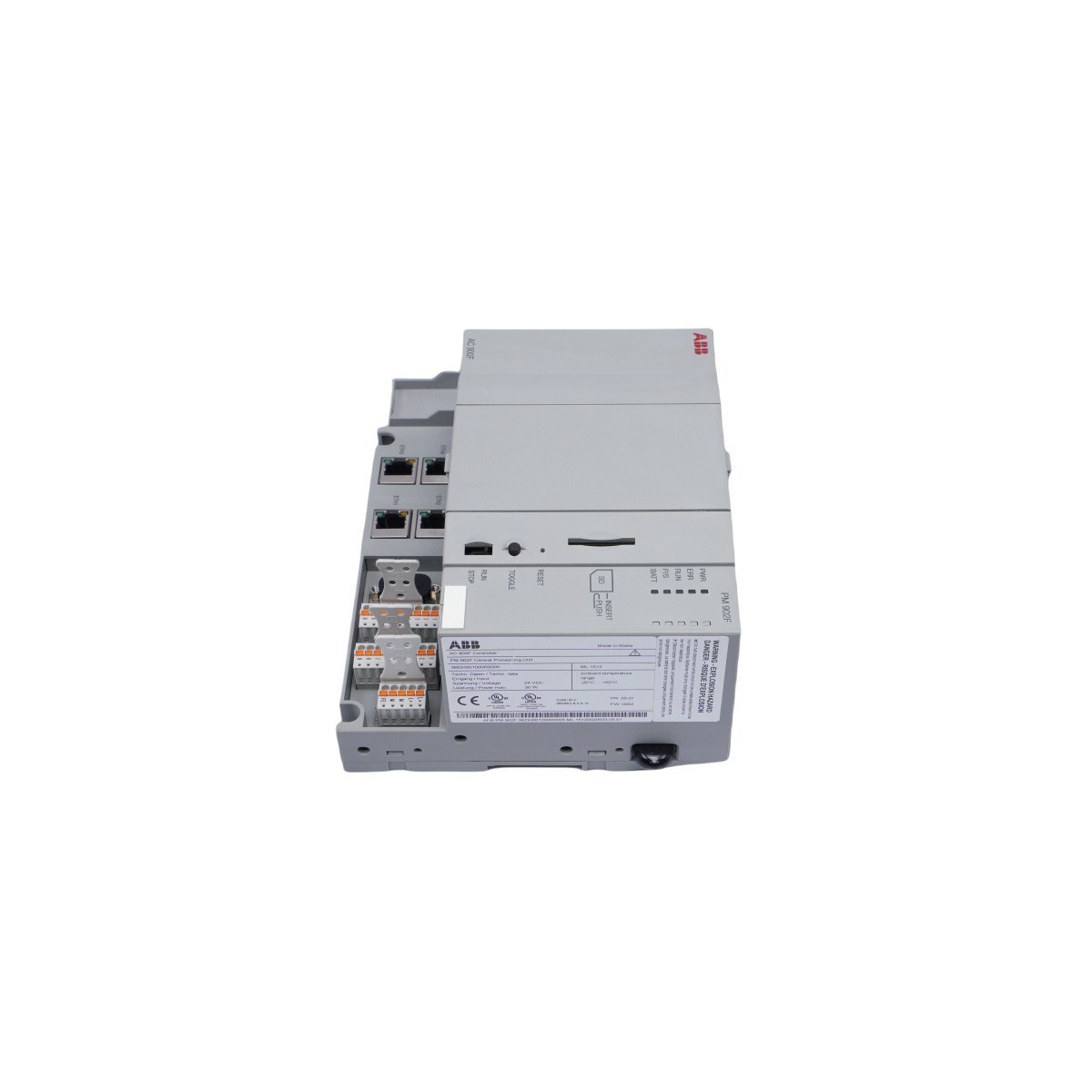

The ABB PM902F (3BDH001000R0001) serves as a high-performance central processing unit for the Freelance AC 900F controller range, managing up to 1,500 I/O points. This module combines an 800 MHz clock speed with robust memory buffering to provide deterministic control for complex Distributed Control System (DCS) applications.

Advanced Processing Architecture for Freelance Systems

The PM902F 3BDH001000R0001 functions as a medium-range base unit within the ABB Freelance AC 900F hardware ecosystem. This CPU module executes control logic with high precision, utilizing an 800 MHz clock frequency to handle demanding automation algorithms. To ensure data integrity during power fluctuations, the module integrates 8 MB of battery-buffered SRAM alongside 24 MB of main controller memory. This architecture allows the controller to manage substantial data loads while maintaining the fast cycle times required for modern process industries.

Connectivity and Industrial Integration

Network flexibility remains a primary advantage of the PM902F hardware. The unit features four integrated Ethernet interfaces, which support essential industrial protocols such as Modbus TCP and IEC 60870-5-104. Furthermore, the module includes two dedicated slots for Communication Interface (CI) modules, enabling engineers to customize the controller for specific fieldbus requirements. While the core unit manages the primary processing, these expansion slots ensure the system can grow alongside evolving plant infrastructure. Moreover, the built-in SD card support facilitates easy firmware management and localized data storage.

Operational Safety and System Requirements

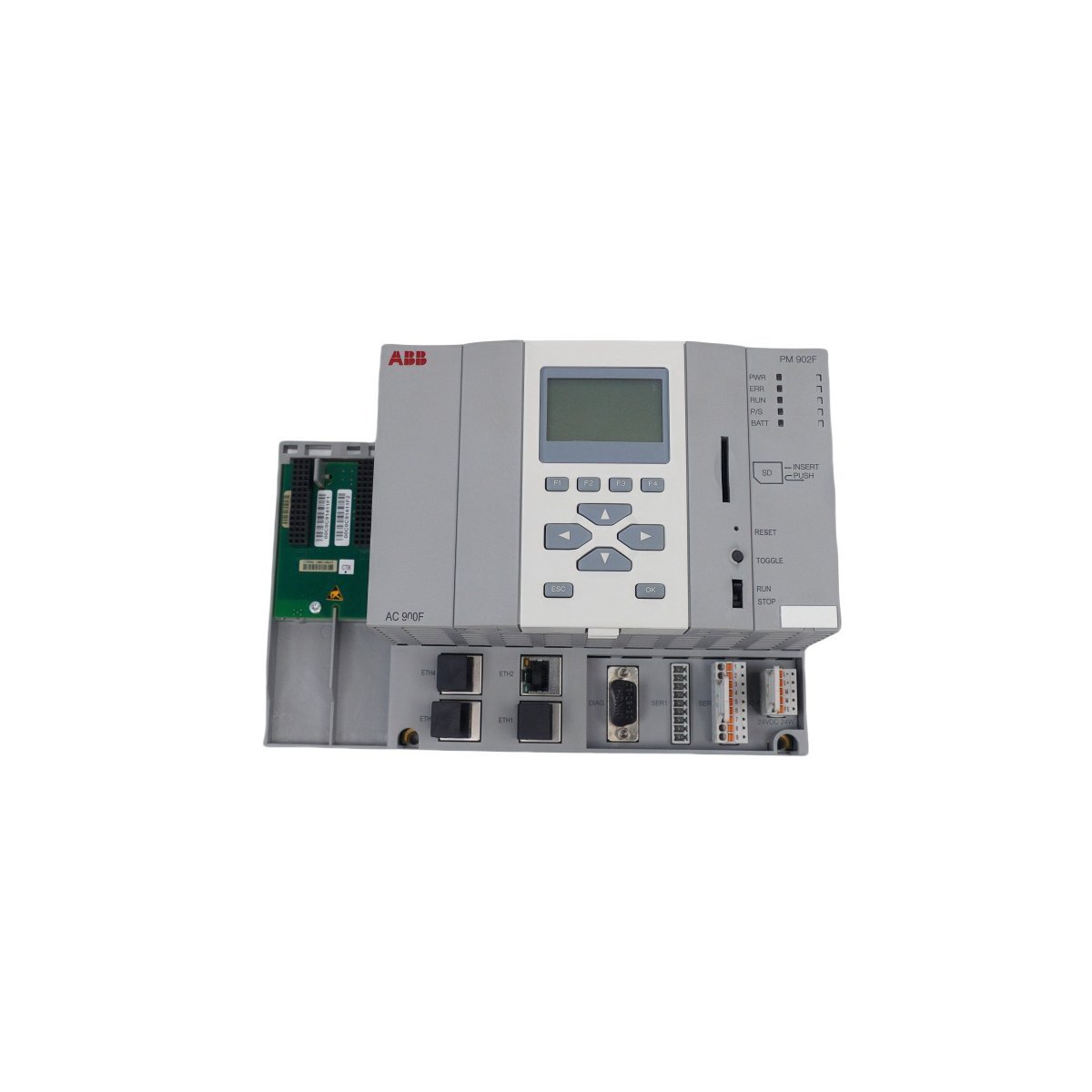

Safety and longevity define the PM902F design, which comes G3 compliant as standard to withstand corrosive atmospheric conditions. For enhanced physical security, the module supports an optional LCD unit that provides a hardware-level controller lock, preventing unauthorized logic changes. To maintain peak performance, the system requires a stable 24 V DC external power source and operates exclusively with Freelance software version 2013 or later. Although the module reached a legacy milestone in late 2018, it continues to provide a reliable migration path or replacement solution for existing AC 900F installations worldwide.

Technical Characteristics and Benefits

• Extended Memory Capacity: Features 24 MB of system RAM and 8 MB of battery-buffered SRAM for secure data retention.
• High-Density I/O Management: Supports the control of up to 1,500 I/O points from a single central module.
• Quad Ethernet Ports: Delivers superior networking capabilities with four onboard ports for redundant or segmented communications.
• Protocol Versatility: Native support for Modbus TCP and telecontrol protocols like IEC 60870-5-104.
• Harsh Environment Protection: Standard G3 conformal coating protects internal circuitry against chemical and moisture ingress.
• Modular Expandability: Includes two slots for adding serial or fieldbus communication interface modules.
