Description

Brief Product Description

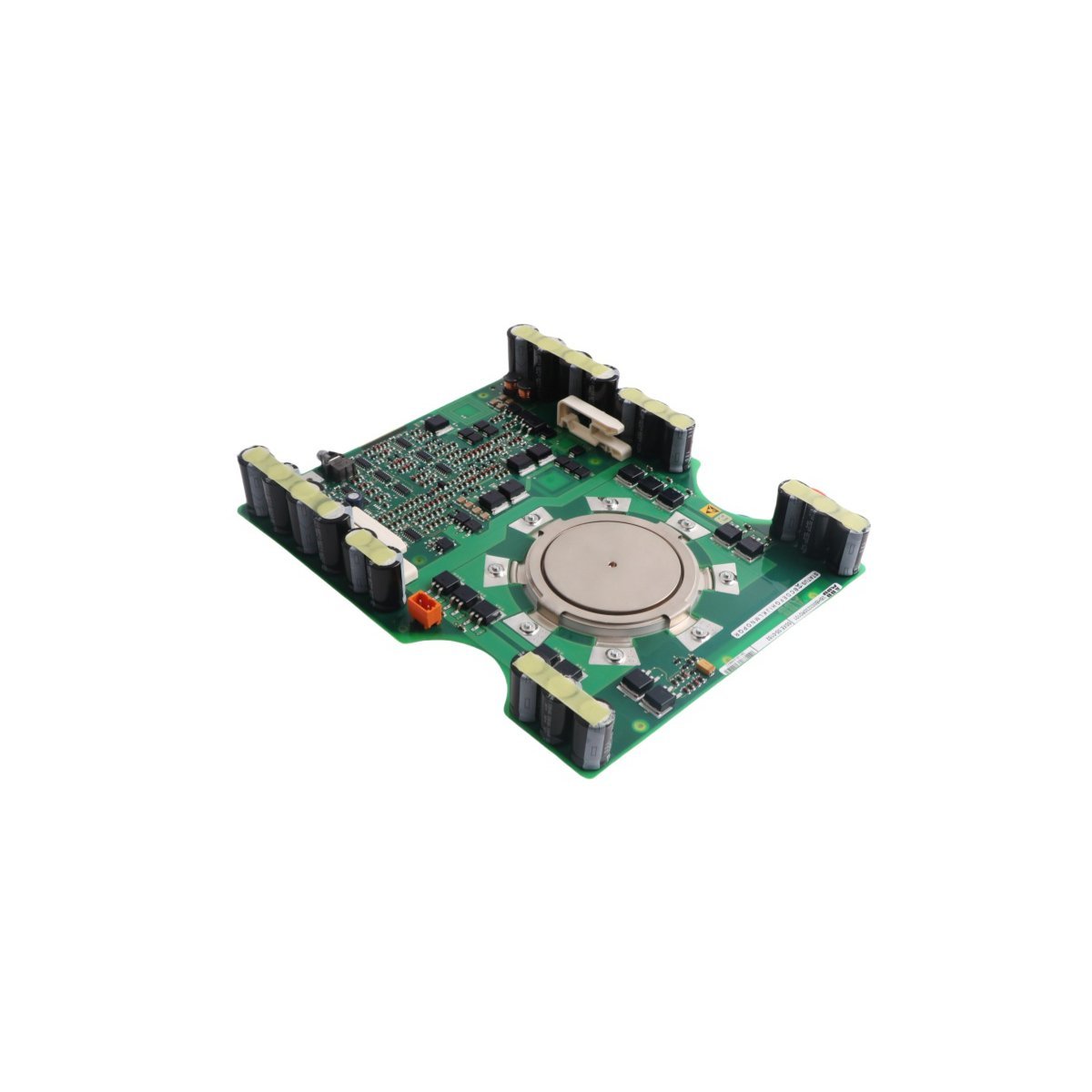

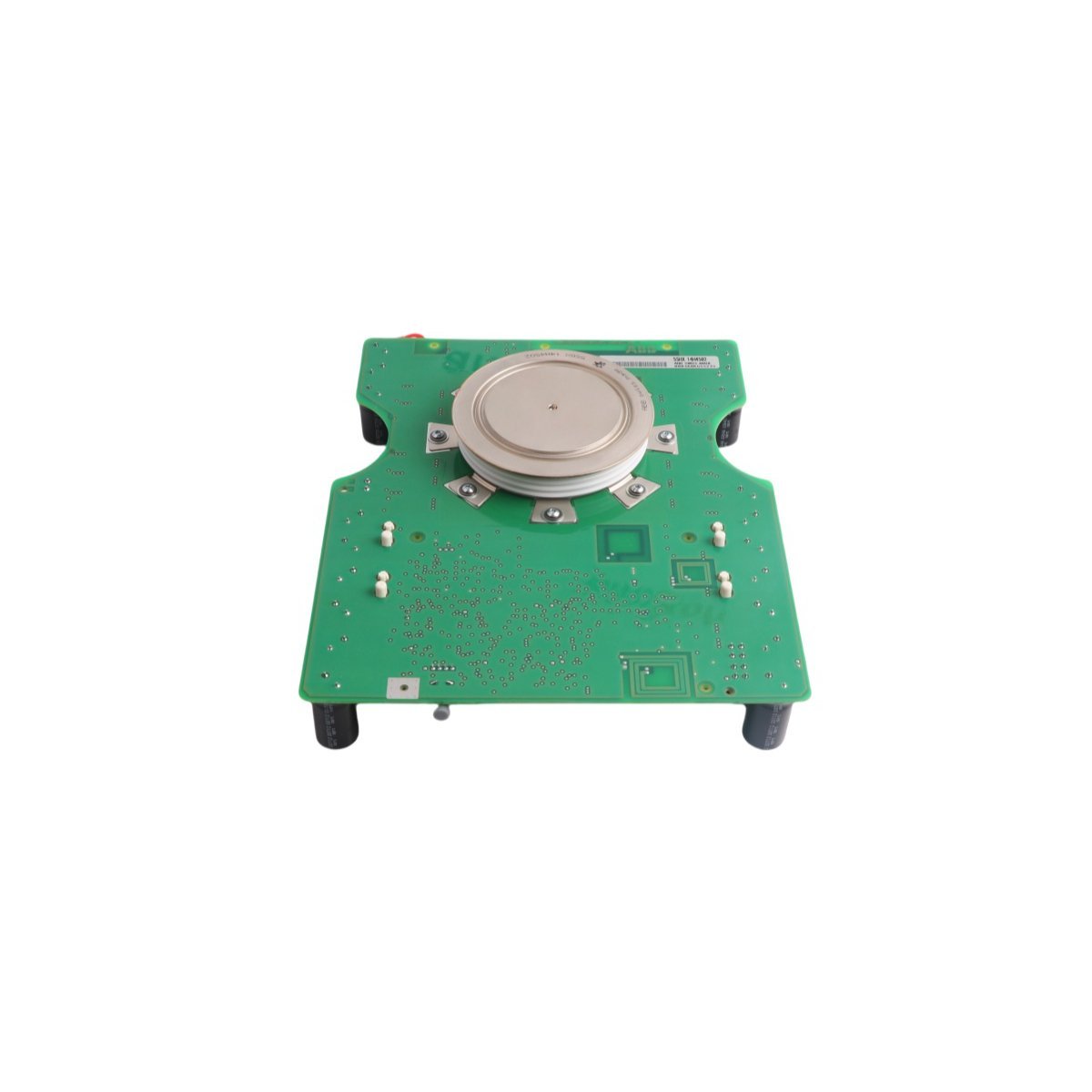

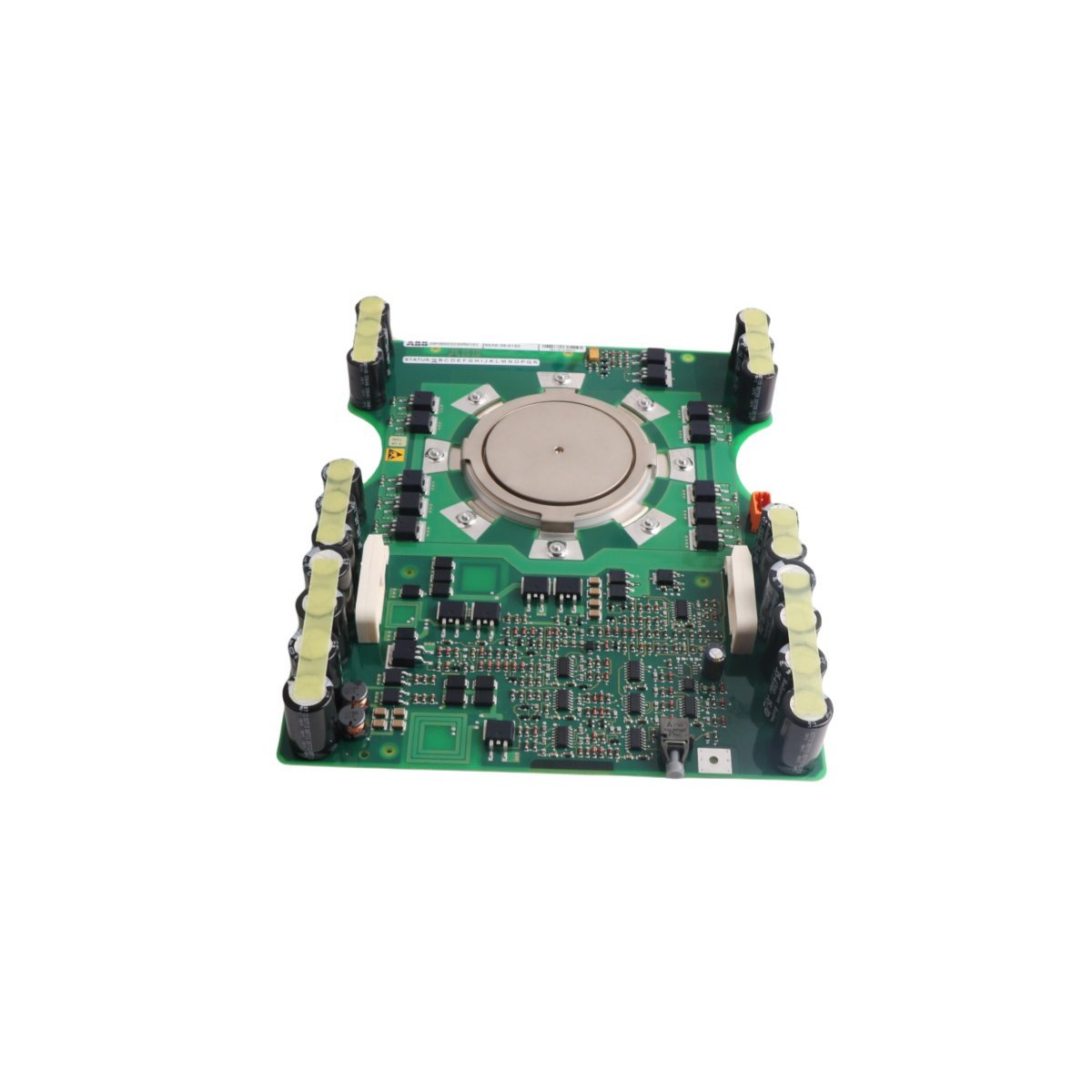

The ABB 3BHL000392R0101 5SHX1060H0001 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) control board engineered for high-power switching and precise motion planning. This module facilitates rapid stored charge extraction and high di/dt tolerance, ensuring maximum efficiency in complex industrial automation and robotic drive configurations.

Product Description

High-Speed Switching and Pulse Control

The ABB 3BHL000392R0101 serves as a specialized IGCT driver board that executes precision power semiconductor management. It generates a robust +20V turn-on pulse capable of reaching 500A peak capacity while maintaining a stable -20V turn-off plateau. Because the board supports a di/dt tolerance exceeding 2kA/µs during turn-off, it protects the system against rapid electrical transients. Furthermore, the module minimizes energy expenditure with an efficiency rating below 3mJ per cycle, allowing for high-frequency operations without excessive thermal load.

Logic Processing and Memory Architecture

Acting as a primary control hub, the 5SHX1060H0001 manages high-level decision-making and motion planning within DCS and robotic environments. The board typically utilizes a 24V DC logic input and features configurable memory options, including 4MB or 6MB RAM, to handle complex I/O tasks. While it coordinates servo control and sensor feedback, it also maintains an incredibly tight jitter tolerance of ±30ns. This precision ensures that time-critical synchronization remains consistent across large-scale industrial networks.

Integrated Safety and Redundancy

Reliability remains a core feature of the 3BHL000392R0101 assembly. The module incorporates dual Run Chain protection circuits and dedicated motor temperature monitoring to prevent hardware failure during peak operation. To safeguard system data and maintain uptime during power interruptions, the unit includes an intelligent battery backup system powered by dual 3.6V lithium cells. These redundant safety measures, combined with its ability to operate in extreme temperatures ranging from -40°C to +85°C, make it an essential component for heavy-duty industrial infrastructure.

Technical Specification Overview
