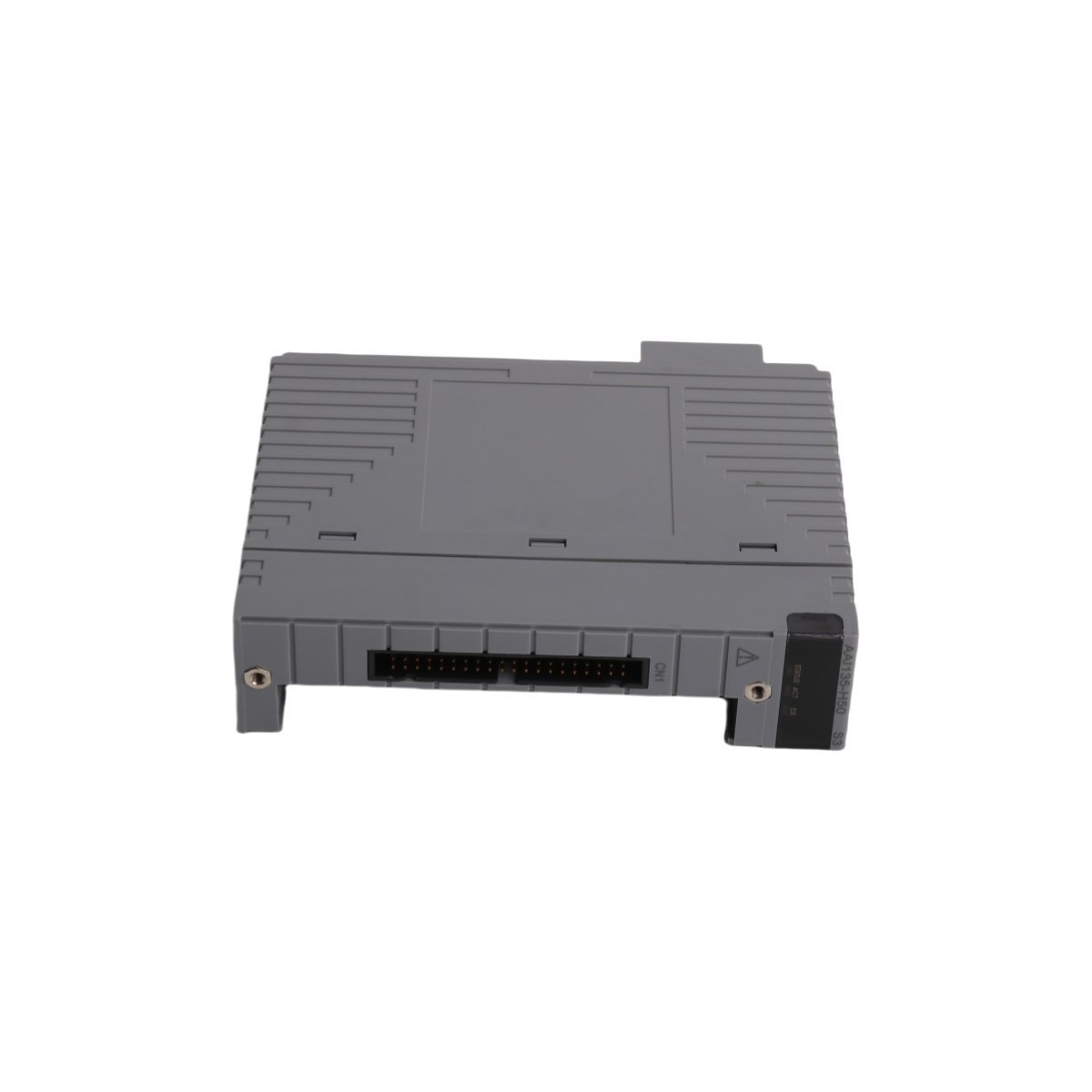

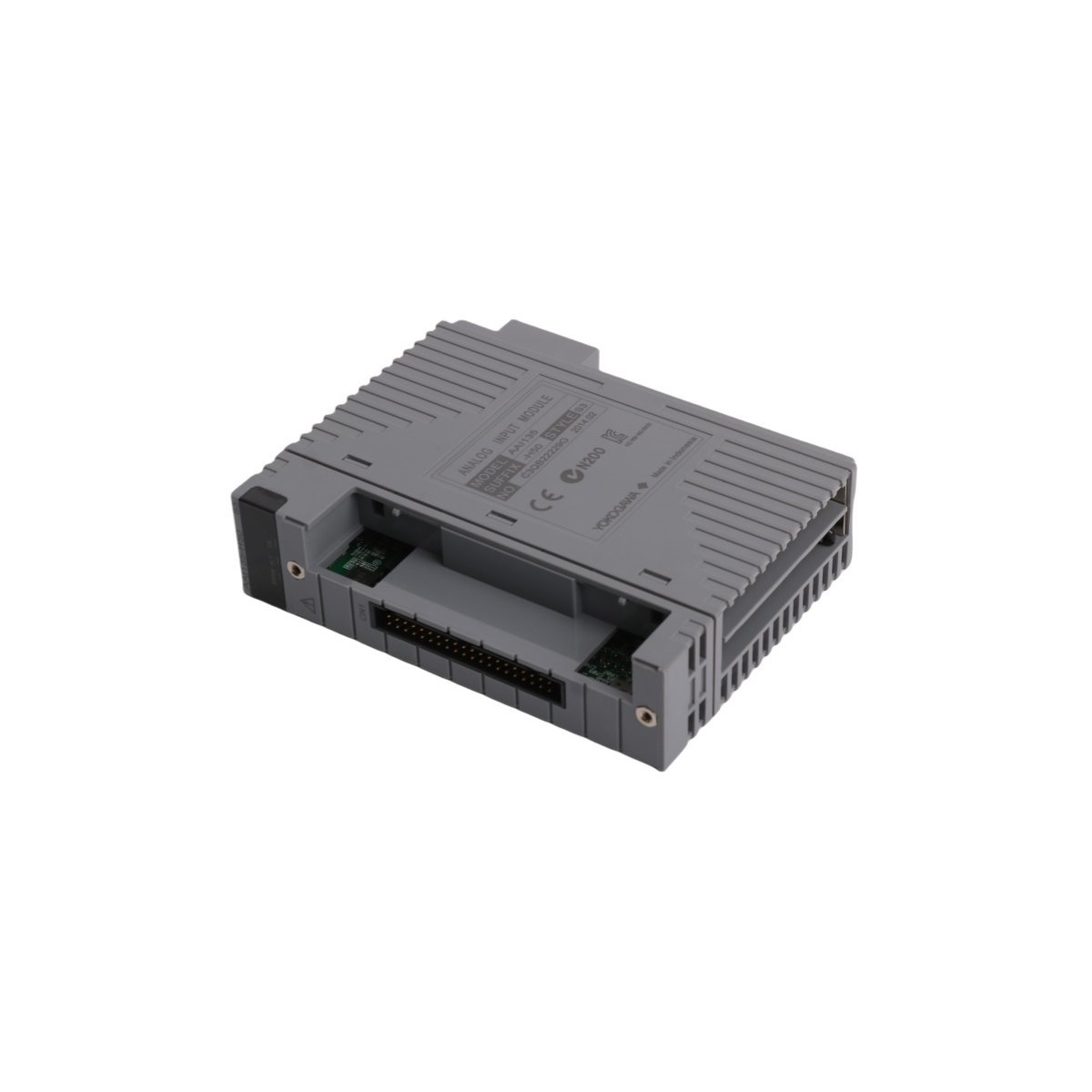

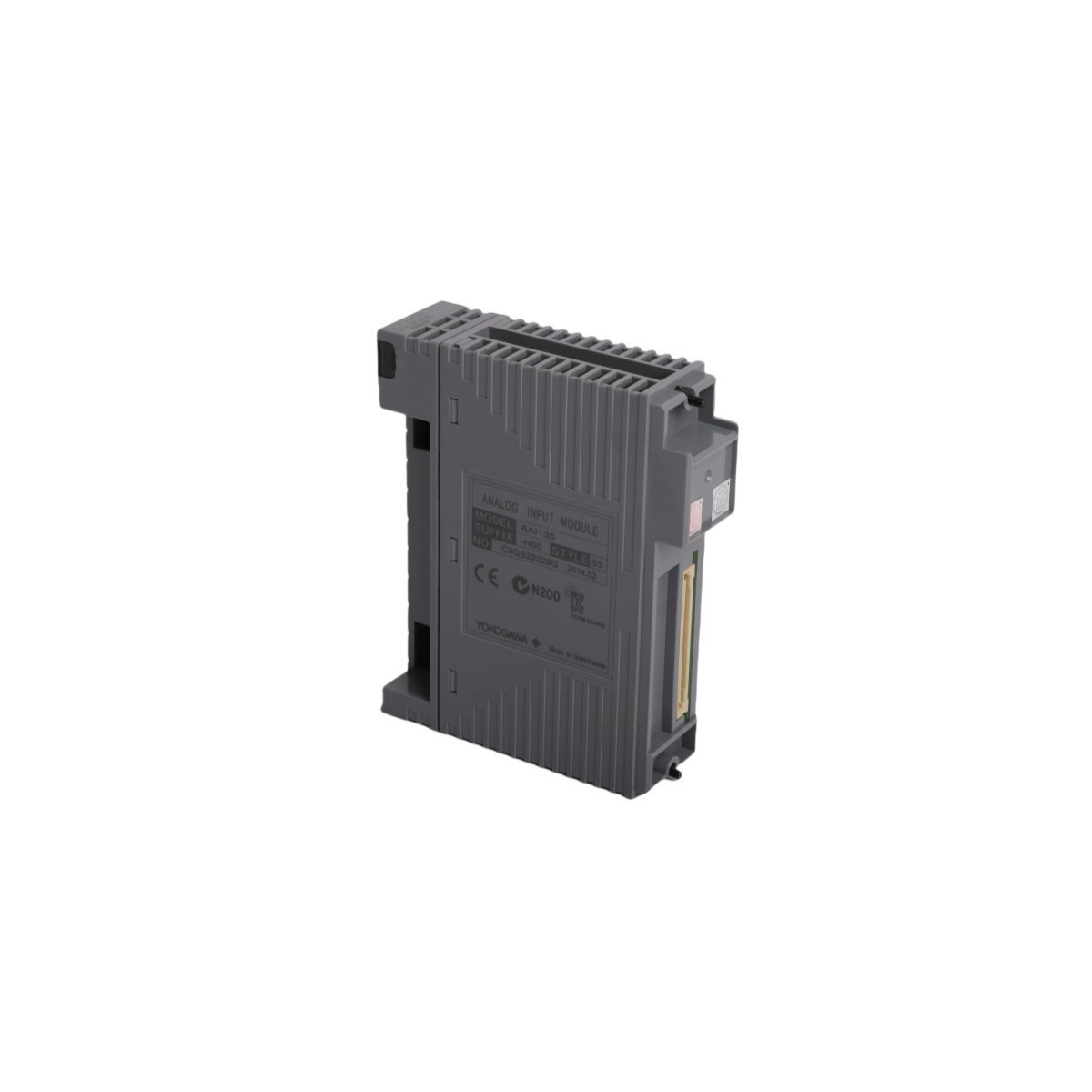

The Yokogawa AAI143-H50 S1 is a professional-grade 16-channel analog input module designed for high-accuracy current signal acquisition in Centum VP systems. It features full HART 7 protocol support and triple isolation to ensure precise data transmission in complex electromagnetic environments.

High-Density Signal Acquisition and Precision

The Yokogawa AAI143-H50 S1 serves as a critical bridge between field instrumentation and the Distributed Control System (DCS). This module supports 16 independent channels, allowing for the simultaneous acquisition of 4-20mA signals from a wide array of sensors and transmitters. By integrating HART 7 digital communication, the module enables technicians to access advanced device diagnostics and secondary process variables directly through the signal loop. Furthermore, the hardware maintains an exceptional accuracy rating of ±0.05%, providing the granular data necessary for optimized process control in the power generation and oil and gas sectors.

Superior Noise Immunity and Triple Isolation

Industrial environments often present significant electrical noise challenges; however, the AAI143-H50 S1 mitigates these risks through a sophisticated triple-isolation architecture. This design provides robust electrical separation between individual channels, between the field-side wiring and the system backplane, and across the power supply circuits. Consequently, the module prevents ground loops and protects the controller from high-voltage surges. Additionally, each channel utilizes independent signal conditioning to ensure that a fault on one loop does not propagate to adjacent inputs, thereby maintaining the integrity of the entire acquisition rack.

Operational Continuity and Fault Management

Yokogawa engineered the AAI143-H50 S1 with a focus on maximum system availability and ease of maintenance. The module supports a hot-swappable architecture, which allows for online hardware replacement without requiring a system shutdown or interrupting the control logic. To simplify troubleshooting, a dedicated LED matrix on the front panel provides real-time visual feedback regarding the health and communication status of every channel. When deployed in a redundant configuration, the module ensures seamless failover, effectively doubling the reliability of mission-critical control loops and reducing the risk of unplanned process excursions.

Key Technical Characteristics

• 16-Channel Capacity: Facilitates high-density analog current input within a single slot.
• HART 7 Compatibility: Enables bi-directional digital communication with smart field instruments.
• Triple Isolation Technology: Shields the system from electromagnetic interference and field-side surges.
• High Precision Performance: Delivers industry-leading acquisition accuracy of ±0.05% of span.
• Online Serviceability: Supports hot-swapping to ensure zero-downtime maintenance.
• Visual Diagnostics: Integrated LED indicators provide immediate status updates for each input port.
