Description

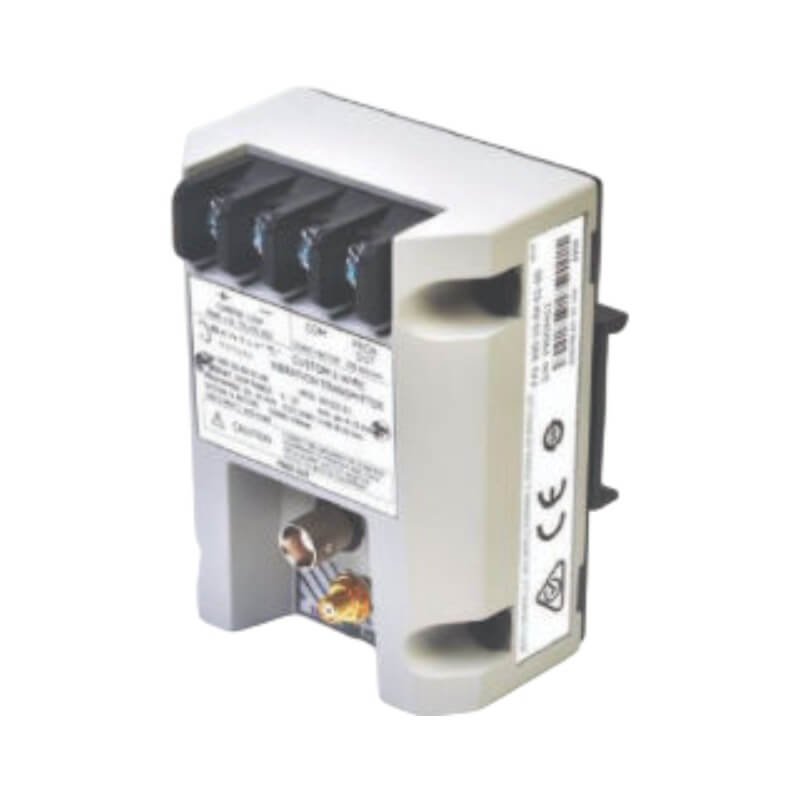

The Bently Nevada 990-10-XX-01-00, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for converting proximity probe inputs into a proportional 4-20 mA analog signal within loop-powered machinery control networks.

Suffix Breakdown & Model Matrix

• 990: Core product identifier for the 2-wire loop-powered vibration transmitter with integrated Proximitor Sensor.
• 10: Specifying a full-scale measurement range of 0-10 mils peak-to-peak (0-250 micrometers peak-to-peak).
• XX: Variable system length placeholder representing compatibility with 5.0 meter or 7.0 meter proximity transducer hardware configurations.

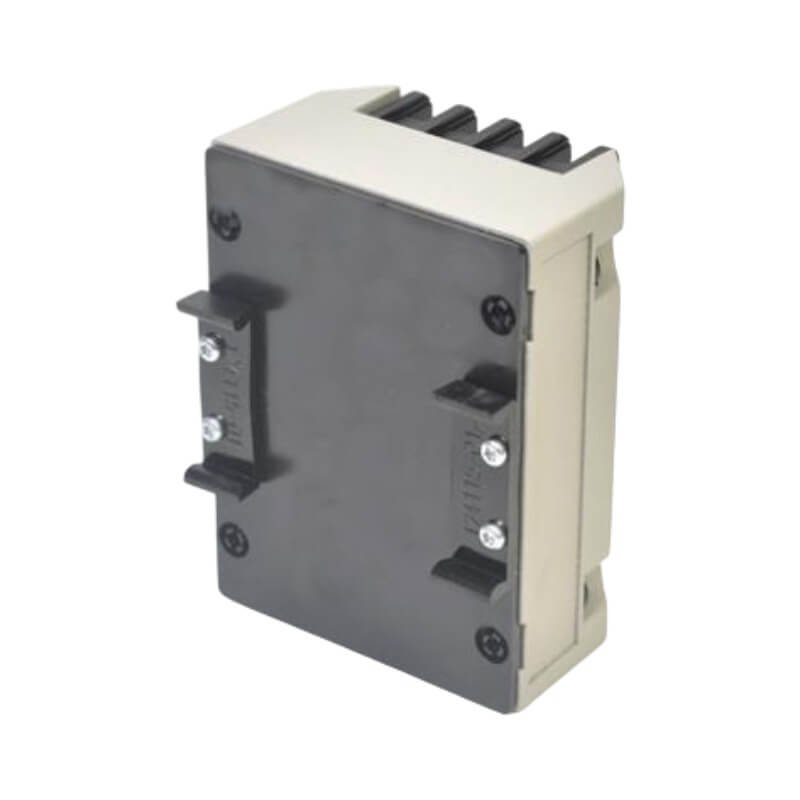

• 01: Specifying a 35 mm DIN rail clip mounting configuration for chassis installation.
• 00: Agency approval option designating no specialized hazardous area certification required.

Hardware Specifications

Rotor Dynamics and Signal Conditioning

Consequently, the 990-10-XX-01-00 hardware executes continuous signal conditioning to translate dynamic shaft movement into a stable 4-20 mA current loop loop. During rotation, the internal circuitry supplies a high-frequency RF signal to the external 3300 NSv probe, tracking gaps between 0.5 mm and 1.75 mm to preserve accurate eddy-current probe scaling. Meanwhile, the transmitter performs automatic gap voltage validation, targeting baseline operation within the nominal -10 VDC targets. Furthermore, the specialized potted housing isolates the internal circuit elements, maintaining high cross-talk suppression and preventing moisture or line transients from degrading raw rotor dynamics data.

Frequently Asked Questions

Q: How does the 990 transmitter respond if a proximity probe wire breaks or disconnects?

A: When a fault occurs, the internal Not OK/Signal Defeat circuit instantly clamps the loop output current to less than 3.6 mA within 100 microseconds. Consequently, this rapid drop alerts the connected machinery control system and systematically prevents false high-vibration trips.

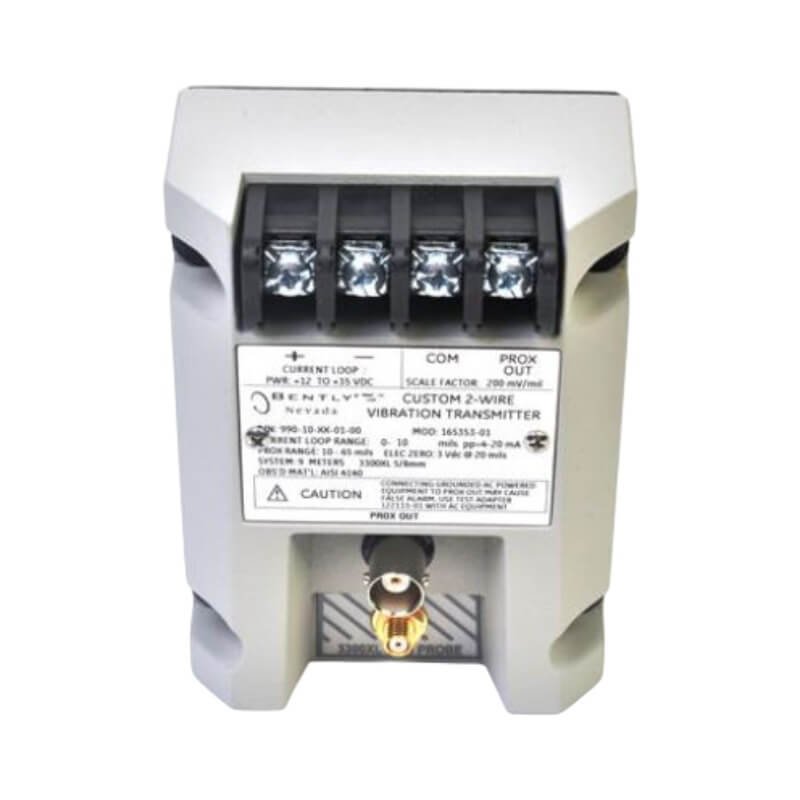

Q: Can engineers connect an AC-powered oscilloscope directly to the PROX OUT coaxial port for real-time wave analysis?

A: No, because the PROX OUT and COM terminals share a non-isolated electrical path with the 4-20 mA current loop, connecting an AC-powered oscilloscope directly will cause ground loops that corrupt the telemetry. Technicians must insert a 990/991 Test Adapter to invert and isolate the signal before routing it to AC-powered diagnostic hardware.

Field Installation Guidelines

• Chassis Mounting: First, position the integrated 35 mm DIN rail clips against the cabinet rail profile. Next, apply direct downward force until the mechanical lock snaps completely onto the rail. Finally, verify that the transmitter assembly remains rigid to eliminate external mechanical vibration errors.
• Transducer Shielding: Connect the extension cable coaxial shield explicitly to the designated transmitter shield terminal. Conversely, never connect this shield to ground at the machine casing or probe housing end, as single-point grounding is mandatory to prevent inductive noise injection into the loop.
• Wiring Separation: Route the low-voltage 4-20 mA signaling loop through dedicated, shielded twisted-pair cables. Furthermore, isolate these conduit paths from high-power three-phase motor leads and variable frequency drive lines to suppress electromagnetic interference.
