Description

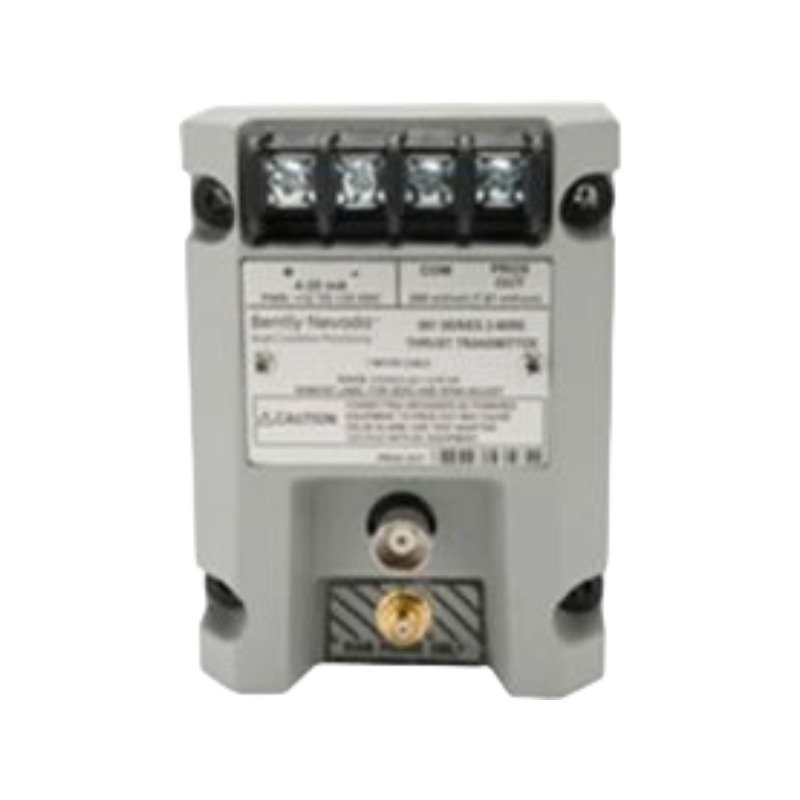

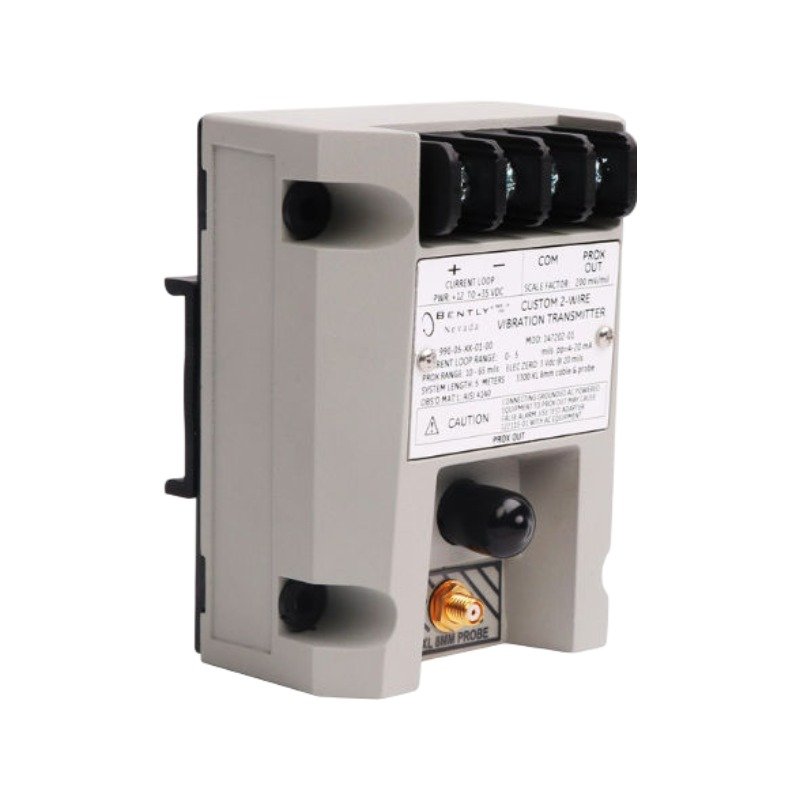

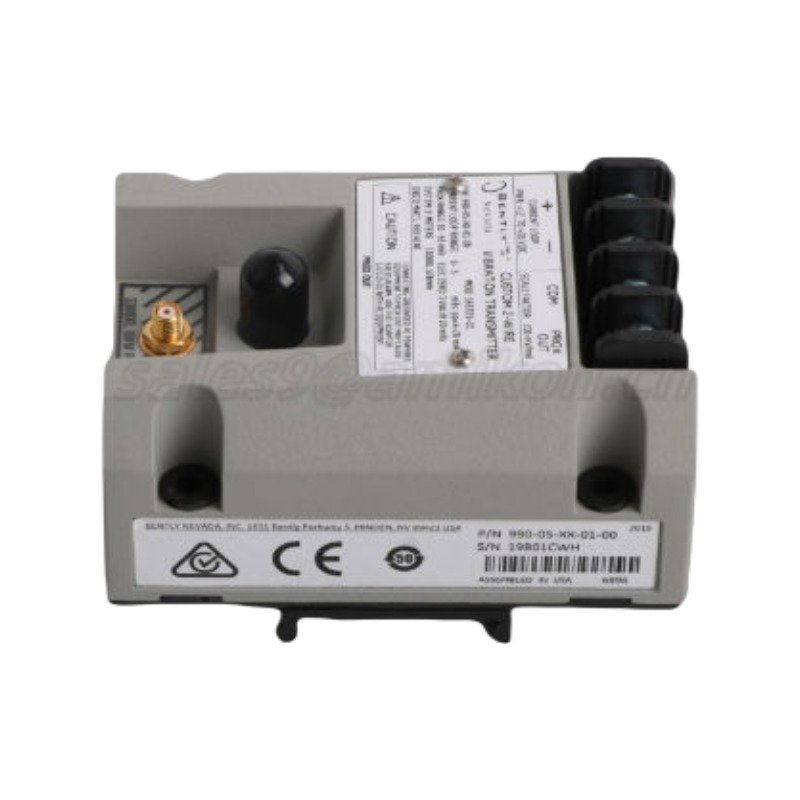

The Bently Nevada 990-05-50-03-05, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for non-contacting radial vibration or axial position monitoring within machinery protection systems and 4-20 mA control loops.

Suffix Breakdown & Model Matrix

• 05: Full-Scale Option (0 to 5 mils pp, or 0 to 125 micrometers pp, radial vibration)
• 50: System Length Option (5.0 meters total system length, compatible with 3300 XL 8mm probe and extension cable)
• 03: Mounting Option (35 mm DIN-rail mount)
• 05: Agency Approval Option (Multi-Approval option including CSA, ATEX, and IECEx)

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

The transmitter accepts physical signals from an eddy-current probe system to characterize high-frequency rotor dynamics. During commissioning, engineers must verify a nominal gap voltage of -10 VDC at the raw Prox OUT terminal to guarantee that the proximity probe operates at the center of its linear calibration curve. This validation step isolates physical displacement anomalies from thermal drift. Furthermore, integrated noise-filtering circuits maximize cross-talk suppression between adjacent DIN-rail installations sharing a common power rail.

Frequently Asked Questions

Q: Can this transmitter operate properly without a direct 4-20 mA loop connection?

A: No, the device is loop-powered and requires a minimum supply voltage of +12 VDC under a load circuit to function. However, technicians can read the raw dynamic signal via the BNC connector regardless of the current loop status.

Q: How is the 5.0-meter system length option distributed between components?

A: The total 5.0-meter system length matches a combined length of the 3300 XL 8mm proximity probe and its matching extension cable. Mixing 5.0-meter and 9.0-meter components alters the system impedance and invalidates the factory calibration curve.

Field Installation Guidelines

Snap the transmitter housing firmly onto a 35 mm DIN-rail track inside an IP54 or higher environmental enclosure. For structural stability, mount the unit at least 75 mm away from raw high-voltage AC switchgear and inductive motor coils. Connect the Proximitor-side coaxial cable to the dedicated terminal, ensuring the locking nut engages cleanly to seal out chemical airborne contaminants. Terminate the overall 4-20 mA loop shield at the receiver chassis ground to prevent ground loop stray currents from distorting the dynamic sensor readings.
