Description

Product Overview

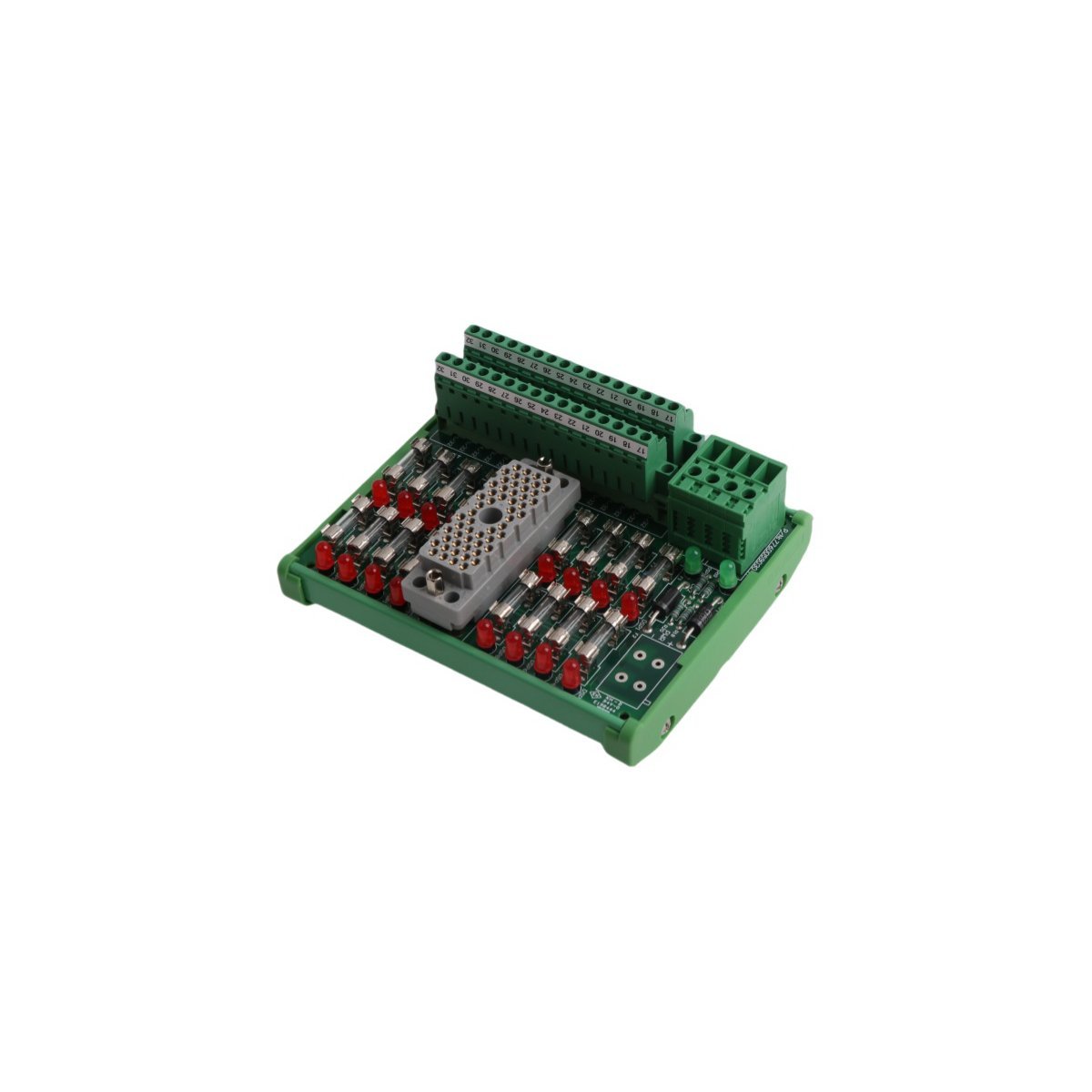

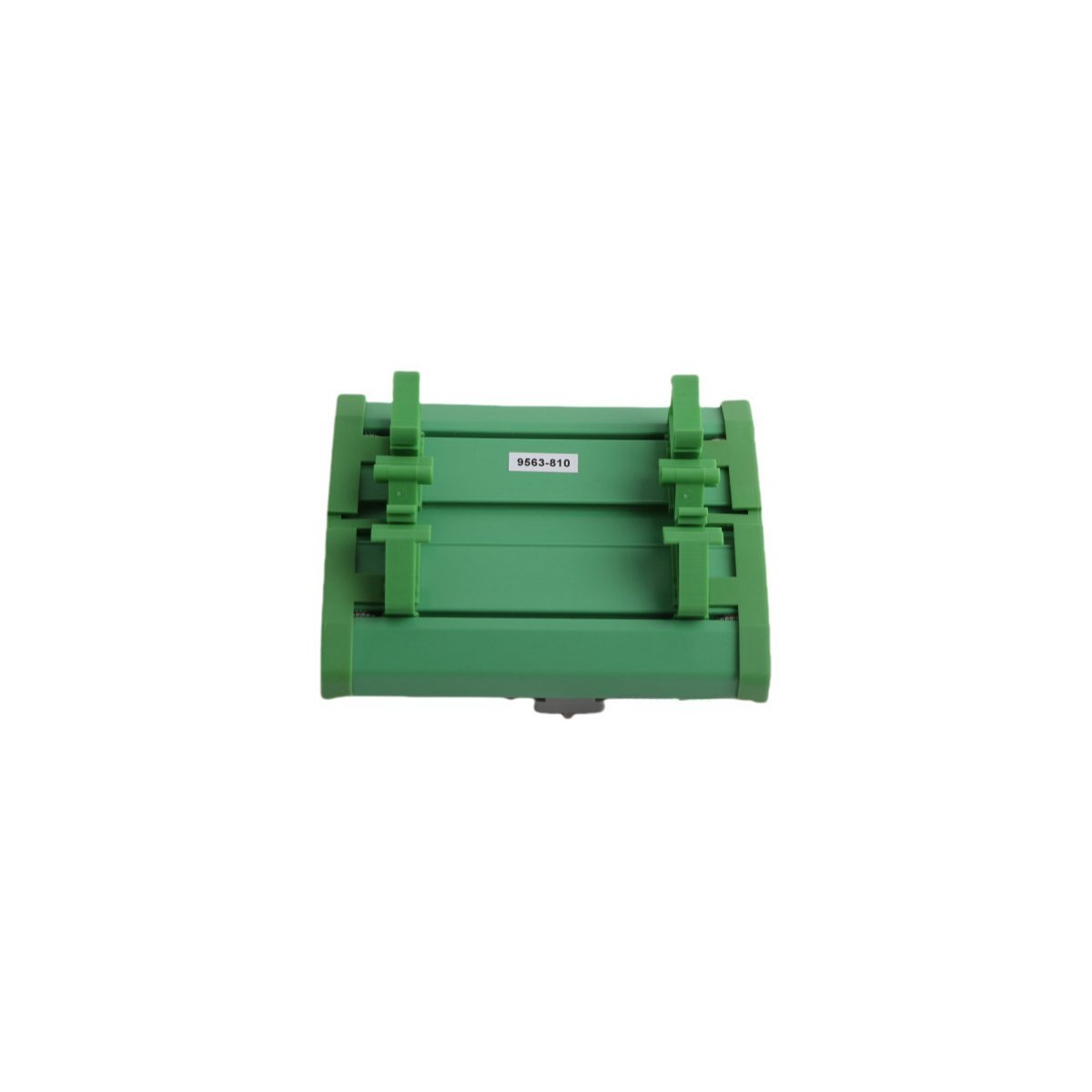

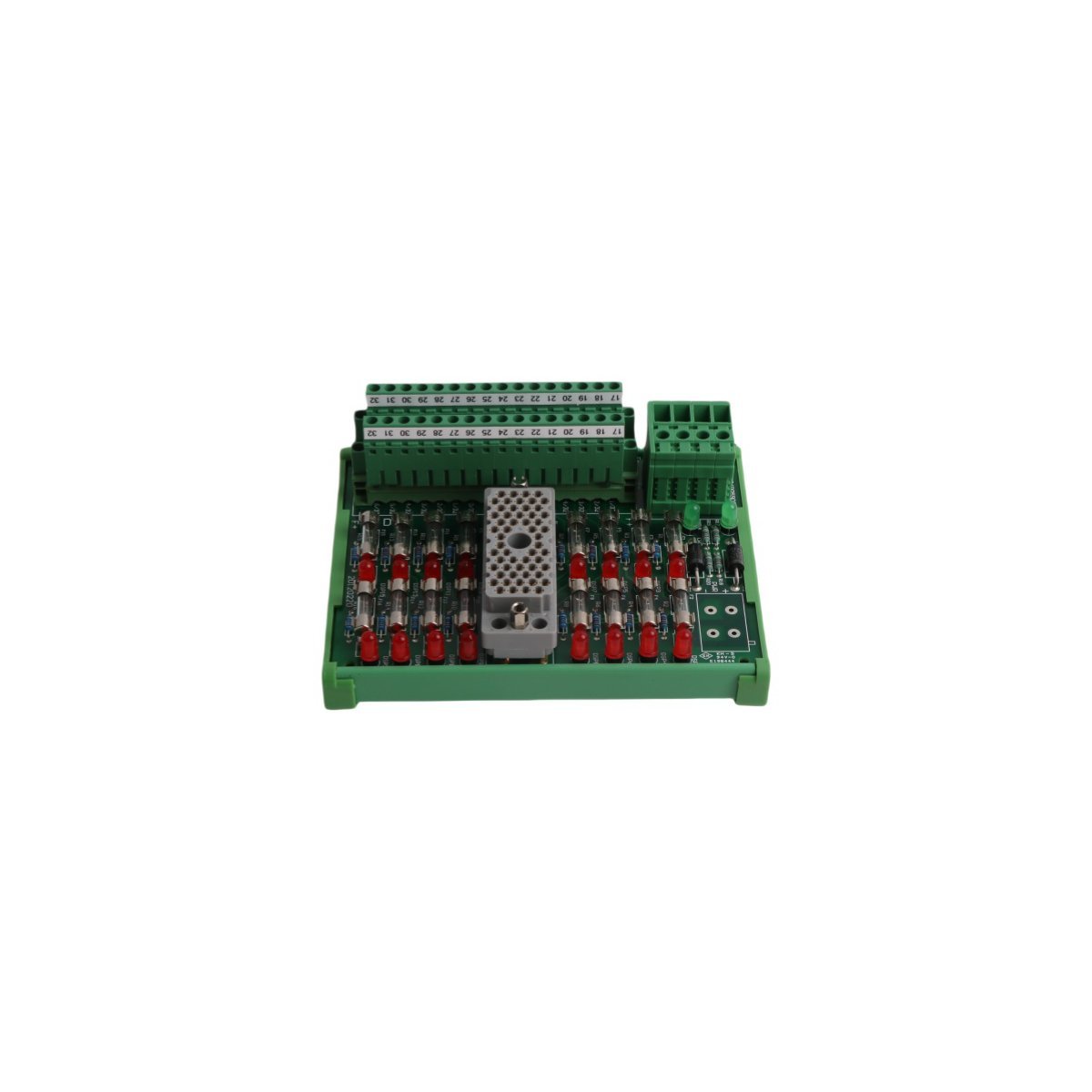

The Triconex 9563-810 is a high-reliability Digital Input Termination Panel designed to serve as the secure physical interface between field-level digital sensors and the Tricon controller. This panel ensures noise-free signal conditioning and simplifies the high-density wiring required for safety-instrumented systems (SIS).

Precision Signal Interface and Noise Reduction

The 9563-810 termination panel facilitates the seamless transfer of digital signals from field devices to the Triconex TMR (Triple Modular Redundant) system. By employing high-quality screw terminals and integrated signal conditioning components, the board significantly reduces electromagnetic interference (EMI) and signal reflections. This stability is critical for preventing false trips in high-speed safety loops. Furthermore, the panel’s layout supports efficient cable management, which allows maintenance personnel to trace and test individual input loops without disturbing adjacent connections, ultimately improving the overall reliability of the protective system.

Industrial Durability for Extreme Environments

Schneider Electric engineered the 9563-810 to operate continuously in the most demanding process conditions. The board features corrosion-resistant plating and robust electrical components that maintain performance across an expansive temperature range of -40°C to +85°C. This resilience makes the panel suitable for deployment in offshore platforms, desert-based refineries, and arctic facilities. Additionally, the compact panel-mount design optimizes cabinet space while providing a rigid mounting platform that withstands the high-vibration levels common in heavy industrial machinery environments.

Seamless Integration and Maintenance

The 9563-810 standard termination panel integrates directly with Tricon v9 and v10 I/O modules via standard interface cables. This modularity enables rapid system expansion and simplifies the hardware replacement process during scheduled turnarounds. Because the panel adheres to strict SIL 3 safety standards, it provides a trusted solution for Emergency Shutdown (ESD) and Fire and Gas (F&G) applications. The inclusion of dedicated testing points on the board further streamlines the commissioning process, ensuring that every digital input correctly maps to the controller logic with minimal latency.

Technical Specifications
