Description

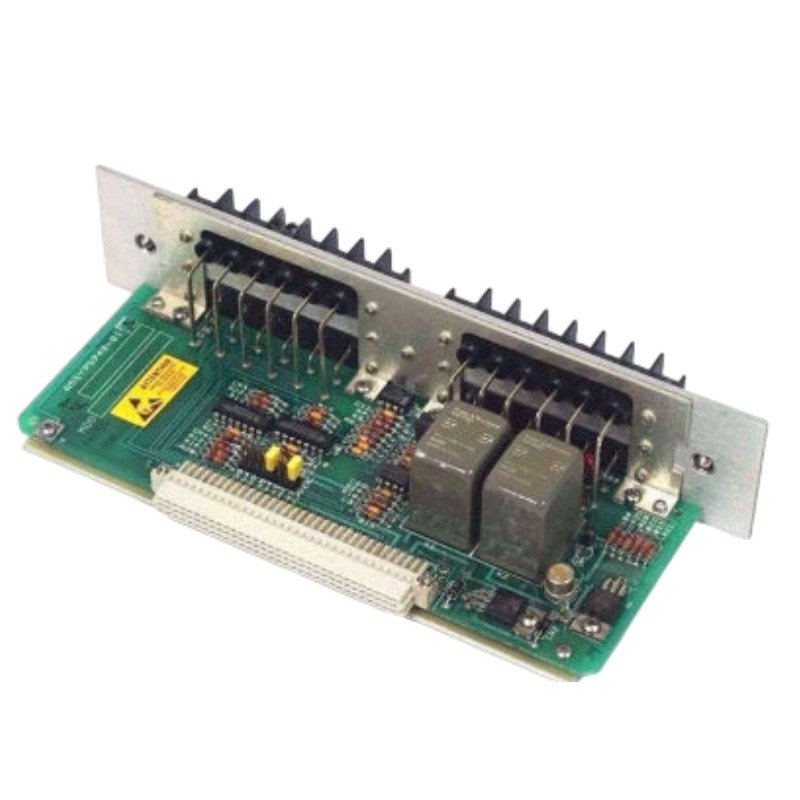

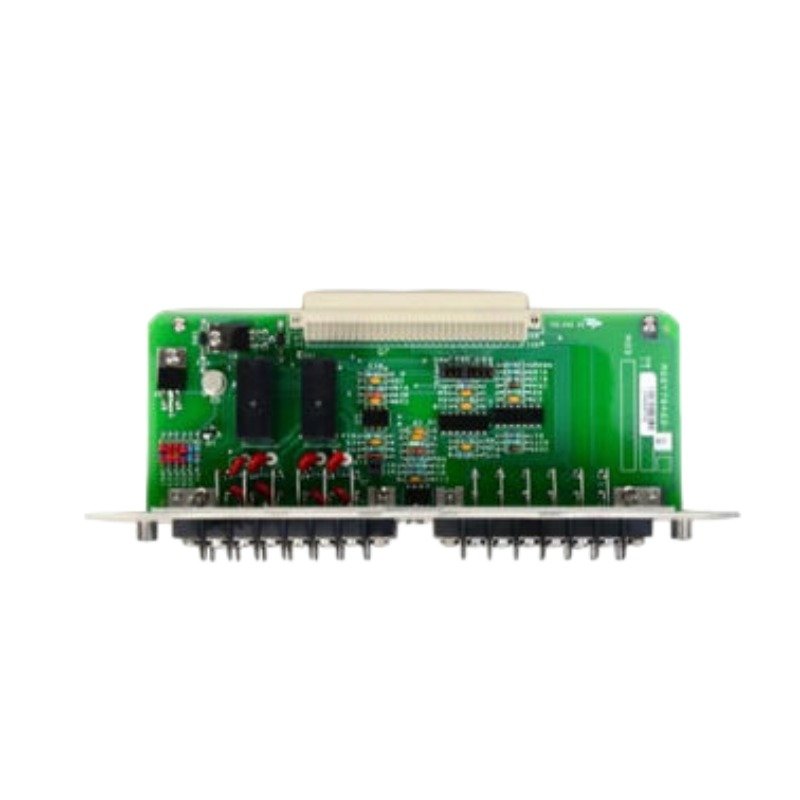

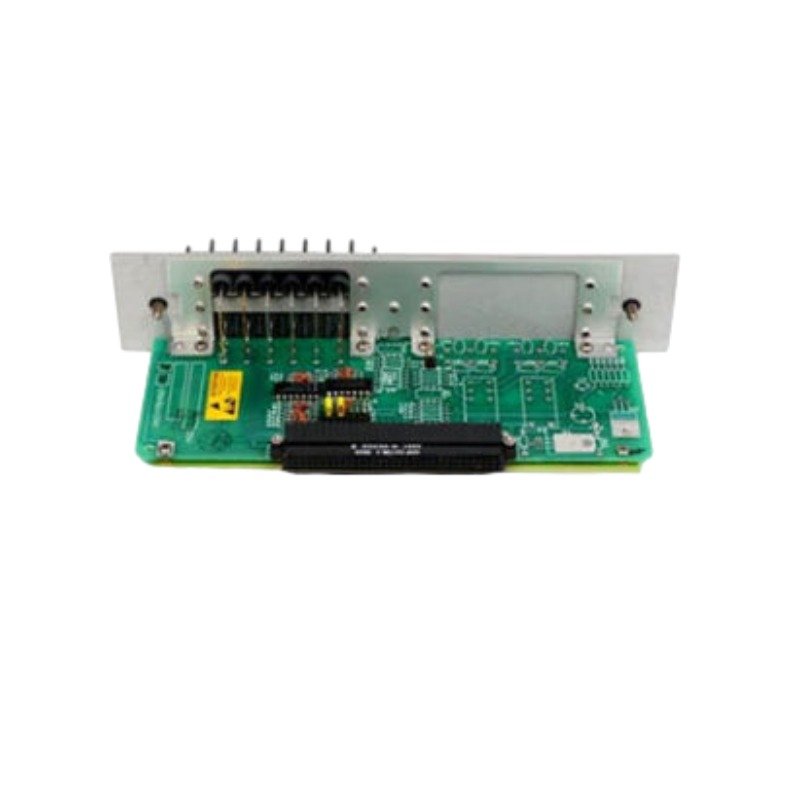

The Bently Nevada 88149-01, also cataloged as the 88149-01 Transducer I/O Terminal Block, operates as a dedicated hardware component for multi-channel field sensor termination within Bently Nevada 3300 Series Monitoring System platforms. The unit installs directly onto the rear portion of the 3300 instrument rack chassis to loop field transducer signals into the front-slot monitoring instrumentation. Consequently, the hardware routes continuous dynamic sensor voltage signatures and loop-power paths straight to the internal backplane bus.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module runs dedicated internal hardware tracks to optimize legacy machine diagnostics and Turbomachinery Protection System (TSI) deployments. Specifically, the component infrastructure automates gap voltage validation (-10 VDC targets) pass-through monitoring by routing continuous DC bias signals derived from external eddy-current probe drivers straight to the main monitor module. If field connections drop or transducer calibration drift happens, the grounding path flags a channel fault loop to prevent invalid protective shutdown command execution. Furthermore, the multi-layered trace separation scheme provides cross-talk suppression between the high-frequency vibration waveforms and adjacent signal paths. As a result, the unit safely pipes critical raw telemetry indicating complex rotor dynamics into the 3300 chassis environment.

Frequently Asked Questions

Q: Can an automation engineer wire or replace the 88149-01 termination module while the 3300 rack remains powered?

A: No. Unplugging a rear terminal module or altering field connections while the rack is energized breaks active physical loops for sensor power and return lines. Consequently, this action risks injecting inductive transients that could cause unexpected trips on active protective circuits.

Q: What is the primary functional difference between the 88149-01 and terminal blocks with relay outputs?

A: The 88149-01 is a pure input/output termination assembly optimized for sensor signal pass-through and recorder routing. It does not contain onboard electromechanical relays; instead, it relies on the front-panel monitor cards or dedicated external relay modules to handle physical control loops.

Field Installation Guidelines

• Chassis Grounding: Securely anchor the main 3300 rack metal framework to the local plant clean earth grid. Always land transducer shield drain elements exclusively onto the allocated ground screws of the 88149-01 assembly to suppress noise generation from parallel earth loops.
• Pin Alignment Verification: Align the pin contacts of the rear terminal assembly vertically with the receiving sockets of the rack backplane before fastening the mounting bolts. Do not enforce mating if any structural resistance indicates pin misalignment.
• Signal Track Separation: Route low-voltage pickup leads and sensor wires inside independent, grounded metal conduit paths. Therefore, keep a minimal physical clearance gap of 30 cm from high-current AC lines and motor control switchgear to block electromagnetic induction artifacts.
