Technical Overview

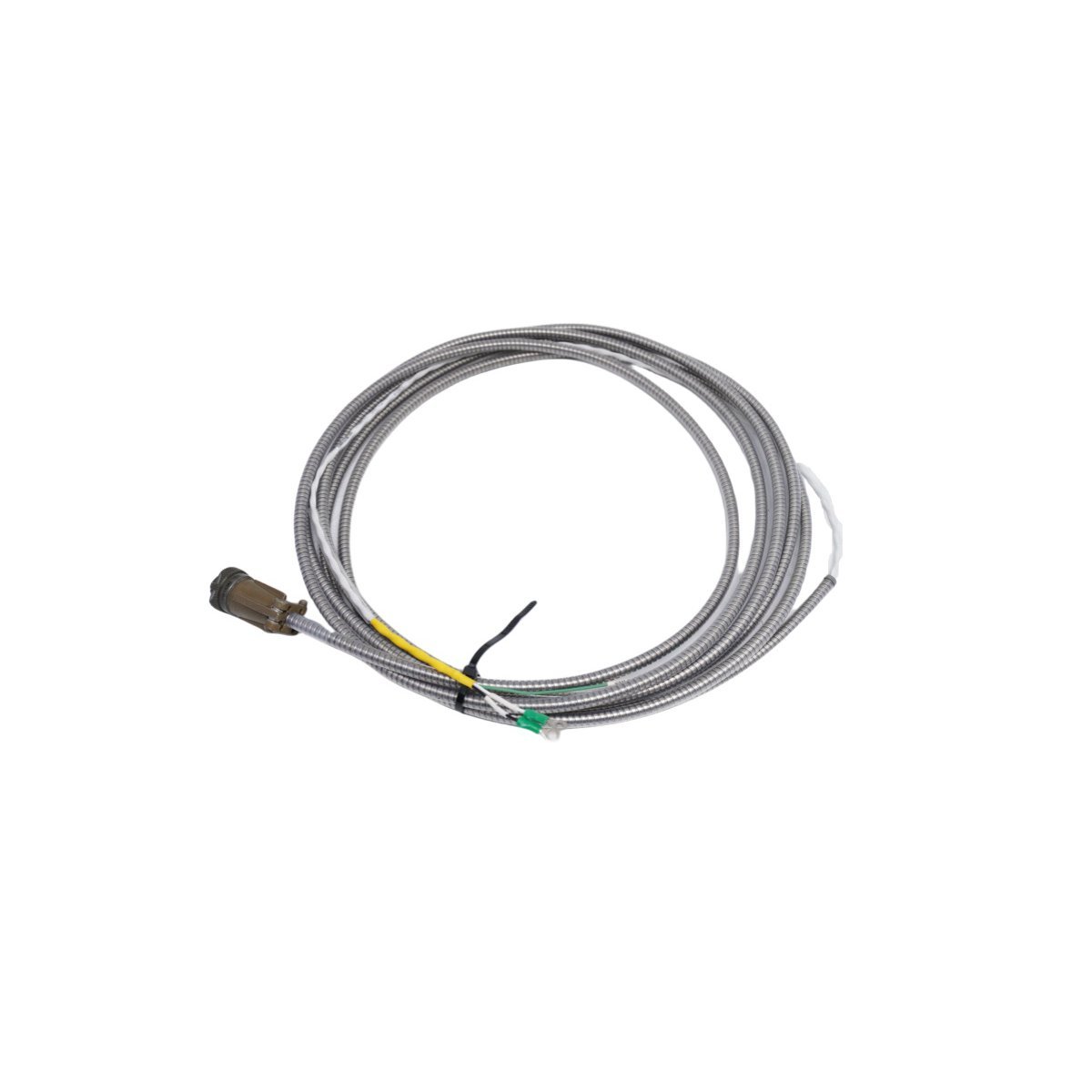

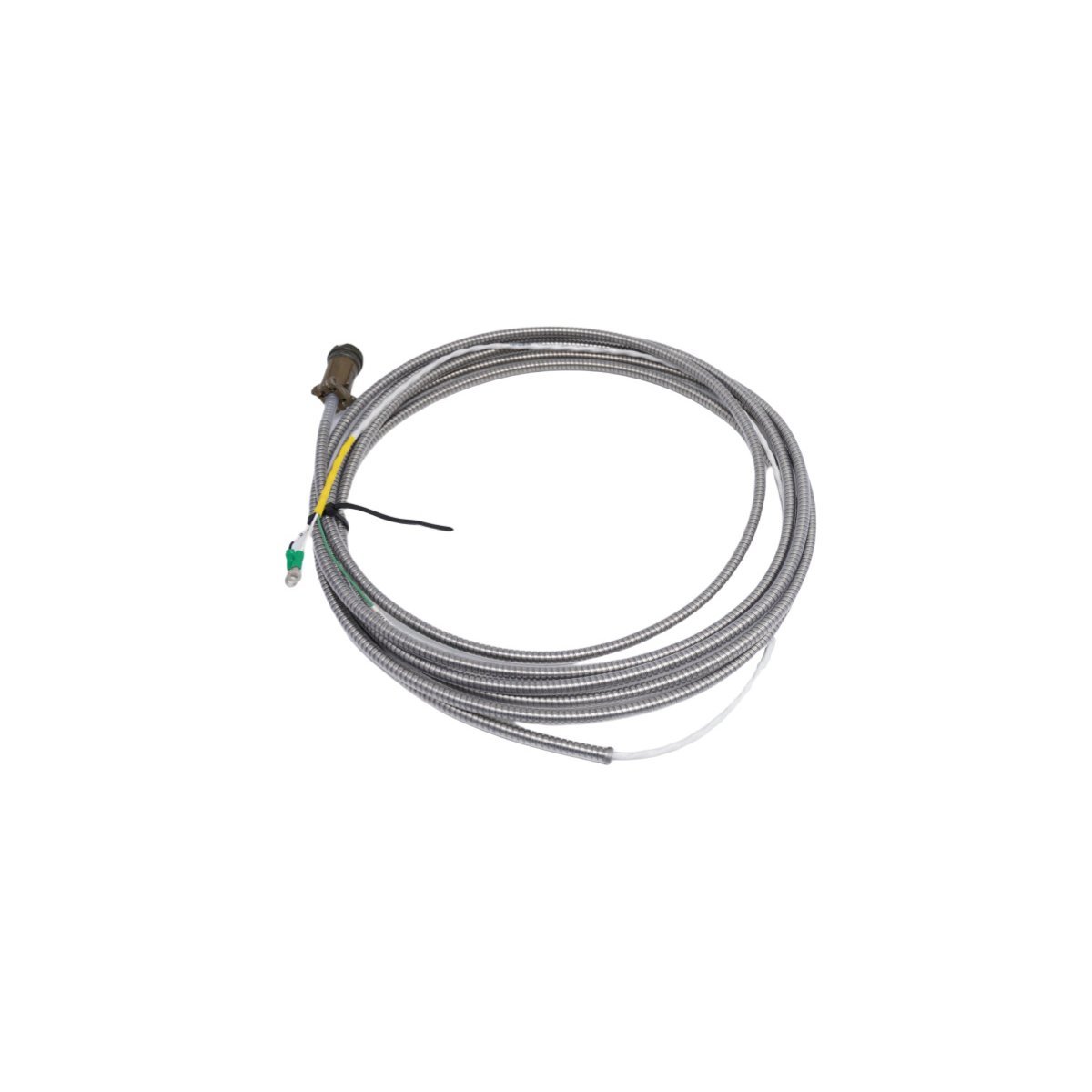

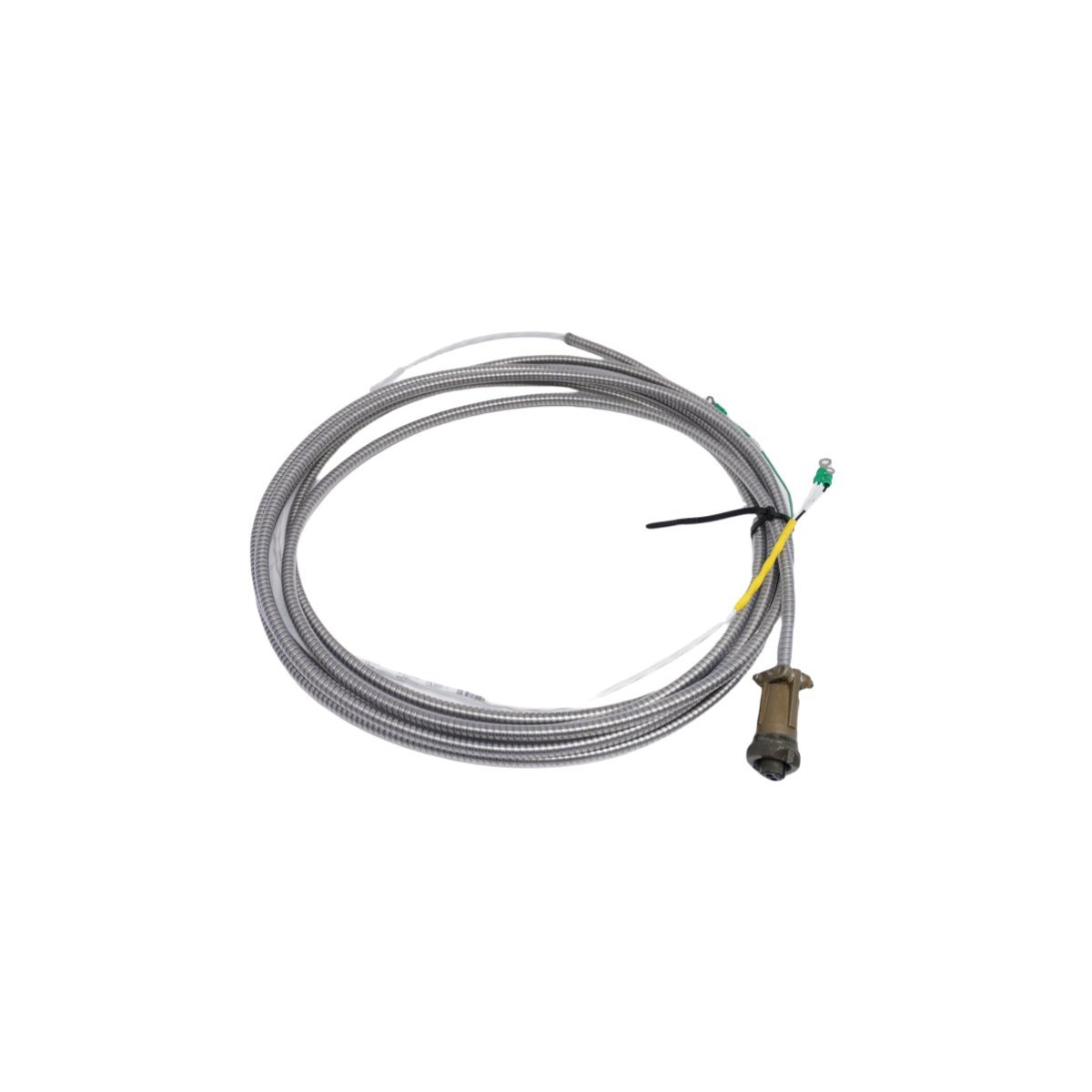

The Bently Nevada 84661-12 Velomitor Interconnect Cable is a high-integrity, engineered signal transmission solution designed exclusively for integration with Bently Nevada’s industry-leading 3300 XL and 3300 NSV series proximity probe systems. Manufactured by Baker Hughes (under the Bently Nevada brand), this cable serves as the critical interface between the Velomitor velocity sensor—typically mounted on machinery casings—and the vibration monitoring system’s signal conditioner or data acquisition unit. Engineered to preserve signal fidelity across demanding industrial environments, the 84661-12 features precision-matched impedance, low-noise triaxial construction, and robust EMI/RFI shielding compliant with IEC 61000-4-3 and IEEE 112. Its design minimizes phase shift, attenuation, and electromagnetic interference—ensuring accurate, repeatable velocity measurements essential for predictive maintenance, condition monitoring, and machinery protection in rotating equipment applications. The cable utilizes high-purity oxygen-free copper conductors, fluorinated ethylene propylene (FEP) insulation, and a braided tinned-copper shield over foil, delivering superior thermal stability (-55°C to +200°C operating range) and long-term reliability under continuous mechanical flexing, oil immersion, and high-vibration conditions. As an OEM-specified component, the 84661-12 guarantees full compatibility with Bently Nevada’s 3300/3300 XL 16 mm and 25 mm Velomitor sensors and supports seamless integration into Asset Health Management (AHM) platforms including System 1™. This product is supplied new, factory-sealed, and backed by a comprehensive 24-month limited warranty—affirming its adherence to ISO 9001:2015 quality management standards and API RP 500/505 hazardous area compliance requirements.

Detailed Specifications

Key Features

• OEM-Engineered Signal Integrity: Precision-triaxial architecture ensures optimal common-mode noise rejection, enabling sub-millimeter-per-second resolution in velocity measurements critical for early fault detection in journal bearings and gearboxes.
• Extreme Environmental Resilience: FEP jacket and insulation deliver exceptional resistance to hydrocarbons, steam, caustic cleaning agents, ozone, and ultraviolet radiation—making it ideal for refinery, power generation, and marine propulsion environments.
• Plug-and-Play Integration: Pre-terminated with industry-standard 10-32 UNF male connectors (sensor end) and 10-32 UNF female connectors (monitoring system end), eliminating field termination errors and reducing commissioning time by up to 70%.
• Thermal & Mechanical Stability: Maintains consistent electrical characteristics across wide temperature swings and repeated flex cycles—validated through 10,000+ cycles of torsional and bending stress testing per ASTM D2671.
• Hazardous Area Ready: Certified for use in Class I, Division 1, Groups B, C, D; ATEX II 2G Ex db IIB T4 Gb; IECEx Ex db IIB T4 Gb environments without additional barriers.
• Traceability & Quality Assurance: Each cable carries a unique serialized QR code linked to full manufacturing batch documentation, material certifications (mill test reports), and 100% post-assembly functional testing records.
• Sustainable Lifecycle Support: Backed by Baker Hughes’ global technical support network, firmware update compatibility, and seamless replacement path within the Bently Nevada ecosystem—including migration readiness for System 1 v12.5+ and Enterprise Manager deployments.

Applications

• Turbomachinery Monitoring: Continuous vibration surveillance of steam/gas turbines, compressors, and pumps in petrochemical plants, LNG terminals, and combined-cycle power stations.
• Rotating Equipment Protection: Integration into Machinery Protection Systems (MPS) for API 670-compliant shutdown logic, including thrust bearing wear detection and imbalance trending.
• Condition-Based Maintenance (CBM): Enabling high-fidelity velocity data acquisition for spectral analysis, envelope demodulation, and AI-driven anomaly detection in digital twin implementations.
• Renewable Energy Infrastructure: Vibration monitoring of wind turbine gearboxes and main bearings where long cable runs and exposure to salt-laden air demand corrosion-resistant cabling solutions.
• Marine & Offshore Platforms: Ruggedized deployment in engine rooms, thruster control systems, and auxiliary generators subject to constant vibration, humidity, and hydrocarbon exposure.
• Test Stands & R&D Facilities: High-accuracy calibration and validation of dynamic response characteristics for academic research, OEM development labs, and NIST-traceable metrology applications.
• Legacy System Modernization: Drop-in replacement for aging interconnects in installed Bently Nevada 3300 systems—preserving existing infrastructure investment while upgrading measurement confidence and diagnostic capability.
