Description

Product Overview

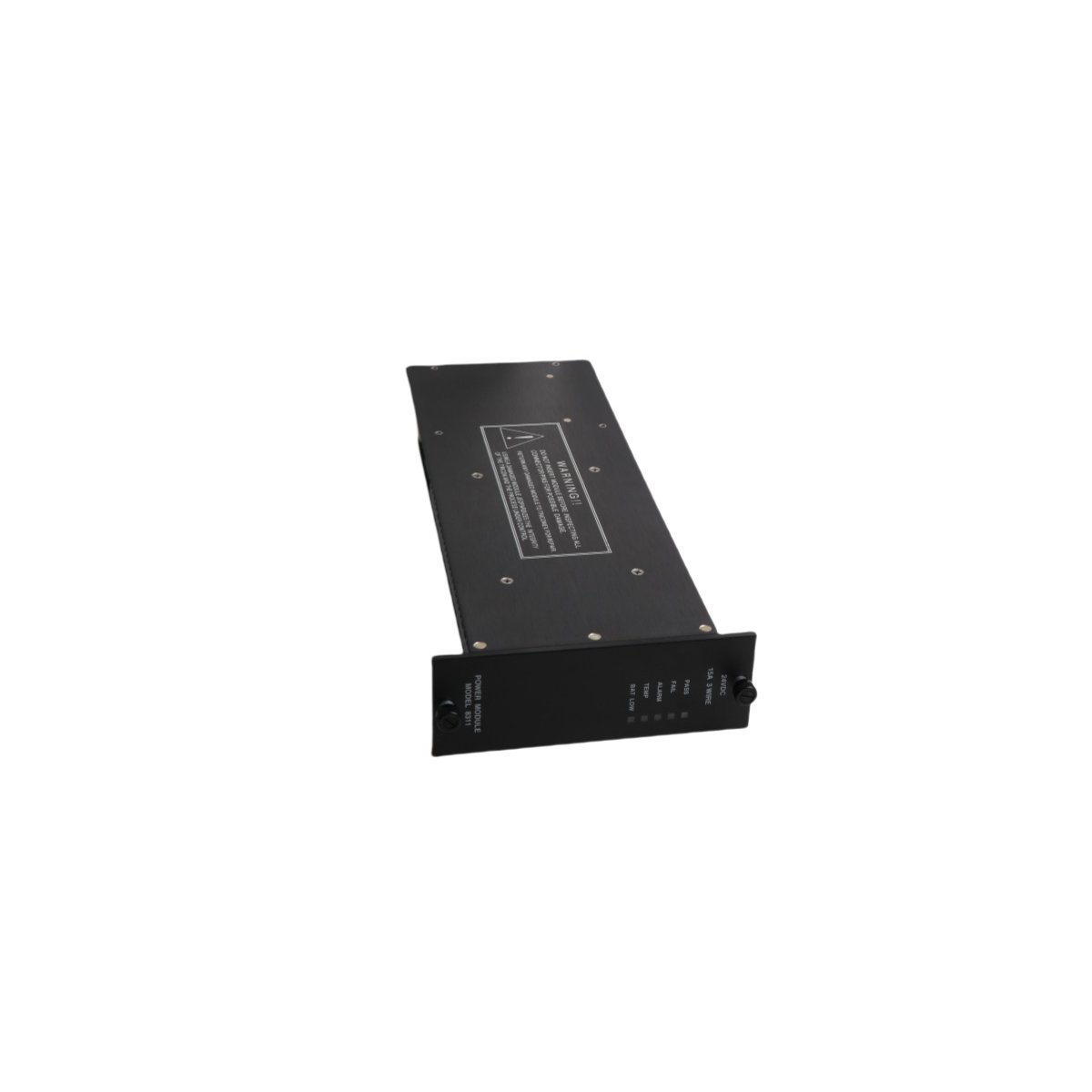

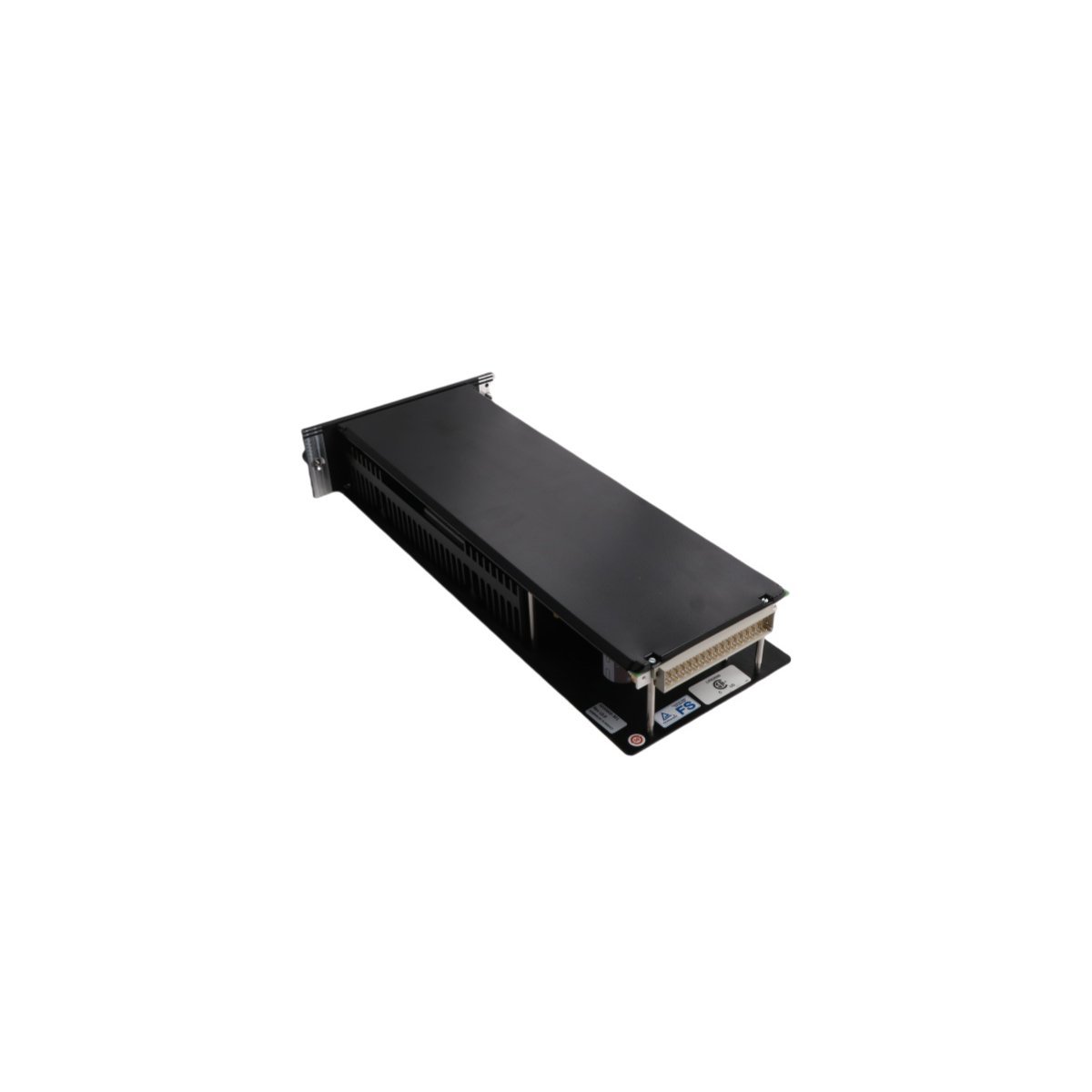

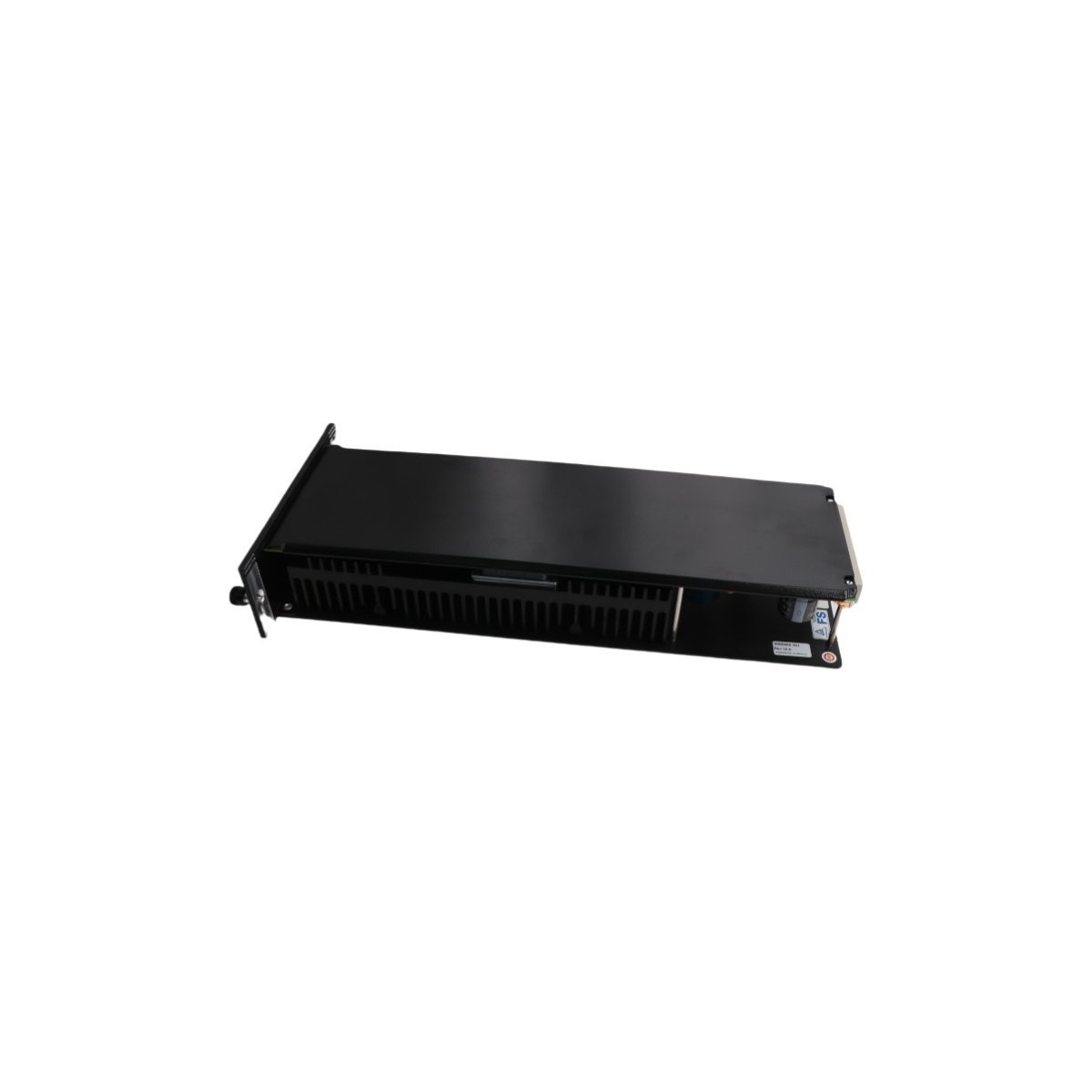

The Triconex 8311 is a high-density power supply module engineered to provide stable, regulated DC power to the Tricon controller backplane and associated I/O modules. This essential component ensures consistent voltage delivery within Triple Modular Redundant (TMR) safety systems, supporting continuous operation in critical industrial environments.

Advanced Power Regulation and Load Management

The 8311 module serves as the primary energy source for the Triconex chassis, converting incoming power into the precise voltages required by sensitive logic processors. By utilizing sophisticated power management circuitry, the module maintains a constant output even during significant input fluctuations or varying load demands. This level of regulation prevents system resets and data corruption, which are often caused by power instability. Furthermore, the 8311 architecture allows for load sharing when installed in redundant pairs, ensuring that if one supply fails, the secondary unit assumes the full load instantaneously without disrupting the safety controller’s logic execution.

Resilience in Harsh Industrial Conditions

Schneider Electric designed the Triconex 8311 to thrive in the volatile atmospheres found in chemical processing and power generation. The module features a ruggedized enclosure that protects internal components from common industrial contaminants like moisture, dust, and corrosive vapors. Moreover, the 8311’s thermal management system allows it to operate efficiently across a wide temperature range, significantly extending the mean time between failures (MTBF). Because the module adheres to the highest safety standards, it provides the necessary isolation and protection to shield the main controller from electrical surges or field-side faults.

Compact High-Density Integration

The high-density footprint of the 8311 allows facilities to maximize their cabinet space without sacrificing current-carrying capacity. This compact design simplifies the installation process, particularly in legacy system upgrades where space is at a premium. Transitioning to the 8311 module enables smoother system expansions, as the power infrastructure can accommodate additional I/O modules with minimal reconfiguration. Additionally, the module supports hot-swapping, which permits maintenance teams to replace power components while the system is live. This capability underscores a commitment to operational continuity, effectively eliminating downtime during routine hardware refreshes.

Technical Specifications
