Description

Brief Product Description

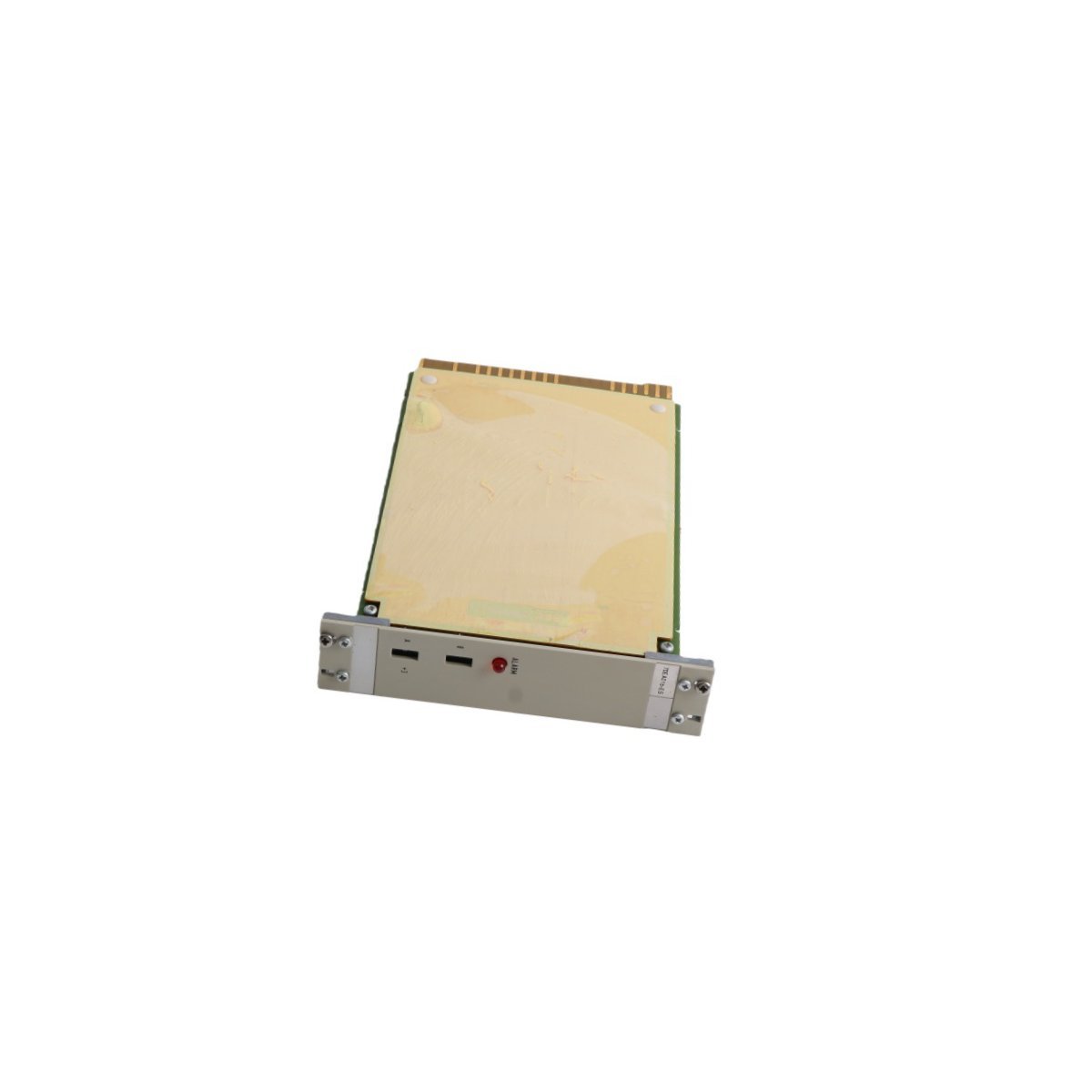

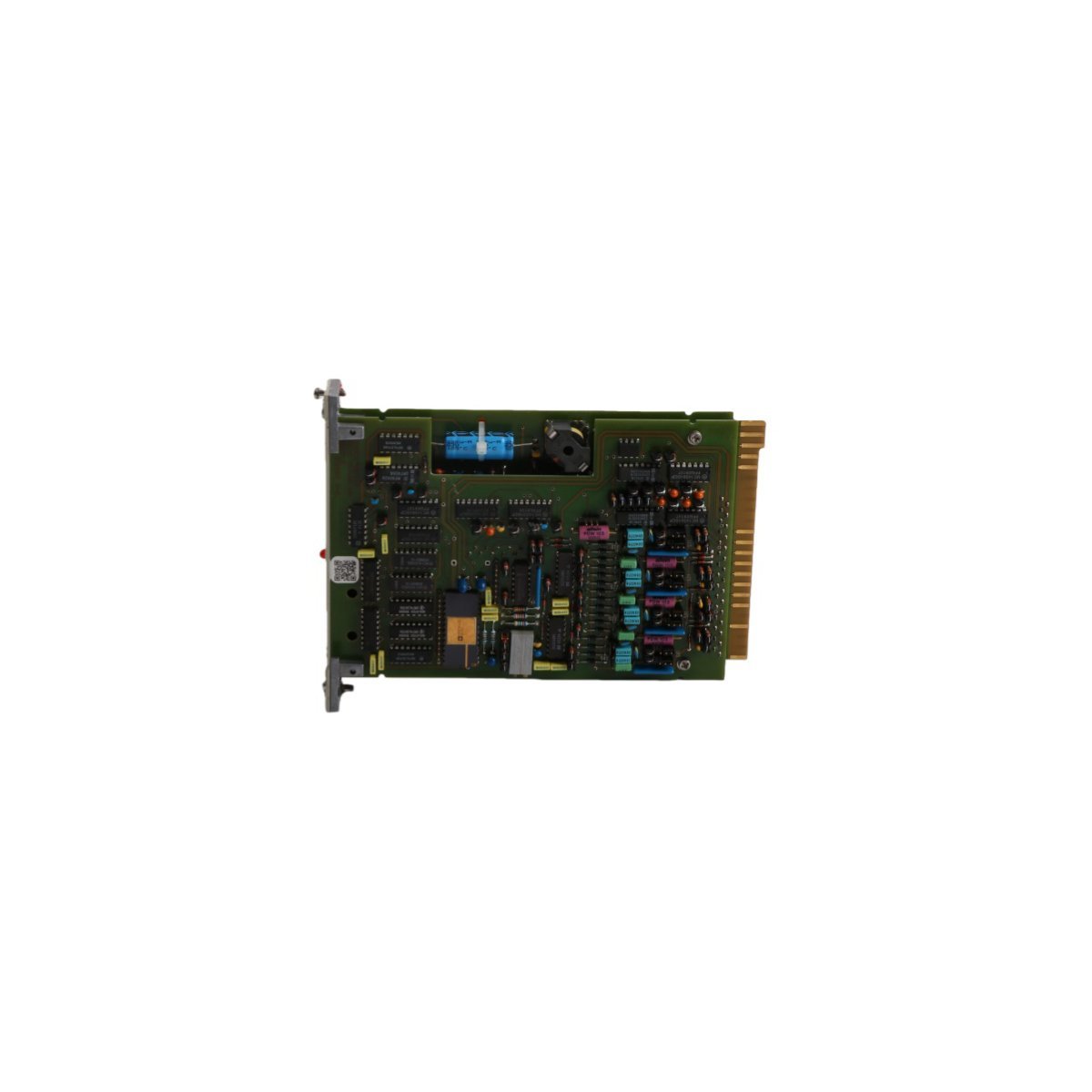

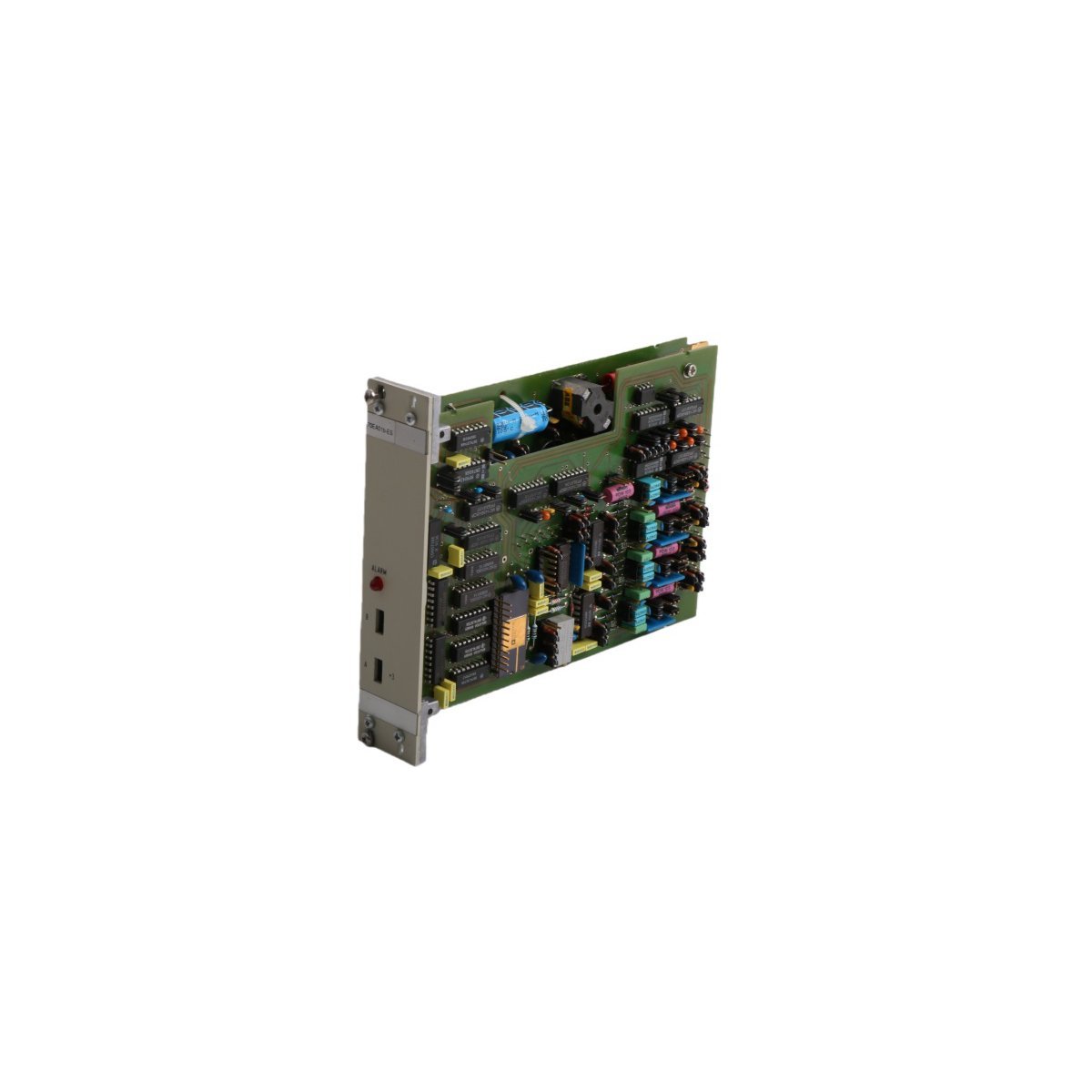

The ABB HESG447398R0020 70EA06A-E is a high-precision analog input module designed for the Procontrol P13 distributed control system. It provides versatile signal acquisition for voltage, current, and frequency inputs, ensuring rapid data processing in extreme industrial environments.

Product Description

Precision Signal Acquisition for Procontrol P13

The ABB HESG447398R0020 70EA06A-E functions as a critical interface within the Procontrol P13 architecture, converting field signals into actionable digital data. This module supports a diverse array of input types, including standard voltage and current loops as well as frequency-based signals. To maintain superior process integrity, the unit delivers an impressive measurement accuracy of ±0.1% of the full scale. Furthermore, its 0.01% resolution capability allows operators to detect even the most minute fluctuations in process variables, making it indispensable for high-stakes automation environments.

High-Speed Processing and Real-Time Response

In dynamic industrial settings, the speed of data acquisition determines the effectiveness of the control loop. The 70EA06A-E module excels by processing signal changes in under 10 milliseconds. This rapid response time ensures that the DCS receives real-time updates, allowing for immediate adjustments to turbine controls, chemical feeds, or power distribution loads. By reducing the lag between physical change and system recognition, the HESG447398R0020 enhances the overall stability and safety of the entire automated plant.

Engineered for Extreme Environmental Resilience

ABB designed the HESG447398R0020 to withstand conditions that would cause standard electronic components to fail. The module features a robust IP67-rated construction, providing total protection against dust and water ingress. It operates reliably across a vast temperature spectrum ranging from -40°C to +80°C, and it can survive storage temperatures as low as -55°C. This extreme durability ensures consistent performance in remote substations, offshore platforms, and heavy manufacturing facilities where climate control is often unavailable. Consequently, this module reduces the frequency of maintenance interventions and lowers the total cost of ownership over the system’s lifecycle.
