Description

Brief Product Description

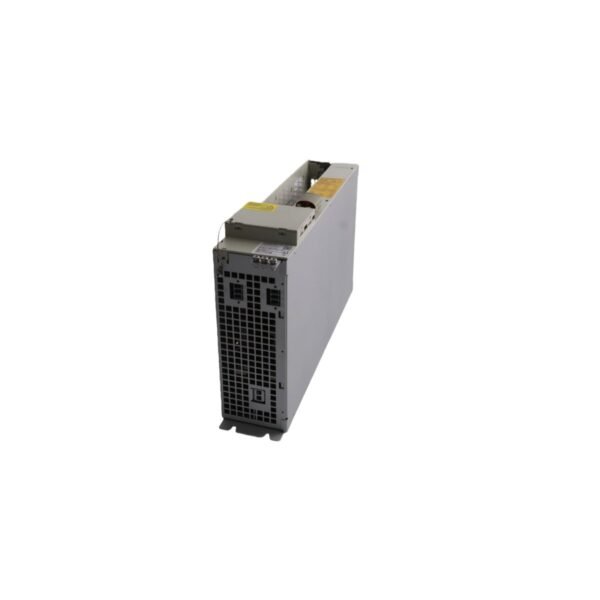

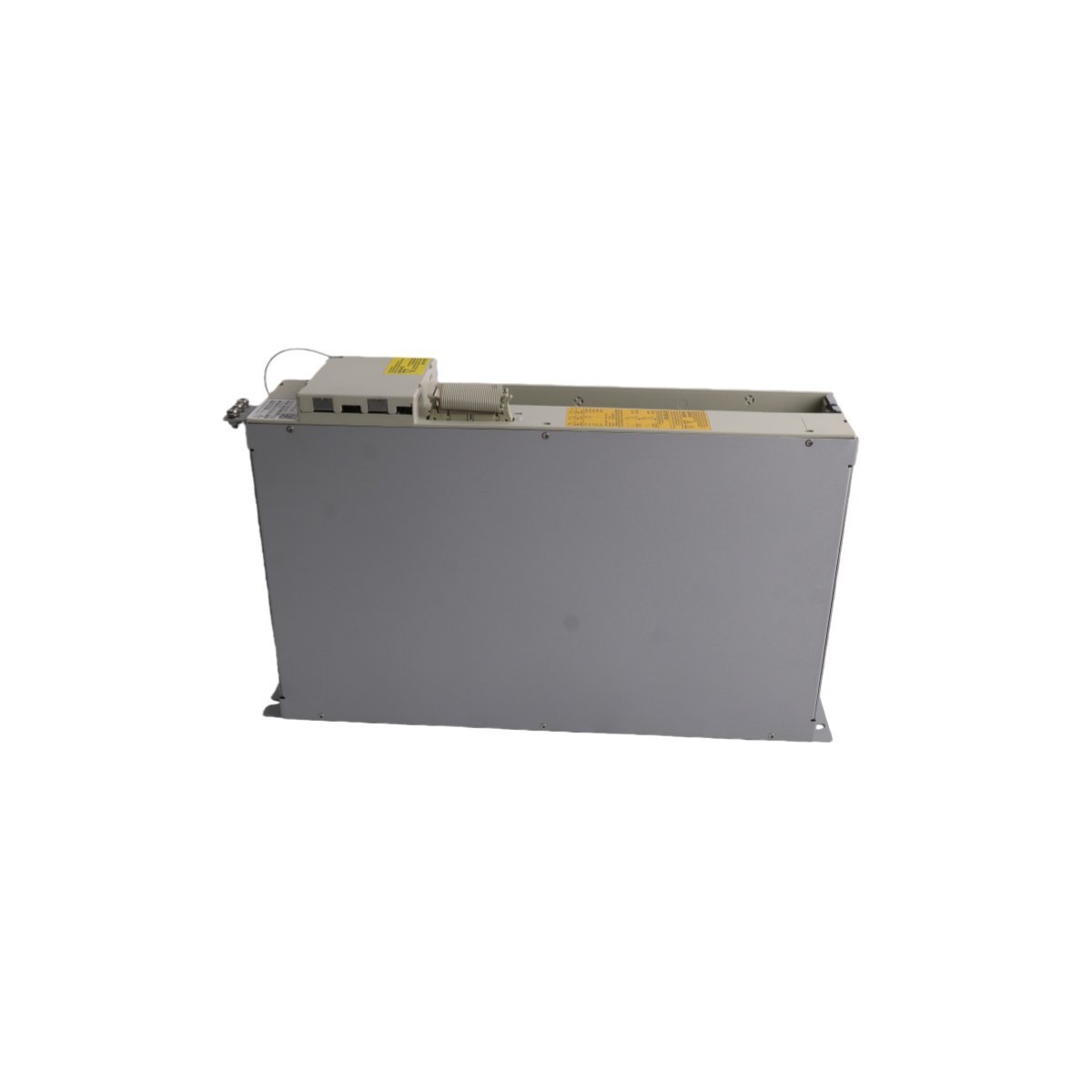

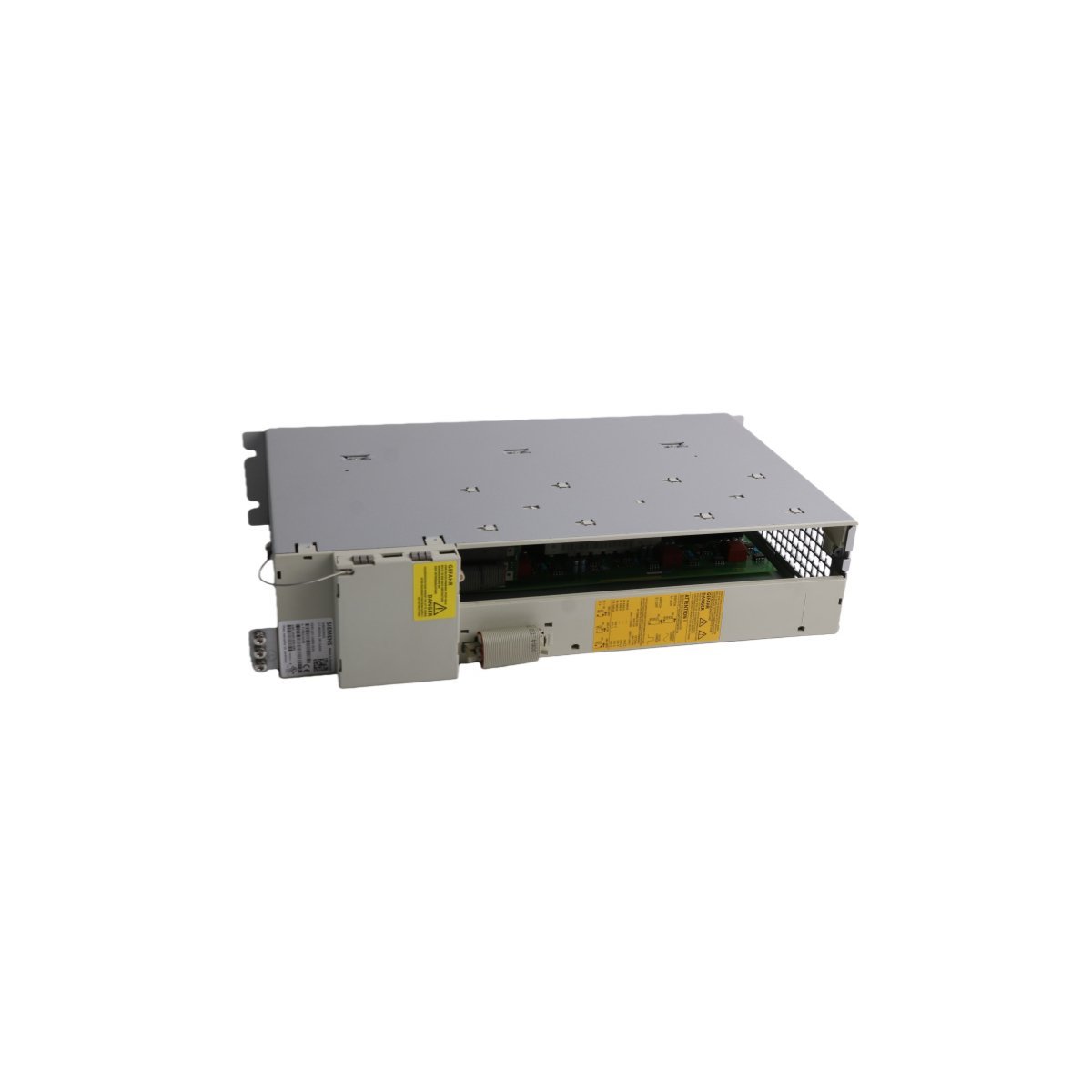

The Siemens 6SN1123-1AA00-0EA1 is a high-performance SIMODRIVE 611 power module designed for single-axis servo control within SINUMERIK 840D and 810D drive systems. This internal cooling unit provides precise motor power management and integrated thermal protection to ensure reliable operation in heavy-duty CNC machining applications.

High-Precision Motion Control and System Integration

The Siemens 6SN1123-1AA00-0EA1 functions as a core power stage within the modular SIMODRIVE 611 converter system. Primarily serving the SINUMERIK 840D solution line, this module converts DC bus voltage into controlled AC power for high-dynamic servo motors. The unit utilizes a standardized 50mm width frame, allowing engineers to mount it seamlessly alongside other drive modules in a compact line-up. Internal feedback loops communicate directly with the control board, enabling the precise torque and speed regulation required for modern multi-axis machining centers.

Advanced Thermal Protection and Safety Logic

To safeguard expensive motor assets, the 6SN1123-1AA00-0EA1 incorporates a dedicated monitoring circuit for motor overtemperature. This system interfaces with PTC thermistors inside the motor windings to track thermal loads in real-time. Instead of an immediate hard shutdown, the module triggers an early warning signal when temperatures exceed safe thresholds. This proactive approach grants operators enough time to reach a safe stopping point, effectively preventing thermal damage and reducing the risk of scrapped workpieces. Additionally, the integrated “Ready” relay at terminal X111 confirms the module’s functional integrity, ensuring the main contactor only engages when all safety parameters are satisfied.

Reliability in Industrial CNC Environments

Industrial environments demand hardware that can withstand continuous duty cycles and electrical noise. Siemens manufactured the 6SN1123-1AA00-0EA1 with high-grade power electronics and a rugged internal cooling design to manage heat dissipation efficiently. The module’s active monitoring of the DC link and fault-signaling capabilities provide a robust defense against overvoltage or short-circuit conditions. By integrating this power module into a SIMODRIVE 611 lineup, manufacturers achieve higher system availability and simplified maintenance, as the modular design allows for rapid component exchange without rewiring the entire drive cabinet.

Key Technical Characteristics

• Single-Axis Operation: Optimized for driving a single servo motor with high dynamic response.
• Integrated Diagnostics: Terminal X111 provides hardware-level status signaling for the CNC controller.
• Proactive Monitoring: Built-in PTC evaluation prevents motor burnout through early thermal warnings.
• Modular Form Factor: Features a slim 50mm design for high-density electrical cabinet installations.
• High Compatibility: Works seamlessly with Siemens 1FT and 1FK series permanent magnet motors.
• Efficient Cooling: Utilizes an internal heat sink design to maintain optimal operating temperatures.

Technical Specifications
