Description

Brief Product Description

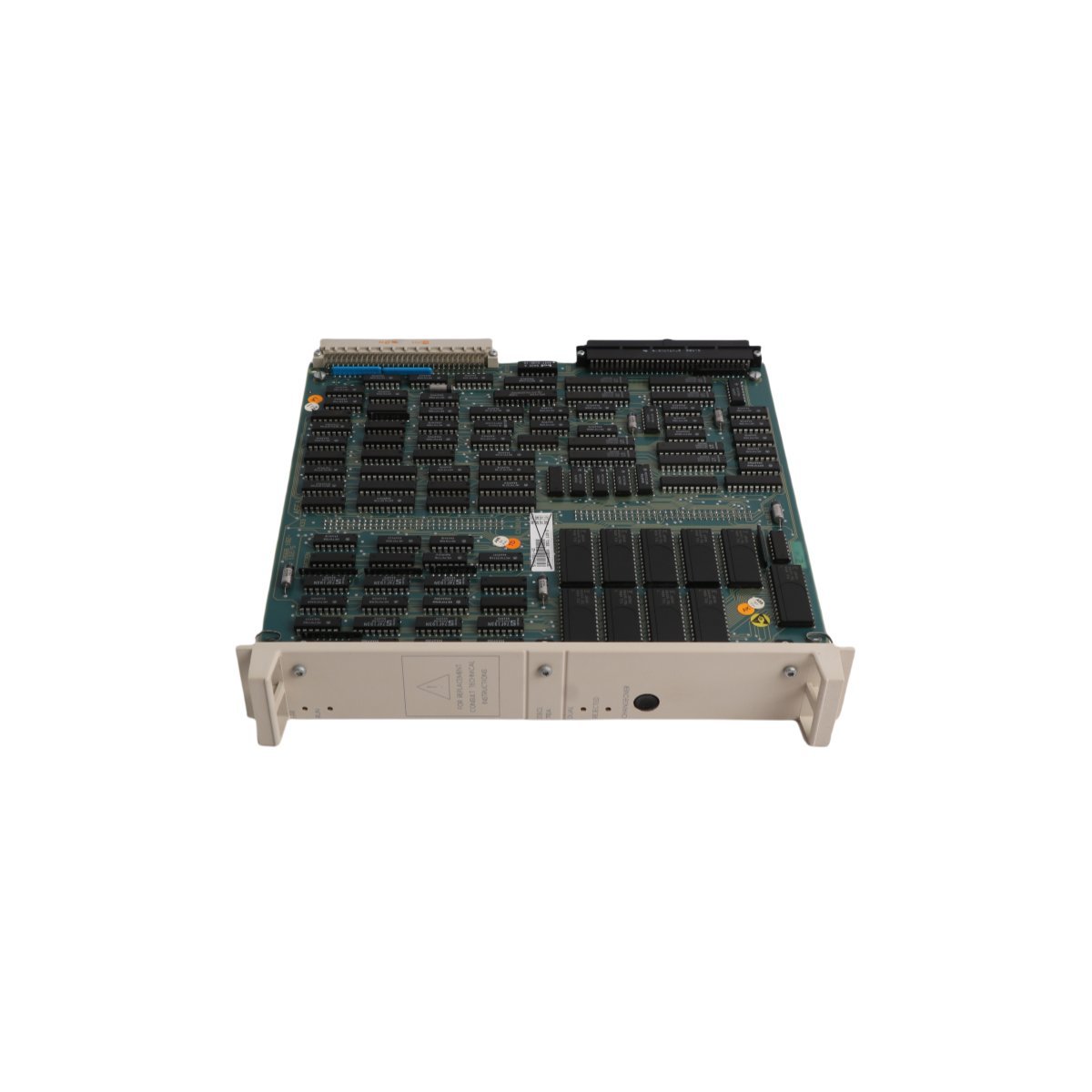

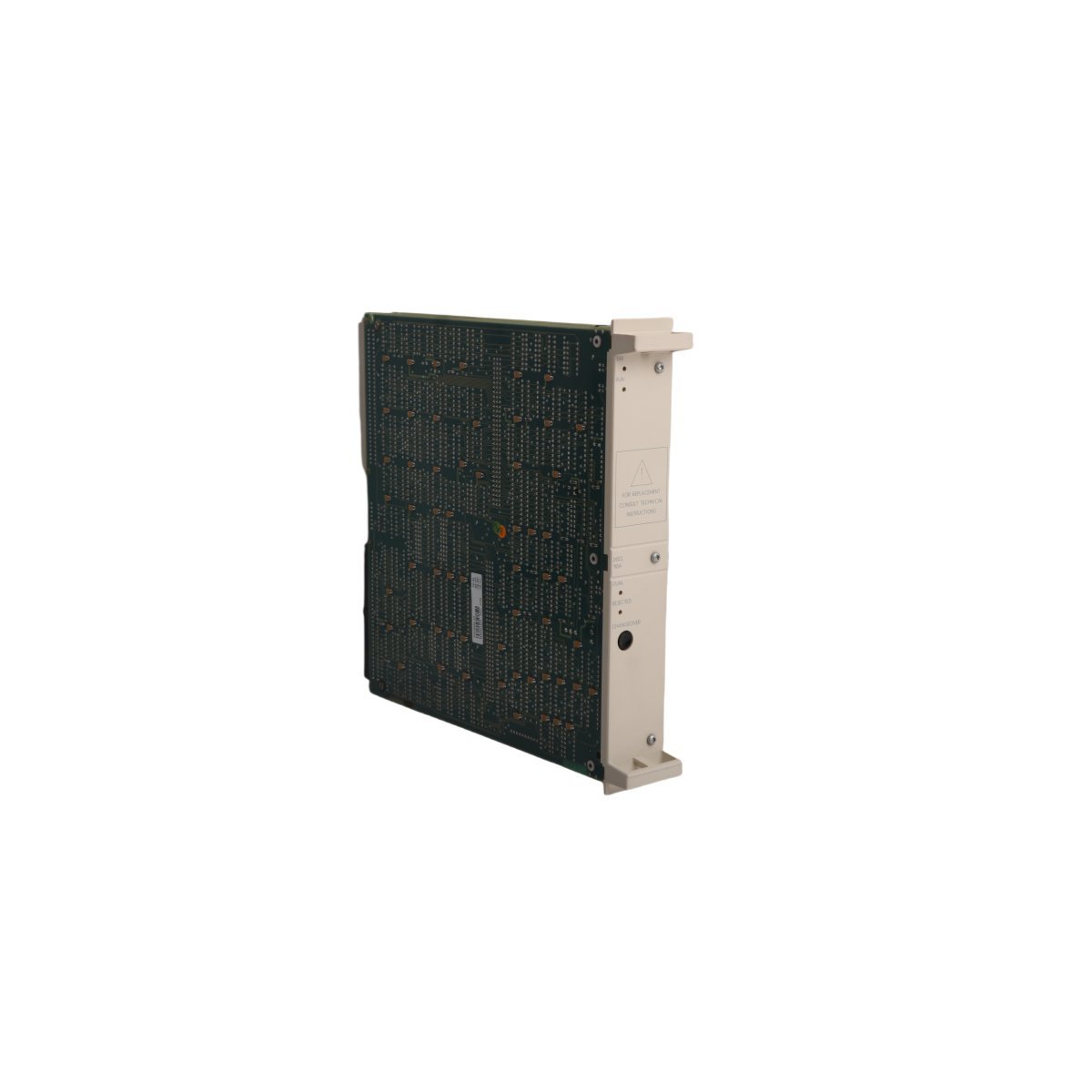

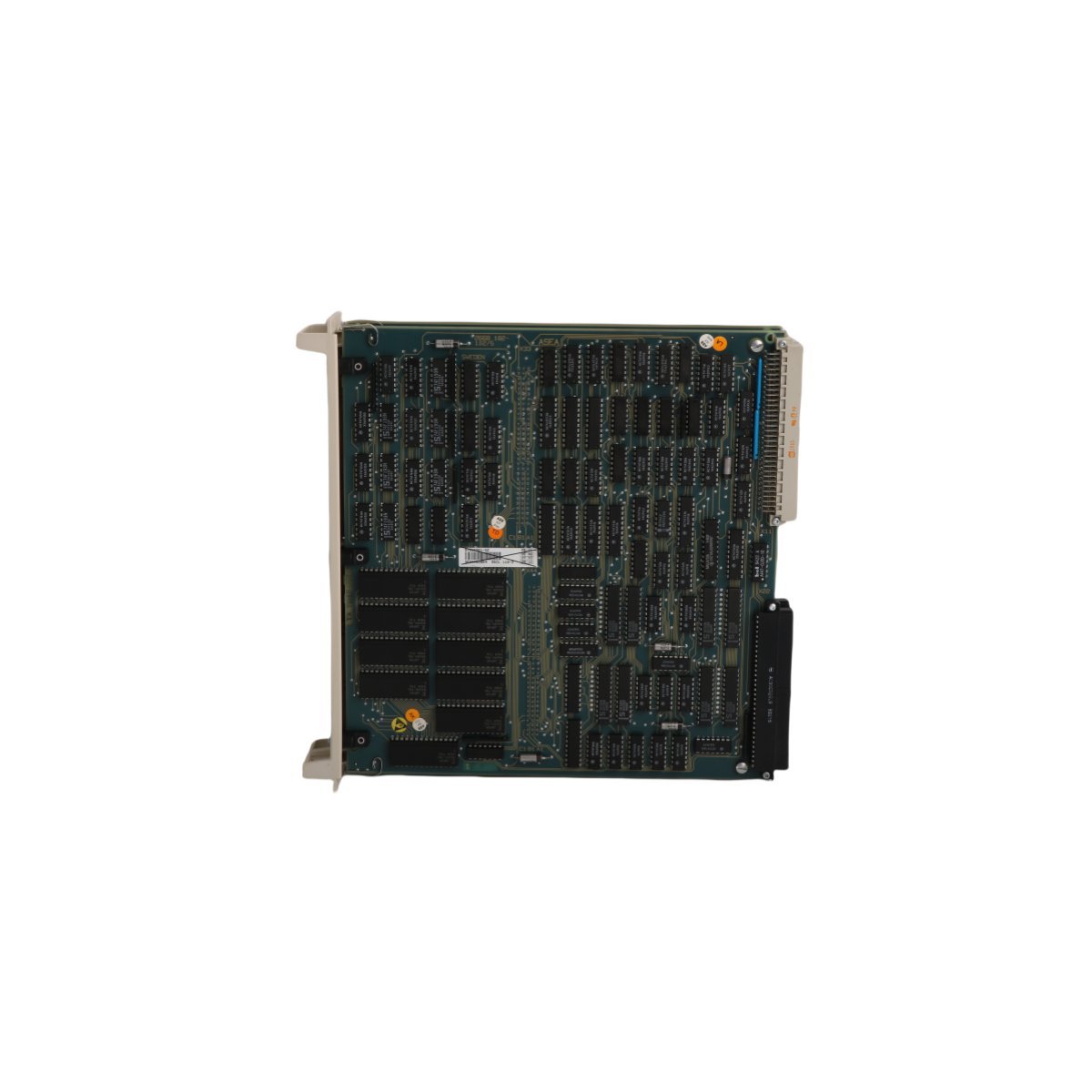

The ABB DSCL110A 57310001-KY is a high-reliability redundancy control unit designed for the MasterPiece T200 system to ensure seamless processor failover. It actively manages system synchronization and safeguards industrial electrical circuits against operational interruptions.

Product Description

High-Availability Redundancy Management

The ABB DSCL110A 57310001-KY functions as a dedicated redundancy supervisor within the MasterPiece T200 and Master OCS architectures. This unit primarily manages the synchronization between primary and backup processor modules, facilitating an instantaneous switchover if a fault occurs. By maintaining a constant heartbeat between system components, the DSCL110A prevents process data loss and ensures that industrial automation sequences continue without manual intervention. This capability makes it a fundamental component for facilities that require 24/7 uptime and zero-tolerance for system downtime.

Advanced Protection and Monitoring

Beyond its role in redundancy coordination, the 57310001-KY control unit provides critical monitoring for electrical circuit integrity. It incorporates specialized internal logic to detect overloads and short-circuit conditions before they can compromise the broader DCS network. Transitioning from basic hardware monitoring to active protection, the module uses high-speed processing to evaluate system health in real-time. This dual-purpose design—combining failover management with electrical safeguarding—significantly enhances the overall security and reliability of modern power distribution and process control installations.

Rugged Swedish Construction

ABB engineered the DSCL110A Redundancy Control Unit specifically for the demanding environments of heavy industry. Manufactured in Sweden, the module features a high-density PCB layout protected by a durable housing that resists the mechanical and thermal stresses common in energy and manufacturing plants. Because of its compact 4cm-wide footprint, the unit fits efficiently into standard MasterPiece T200 subracks. Furthermore, the 0.9kg assembly utilizes high-grade interconnects to maintain signal purity, ensuring that the redundancy link remains stable even in areas with significant electromagnetic interference.
