Description

Brief Product Description

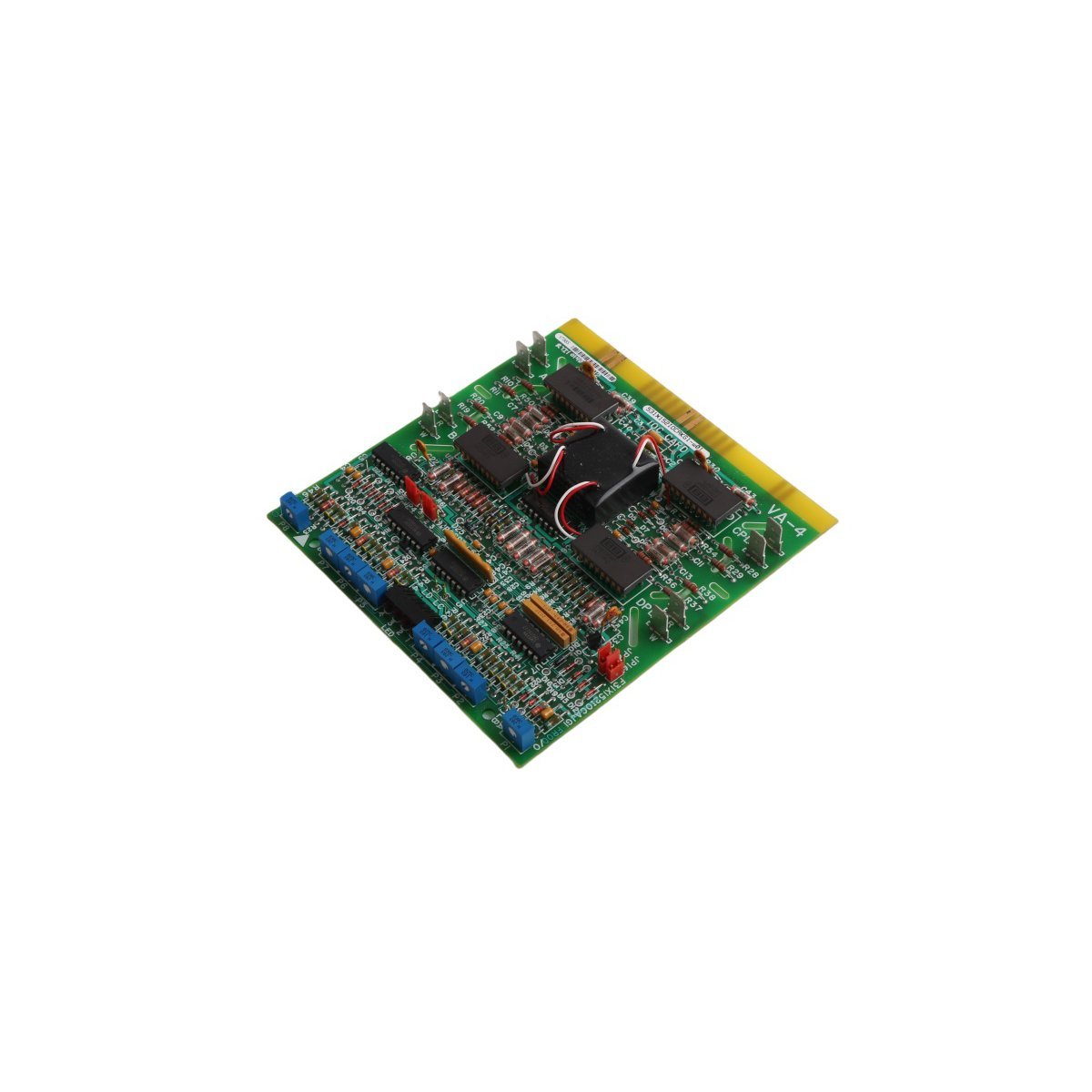

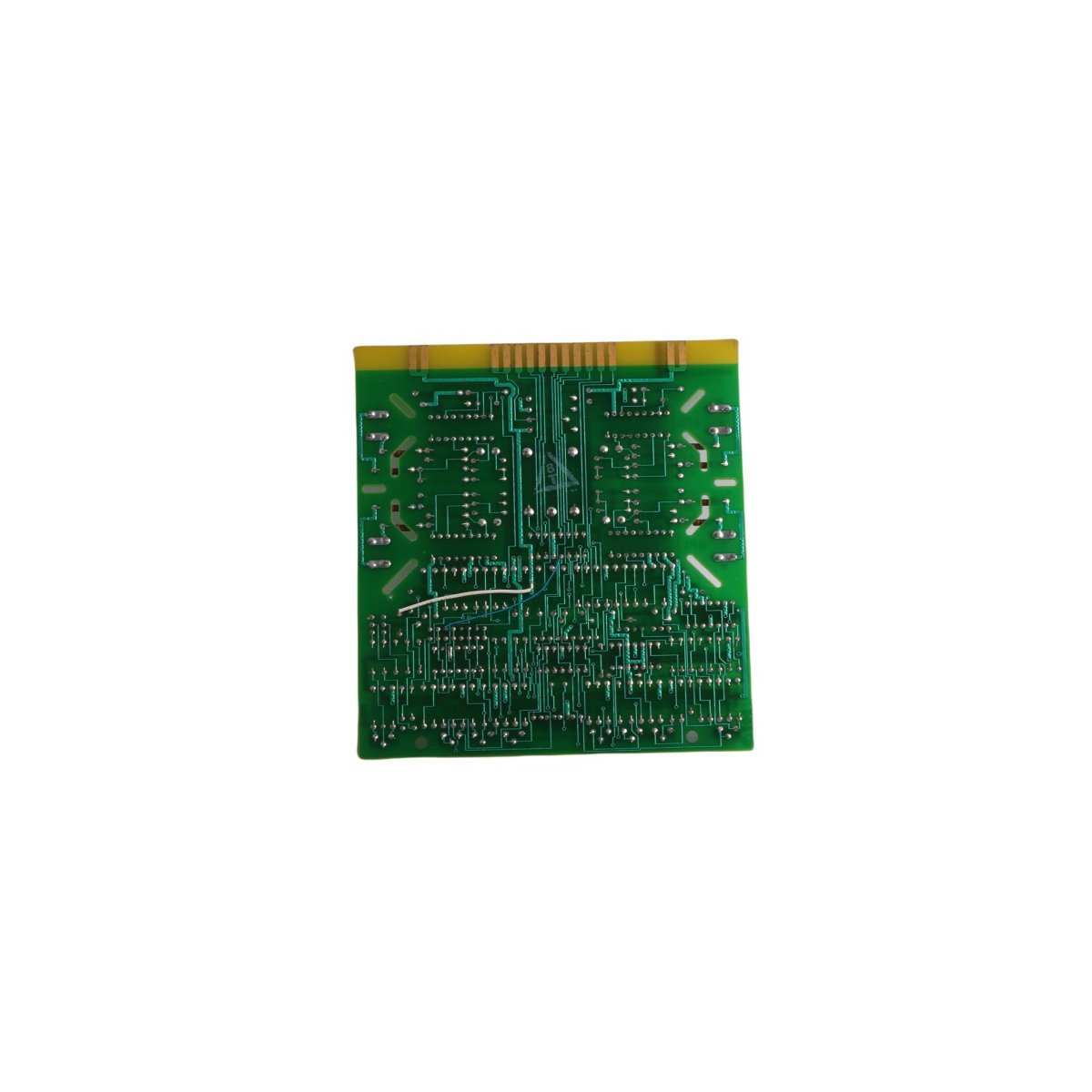

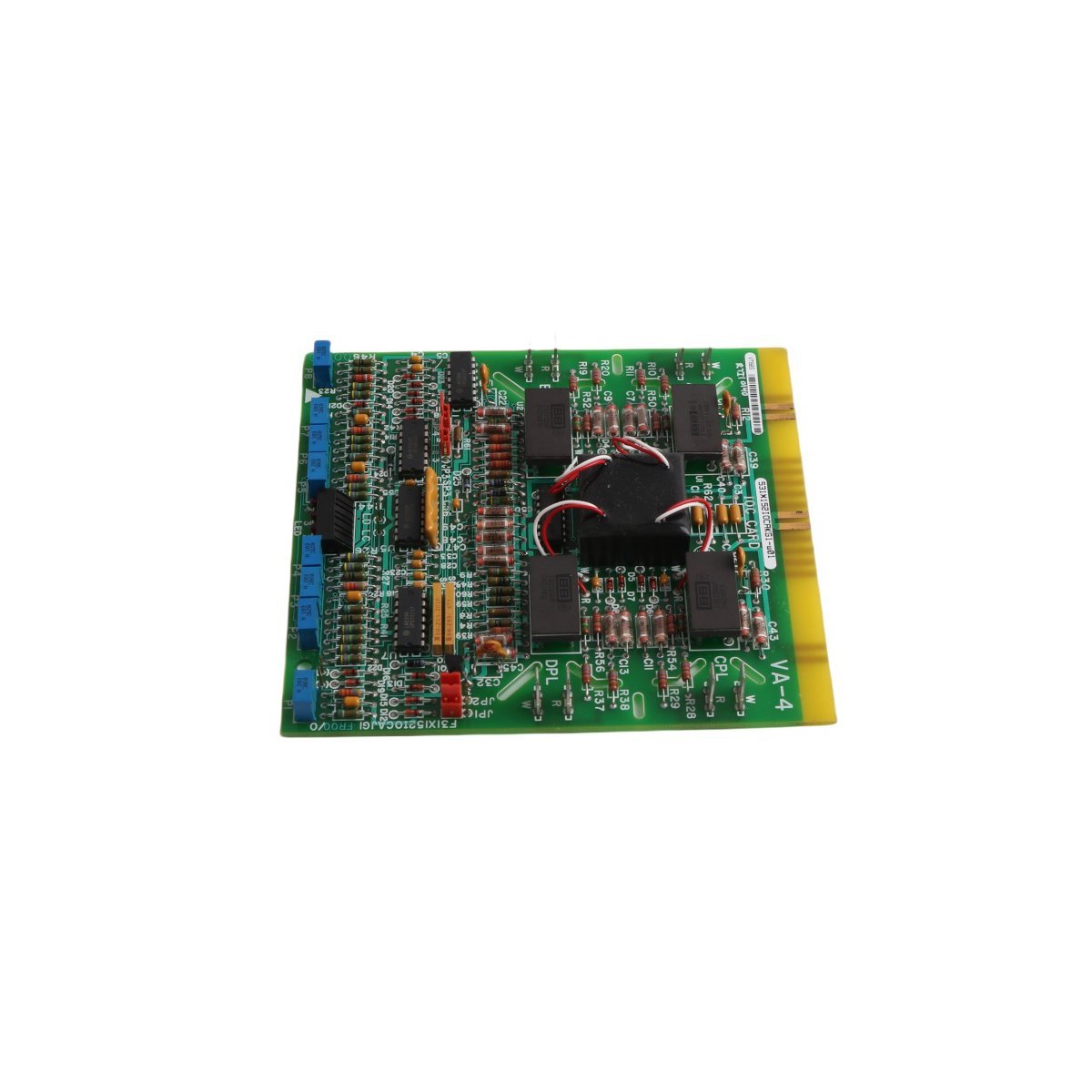

The GE 531X152IOCAKG1 is a specialized Instantaneous Overcurrent (IOC) card designed to provide high-speed current monitoring and fault protection for General Electric drive systems. It ensures system safety by detecting overcurrent conditions and triggering immediate protective actions to prevent hardware damage.

Product Description

Instantaneous Overcurrent Protection and Monitoring

The GE 531X152IOCAKG1 serves as a critical safety component within General Electric’s industrial drive and control assemblies. Specifically engineered as an Instantaneous Overcurrent (IOC) card, this module monitors real-time current levels to identify surges that exceed predefined safety thresholds. Once the card detects a fault, it executes rapid signal processing to trigger protective shutdowns or alarms. This high-speed response is vital because it protects expensive power semiconductors and motors from catastrophic failure during short circuits or sudden load fluctuations.

Industrial Durability and Environmental Resilience

General Electric manufactured the 531X152IOCAKG1 module to operate reliably within the demanding conditions of heavy manufacturing and energy production facilities. The card features a compact, low-profile design that allows for efficient heat dissipation and easy integration into crowded control racks. Furthermore, the board construction utilizes high-grade materials to resist the effects of mechanical vibration and electromagnetic interference (EMI). Because of this robust engineering, the module maintains its calibration and performance standards even when exposed to the temperature swings common in industrial power conversion environments.

Seamless Integration and Maintenance

The 531X152IOCAKG1 overcurrent card facilitates straightforward installation through its standardized pin configurations and mounting footprint. This compatibility ensures that technicians can replace aging or damaged cards with minimal system reconfiguration, effectively reducing maintenance-related downtime. Additionally, the module integrates directly with GE’s drive control architecture, providing the master controller with immediate feedback regarding the current status of the power circuit. This level of transparency enables more effective system diagnostics and aids in long-term predictive maintenance strategies for the entire drive lineup.

Technical Specifications
