Description

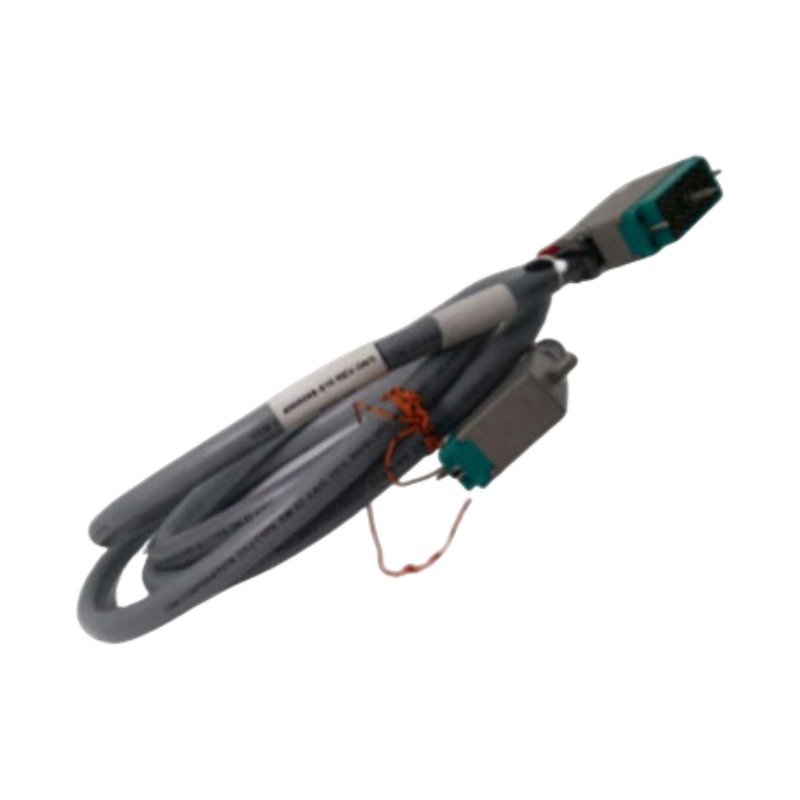

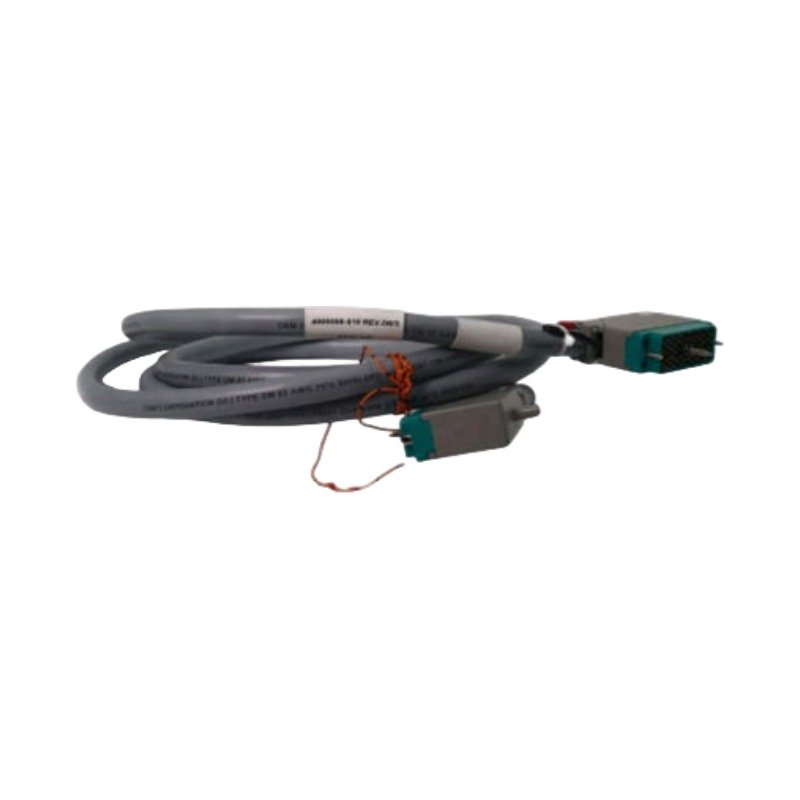

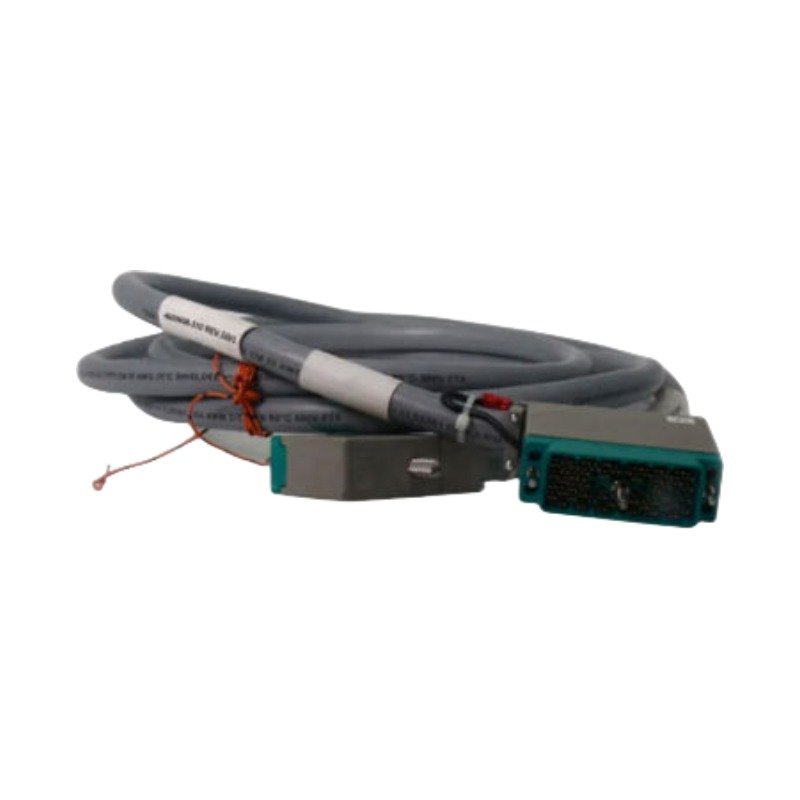

Configured for high-reliability data exchange in turbine supervisory instrumentation (TSI) networks, the Bently Nevada 4000212-006, also cataloged as the 4000212 I/O Communication Bus Cable, operates as a dedicated hardware component for direct physical/electrical execution. This industrial-grade data cable establishes structural internal communication paths between main 3500 series monitoring rack processors and their corresponding backplane components. The hardware facilitates rapid, real-time data streaming of multi-channel vibration, position, and speed metrics without introducing packet latency or signal attenuation across the communication backplane bus.

Hardware Specifications

Backplane Bus Communication and Signal Integrity

To preserve structural data synchronization within highly critical safety frameworks, the internal cable architecture balances exact electrical impedances across every communication channel. This optimized construction yields a fixed transmission velocity profile that supports deterministic backplane bus communication velocity Licences without data collisions.

While probe leads require gap voltage validation to maintain the specific -10 VDC targets for eddy-current probe scaling, this digital bus assembly focuses entirely on preserving data packet edges. The internal core design implements high cross-talk suppression between parallel digital copper lines, allowing the 3500 platform to process complex high-speed firmware matrices seamlessly. This protection isolates weak vibration sensor trends from the high-frequency switching noise generated by surrounding communication gateway cards.

Frequently Asked Questions

Q: Does this internal communication bus cable support hot-swap component extraction and insertion?

A: Yes, the cable mechanics support hot-swapping adjacent 3500 monitor modules. However, technicians must keep the cable connectors locked into the backplane frame during operation to prevent interrupting active rack communications.

Q: What action does the monitoring system execute if the 4000212-006 cable assembly is disconnected or physically broken?

A: The master rack processor detects an immediate loss of I/O communication, changes the affected channel states to a Not OK condition, and registers a system diagnostic fault to inhibit false machine protection trips.

Field Installation Guidelines

• Enforce Connector Insertion Constraints: Align the multi-pin plug socket square with the backplane header interface before applying force. Press smoothly until the integrated side-locking tabs click into position to secure the electrical contact points.
• Observe Minimum Bend Radius Ceilings: Do not bend the flat ribbon sections tighter than a 25.4 mm (1.0 inch) radius during routing. Sharp mechanical stress can fatigue internal copper paths and introduce intermittent data packet dropouts.
• Establish Shield Grounding Topologies: Ensure the integrated tinned copper drain line establishes contact with the metallic chassis ground screw terminal of the rack enclosure. This single-point connection isolates the digital signaling core from electromagnetic interference.
• Isolate From High-Voltage Conduits: Route the communication bus cable completely separate from raw AC power supply inputs and heavy relay terminal blocks inside the panel to prevent inductive switching spikes from corrupting data registers.
