Description

Brief Product Description

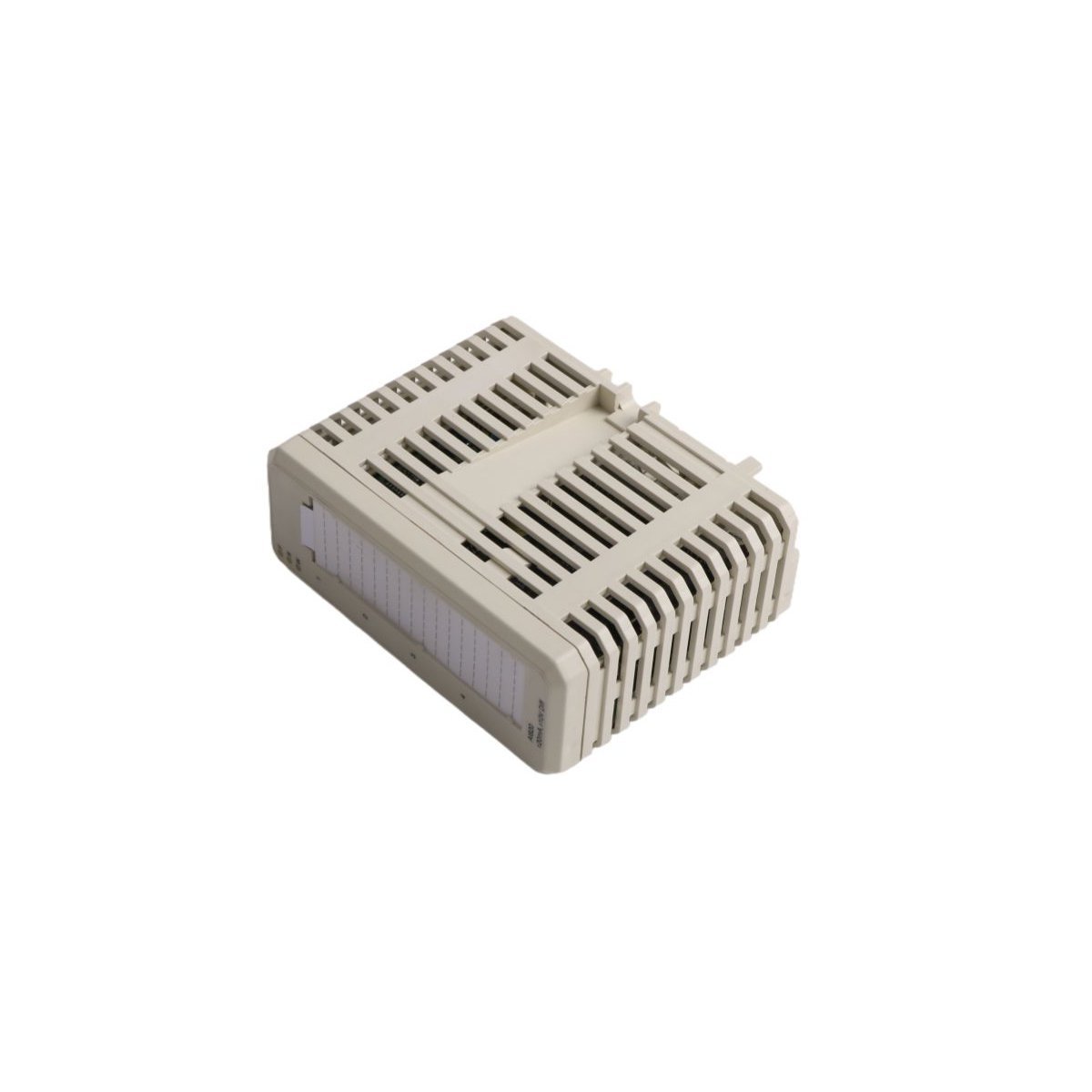

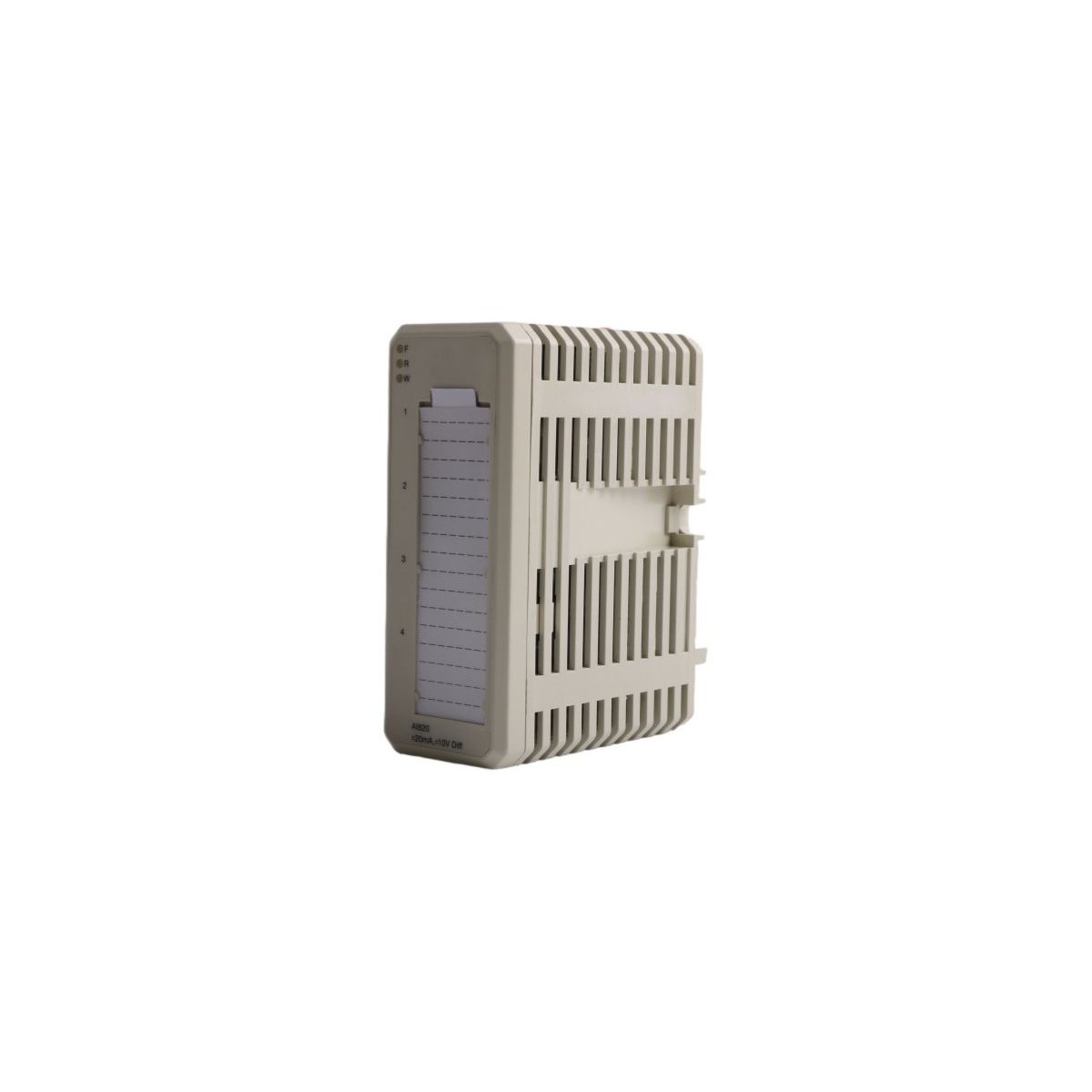

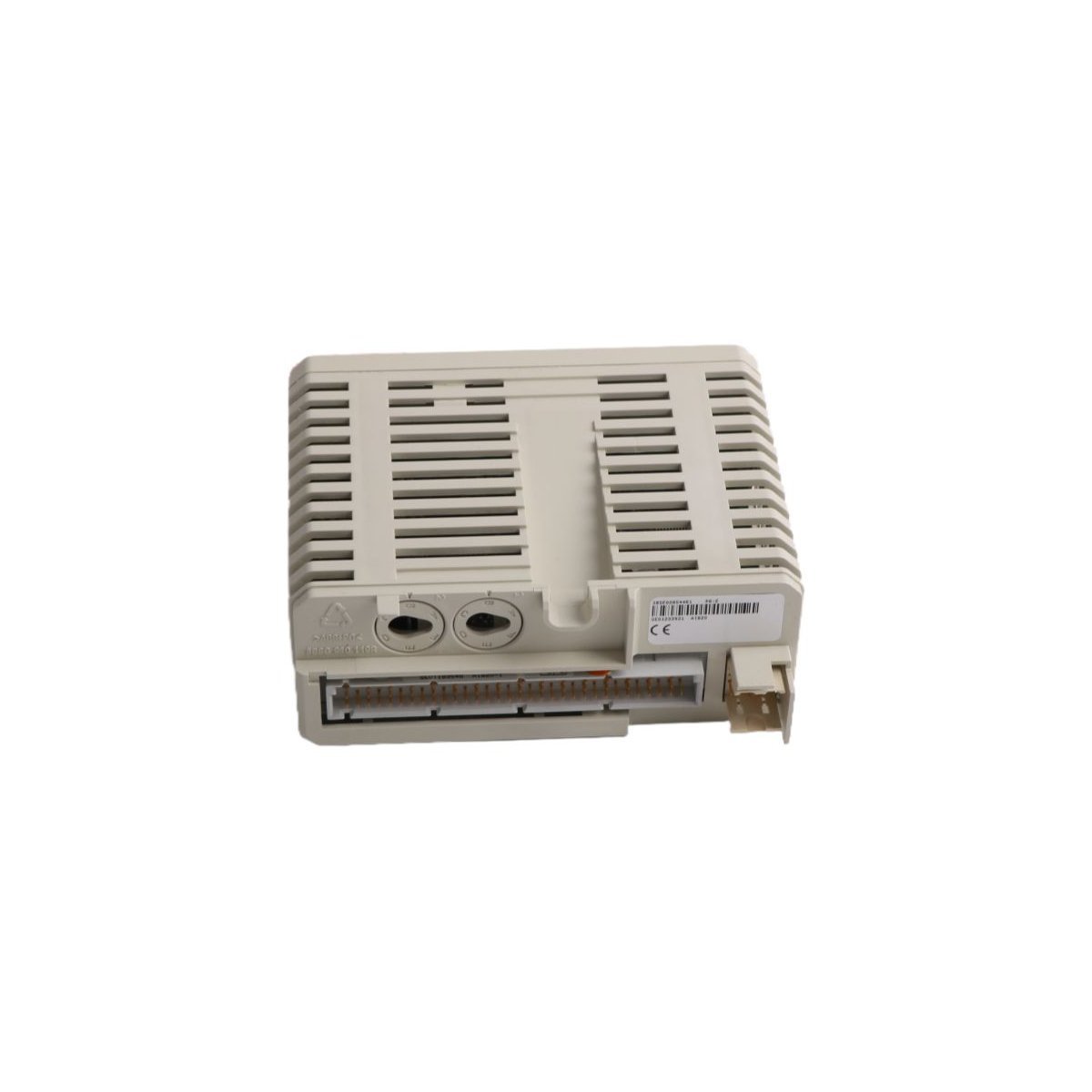

The ABB AI835A 3BSE051306R1 is a high-density, 8-channel analog input module designed for precision temperature sensing via thermocouples and millivolt signals. This Advant-800xA series component features galvanic isolation and integrated cold junction compensation for stable, low-noise data acquisition in industrial DCS environments.

​Product Description

The ABB AI835A 3BSE051306R1 functions as a specialized high-resolution interface within the S800 I/O family, primarily capturing low-level signals from thermocouples and millivolt sources. This 8-channel differential input module processes an extensive range of thermocouple types—including J, K, T, E, R, S, B, N, and C—alongside standard ±200 mV inputs. Because the module utilizes advanced signal conditioning, it delivers an impressive resolution of 0.1 μV, making it indispensable for processes where even minute temperature fluctuations must be monitored.

Precision Measurement and Signal Integrity

Maintaining signal purity in volatile industrial settings is a core strength of the AI835A. Each of the eight channels features galvanic isolation, which prevents ground loops and effectively shields the DCS from high-voltage transients. Furthermore, the module limits noise to below 5 μVrms and maintains a low drift profile of less than 50 μV/°C. These technical characteristics ensure that the reported data remains accurate over long operational cycles. To further enhance reliability, the unit employs continuous wire-break detection, instantly alerting the control system if a sensor connection fails.

Thermal Management and Compensation

Accuracy in thermocouple measurement relies heavily on effective Cold Junction Compensation (CJC). The AI835A 3BSE051306R1 allows engineers to configure one channel specifically for CJC using a 4-wire Pt100 RTD, ensuring the system compensates for ambient temperature variations at the terminal block. The hardware operates efficiently on a 24 V DC power supply and supports vertical or horizontal DIN rail mounting. Its robust design permits operation in extreme temperatures ranging from -20°C to +70°C, supporting reliable performance in demanding machine automation and process control applications.
