Description

Product Overview

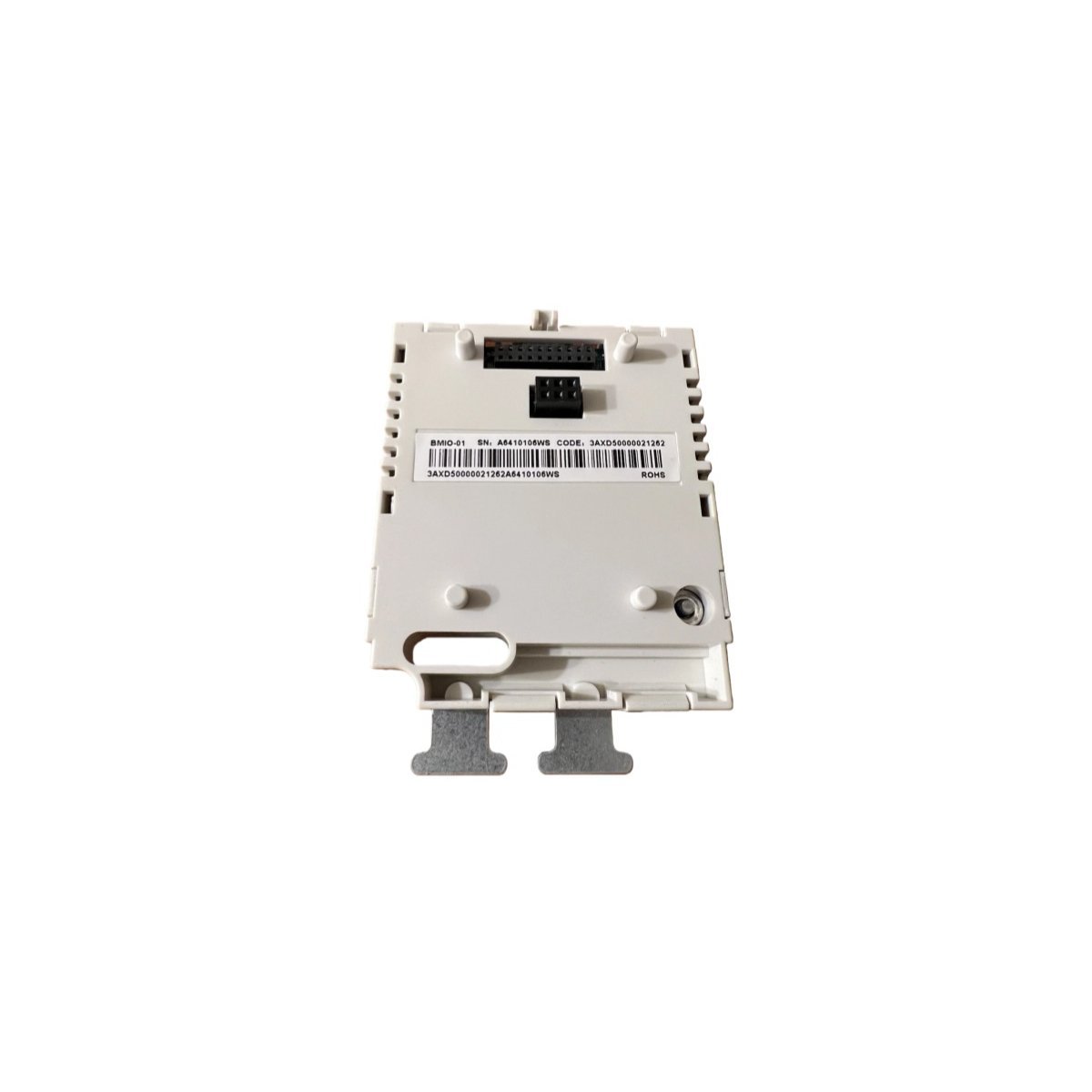

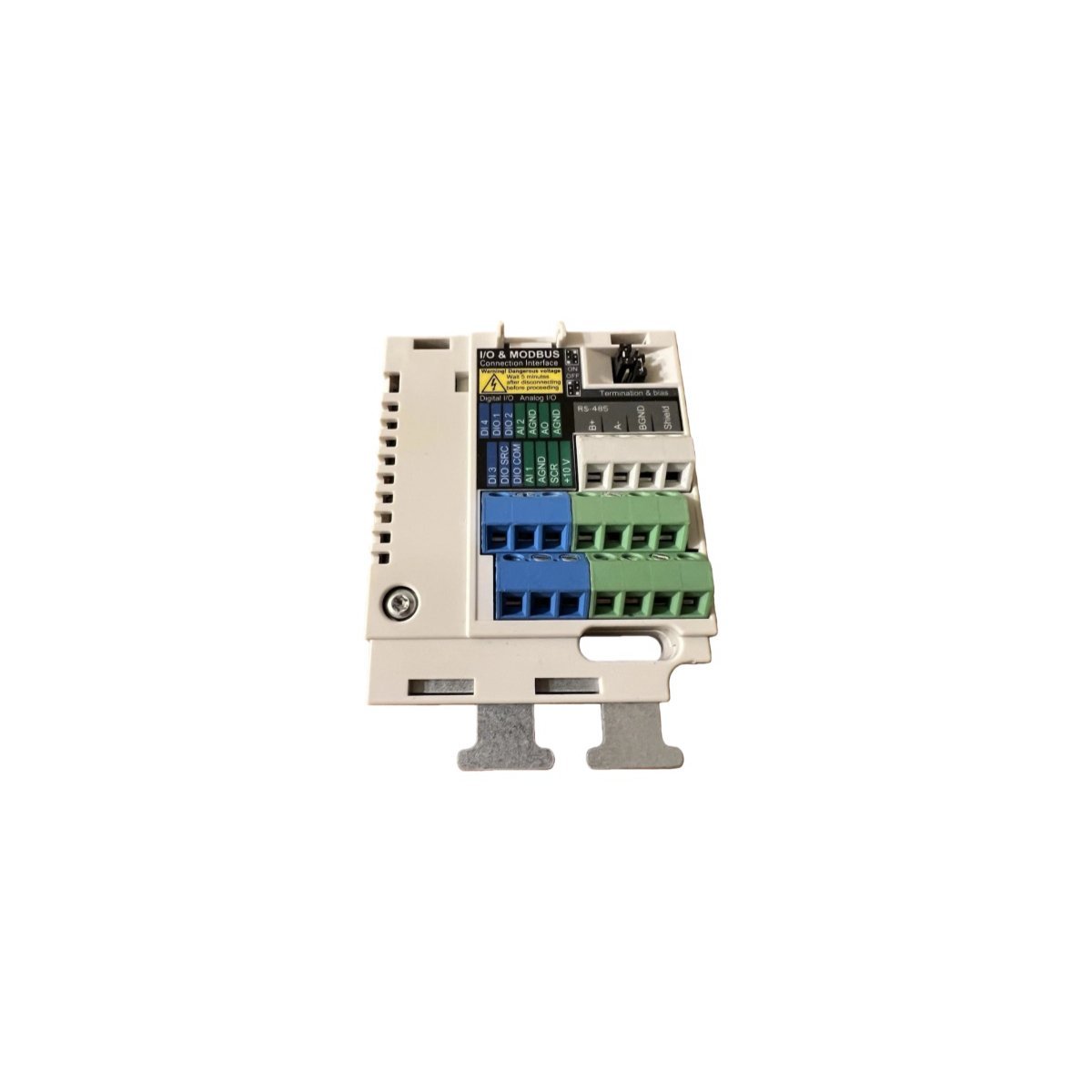

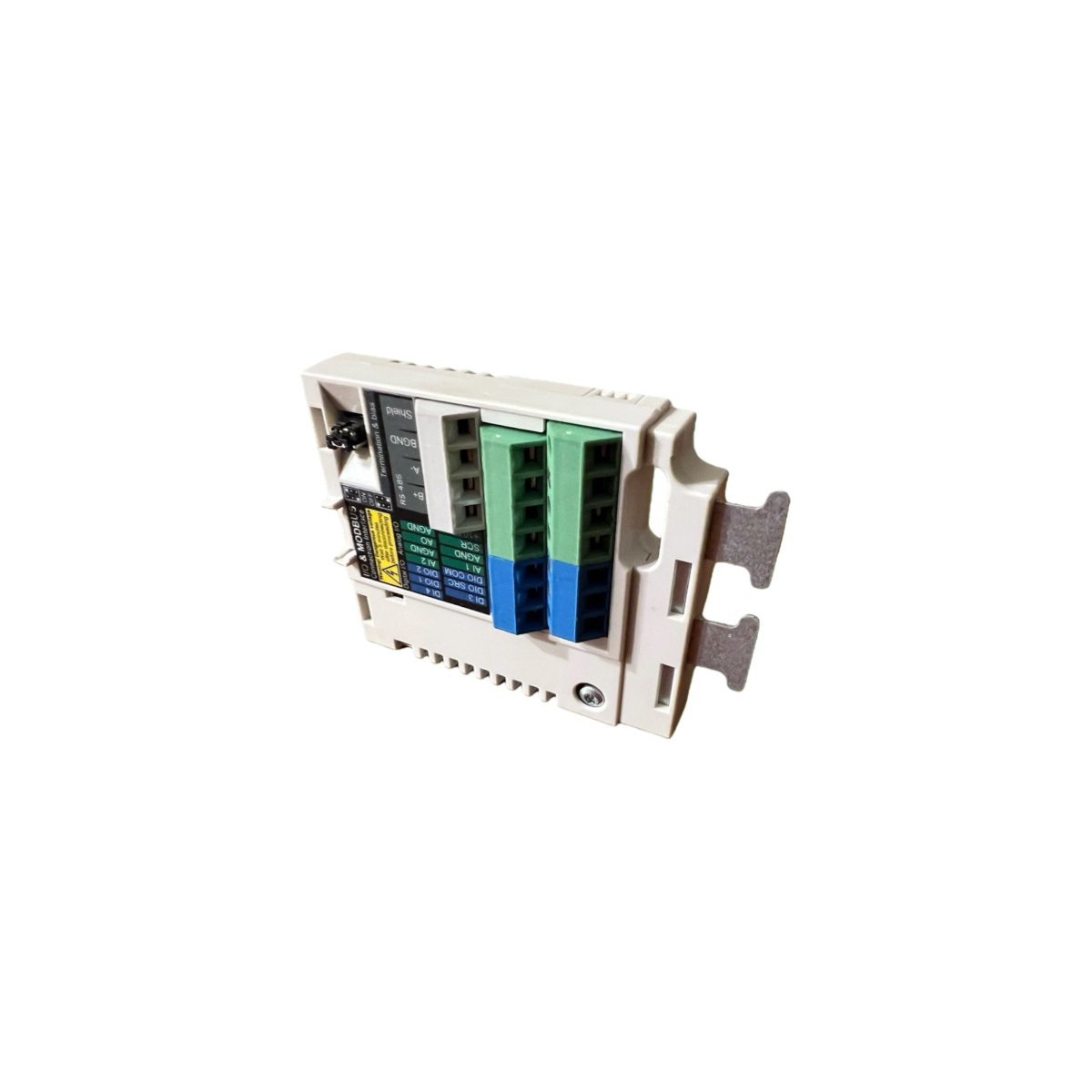

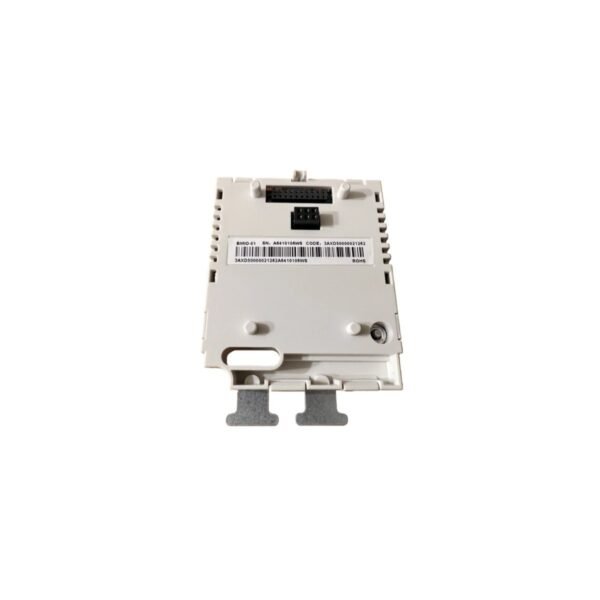

The ABB BMIO-01 (3AXD50000021262) is a multifunctional expansion interface that integrates standard I/O points with a built-in Modbus RTU communication gateway. This module enables industrial drives and controllers to expand their local connectivity while simultaneously bridging data to supervisory control networks.

Integrated Control and Connectivity

The BMIO-01 module significantly enhances the flexibility of industrial automation systems by merging two critical functions into a single hardware footprint. It provides additional digital and analog signal channels that allow controllers to interact with more field instruments, such as sensors and actuators. Beyond simple signal processing, the unit features an integrated Modbus RTU port, which transforms the expansion module into a communication bridge. This dual-purpose architecture simplifies system design because it eliminates the requirement for separate communication adapters. Consequently, engineers can reduce wiring complexity and lower overall hardware costs while maintaining high-speed data throughput.

Optimized Engineering and Logistics

Designed for global deployment, the 3AXD50000021262 adheres to strict international standards for industrial electronics. ABB manufactures this unit with a focus on ease of procurement, utilizing standardized EAN coding and customs tariff classifications (HS Code 8537101190) to streamline cross-border logistics. The hardware supports a broad range of project scales, from single-drive upgrades to large-scale plant expansions. Because the module utilizes a compact 24x19x5.3cm housing, it fits easily into standardized control cabinet layouts without requiring extensive mechanical modifications.

Industrial Reliability and Performance

Stability remains a priority for the BMIO-01, as it typically operates in environments where continuous uptime is mandatory. The module maintains signal integrity across its expansion ports, ensuring that time-critical data reaches the DCS or PLC without interference. Its robust internal circuitry protects the unit against the electrical noise frequently encountered in motor control centers. Furthermore, the 1.22 kg build quality reflects its Swedish engineering heritage, promising a long service life and high mean time between failures (MTBF). By adopting this module, facilities ensure that their automation layers remain scalable and reliable for future technological shifts.

Technical Characteristics
