Product Overview

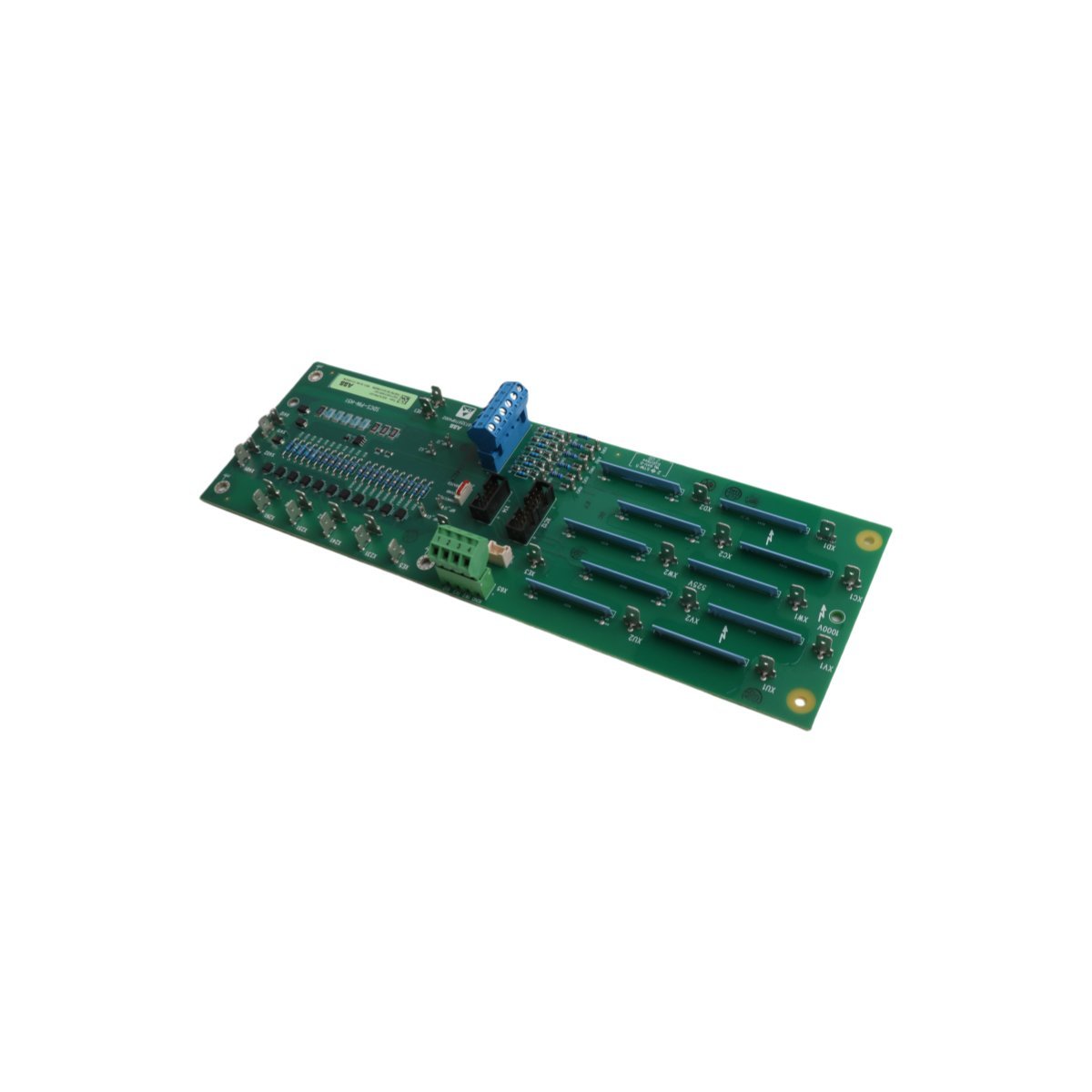

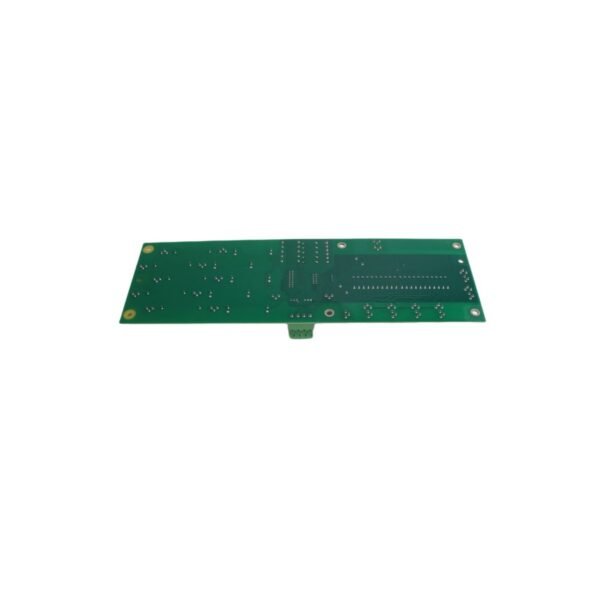

The ABB SDCS-PIN-H51 (3ADT320700R1501) is a high-performance power supply and pulse interface board designed specifically for industrial DCS drives and Advant OCS/800xA systems. This essential component regulates internal voltage and manages critical signal measurements to ensure drive stability and operational safety.

Reliable Power Regulation

The SDCS-PIN-H51 functions as a specialized power distribution hub within the drive cabinet, converting raw input into a stabilized 24V DC output. Because industrial power grids often experience fluctuations, this board utilizes an advanced regulation circuit that accepts an input range of 20–30V DC. It maintains an efficiency rating exceeding 85%, which minimizes heat generation within the enclosure while providing a continuous power output of up to 120W. This steady energy supply protects sensitive digital components from voltage sags and ensures consistent performance across manufacturing and power distribution applications.

Advanced Measurement and Interface Capabilities

Beyond power delivery, the 3ADT320700R1501 serves as a vital measurement card for drive synchronization and pulse interfacing. It monitors electrical parameters in real-time, providing the feedback loops necessary for precise motor control and torque management. The board’s architecture facilitates seamless communication between the power stage and the control logic, effectively acting as a bridge for digital inputs. By integrating measurement and power functions into a single ruggedized PCB, ABB reduces the complexity of the drive system and improves the overall mean time between failures (MTBF).

Industrial Grade Integration

ABB engineered the SDCS-PIN-H51 for effortless integration into standard control cabinets using a space-efficient mounting profile. The hardware features high-quality solder joints and components selected for their resistance to the thermal stress and vibrations common in heavy industrial environments. Whether utilized in new automation projects or as a critical spare part for existing DCS frameworks, this measurement card ensures that high-demand systems remain online. Its Swedish engineering pedigree guarantees compliance with international safety and performance standards for global deployment.
