Description

Brief Product Description

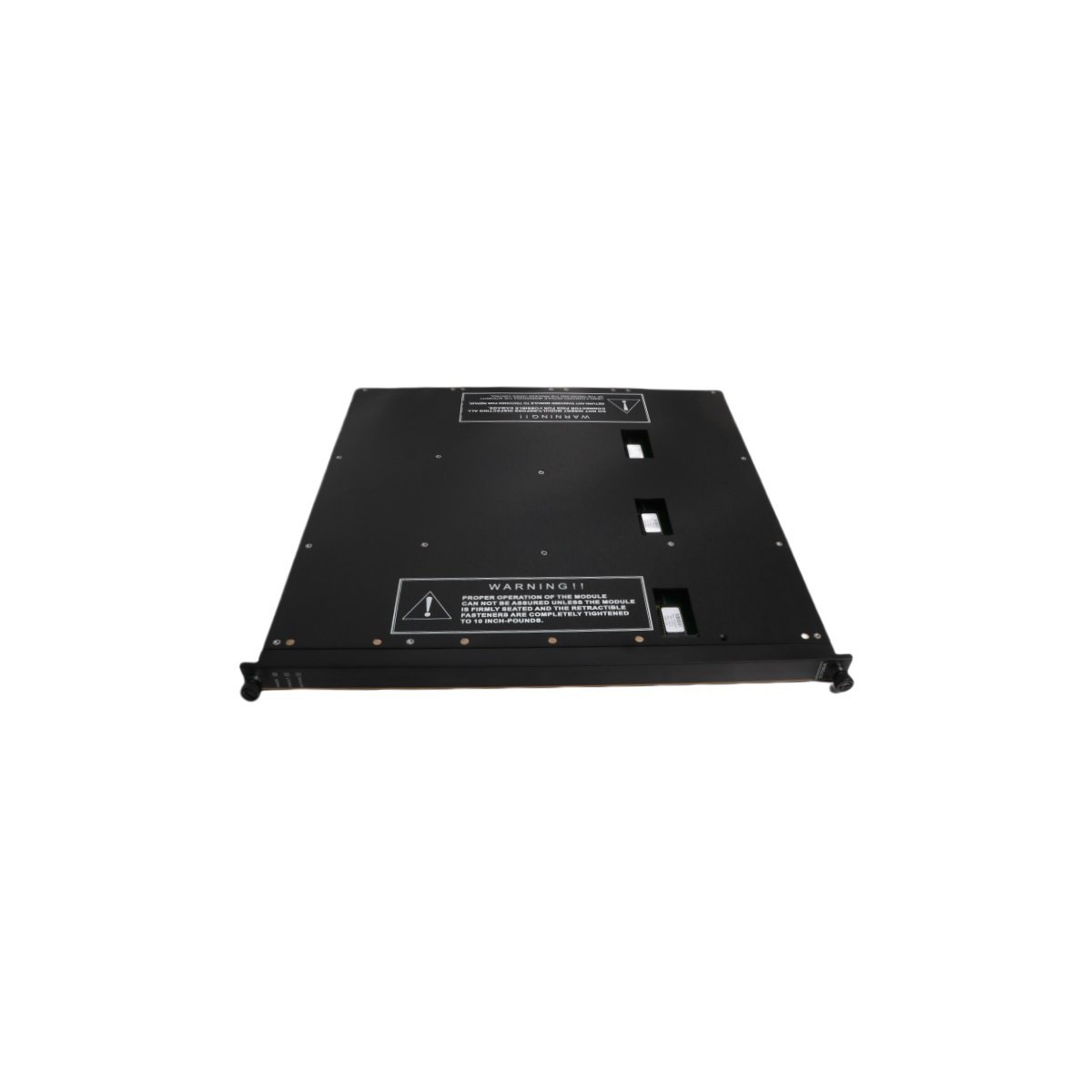

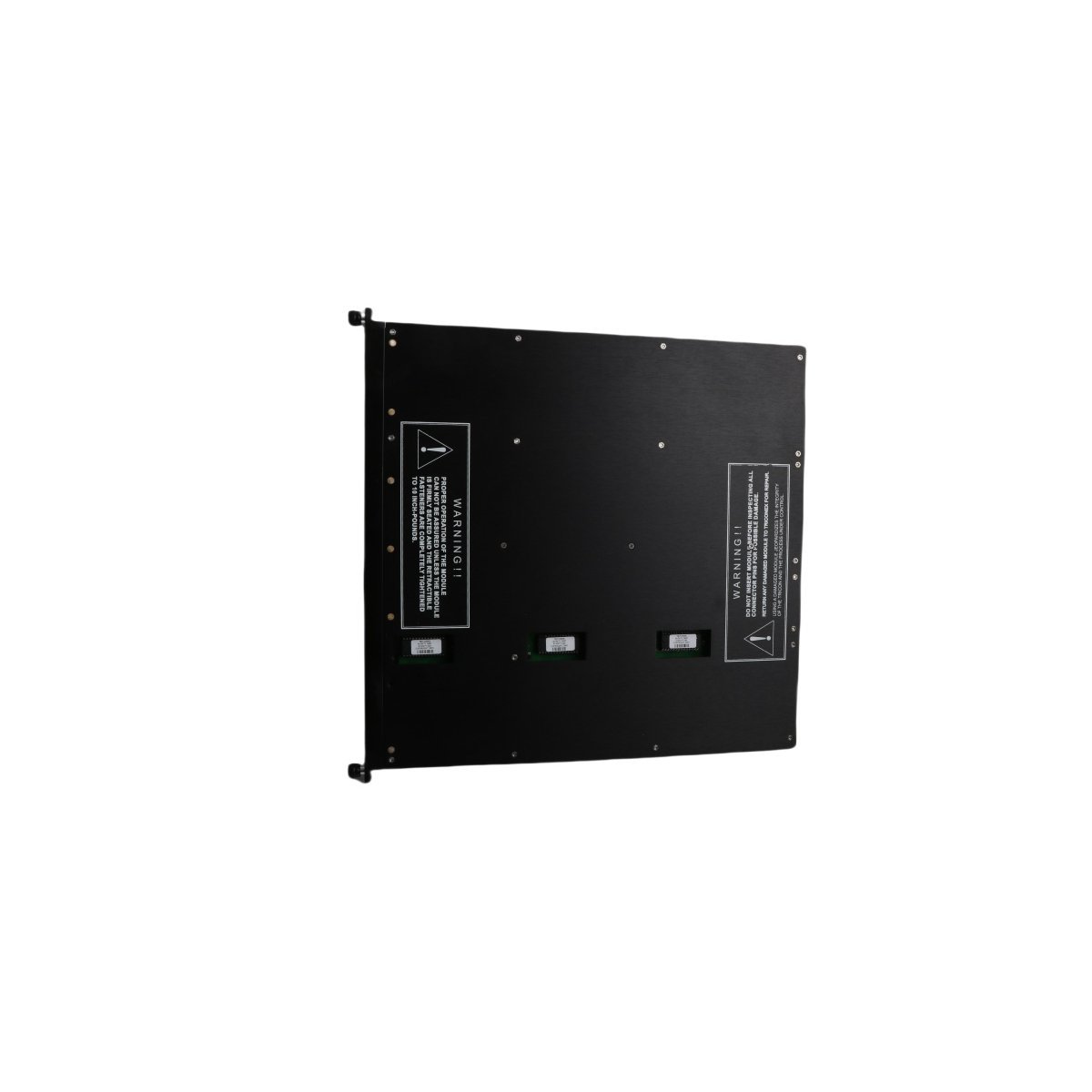

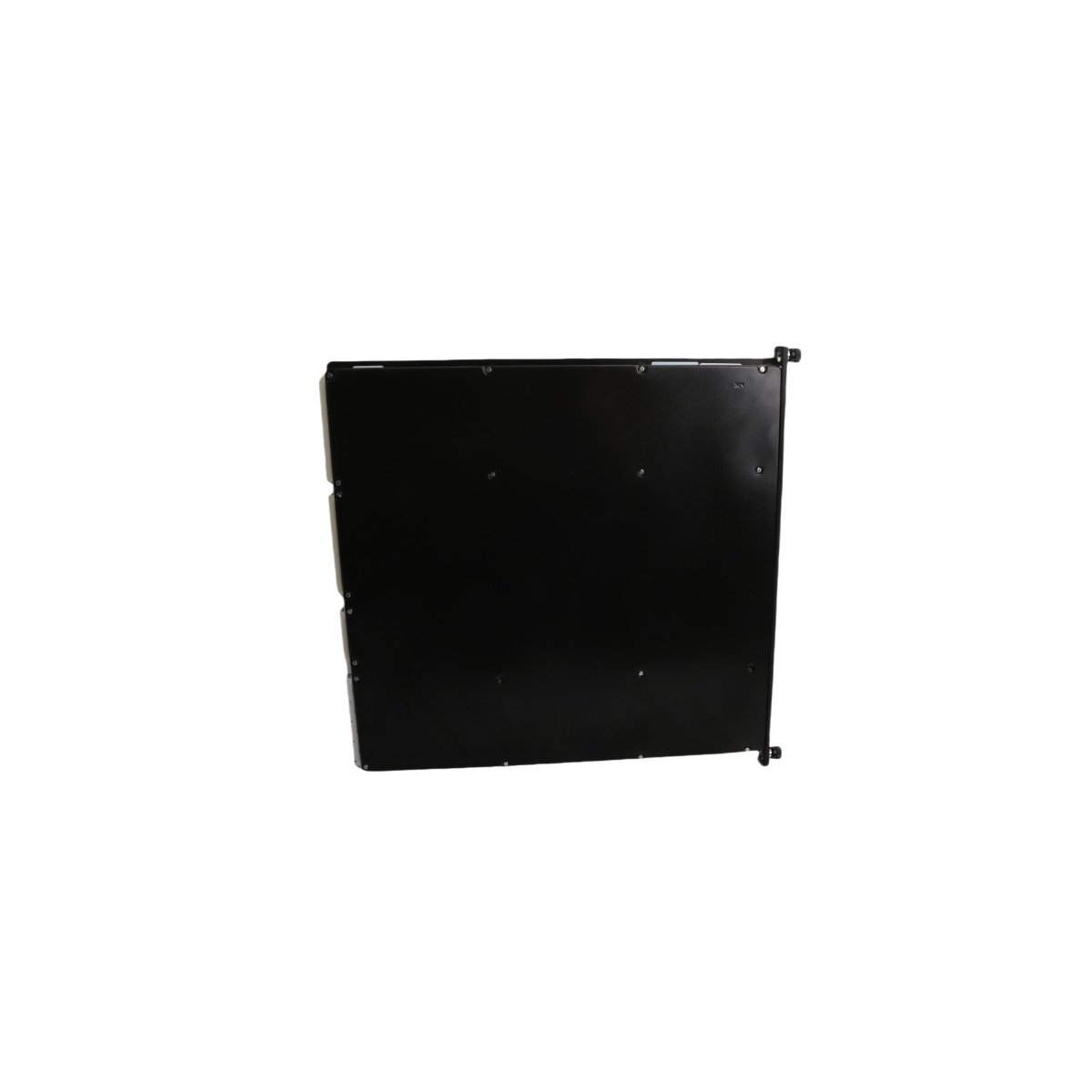

The Triconex 3706A is a high-density, Triple Modular Redundant (TMR) analog input module specifically engineered to interface with various thermocouple types. It provides 32 non-isolated input channels, ensuring high-integrity temperature monitoring for safety-critical industrial processes.

High-Integrity Thermal Monitoring

The Triconex 3706A Thermocouple Analog Input Module serves as a cornerstone for temperature acquisition within the Tricon safety instrumented system (SIS).² By utilizing Triple Modular Redundant (TMR) architecture, this module ensures that critical temperature data remains available even if a hardware failure occurs.³ The 3706A specifically targets applications in power generation, oil and gas, and chemical processing where precise thermal oversight is mandatory for asset protection. Consequently, the module converts microvolt-level thermocouple signals into high-resolution digital data, allowing the main processor to execute safety logic based on accurate real-time information.

Advanced Signal Processing and Diagnostics

Sophisticated internal diagnostics allow the 3706A to maintain high operational certainty in electrically noisy environments. The module supports a wide variety of thermocouple calibrations (such as Type J, K, T, and E) and performs cold-junction compensation automatically to ensure measurement accuracy.⁴ Because the card features 32 input channels, it provides a high-density solution that reduces the overall footprint within the Tricon chassis. Furthermore, the 3706A executes continuous self-testing to detect open-circuit thermocouples or internal component drifts. These proactive diagnostic capabilities enable maintenance teams to address potential sensor issues before they impact process safety.

Industrial Durability and System Integration

Engineers integrate the 3706A module seamlessly via Triconex TriStation 1131 software, which simplifies the configuration of input ranges and alarm thresholds. The rugged mechanical design of the 2.5 kg module protects sensitive electronics from the vibrations and thermal stresses common in industrial control rooms. Moreover, the module’s non-isolated design is optimized for cost-effective, high-density temperature sensing when used with properly grounded sensor measurement chains. This combination of high channel count and TMR reliability makes the 3706A an essential component for monitoring large-scale equipment such as industrial boilers, turbines, and reactor cores.

Key Technical Characteristics

• Triple Modular Redundant Architecture: Provides maximum fault tolerance and system availability for safety-critical loops.⁵
• 32-Channel High Density: Supports extensive temperature point monitoring within a single slot to maximize rack efficiency.
• Multi-Type Thermocouple Support: Interfaces with standard thermocouple calibrations including J, K, T, and E types.
• Automatic Cold-Junction Compensation: Ensures high precision by compensating for ambient temperature variations at the terminal base.
• Comprehensive Self-Diagnostics: Detects field wiring faults and internal module hardware failures in real time.
• Robust Environmental Protection: Engineered to withstand harsh industrial EMI/RFI and mechanical vibration.
