Brief Product Description

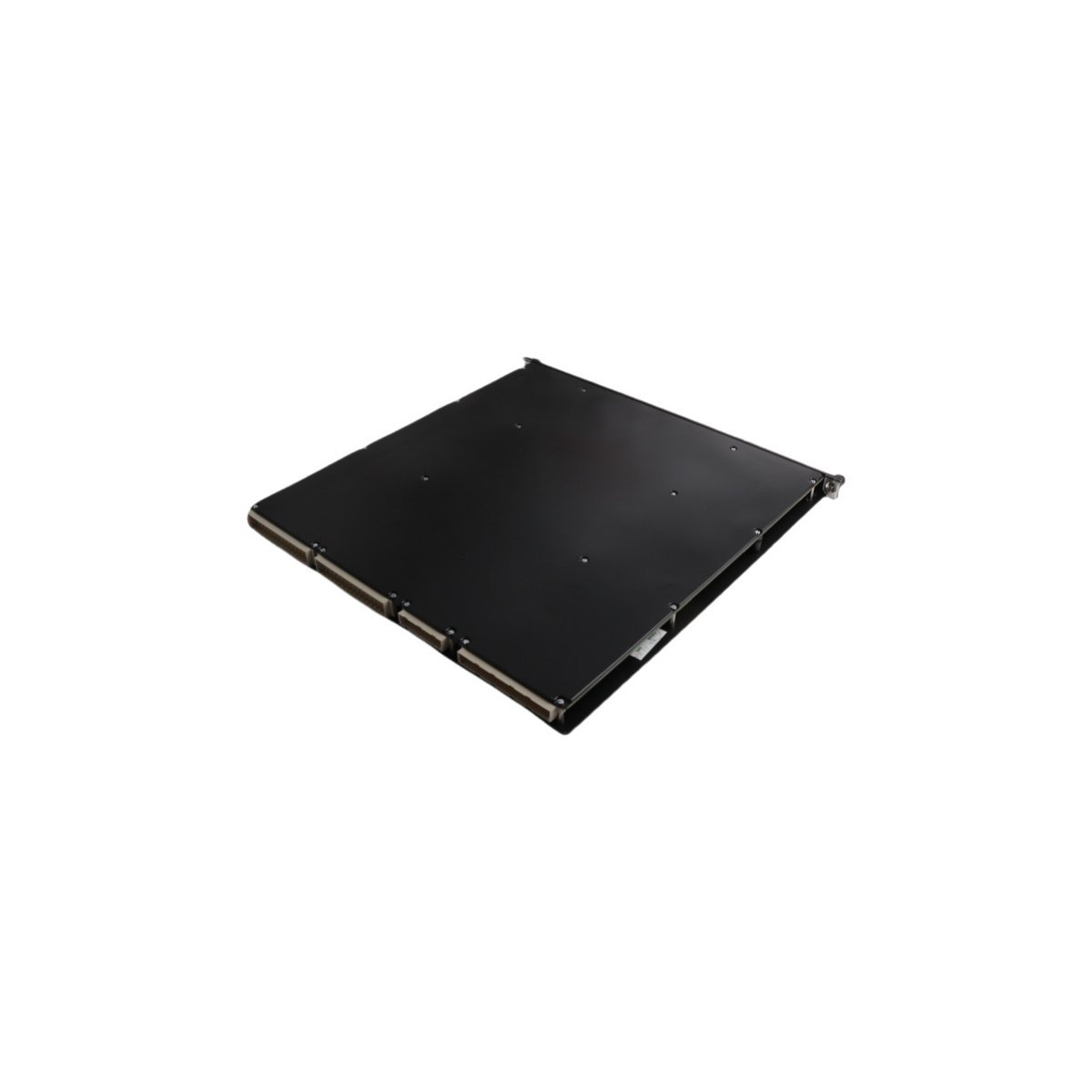

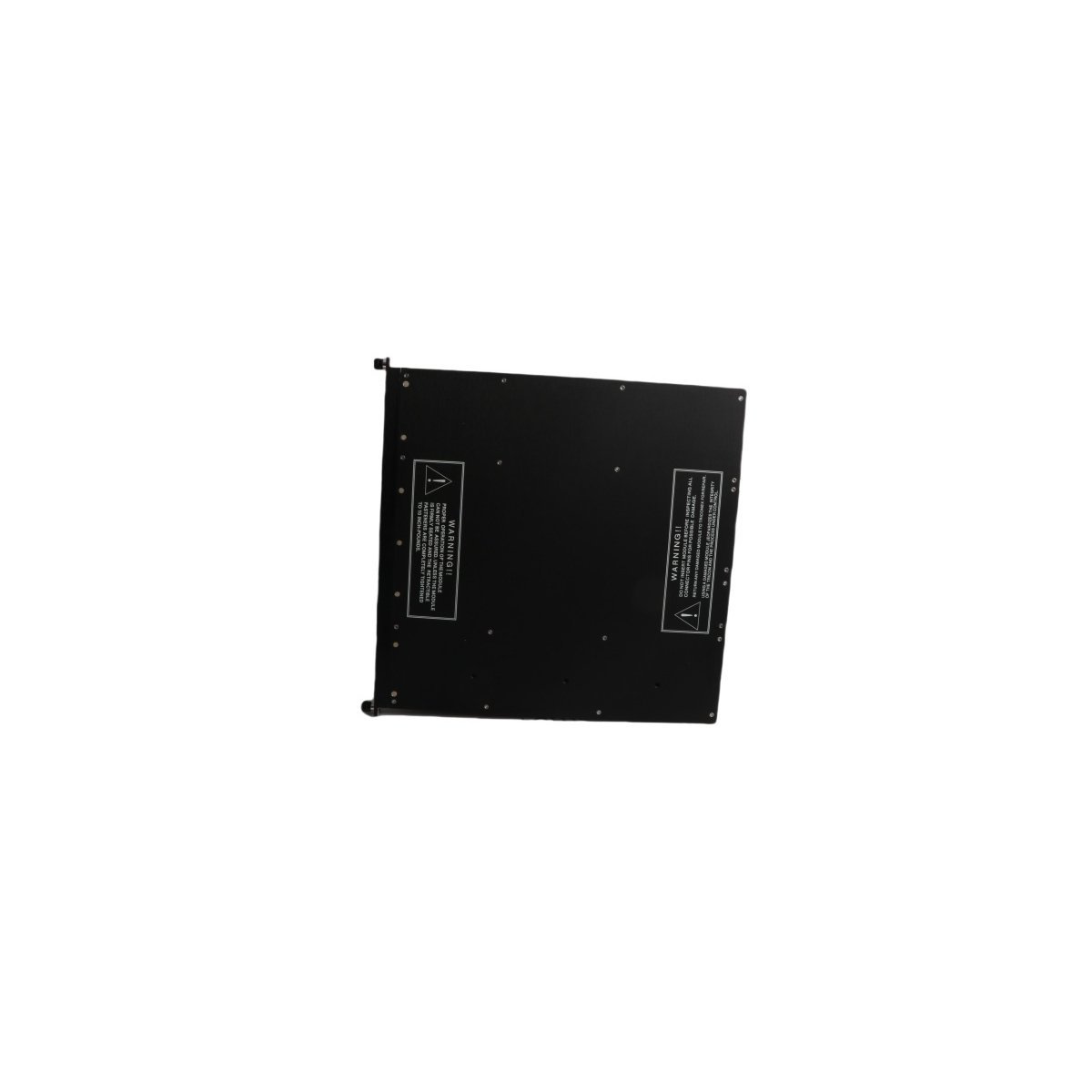

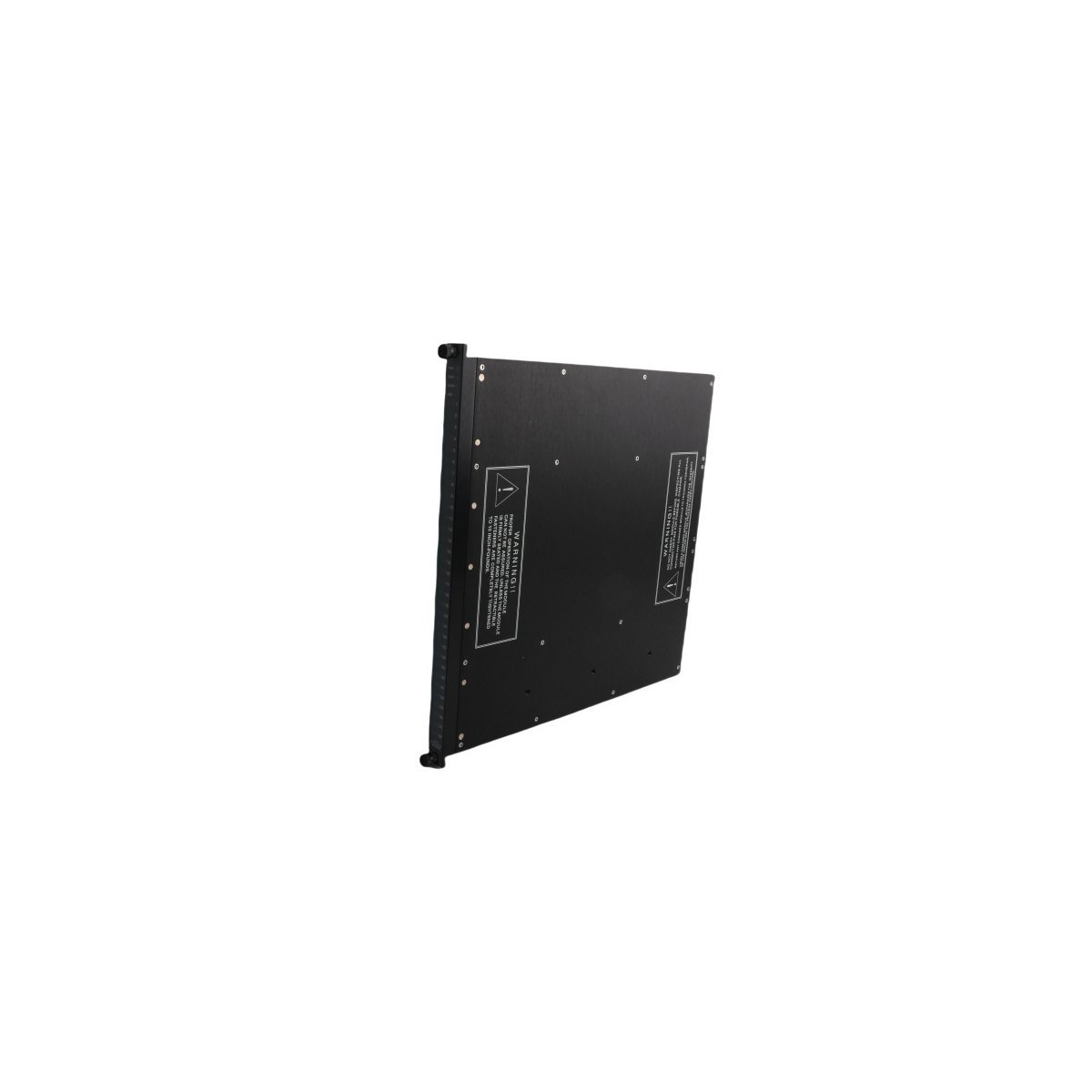

The Triconex 3625N is a Triple Modular Redundant (TMR) 24 VDC digital output module designed for high-availability safety applications.² It provides 32 isolated output channels with integrated self-testing to ensure maximum reliability in emergency shutdown and critical control systems.³

Triple Modular Redundant Architecture for Maximum Safety

The Triconex 3625N stands as a cornerstone for safety-instrumented systems (SIS), utilizing Triple Modular Redundant (TMR) technology to achieve superior fault tolerance. By processing all output data through three independent paths, the module effectively identifies and out-votes potential hardware failures without interrupting the process. This architecture ensures that the system maintains the “safe state” even if a single component malfunctions. Consequently, the 3625N is an essential component for high-risk environments such as petrochemical refineries, offshore platforms, and nuclear power facilities where unplanned downtime or safety breaches are not acceptable.

Precision Control and Semiconductor Reliability

Each 3625N module manages 32 digital output channels, driving 24 VDC field devices with high precision.⁴ The unit utilizes advanced semiconductor switching technology to provide rapid response times, which is critical for time-sensitive emergency shutdown sequences. Furthermore, the module performs continuous, non-intrusive “stuck-on” and “stuck-off” diagnostic tests on every output switch. Transitioning to this automated diagnostic approach allows the Tricon system to detect latent faults in the output circuitry long before a demand is placed on the safety system, significantly increasing the Safety Integrity Level (SIL) of the overall installation.

Optimized Integration and System Resilience

Designed for seamless insertion into the Tricon controller chassis, the 3625N supports hot-swapping to facilitate maintenance without system interruption.⁵ The module includes dual redundant power rails to ensure stable internal operation during external electrical fluctuations. Moreover, the 3625N features high-current capability and robust galvanic isolation between the field-side electronics and the internal logic bus. This isolation protects the main processor from field-induced electrical noise or surges. For engineering teams, the user-friendly configuration through TriStation 1131 software simplifies the deployment of complex interlocking logic and alarming parameters.

Key Technical Characteristics

• 32 TMR Output Channels: Provides high-density, triple-redundant control for field actuators and solenoids.
• 24 VDC Nominal Voltage: Optimized for standard industrial digital output devices and relay coils.⁶
• Integrated Self-Testing: Executes continuous background diagnostics to verify switch integrity and load connectivity.⁷
• Galvanic Isolation: Protects sensitive system logic from field-side transients and grounding issues.⁸
• Hot-Swappable Design: Allows for module replacement while the system is under control, maintaining process uptime.⁹
• Environmental Ruggedization: Built to withstand vibration, heat, and electromagnetic interference in heavy industrial zones.¹⁰
