Description

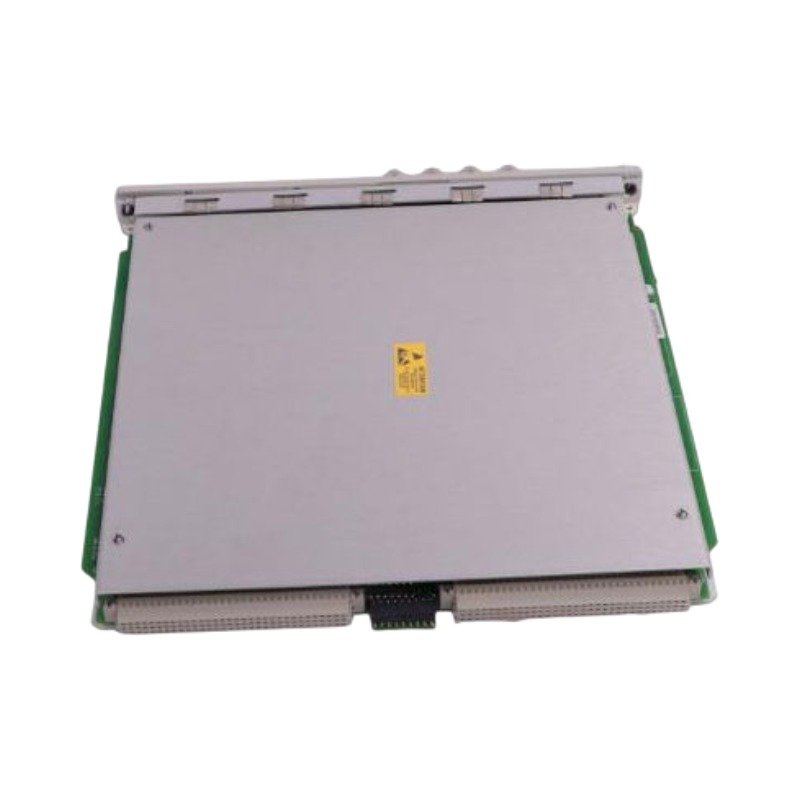

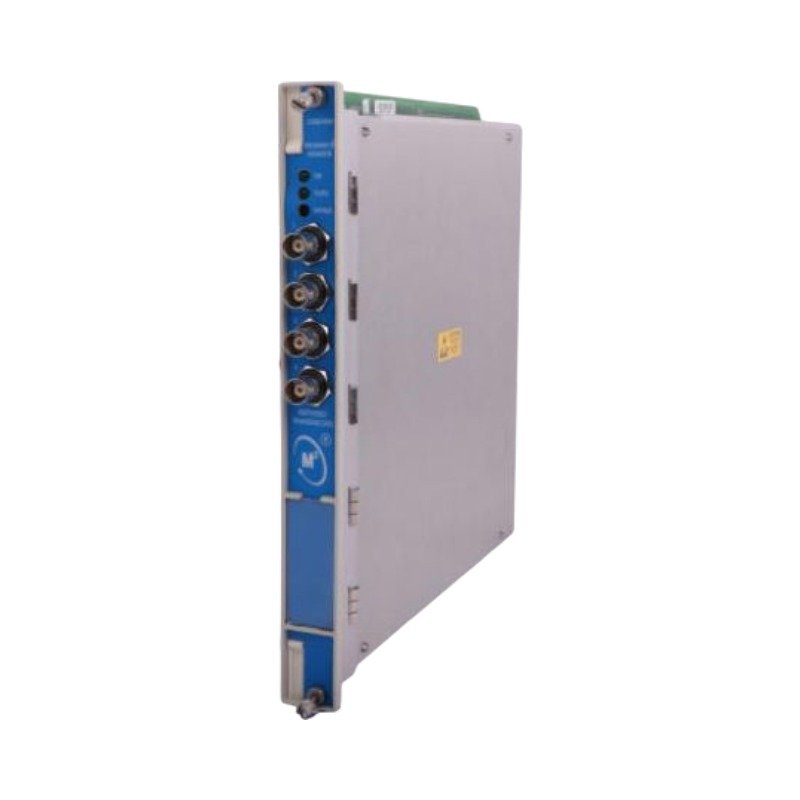

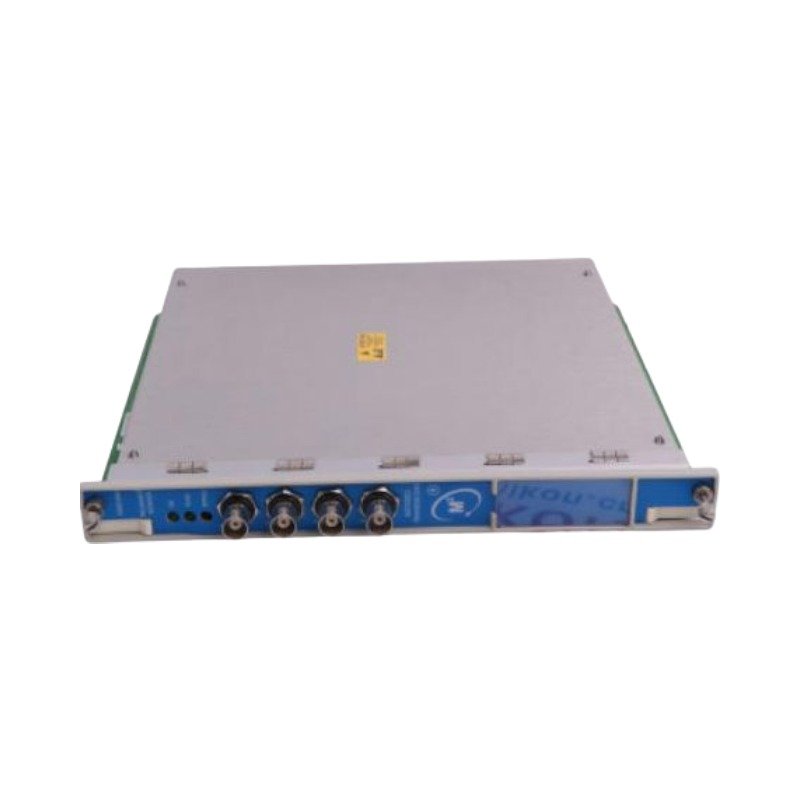

Configured for proximity transducer signal routing and internal termination in the 3500 Machinery Protection System, the Bently Nevada 3500/40 125680-01 (3500/40 Proximitor I/O Module) provides direct physical/electrical signal interface execution.

Suffix Breakdown & Model Matrix

The 3500/40 125680-01 is identified as a specific Proximitor I/O Module configuration with internal termination. The available technical data defines the complete ordering model as 3500/40 125680-01. No additional suffix separation or option matrix is specified.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Signal Interface

The Bently Nevada 3500/40 125680-01 provides the rear I/O connection interface between field proximity transducers and the 3500/40M Proximitor Monitor module. The module performs signal routing and internal termination functions for proximity vibration and position measurement circuits.

The internal termination design supports eddy-current probe signal connection requirements within the 3500 machinery monitoring architecture. The module transfers transducer signals between field wiring and the front monitor module for rotor dynamics measurement processing.

The 3500/40 125680-01 maintains the physical interface path required for proximity-based monitoring channels. It works together with the associated monitor module to support configured vibration and position alarm monitoring functions.

Frequently Asked Questions

Q: What is the main function of the 3500/40 125680-01 module?
A: The module provides internal termination and signal routing between field proximity transducers and the 3500/40M Proximitor Monitor.

Q: Is the 3500/40 125680-01 a standalone monitoring module?
A: No. The module functions as a Proximitor I/O interface and connects with the front monitor module installed in the 3500 rack.

Q: Where is the 3500/40 125680-01 installed in the rack?
A: The module installs in the 3500 Rack rear slot and connects with the corresponding front monitor module.

Field Installation Guidelines

Install the 3500/40 125680-01 in the designated rear slot position of the 3500 rack. Confirm correct alignment between the rear I/O module and the front monitor module before securing the rack assembly.

Connect proximity transducer field wiring according to approved machinery monitoring drawings. Maintain separation between low-level sensor cables and high-power conductors to reduce electromagnetic interference.

Apply proper cable shielding and grounding practices for eddy-current probe circuits. Verify connector seating, field termination points, and channel assignments before enabling vibration and position monitoring functions.

During maintenance activities, isolate rack power according to site procedures before removing or installing the rear I/O module.
