Description

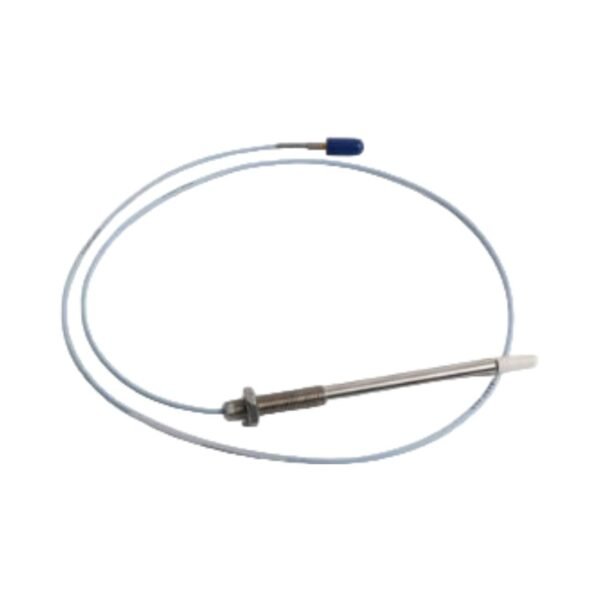

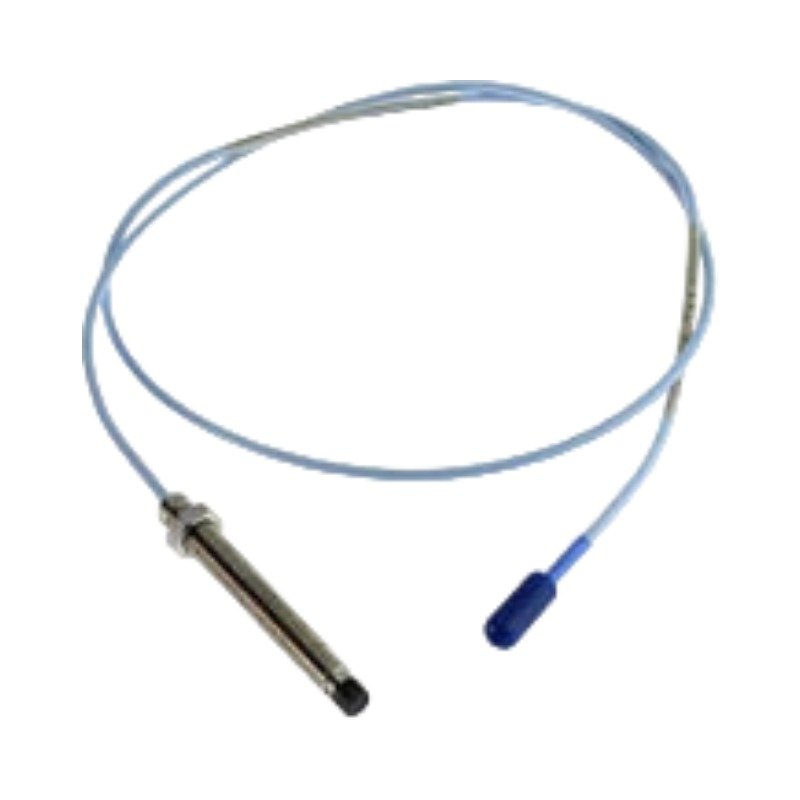

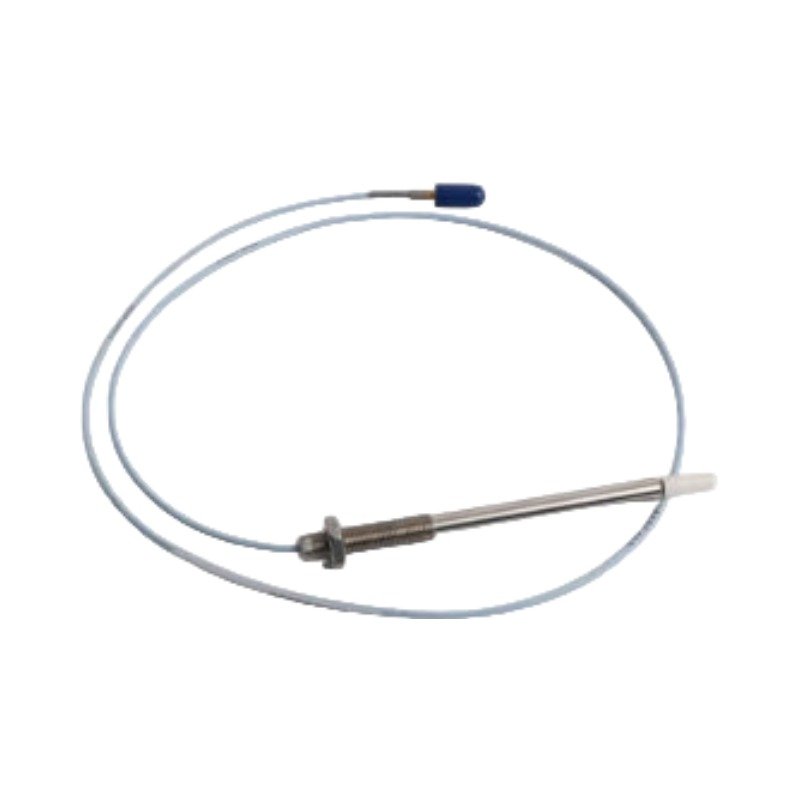

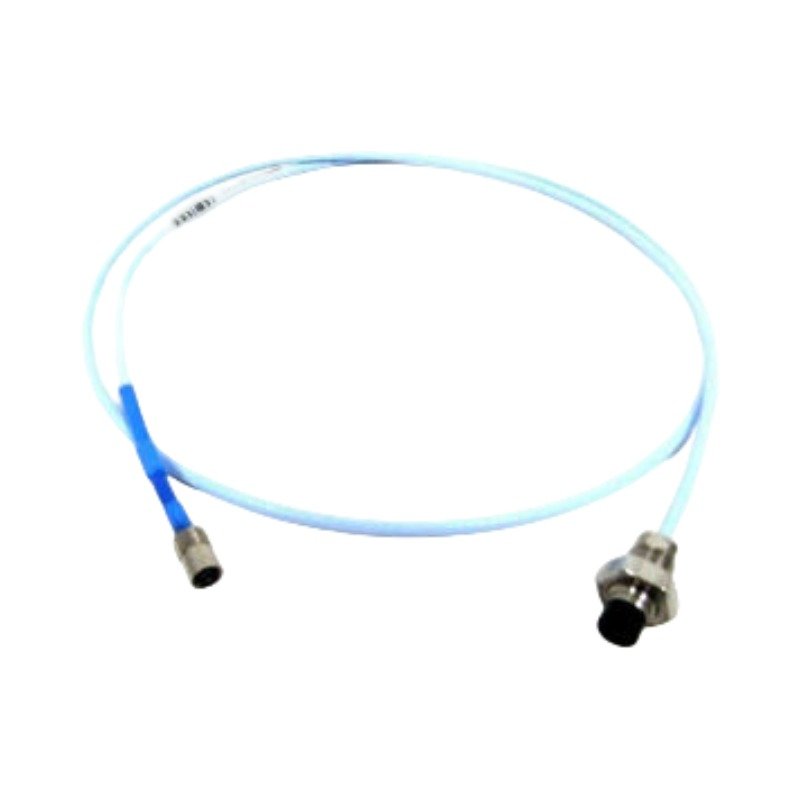

Configured for proximity displacement and vibration sensing in 3300 NSv Proximity Transducer System platforms, the Bently Nevada 330905-12-22-05-02-05 (330905 Proximity Probe) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• 12: Unthreaded Length Option (120 mm unthreaded portion)
• 22: Overall Case Length Option (220 mm total case length)
• 05: Total Length Option (0.5 meter or 20 inches system cable length)
• 02: Connector and Cable-Type Option (Miniature coaxial ClickLoc connector, standard cable)
• 05: Agency Approval Option (Multiple Approvals including CSA, ATEX, and IECEx)

Hardware Specifications

Eddy-Current Transducer Calibration and Gap Voltage Validation

The sensor drives high-frequency magnetic fields to record real-time rotor dynamics within narrow installation geometries, making it optimized for targets smaller than 15 mm. Field engineering practices dictate careful gap voltage validation during mechanical configuration, targeting a stable -10 VDC baseline at the raw sensor output terminal to position the transducer at the center of its linear calibration curve. Furthermore, optimized internal winding configurations preserve cross-talk suppression, eliminating mutual inductance errors when tracking targets in confined bearing housings.

Frequently Asked Questions

Q: Why is this proximity probe specifically recommended for small shaft targets?

A: The 3300 NSv design modifies the shape of the eddy-current field compared to standard 8 mm probes. This design feature enables stable measurements on shafts smaller than 51 mm or flat targets under 15 mm without suffering side-view field distortion.

Q: Can the 0.5-meter probe cable be coupled directly to an external monitor block?

A: No, the 0.5-meter integrated FEP lead must interface with a matching 3300 NSv extension cable to establish the calibrated system electrical length before routing to the monitoring rack.

Field Installation Guidelines

Thread the M10 x 1 stainless steel casing into the target machine bracket assembly, establishing a minimum of 5-扣 engagement to prevent physical shift under high mechanical vibration. Route the 75-ohm triaxial cable using supporting conduit systems separated from high-voltage AC motor drives to minimize electromagnetic noise pickup. Avoid crushing or kinking the FEP insulation layers, and connect the outer common drain shield directly to the instrumentation grounding stud inside the interface enclosure.
