Description

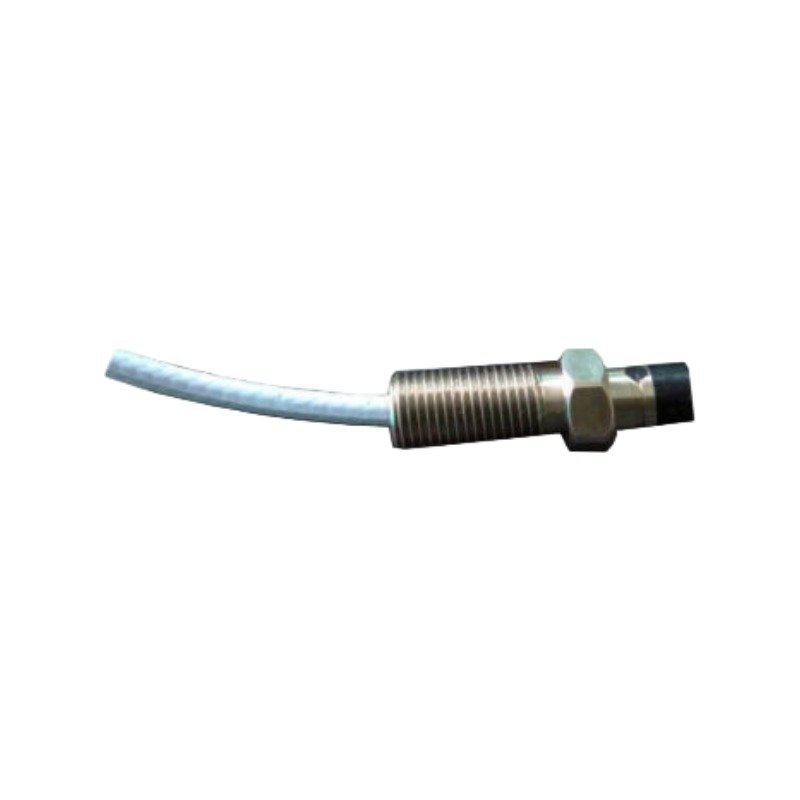

The Bently Nevada 330195-02-12-10-CN, also cataloged as the 330195 Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement and vibration monitoring within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and Rotor Dynamics Integration

The probe facilitates real-time digital signal conditioning for critical rotor dynamics analysis. Simultaneously, the coupled Proximitor sensor enforces strict gap voltage validation, tracking the output against target thresholds near -10 VDC to verify standard linear operation under extreme thermal variations. Consequently, the specialized transducer tip layout optimizes eddy-current probe scaling, which transforms physical gap variation into a precise millivolt-per-mil electrical signal. Furthermore, internal insulation design principles promote effective cross-talk suppression, preventing high-frequency carrier interference when technicians mount multiple proximity probes in close physical proximity on a single machine bearing housing.

Frequently Asked Questions

Q: How does the system architecture achieve proper eddy-current probe scaling?

A: The probe tip coil generates a high-frequency RF field. As the conductive target moves within this field, the Proximitor sensor conditions the eddy-current losses, thereby transforming the physical distance changes into a linear output voltage proportional to the gap.

Q: What specific installation benefit does the reverse mount design provide to maintenance teams?

A: The reverse mount configuration allows installation personnel to insert and secure the probe from the outside of the machine housing or housing bracket. This eliminates the need to dismantle internal bearing caps to adjust the sensing gap.

Field Installation Guidelines

• Thread the reverse mount probe body into the specialized housing sleeve or bracket by hand, then lock the position using the designated hardware to maintain a stable, calibrated physical gap.
• Connect the miniature coaxial fittings together until they audibly click, ensuring a positive lock without using special mechanical wrenches.

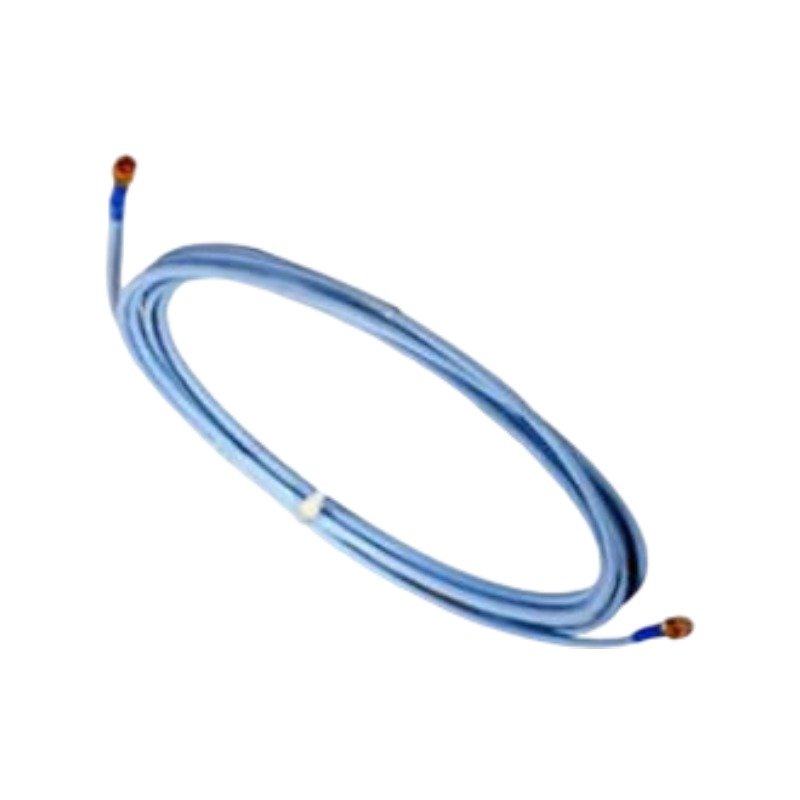

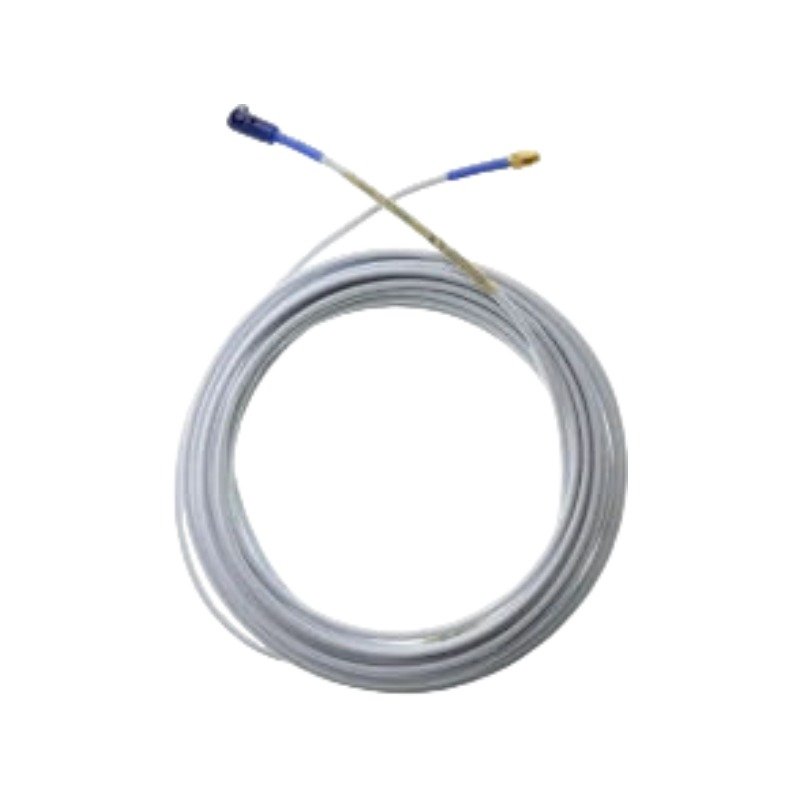

• Run the standard extension cable through dedicated, rigid metal conduit to shield the low-voltage sensor lines from surrounding high-power electrical noise.
• Verify the initial mechanical standoff installation by measuring the physical gap or evaluating the DC bias voltage output using the asset monitoring software.
