Description

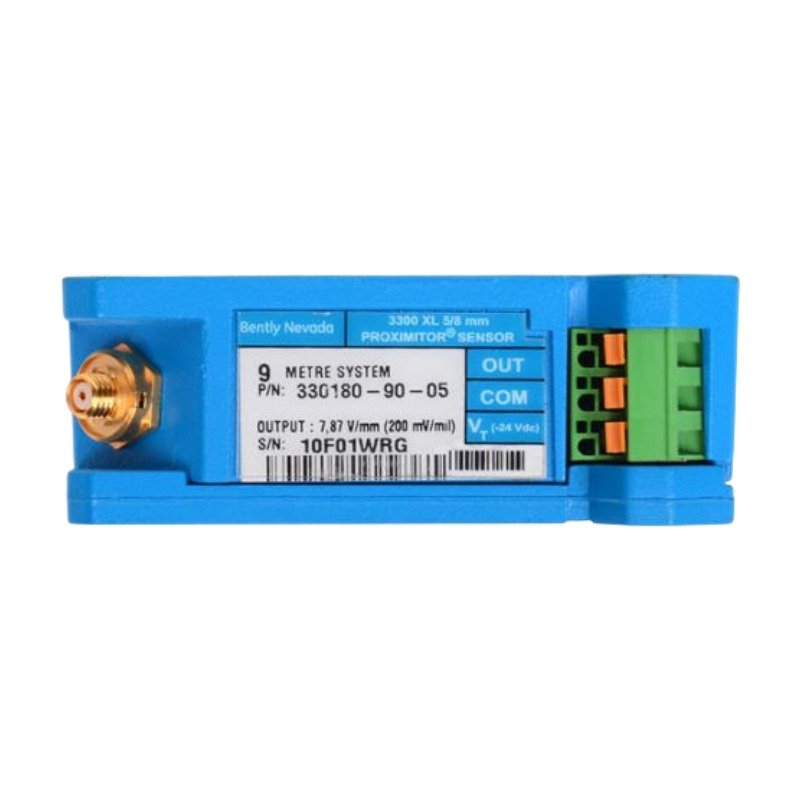

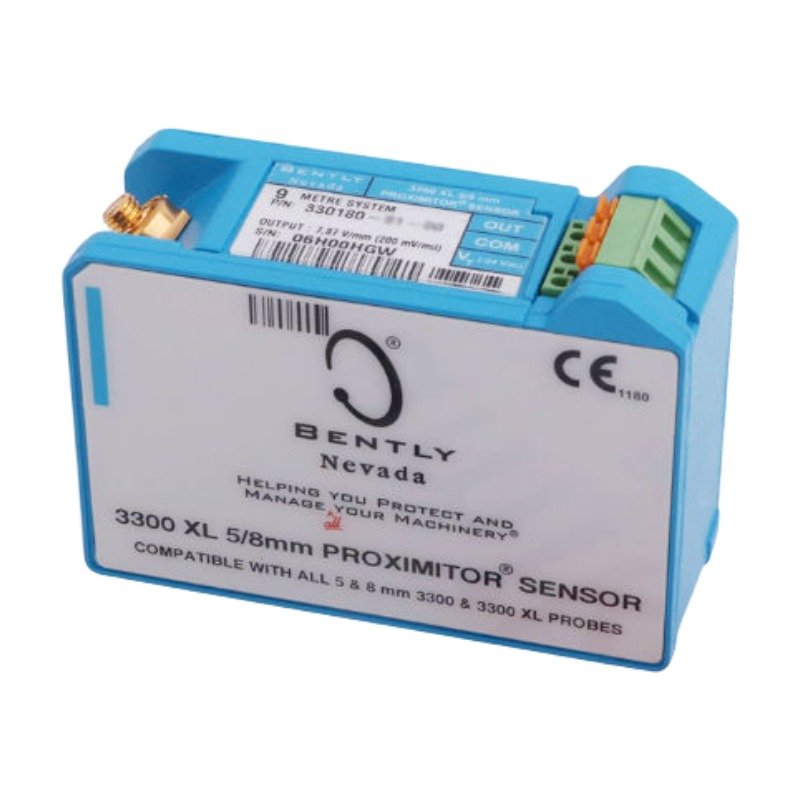

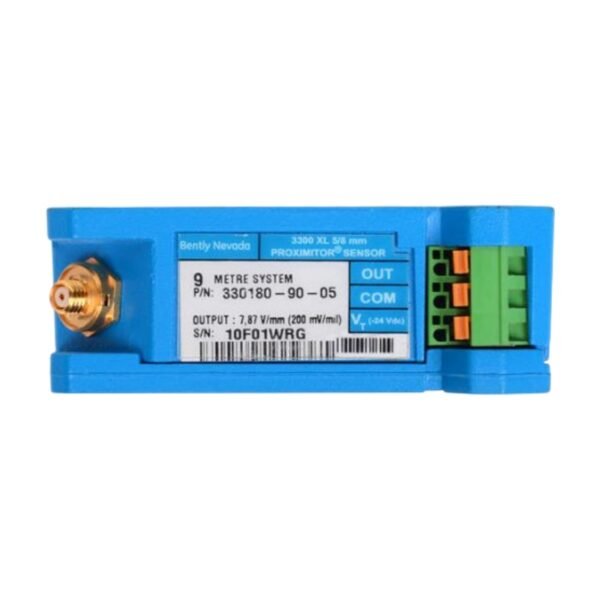

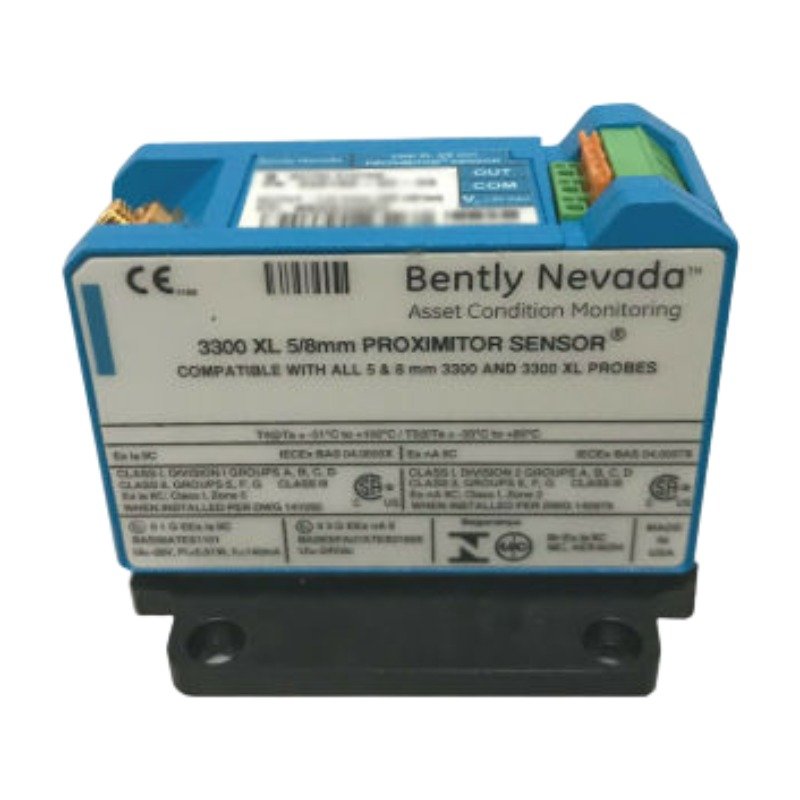

Configured for non-contacting vibration and displacement measurements in rotating machinery protection systems, the Bently Nevada 330180-90-05 (330180 Proximity Sensor Module) provides direct physical/electrical execution. This hardware component translates the physical distance between the probe tip and the observed target area into a proportional analog voltage output. It operates continuously within the rack-based architecture to deliver dynamic input parameters required for critical machinery diagnostics.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The hardware design dictates strict compliance with eddy-current probe scaling matrices to ensure precise rotor dynamics evaluation. The internal driver circuit converts high-frequency RF excitation into a proportional DC output, which relies completely on precise gap voltage validation (-10 VDC targets) during baseline mechanical alignment. Furthermore, integrated cross-talk suppression circuitry isolates adjacent sensor channels, mitigating potential high-frequency phase errors when probes are installed within close physical proximity along the machine shaft axis.

Frequently Asked Questions

Q: What is the significance of the -90-05 suffix in the part number?

A: The -90 suffix designates the total length of the extension cable configuration (9.0 meters), while the -05 suffix indicates the standard panel mount option using 35 mm DIN-rail hardware.

Q: Can this sensor operate with a non-4140 target material?

A: The default calibration curve matches AISI 4140 steel. Alternative target materials require custom calibration adjustments to prevent linear range compression and scale factor deviations.

Field Installation Guidelines

• Mechanical Positioning: Ensure the probe body is threaded securely into the bracket to maintain proper gap voltage validation during target shaft movement.
• Shielding and Grounding: Connect the outer shield of the extension cable to the designated instrument ground terminal at the monitor rack panel. Do not ground both ends of the shield to prevent the formation of ground loops.
• Cable Routing and Bending Radii: Maintain a minimum physical bend radius of 25.4 mm (1.0 inch) for all flexible coaxial cabling to avoid dielectric degradation and signal transmission loss. Avoid routing sensor lines parallel to heavy AC power conduits to minimize electromagnetic interference.
