Product Description

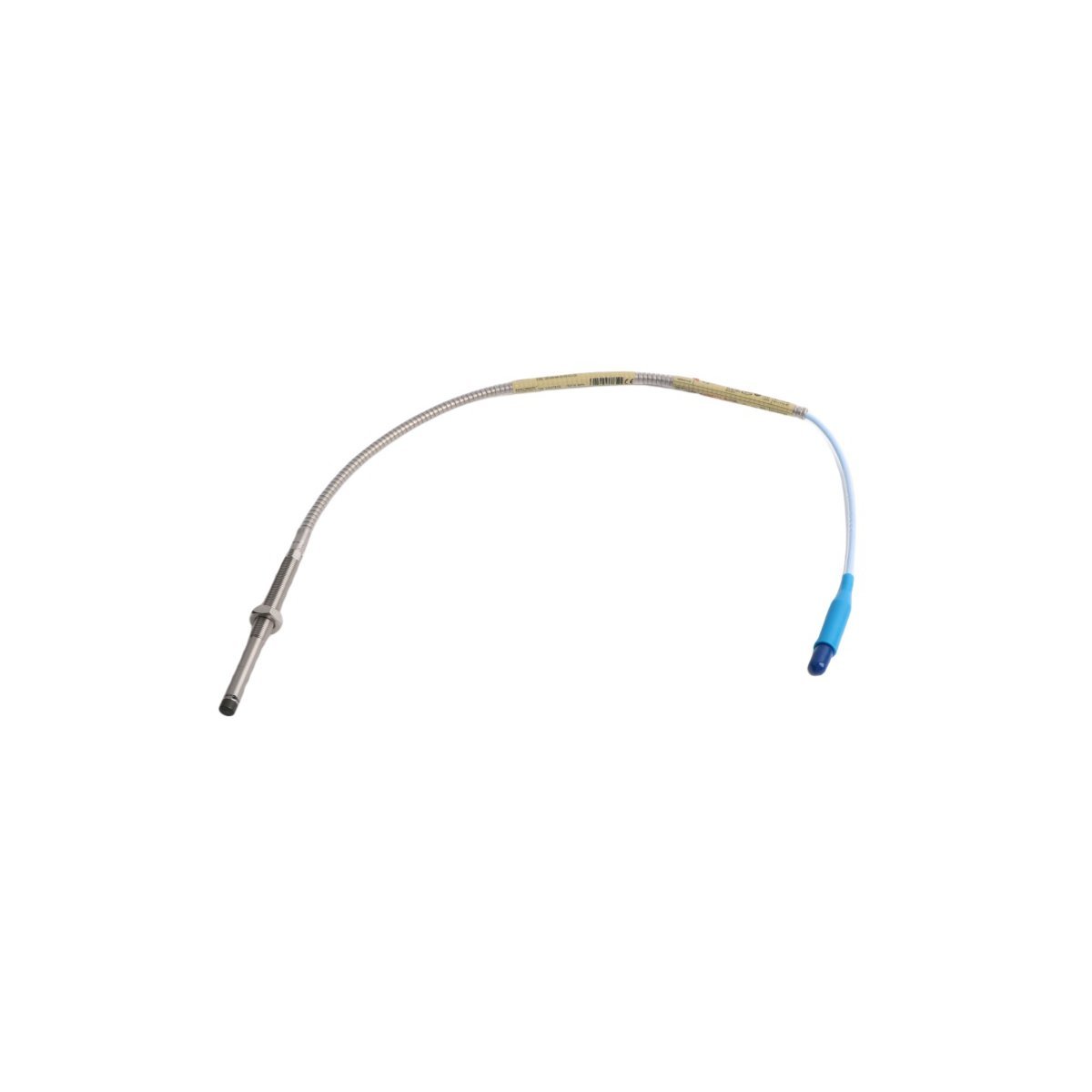

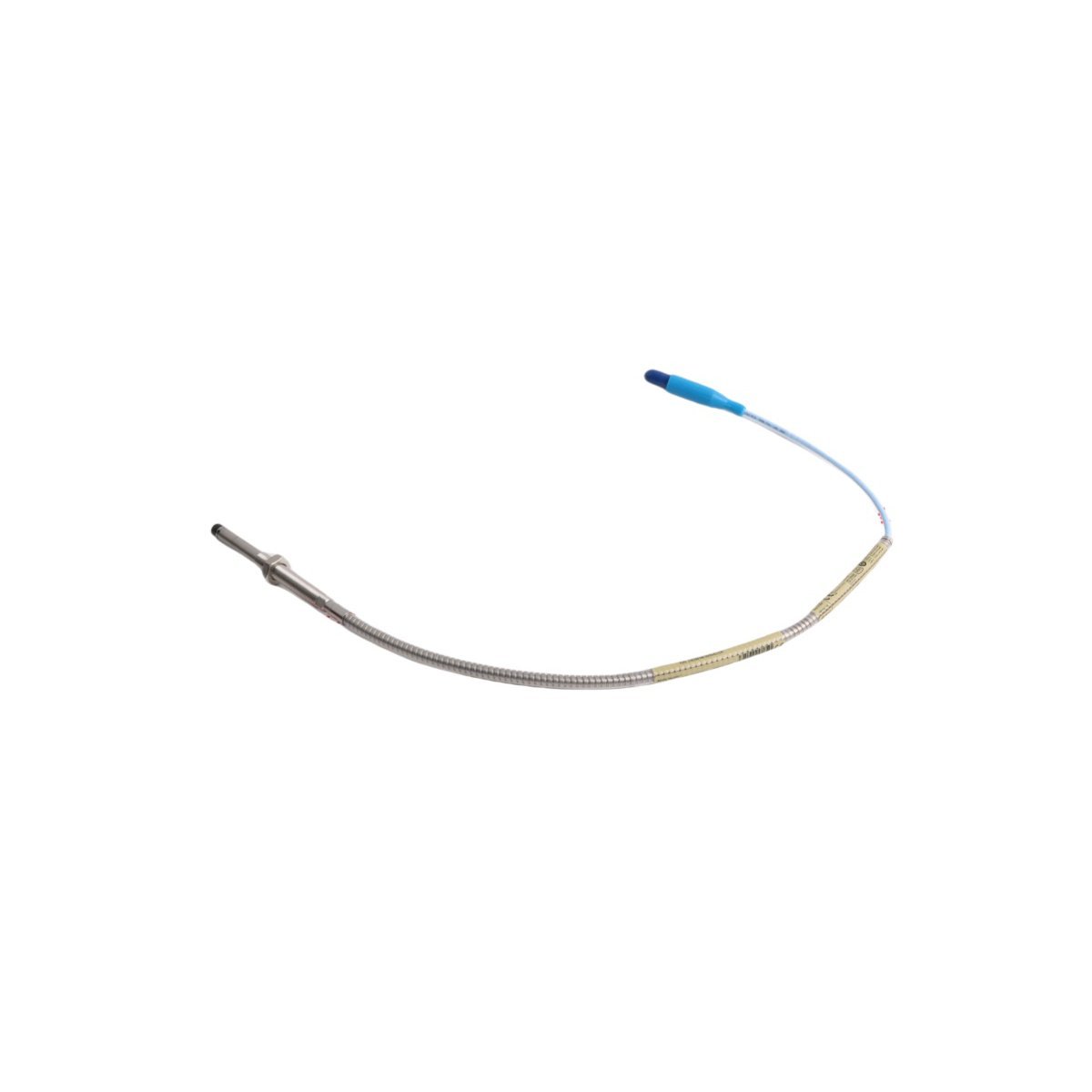

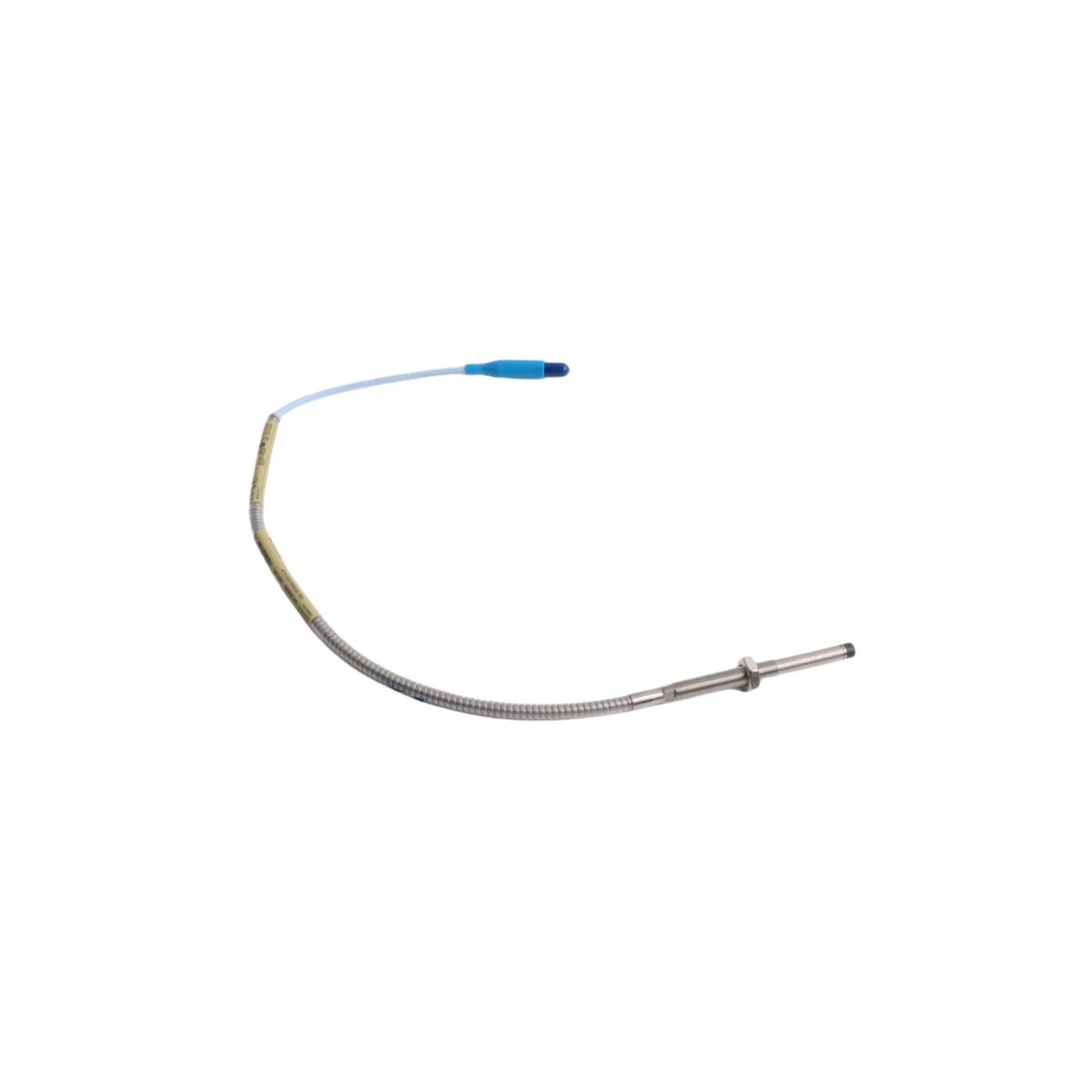

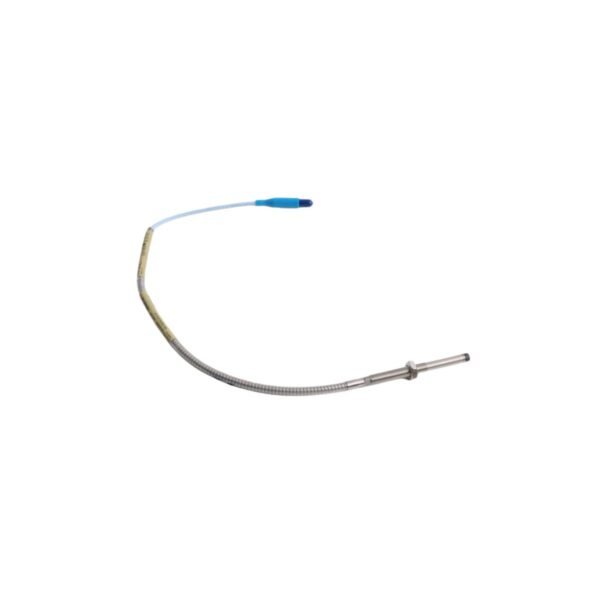

The Bently Nevada 330104-04-10-10-02-05 is a 3300 XL 8 mm Proximity Transducer, an essential component for high-performance machinery protection and condition monitoring systems. As a non-contacting, eddy-current sensor, it precisely measures the distance between the probe tip and a conductive target, providing critical data on relative vibration and axial position. This transducer is engineered for seamless integration with the Bently Nevada 3500 Machinery Protection System, as well as other compatible monitoring platforms. The 330104-04-10-10-02-05 delivers exceptional accuracy and stability, making it the industry standard for monitoring rotating and reciprocating machinery such as turbines, compressors, pumps, and motors. Its primary function is to provide the essential measurements needed for early fault detection, enabling predictive maintenance strategies that prevent catastrophic failures and minimize costly downtime. This specific model is designed to operate reliably in demanding industrial environments, offering superior performance over a wide temperature range.

This particular part number, 330104-04-10-10-02-05, specifies a precise configuration for versatile installation. It features an M10 x 1 probe thread, a 40 mm unthreaded length, and a 1.0-inch overall case length, providing flexibility for various mounting requirements. The total length of the probe and integrated cable is 1.0 meter (3.3 feet), terminating in a miniature coaxial ClickLoc connector. This connector design ensures a secure, reliable, and vibration-resistant connection to the extension cable, preventing intermittent signals and data loss. The probe body is constructed from AISI 303 stainless steel for excellent corrosion resistance. Furthermore, the 330104-04-10-10-02-05 carries multiple agency approvals, including CSA, ATEX, and IECEx, certifying it for safe operation in hazardous areas where explosive gases or dust may be present. This combination of physical durability, precise configuration, and safety certification makes the 330104-04-10-10-02-05 a trusted solution for critical asset monitoring.

For optimal performance, the Bently Nevada 330104-04-10-10-02-05 must be used as part of a complete, system-matched 3300 XL 8 mm transducer system. This system includes the probe, a compatible 3300 XL extension cable, and a 3300 XL Proximitor Sensor. Each component is factory-calibrated together to meet the stringent performance specifications for linearity and accuracy (typically 7.87 V/mm or 200 mV/mil). Using mismatched components can lead to inaccurate readings and compromise the integrity of the machinery protection system. The 330104-04-10-10-02-05 is fully interchangeable with other 3300 and 3300 XL series 8 mm probes, offering a direct upgrade path for older systems to improve performance and reliability. By providing continuous, real-time data on machine health, this transducer system is fundamental to asset management programs focused on maximizing operational availability and safety in critical industrial processes.

Specifications

• Part Number: 330104-04-10-10-02-05
• Manufacturer: Bently Nevada
• Product Series: 3300 XL
• Type: 8 mm Proximity Probe
• Thread Size: M10 x 1
• Unthreaded Length: 40 mm
• Overall Case Length: 1.0 inch
• Total Length (Probe & Cable): 1.0 metre (3.3 feet)
• Connector: Miniature coaxial ClickLoc connector
• Agency Approvals: CSA, ATEX, IECEx (Multiple Approvals)
• Condition: Brand New, Factory Sealed
• Warranty: 12 Months Manufacturer Warranty

Applications

• Power Generation: Monitoring of steam turbines, gas turbines, hydro turbines, and generators for vibration and shaft position.
• Oil & Gas: Critical condition monitoring for centrifugal and reciprocating compressors, pumps, and turboexpanders in upstream, midstream, and downstream operations.
• Petrochemical & Refining: Essential for protecting pumps, fans, blowers, and other rotating equipment in harsh processing environments.
• Manufacturing: Used on high-speed machine tool spindles, large electric motors, and other critical production machinery to ensure uptime and product quality.
• Pulp & Paper: Monitoring of paper machine rolls, gearboxes, and fans to prevent unscheduled shutdowns.
