Description

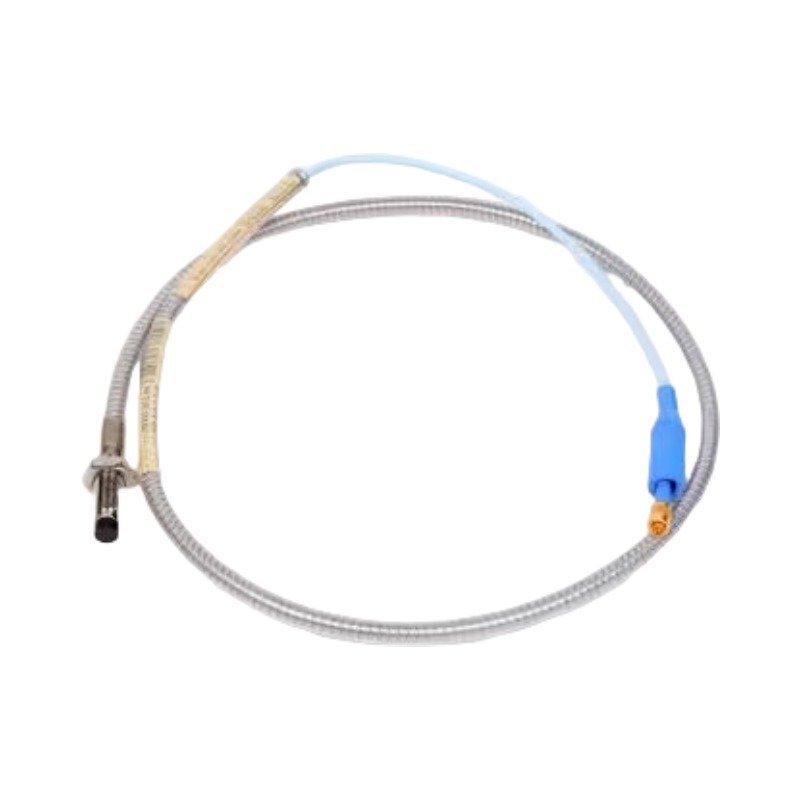

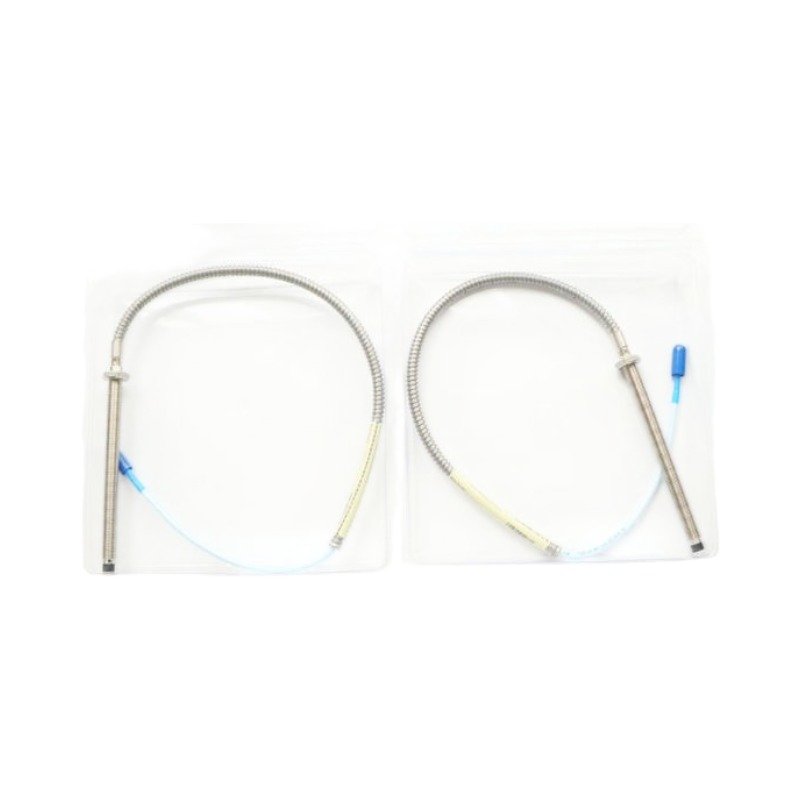

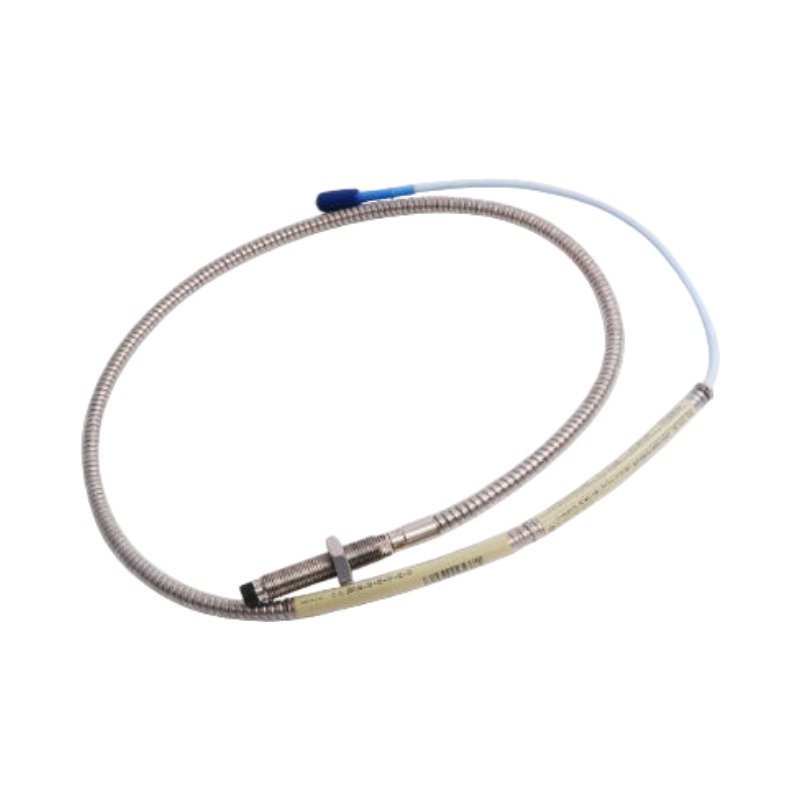

Engineers configure the Bently Nevada 330104-00-14-05-02-00 (330104 Proximity Probe) for continuous non-contact displacement measurements within 3300 XL 8mm Proximity Transducer Systems. Specifically, this hardware reads static or dynamic distances between the probe tip and observed conductive targets to execute physical/electrical signal routing via an internal eddy-current loop. Furthermore, it operates as the primary sensor component connected directly to Proximitor processing hardware. Consequently, the assembly translates micro-level shaft vibration or axial position changes into clear, proportional voltage variants without physical mechanical contact.

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

The module incorporates structured internal coils designed to interface with eddy-current probe fields for high-accuracy speed and vibration tracking across volatile acceleration profiles. During commissioning and normal maintenance cycles, field operators must verify gap voltage validation (-10 VDC targets) using physical multimeter test points on the matching Proximitor monitor. This step confirms that the probe tip resides within its optimized linear measurement envelope. Additionally, proper sensor positioning isolates adjacent magnetic vectors, enforcing robust cross-talk suppression inside tight fluid-film bearing housings. As a result, calibrated transducer scaling prevents erroneous system indicators while securing responsive tracking against intense rotor dynamics fluctuations.

Frequently Asked Questions

Q: Can installation personnel modify or shorten the 0.5 m integrated cable on this specific probe?

A: No. Splicing or cutting the probe cable alters the baseline electrical length and calibrated system capacitance. Consequently, altering the cable corrupts the 200 mV/mil scale factor and invalidates the entire transducer circuit calibration.

Q: How does the ClickLoc coaxial connector handle heavy machine vibration environments?

A: The ClickLoc design provides an integrated mechanical locking mechanism that prevents the coaxial joint from backing out. Therefore, it maintains continuous low-impedance electrical connection without requiring auxiliary external locking keys or adhesive tapes.

Field Installation Guidelines

Technicians must utilize caution during initial installation to avoid exceeding the minimum bend radius of 25.4 mm on the integrated armored conduit. In addition, field personnel must torque the metric M10 x 1 threaded case into the bracket mounting hole, ensuring tight mechanical locking within a recommended 11.2 N-m torque limit to prevent structural deformation. Ensure that you isolate the stainless steel armor from surrounding machine frames, grounding the system shield exclusively at the terminal monitor rack backplane. Finally, maintain optimal physical separation between low-voltage probe lines and power distribution wiring networks to eliminate electromagnetic induction artifacts.
