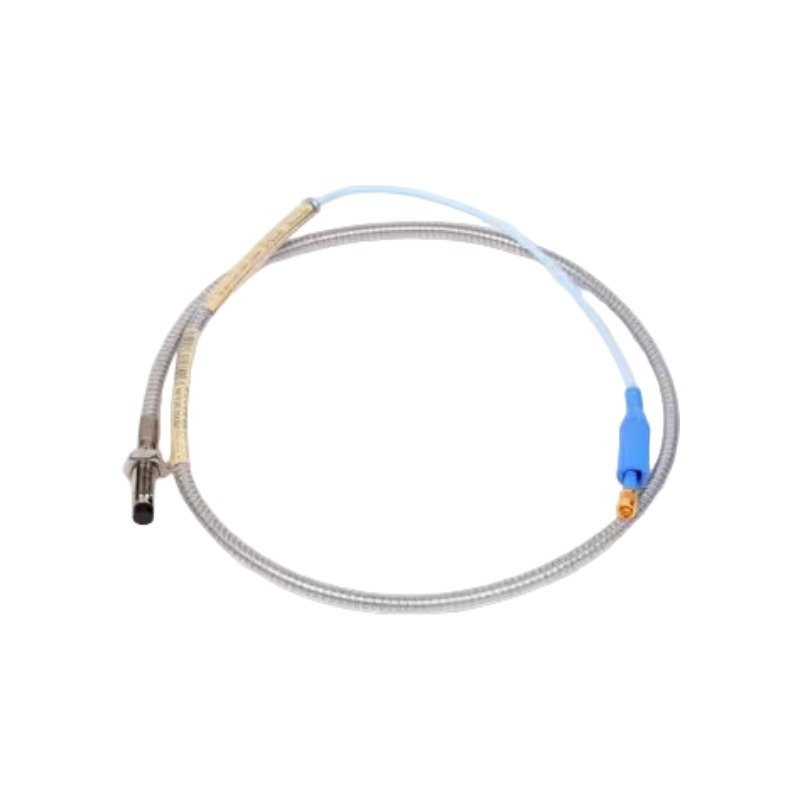

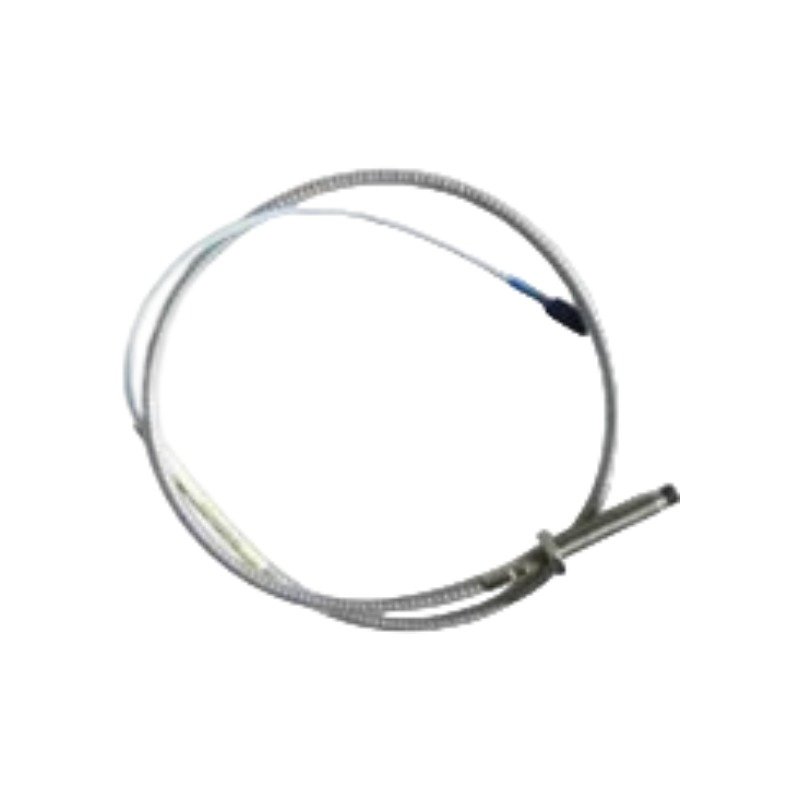

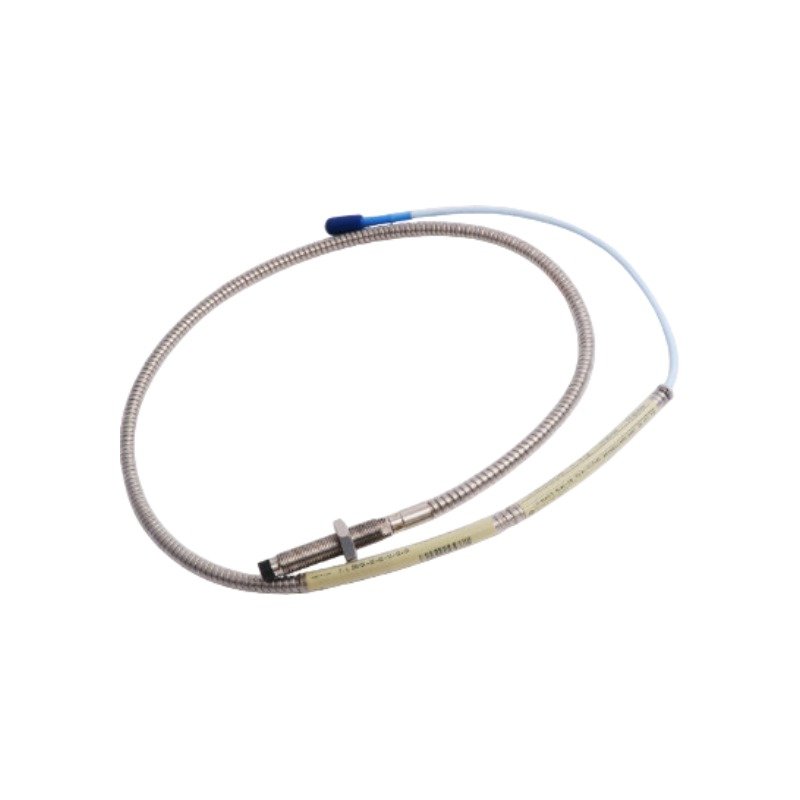

Bently Nevada 330104-00-10-90-02-00 3300 XL 8 mm Proximity Probe
The Bently Nevada 330104-00-10-90-02-00 is an 8 mm metric armored proximity probe with a 9-meter cable. Brand New, Original Stock with Global Shipping.
Description
The Bently Nevada 330104-00-10-90-02-00, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for measuring non-contact vibration, shaft displacement, and axial position within machinery diagnostic networks.
Suffix Breakdown & Model Matrix
| Option Slot | Designation | Selected Variant Details |
|---|---|---|
| 330104 | Base Model | 3300 XL 8 mm Probe, M10 x 1 metric thread, with integral stainless steel armor |
| -00 | Unthreaded Length | 0 mm unthreaded length (fully threaded case) |
| -10 | Overall Case Length | 100 mm case length |
| -90 | Total Cable Length | 9.0 meters (29.5 feet) total system reach |
| -02 | Connector Option | Miniature coaxial ClickLoc connector, standard cable |
| -00 | Agency Approval | Standard unapproved variant (not required for hazardous area deployment) |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-10-90-02-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 2.0 kg |
| Dimensions | 8 mm Probe Tip Diameter; M10 x 1 Threaded Body |
| Operating Temp | -51 to +177 deg C |
| Power Consumption | 0 mW (Passive inductive sensor element supplied by Proximitor) |
| Mounting Thread | M10 x 1 |
| Linear Range | 2.0 mm (starting approximately 0.25 mm from the tip face) |
| Connector Type | ClickLoc miniature coaxial connector |
| Cable Armor | Flexible stainless steel protective conduit |
Machinery Monitoring and Diagnostic Attributes
The instrument incorporates a high-precision eddy-current sensing tip that directly scales dynamic target proximity into electrical variables. To facilitate stable tracking of rotor dynamics, the sensor matches the precise internal calibration constants of compatible 3300 XL Proximitor units. Furthermore, the 9.0-meter integral cable configuration removes intermediate connections, which actively enforces cross-talk suppression and validates consistent gap voltage tracking without introducing signal attenuation across junction points.
Frequently Asked Questions
Q: Why does this probe measure exactly 9.0 meters instead of requiring a separate extension cable?
A: The 9.0-meter integrated armor cable connects the probe tip directly to the Proximitor sensor. Consequently, this one-piece design eliminates an intermediate connector pair, which significantly lowers connection failure risks and signal drift caused by fluid ingress.
Q: Can installers pair this 9.0-meter hardware probe with a standard 5.0-meter Proximitor sensor?
A: No. Operators must pair the probe only with a Proximitor sensor specifically calibrated for a 9.0-meter system length. If an installer mismatches the system physical lengths, severe calibration shifts and nonlinear voltage scaling errors will occur.
Field Installation Guidelines
First, prepare the target machine case by drilling and tapping an M10 x 1 mounting hole orthogonal to the target shaft axis. Next, thread the armored probe casing into the structure while tracking the gap voltage using a digital multimeter. Installers must continue adjusting the mechanical depth until the multimeters read the target gap voltage value matching the specific system data sheet. Following this step, tighten the external locknut to the machine casing to secure the physical mounting position. Finally, route the armored cable leads along dedicated low-voltage instrument trays, and route them completely away from high-current motor supply wires to prevent external electromagnetic noise induction.
