Description

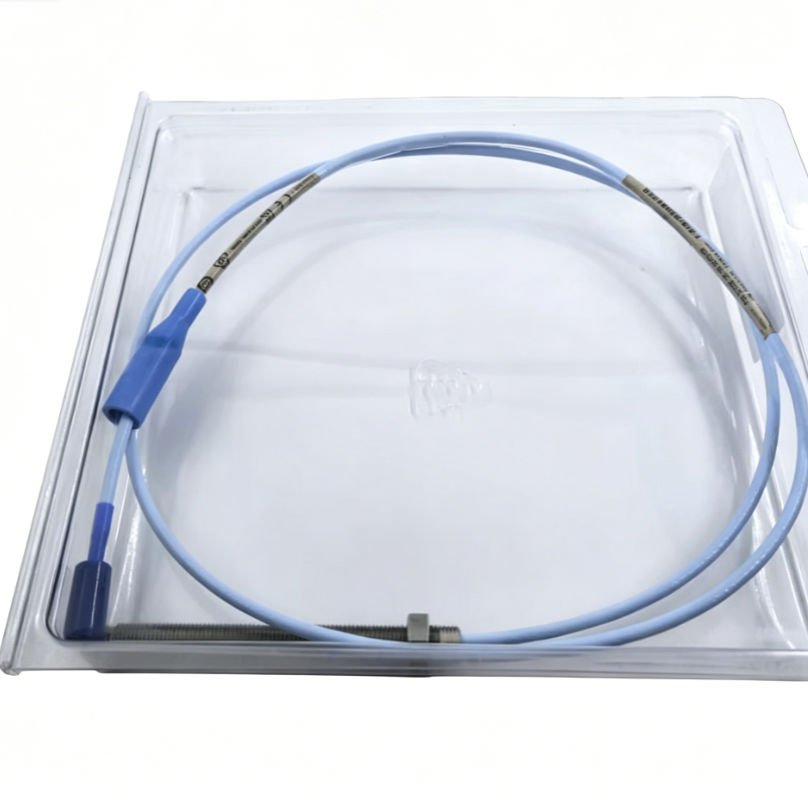

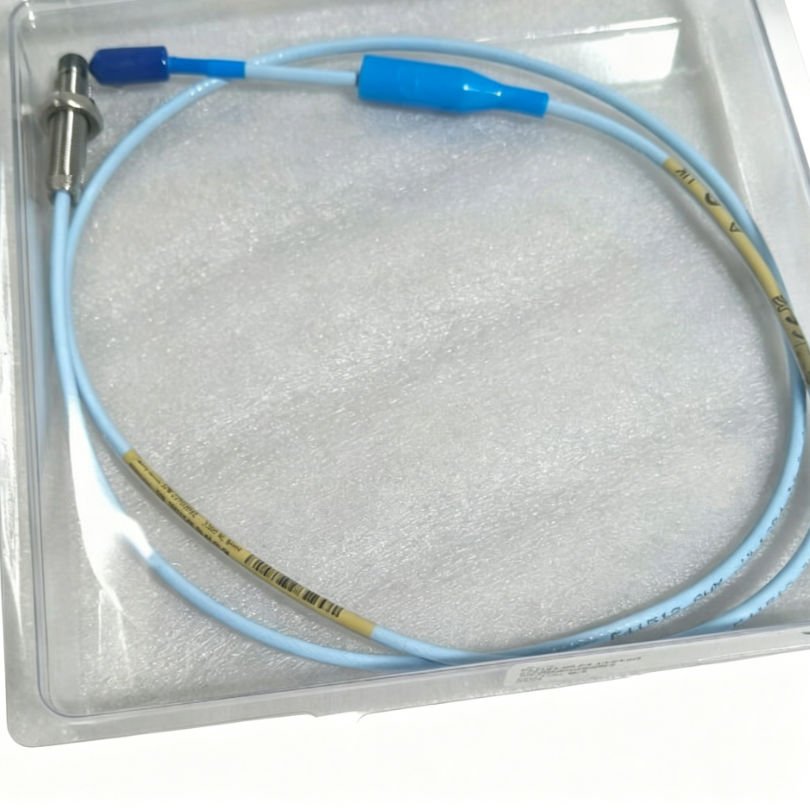

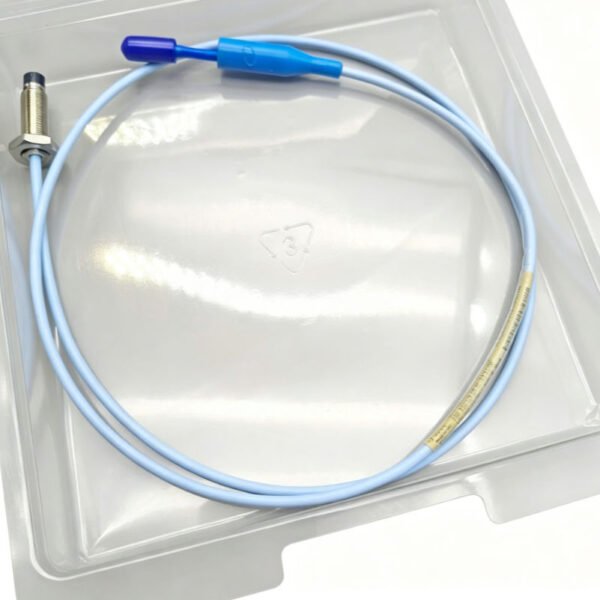

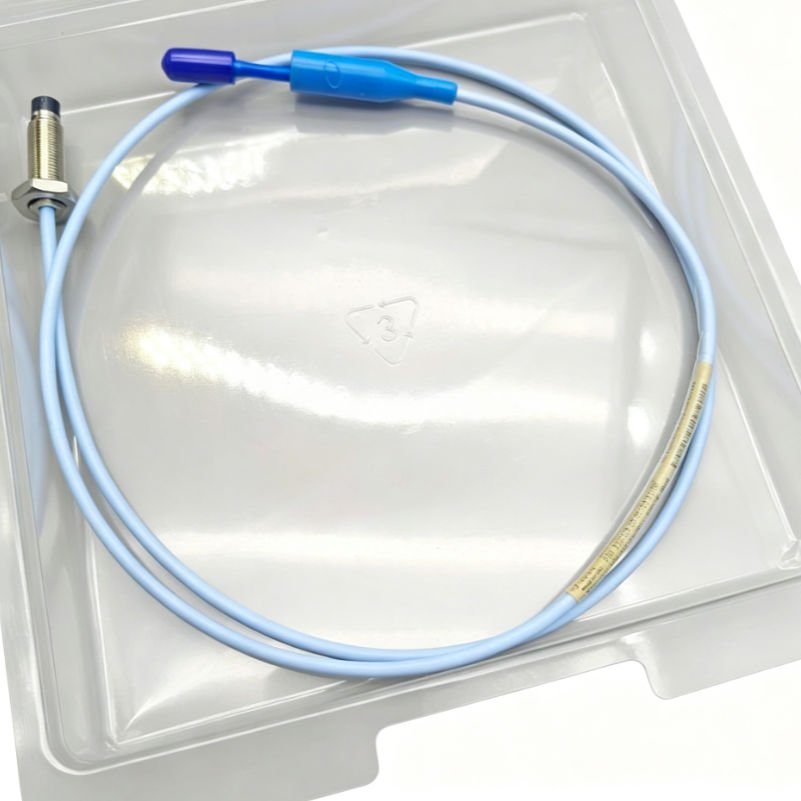

The Bently Nevada 330104-00-06-10-02-00, also cataloged as the Bently Nevada 330104 Proximity Probe, operates as a dedicated hardware component for non-contact displacement, radial vibration, and phase reference tracking within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Transducer Calibration and Gap Voltage Validation

The proximity probe initiates real-time eddy-current probe scaling by generating a high-frequency RF field at the 8 mm tip. As the conductive target moves relative to the tip surface, the matched Proximitor sensor converts eddy-current losses into an analog output voltage. Simultaneously, the monitoring system relies on strict gap voltage validation targeting -10 VDC. This precise targeting confirms that the probe tip maintains a centered physical gap within its 2.0 mm linear sweep. Furthermore, any mechanical misalignment or target deviation outside the linear limits alters the system scale factor. Consequently, establishing the correct physical gap profile prevents inaccurate rotor dynamics tracking and preserves cross-talk suppression between closely grouped metric probe installations.

Frequently Asked Questions

Q: Does the 330104-00-06-10-02-00 probe require manual bench calibration before plant installation?

A: No. The 3300 XL 8 mm system engineering allows complete interchangeability across all matched probes, extension cables, and Proximitor sensors without requiring individual recalibration.

Q: How does the flexible stainless steel armor affect the mechanical handling of the sensor cable?

A: The integrated armor protects the internal coaxial line from physical abrasion and compression. However, engineers must respect the minimum bend radius constraints during routing to prevent core conductor degradation.

Field Installation Guidelines

• Thread Alignment and Torque Enforcements: Thread the M10 x 1 stainless steel case carefully into the machine bracket to prevent cross-threading. Subsequently, tighten the locknut to a maximum torque specification of 9.9 N-m to lock the physical gap location against machinery casing vibration.
• Coaxial Connector Engagement: Join the miniature coaxial ClickLoc connector to the extension cable with firm pressure until it clicks into place. Additionally, apply connection insulation or silicon tape to protect the gold-plated pins from moisture, oil, and airborne contaminants.
• Clearance and Side-Wall Spatial Constraints: Maintain a minimum counterbore diameter of 30.2 mm around the 8 mm probe head. As a result, this clear area prevents side-wall interference from adjacent structural metal components and eliminates false target proximity detection.
