Description

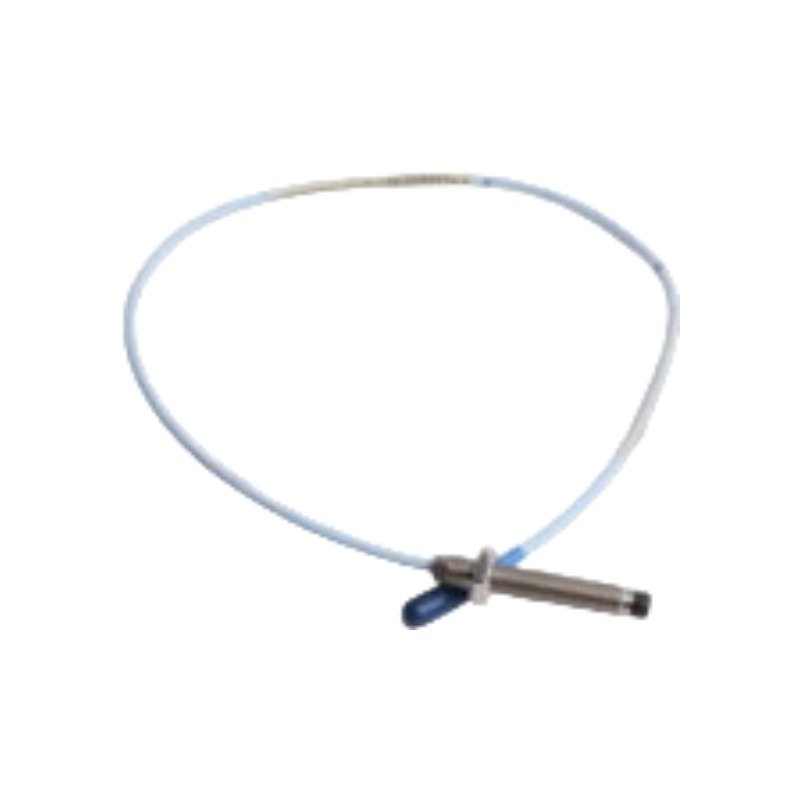

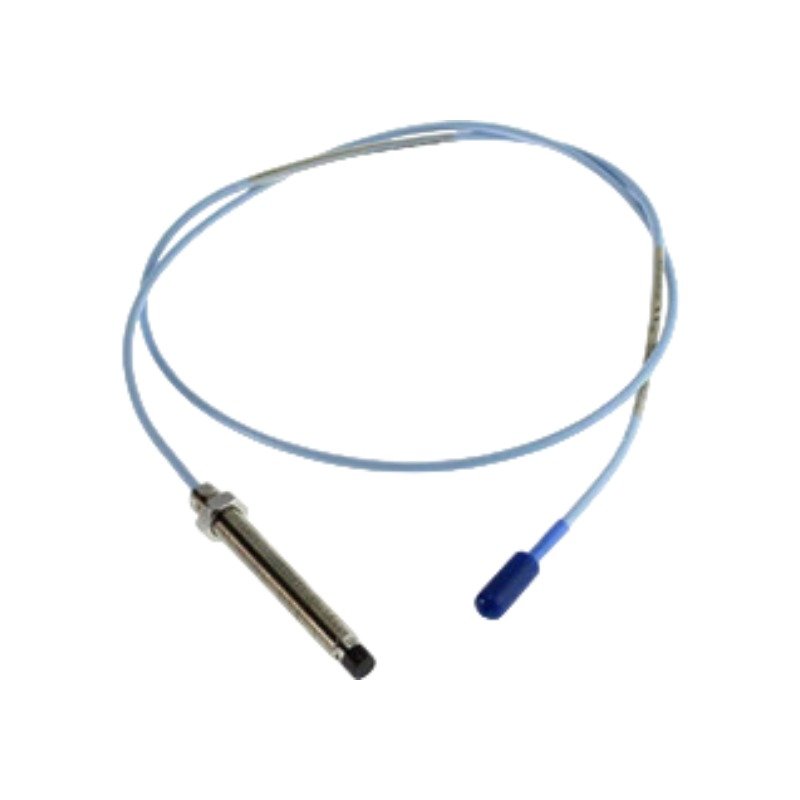

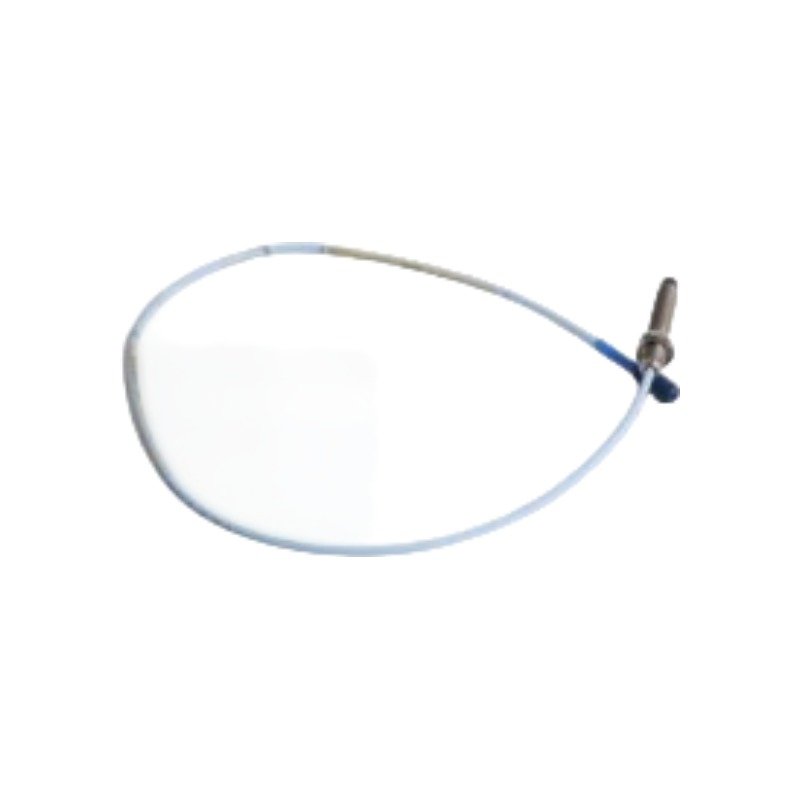

The Bently Nevada 330103-00-10-05-02-00, also cataloged as the 330103 3300 XL 8 mm Proximity Probe, serves as the primary 330103 Proximity Probe utilized to execute non-contacting vibration and position measurements across Bently Nevada 3500 platforms. It interacts with a Proximitor sensor through a radio frequency (RF) envelope to detect minute physical displacements of a conductive shaft target.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This 3300 XL probe operates within a highly calibrated eddy-current probe scaling framework, converting proximity changes into reliable voltage metrics. During field setup, field engineers perform gap voltage validation to target a baseline of -10 VDC. Consequently, this precise setting places the probe at the absolute center of its linear operating displacement window. The robust sensor construction tracks rapid rotor dynamics with extreme precision. Therefore, it enables operators to capture sub-synchronous fluid-film bearing instabilities like oil whirl and oil whip without signal lag. Additionally, the coaxial design offers built-in cross-talk suppression, which prevents adjacent electromagnetic interference when technicians install multiple probes within tight bearing housings.

Frequently Asked Questions

Q: Does the 330103-00-10-05-02-00 probe support hot-swap replacement during plant operation?

A: Yes, maintenance teams can physically replace the probe without shutting down the entire rack. However, disconnecting the probe automatically breaks the sensor loop circuit. As a result, the connected monitor channel enters a “Not OK” status and may trip safety interlocks unless operators bypass the channel first.

Q: How do the exact choices in the option suffixes affect physical deployment?

A: The specific options determine the unthreaded length, overall case length, total electrical length, and connector type. Thus, changing any suffix digit requires the installation crew to verify mechanical clearances and check total capacitive cable matching before restarting the machine.

Q: Can this 1.0-meter probe connect directly to a Proximitor sensor without an extension cable?

A: No, the complete transducer system requires a specific total electrical length, typically 5.0 or 9.0 meters. Because this probe measures exactly 1.0 meter, technicians must add a matching 4.0-meter or 8.0-meter extension cable to preserve the calibrated voltage scale factor.

Field Installation Guidelines

• Thread Engagement Stability: Thread the probe body into the bracket carefully to ensure optimal mounting stability. Maintain standard NPT or UNF thread engagement guidelines to prevent vibration loosening during high-speed machine operation.
• Shield Grounding Isolation: Isolate the outer coaxial connection completely from the machine casing ground. Accordingly, slide the provided transparent insulation sleeve over the coaxial connection point to block unwanted ground loop currents.
• Connector Torsional Limits: Hand-tighten the miniature coaxial connectors until they click or bottom out firmly. Avoid using heavy hand tools because excessive torque deforms the internal gold-plated center pins.
• Conduit Path Segregation: Route the probe lead inside dedicated, grounded low-mass metal conduits. Keep this sensitive path separate from high-voltage motor conductors or variable frequency drive (VFD) output cables to suppress electrical noise.
