Description

Product Description

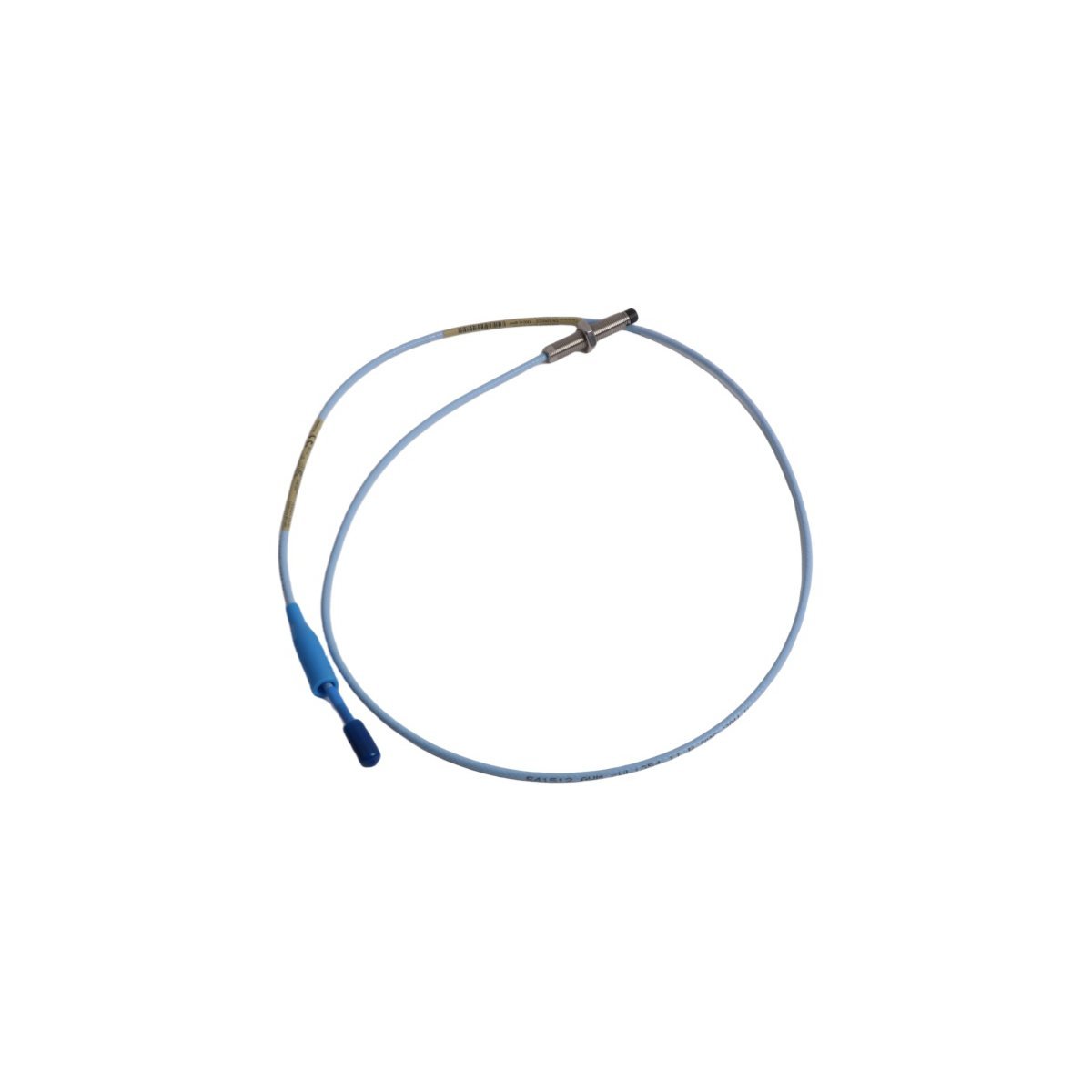

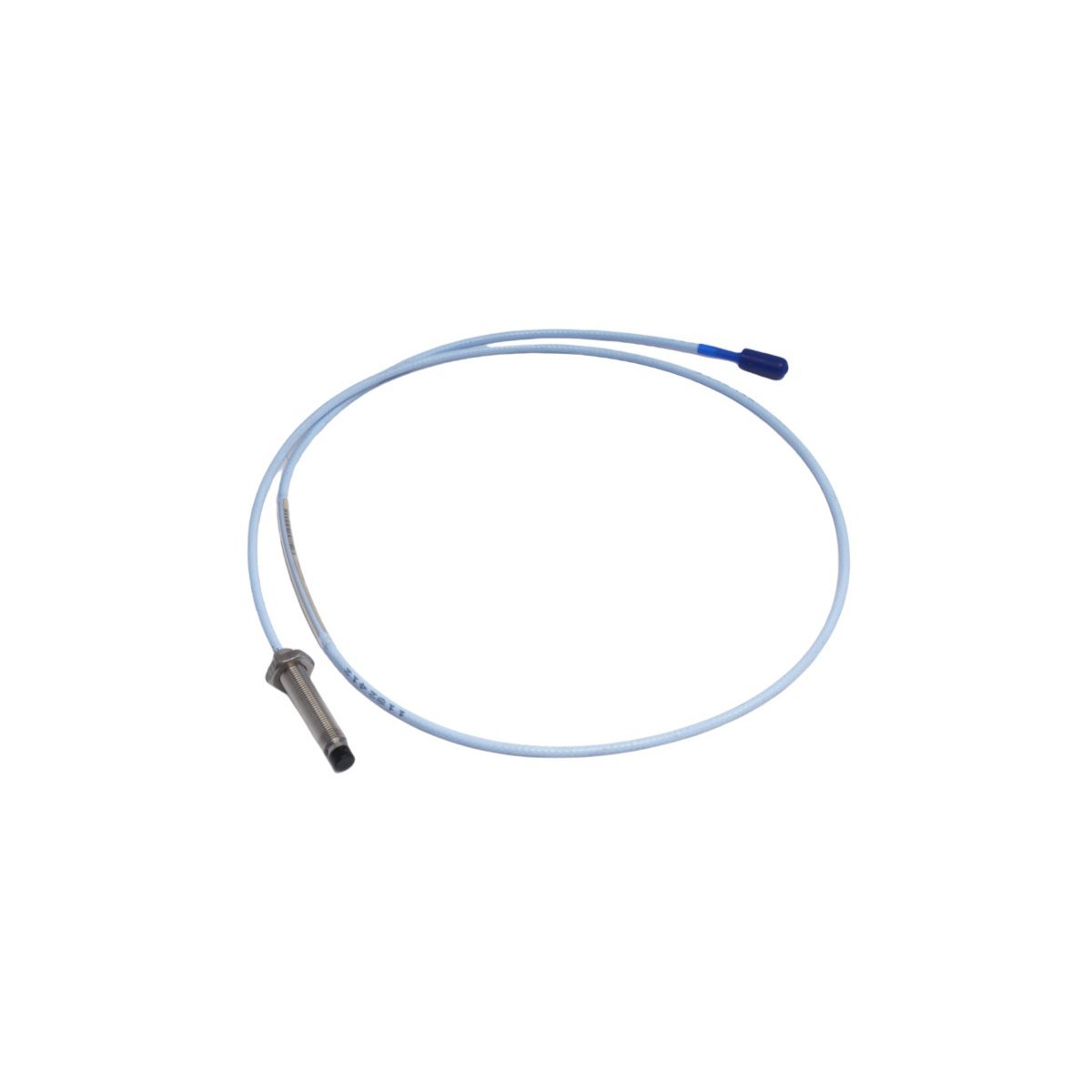

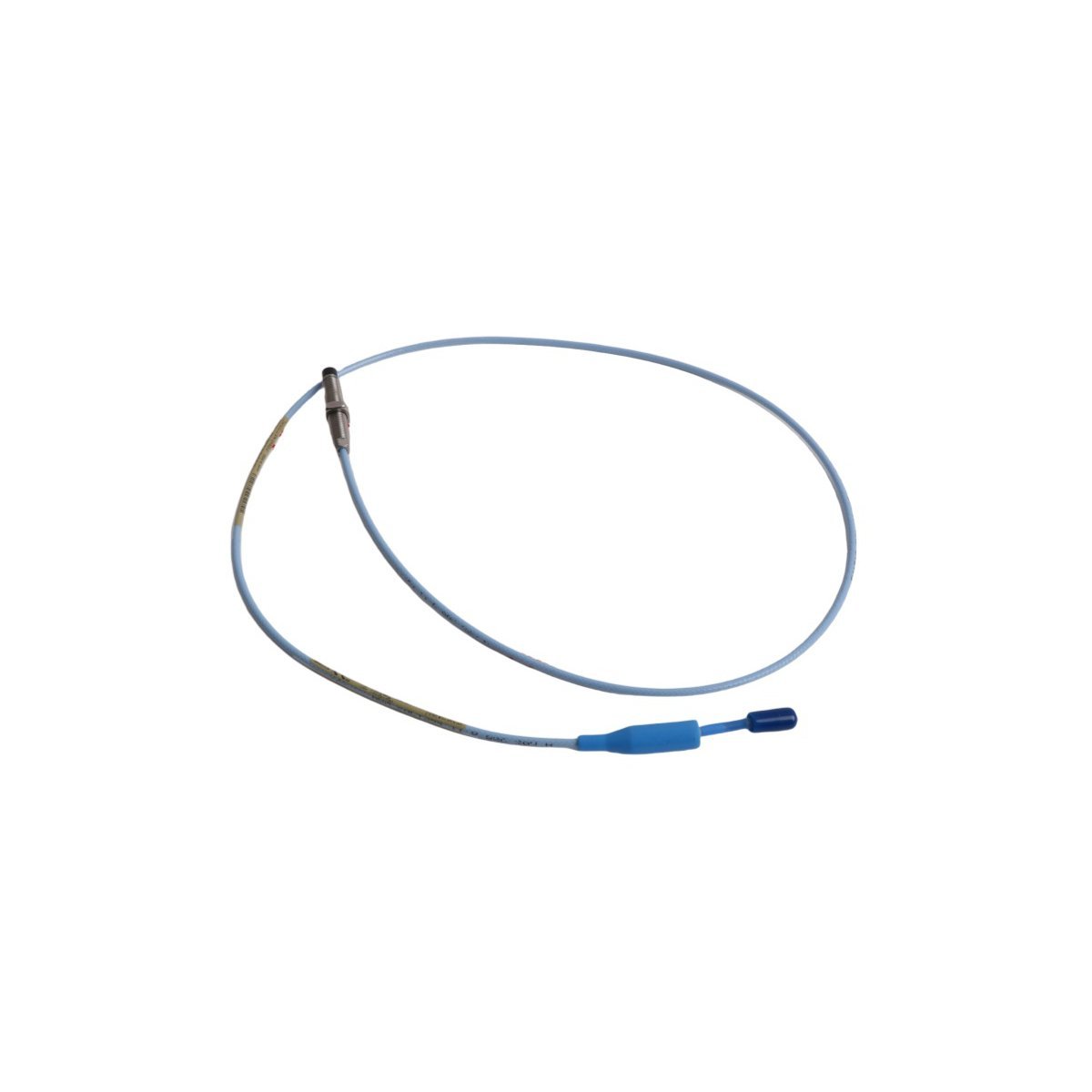

The Bently Nevada 330103-00-05-10-12-00 is a high-performance 3300 XL 8 mm Proximity Probe, an essential component of the Bently Nevada 3300 XL Proximity Transducer System. Engineered for critical machinery protection and condition monitoring, this probe operates on a non-contact eddy current principle to deliver precise measurements of both vibration and axial position (thrust). It is designed to be seamlessly integrated with the industry-leading Bently Nevada 3500 Machinery Protection System, as well as other compatible monitoring platforms. The 330103-00-05-10-12-00 provides the raw data necessary for analyzing the dynamic behavior of rotating shafts in turbines, compressors, pumps, and other vital industrial equipment. Its robust construction ensures reliable performance in harsh operating environments, making it a trusted choice for asset protection strategies aimed at preventing catastrophic failures and optimizing maintenance schedules.

This specific model, the Bently Nevada 330103-00-05-10-12-00, is configured with precise physical specifications for targeted installation requirements. It features a standard M10 x 1 probe thread for secure mounting. The configuration includes a 0 mm unthreaded length and a 50 mm case length, providing a compact form factor suitable for installations with specific spatial constraints. The total system length is 1.0 metre (3.3 feet), offering sufficient reach for many common machine configurations. A key feature of this probe is its miniature coaxial ClickLoc™ connector, which ensures a secure, vibration-resistant connection that prevents intermittent signals and is easy to install by hand, even in tight spaces. The standard cable type provides durability and reliable signal transmission. When combined with a 3300 XL extension cable and a 3300 XL Proximitor® Sensor, the 330103-00-05-10-12-00 forms a fully calibrated transducer system that outputs a voltage signal directly proportional to the gap between the probe tip and the observed conductive surface, enabling highly accurate and repeatable measurements.

The superior performance of the 3300 XL series, including the 330103-00-05-10-12-00 probe, stems from advanced design and manufacturing processes. These probes offer improved linearity and temperature stability compared to previous generations, ensuring measurement accuracy across a wide range of operating conditions. The system is fully compliant with API 670 standards for machinery protection systems when installed as part of a complete Bently Nevada solution. Furthermore, the 330103-00-05-10-12-00 is backward compatible, allowing for seamless upgrades of existing non-XL 3300 series 5 mm and 8 mm transducer systems. This interchangeability simplifies maintenance and inventory management for facilities with a mix of legacy and modern monitoring hardware. Investing in the Bently Nevada 330103-00-05-10-12-00 ensures you are deploying a reliable, accurate, and industry-proven sensor for the protection of your most critical rotating assets.

Specifications

• Part Number: 330103-00-05-10-12-00
• Manufacturer: Bently Nevada
• Product Family: 3300 XL
• Type: 8 mm Proximity Probe
• Condition: Brand New, Original Factory Packaging
• Warranty: 12 Months
• Probe Tip Diameter: 8 mm
• Probe Thread: M10 x 1
• Total Length: 1.0 metre (3.3 feet)
• Case Length: 50 mm (1.97 inches)
• Unthreaded Length: 0 mm
• Connector Type: Miniature coaxial ClickLoc™ connector, gold-plated
• Cable Type: Standard 75 Ω triaxial cable
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 303 or 304 Stainless Steel (SST)
• Measurement Principle: Eddy Current (Non-contact)
• System Compatibility: Bently Nevada 3500 System, 3300 XL Proximitor® Sensors, and other compatible monitors
• Operating Temperature Range: -34 °C
