330101-00-61-15-12-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description

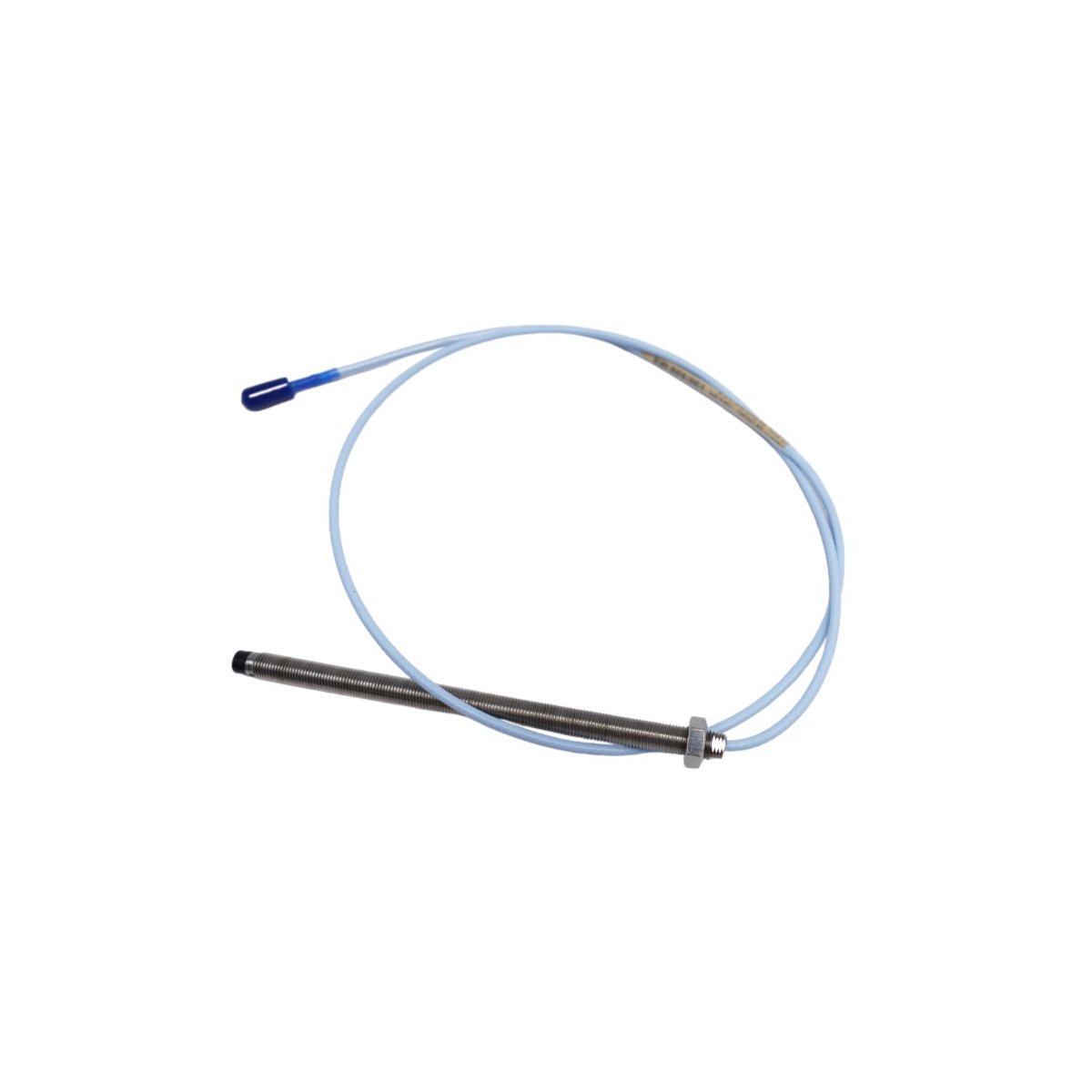

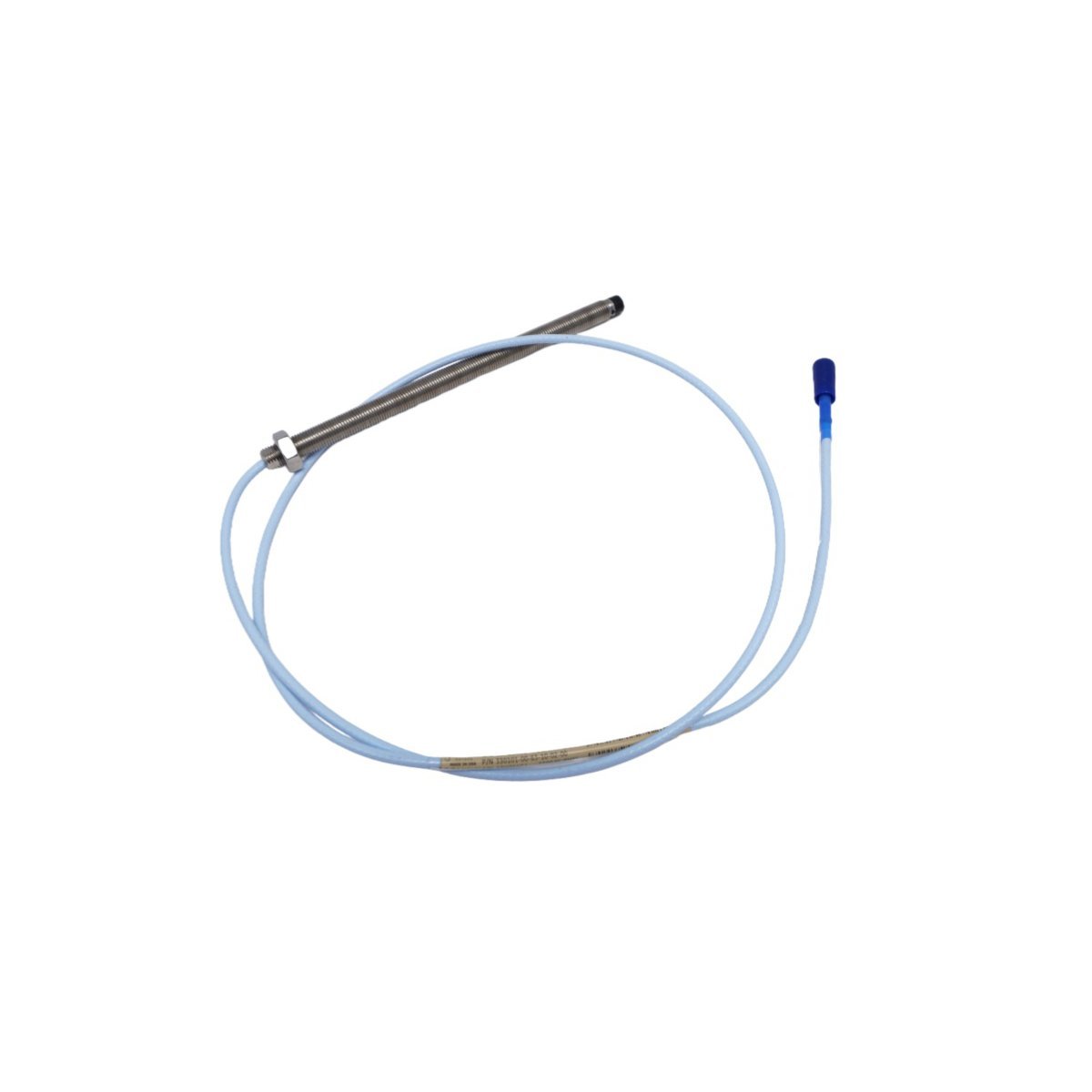

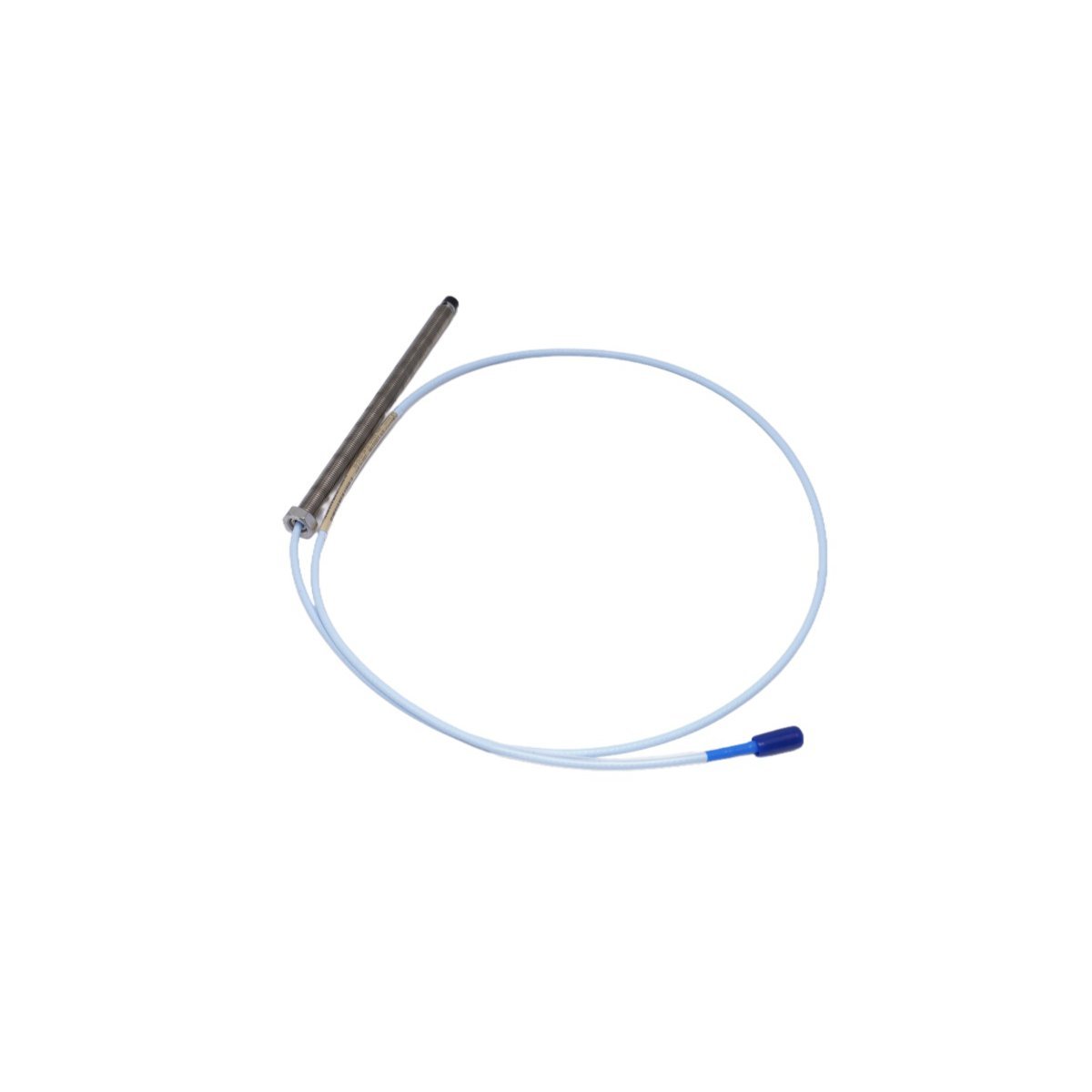

The 330101-00-61-15-12-05 is a pre-wired, high-temperature proximity probe from Bently Nevada’s 3300 XL series, designed for non-contact displacement and vibration monitoring.
Moreover, it delivers stable, linear output in harsh industrial environments, supporting continuous condition monitoring of rotating machinery shafts and bearings.
Therefore, it is commonly integrated into asset protection systems for gas turbines, steam turbines, compressors, and large motors where precise dynamic motion measurement is required.

### Technical Specifications

### Typical Applications
– Shaft vibration and axial position monitoring in centrifugal compressors
– Radial and thrust bearing gap measurement in steam and gas turbines
– Rotor dynamics analysis during commissioning and operational testing
– Speed and phase reference signal generation for orbit analysis

### FAQ
What is the operating temperature range?
–40 °C to +125 °C (–40 °F to +257 °F) for continuous operation.

Is this probe compatible with all 3300 XL monitors?
Yes, it is fully compatible with 3300 XL 25 mm and 50 mm monitor modules.

Does the probe require calibration before installation?
No—factory-calibrated for use with standard 3300 XL extension cables and monitors; no field calibration required.

What cable length options are available for this probe?
Standard configurations include 1.5 m, 3.0 m, and 9.0 m integral cables; custom lengths available per OEM specification.

Can it be used in hazardous areas?
Not intrinsically safe by default; requires appropriate barrier or isolated monitor configuration per area classification.
