Brief Product Description

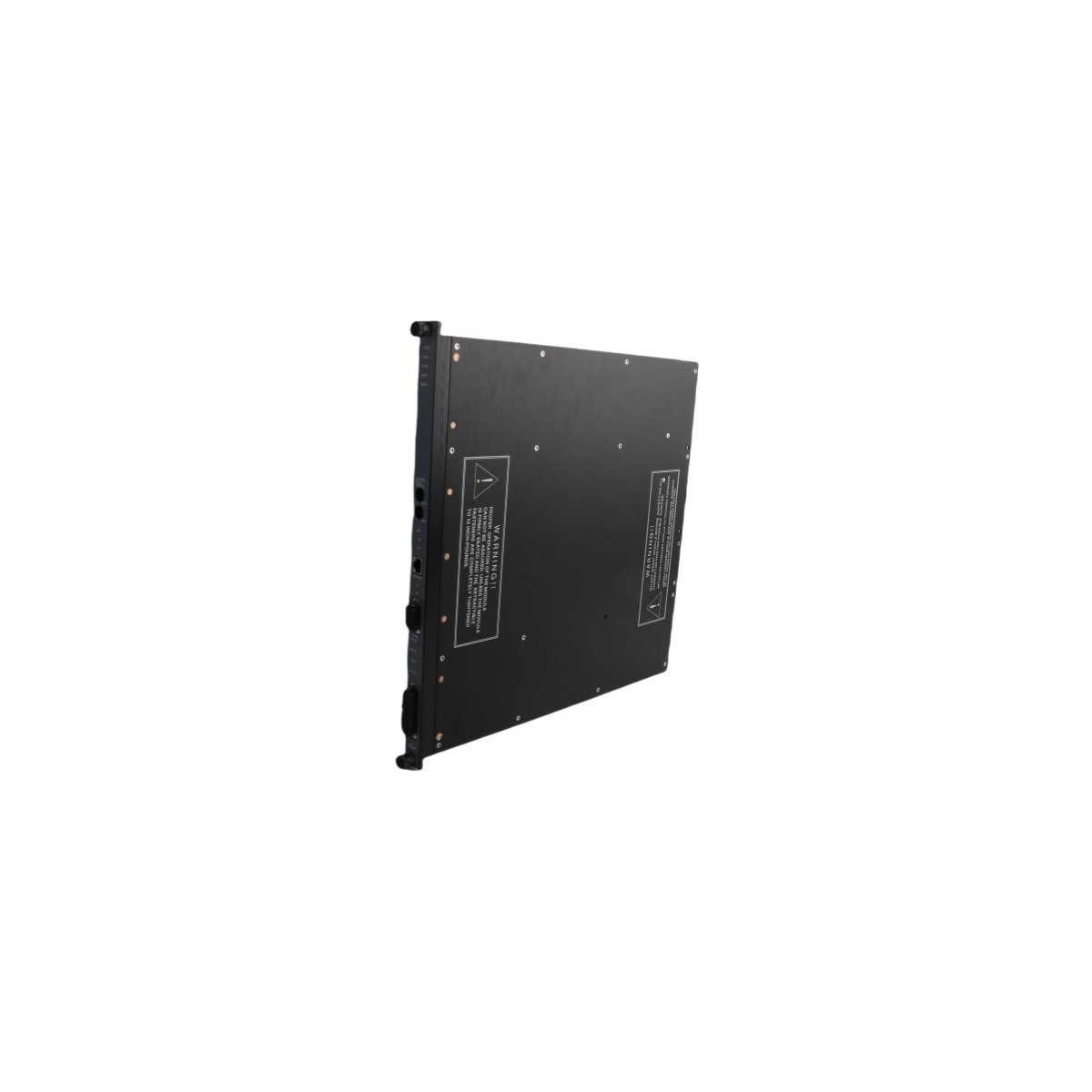

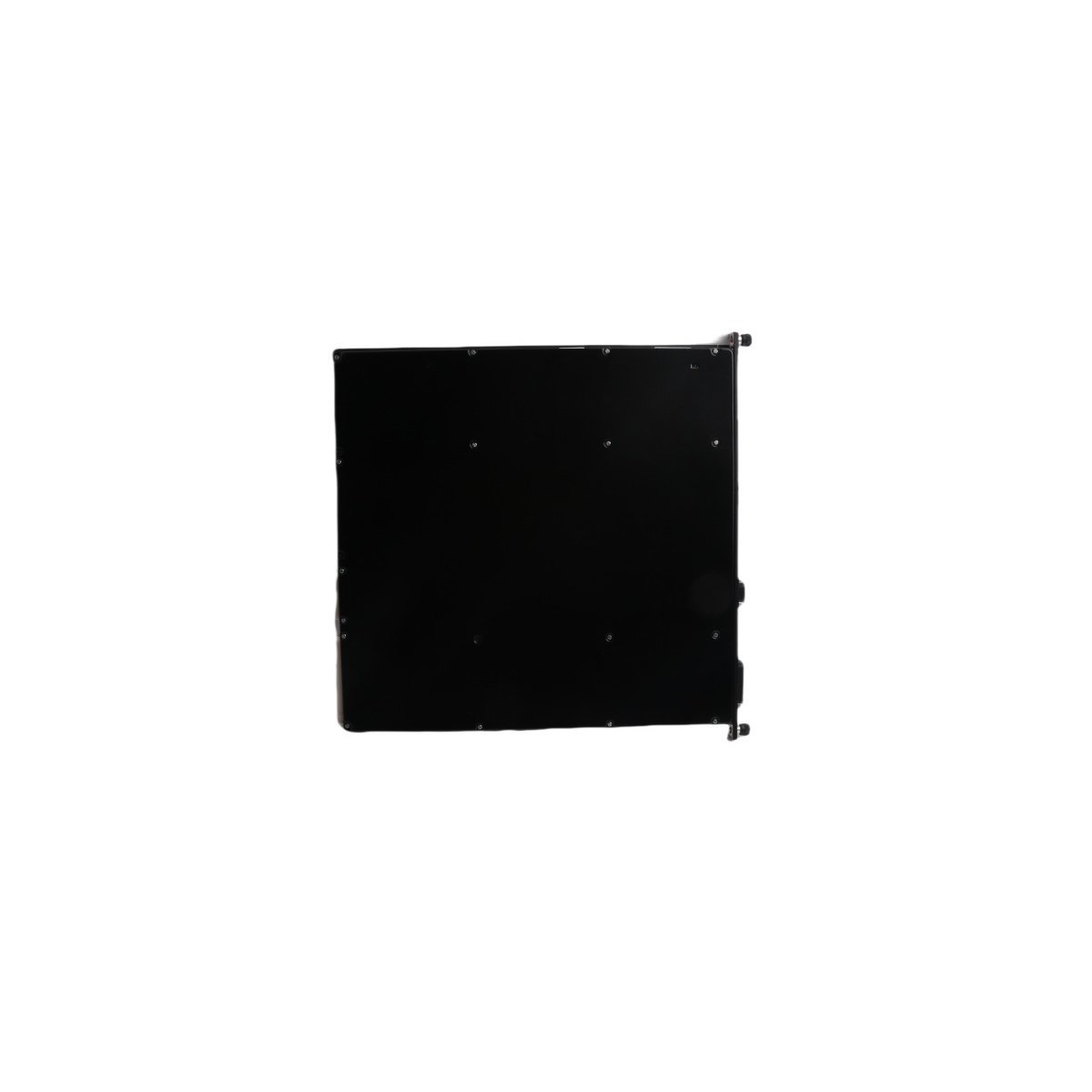

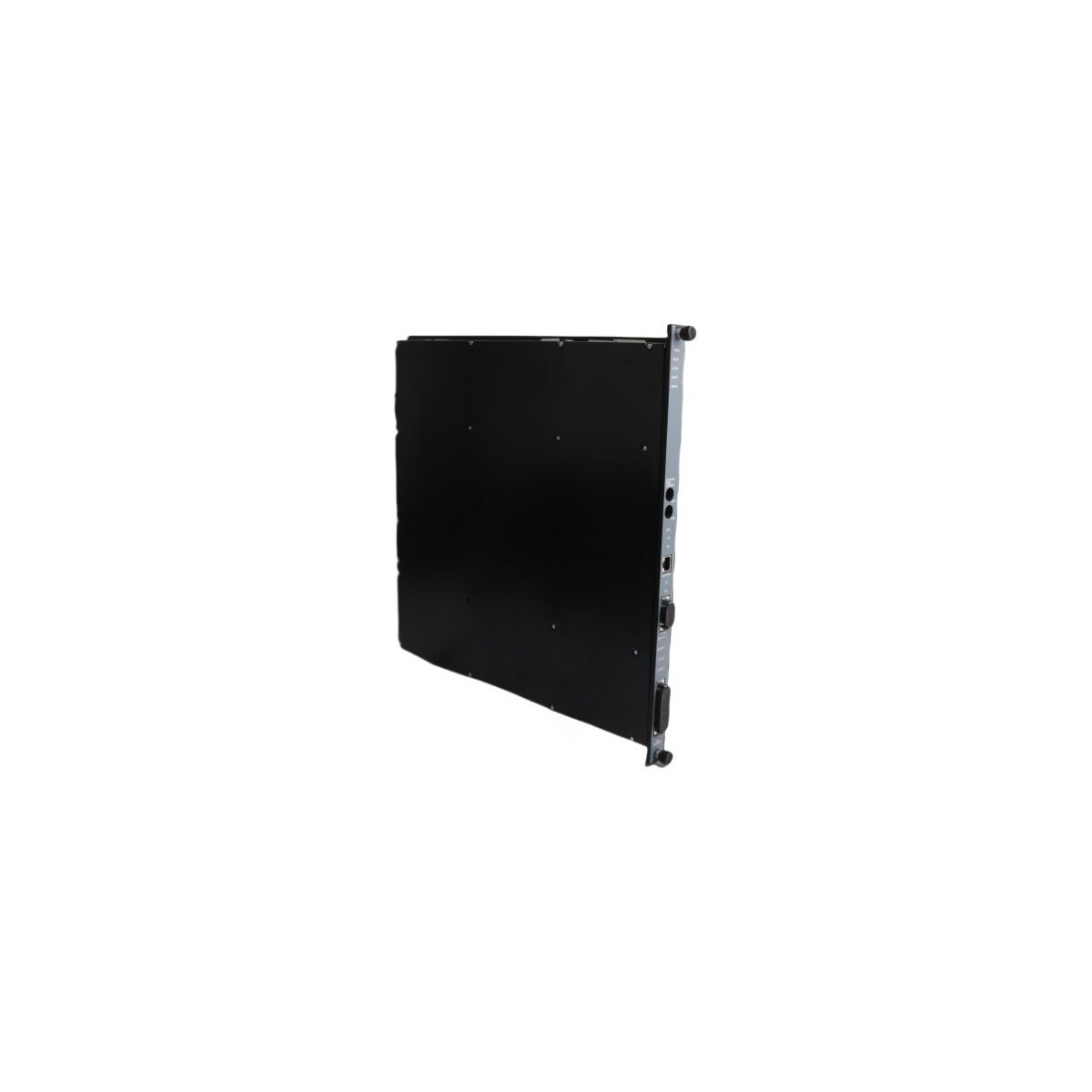

The Triconex 3008N is a high-availability Analog Input Module designed for the Tricon controller, providing 16 isolated channels for safety-critical signal acquisition. It utilizes Triple Modular Redundant (TMR) technology to ensure continuous operation and data integrity in demanding industrial safety applications.

Triple Modular Redundant (TMR) Signal Acquisition

The Triconex 3008N serves as a primary sensing interface for high-integrity safety systems, converting field-side analog signals into actionable data for the main processors. By employing a Triple Modular Redundant (TMR) architecture, the module processes every input signal through three separate paths. The system then utilizes a sophisticated hardware-voting mechanism to identify and isolate faults instantly. This design ensures that the failure of a single electronic component cannot compromise the safety of the process. Consequently, the 3008N provides the extreme reliability required for Emergency Shutdown (ESD) and Fire and Gas (F&G) monitoring systems.

Precision Performance in Rugged Environments

Engineered to operate in the most punishing industrial sectors, the 3008N offers superior resilience against electromagnetic interference and high-vibration conditions. The module maintains high accuracy across its entire signal range, facilitating precise monitoring of pressure, temperature, and flow transmitters. Furthermore, the unit features an extended operating temperature range, allowing it to function reliably in non-conditioned control rooms or remote instrument enclosures.¹ Because it supports hot-swapping, maintenance personnel can replace modules without powering down the system or interrupting the active safety loop.²

Fail-Safe Integration and Safety Compliance

Transitioning to the 3008N Analog Input Module enhances the overall Safety Integrity Level (SIL) of a facility’s Distributed Control System (DCS). The module complies with stringent international safety standards, including IEC 61508 and UL certification, which validates its performance in mission-critical loops. It integrates flawlessly with the Tricon backplane, utilizing high-speed communication buses to provide real-time updates to the controller. Additionally, the module’s independent channel isolation prevents electrical surges from migrating between field devices, thereby protecting the longevity and stability of the entire automation infrastructure.

Key Technical Characteristics

• 16-Channel High-Density Input: Manages multiple analog loops within a single slot to optimize rack space.
• TMR Fault Tolerance: Eliminates single points of failure through triple-path signal processing and voting.³
• Galvanic Isolation: Provides robust protection between field-side signals and the internal system logic.
• Hot-Swap Capability: Supports online module replacement to ensure zero downtime during maintenance cycles.⁴
• Comprehensive Diagnostics: Continuously verifies circuit health and reports field-side wiring faults to the operator.
• Global Safety Compliance: Certified for use in SIL3 safety applications across oil, gas, and power sectors.
