Description

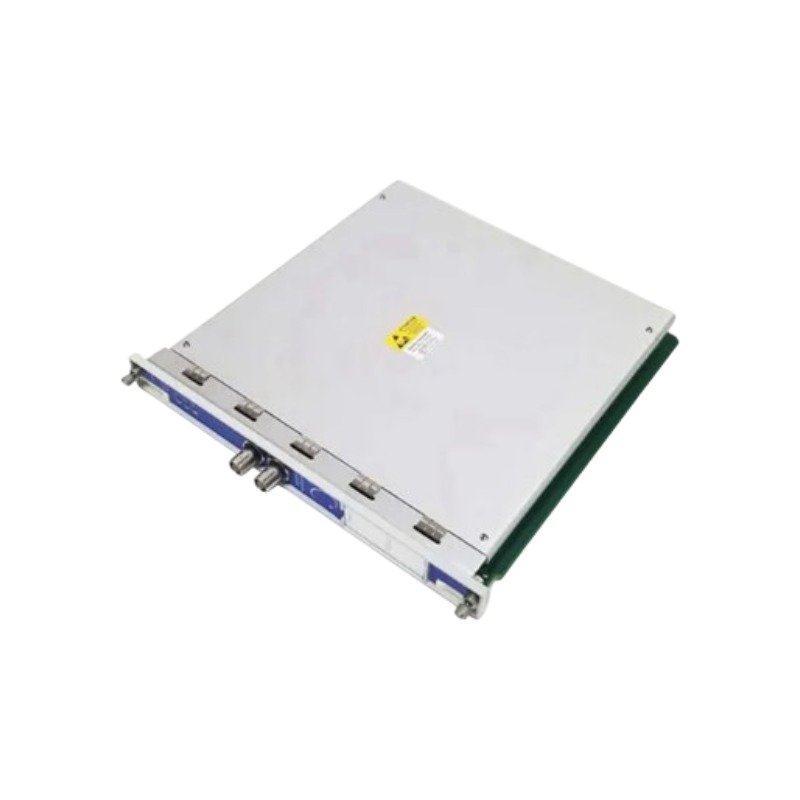

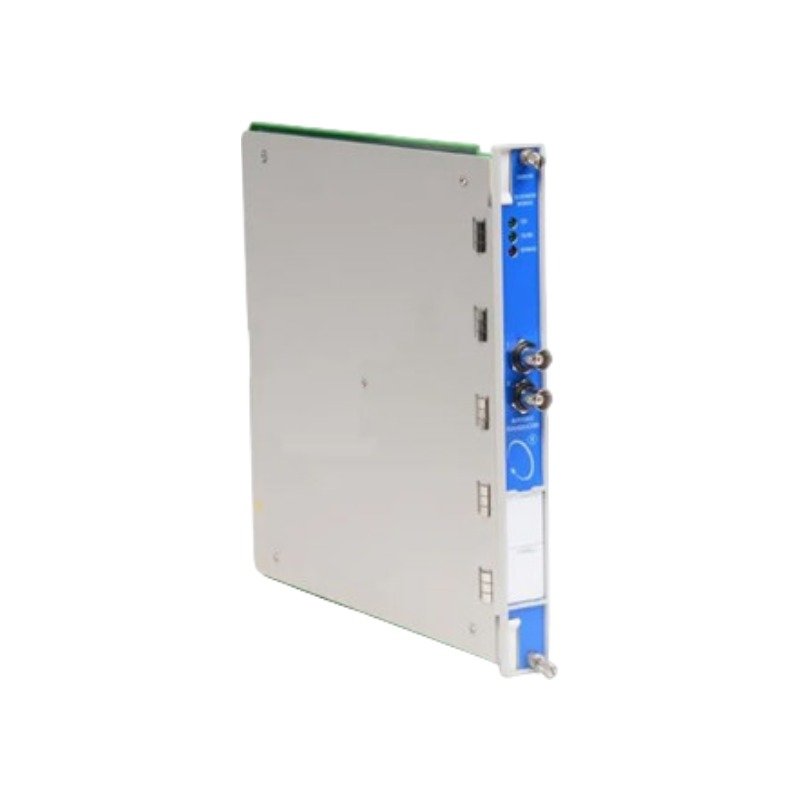

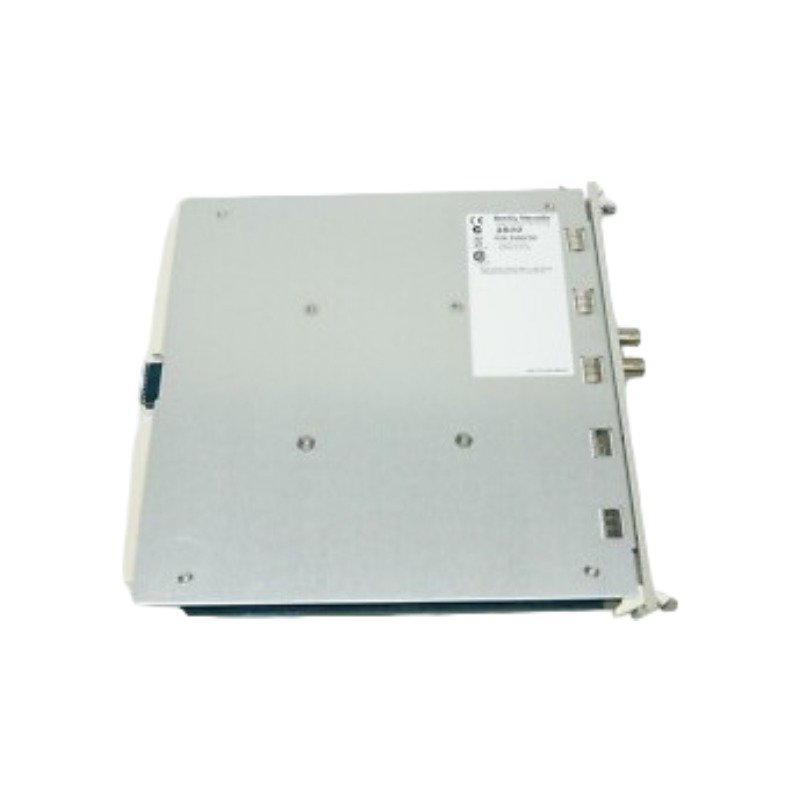

The Bently Nevada 286566-02, also cataloged as the Bently Nevada 3500/50M Tachometer Module, operates as a dedicated hardware component for precise shaft rotative speed monitoring, acceleration tracking, and direction identification within 3500 Series Machinery Protection System platforms. The module processes raw pulse inputs from proximity probes or magnetic pickups to evaluate instantaneous mechanical dynamics, providing hardwired hardware logic execution to safeguard rotating machine trains.

Hardware Specifications

Proximity Probe Scaling and Gap Voltage Validation

The module features independent dual-channel signal conditioning architecture designed to interface directly with proximity probe networks. When utilizing standard 8mm eddy-current transducer systems, field engineers must conduct continuous gap voltage validation, targeting standard -10 VDC levels to maintain sensor operation within linear boundaries. The internal front-end conditioning hardware tracks high-frequency pulse intervals while enforcing cross-talk suppression metrics across the backplane bus, preventing neighboring phase trigger inputs from injecting timing errors into the calculated rotor dynamics datasets.

Frequently Asked Questions

Q: Can the 286566-02 process simultaneous speed signals from both a proximity probe and a magnetic pickup on separate channels?

A: Yes. The 2-channel circuit architecture allows independent configuration for each channel. Input parameters, threshold limits, and transducer transducer type scaling are configured individually through the 3500 Rack Configuration Software.

Q: What is the response latency for alarm status verification and relay state transition across the backplane loop?

A: The module maintains an internal signal processing latency under 30 ms. Upon threshold crossing, alarm signals propagate across the 3500 internal backplane to actuate corresponding relay output modules within this timeframe.

Field Installation Guidelines

• Insert the card assembly strictly into a valid monitoring slot of the 3500 chassis, confirming the alignment pins clear the backplane connector before applying insertion force.
• Connect the transducer coaxial cable shielding directly to the assigned chassis terminal block ground point to block electromagnetic interference from modulating speed readings.
• Ensure all field wiring maintains physical separation from high-amperage AC supply circuits to avoid inductive noise coupling across the pulse detection threshold.
• Tighten the front panel retention fasteners to 0.5 N-m (4.4 in-lb) to ensure uninterrupted mechanical grounding contact with the rack structural frame.
