Description

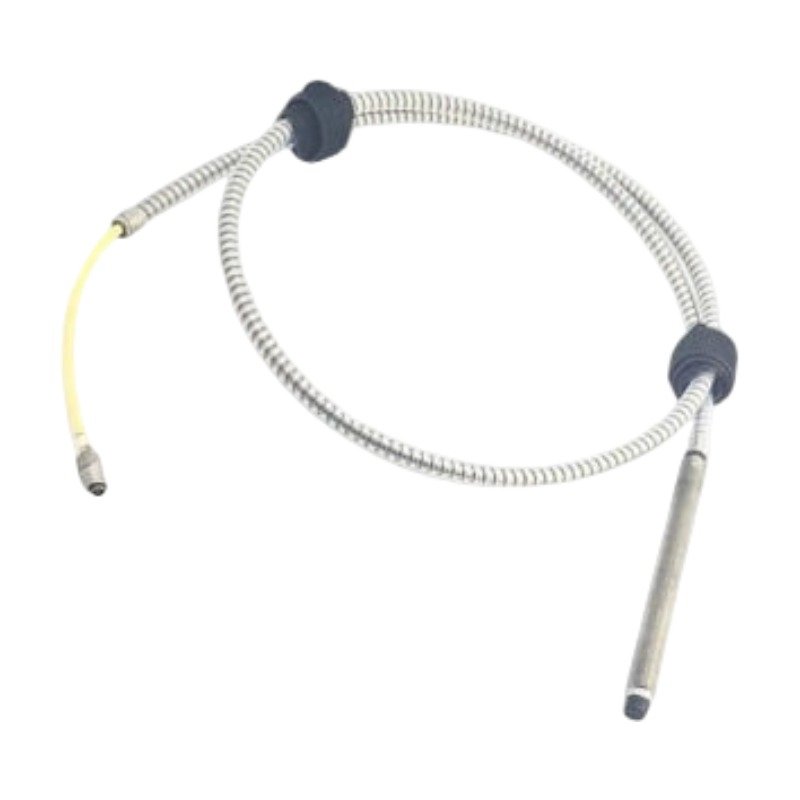

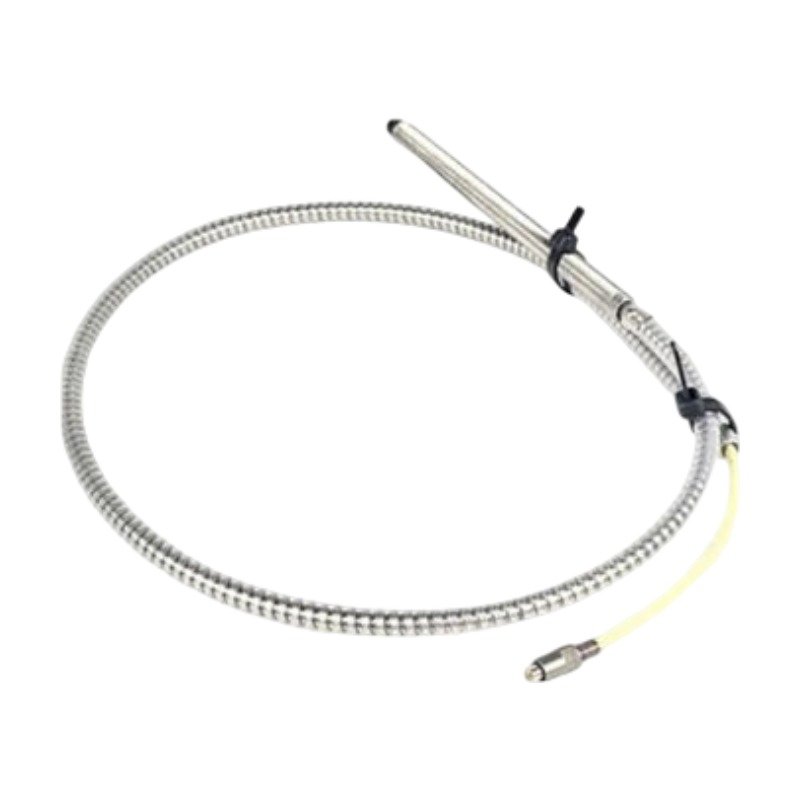

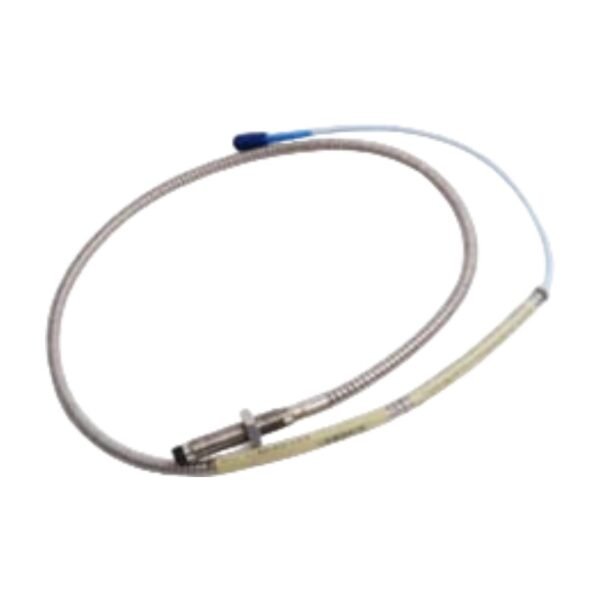

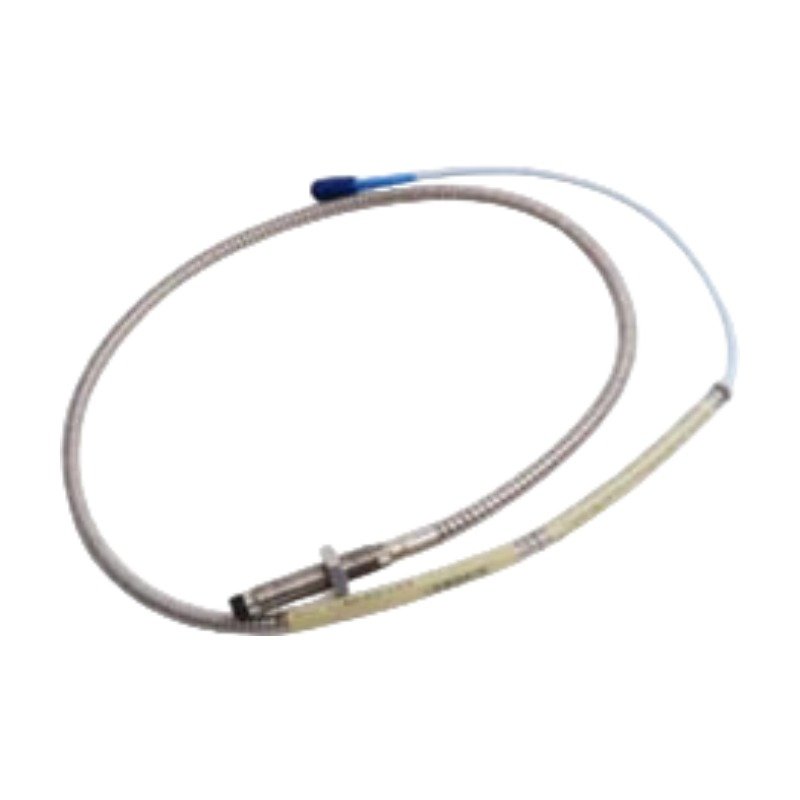

The Bently Nevada 21505-00-72-10-02, also cataloged as the 21505 Proximity Probe, operates as a dedicated hardware component for non-contacting displacement and vibration measurements within 7200 Series Proximity Transducer Systems. It continuously transmits radio frequency energy from its 8 mm tip to track static or dynamic gaps between the target surface and the sensor face. The resulting eddy currents dictate the mechanical impedance of the loop, which the associated Proximitor converts into a linear voltage signal.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The hardware implements specialized eddy-current probe scaling to convert target proximity into precise voltage metrics. During system calibration, engineers perform gap voltage validation to establish field bias baselines, targeting -10 VDC to position the probe within the linear operating range of the 7200 system. This stability enables the capturing of real-time rotor dynamics, including sub-synchronous shaft vibrations and axial position drift. Furthermore, the internal physical geometry and coaxial construction enhance cross-talk suppression, preventing signal corruption when multiple sensors operate close together near the machine bearings.

Frequently Asked Questions

Q: What is the purpose of the stainless steel armor on this probe assembly?

A: The stainless steel armor prevents mechanical abrasion, fluid ingress, and structural damage to the internal coaxial cable inside harsh industrial machinery housings.

Q: Can this probe connect directly to a 3500 series monitor rack without an intermediate device?

A: No, this probe requires a matching 7200 series Proximitor sensor to modulate the radio frequency signal and generate the proportional analog voltage required by the monitor backplane.

Q: How does the total cable length affect system calibration?

A: The total length option is rated for 1.0 m. Mixing this probe with mismatched extension cables alters the overall electrical resistance and capacitance, which compromises the factory scaling calibration.

Field Installation Guidelines

• Verify that the physical unthreaded housing length permits correct positioning without exceeding the mechanical clearance of the target shaft.
• Maintain a standard five-thread minimum engagement when locking the probe case into the machine housing or mounting bracket.
• Adjust the mechanical position while monitoring the gap voltage until the output achieves the required -10 VDC bias point.
• Route all extension and integral coaxial cabling away from high-voltage conduits to eliminate external electromagnetic interference.
• Isolate the outer shield of the coaxial line from ground loops by ensuring it terminates cleanly at the isolated terminal block of the Proximitor.
