Description

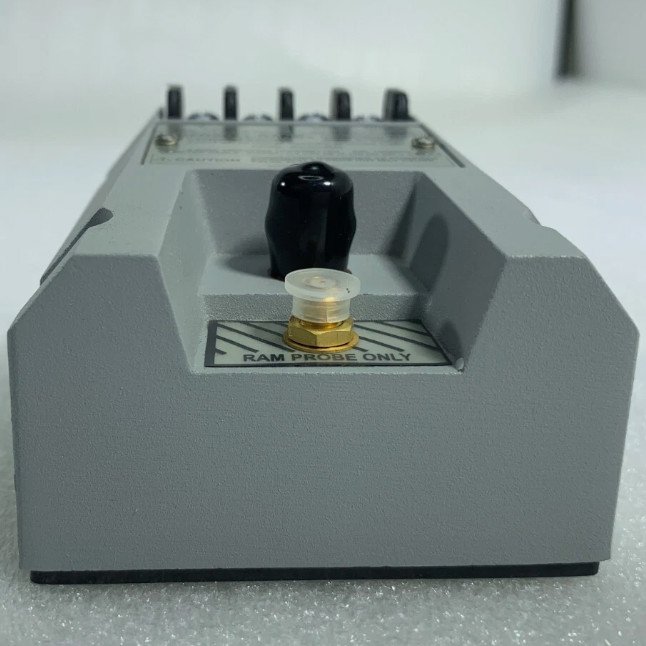

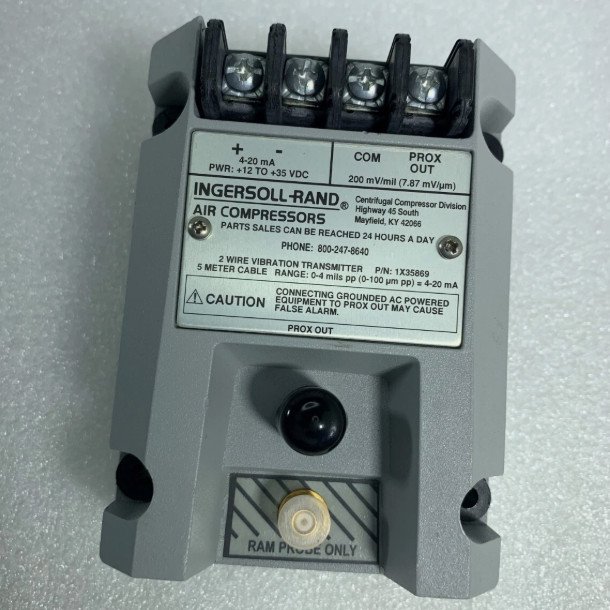

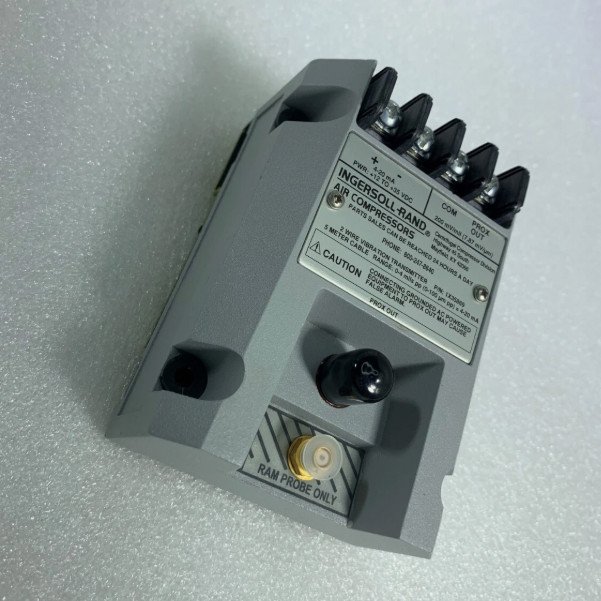

The Bently Nevada 1X35869, also cataloged as the 1X35869 Proximity Sensor Interface, operates as a dedicated hardware component for signal conditioning and transduction within 3500 Series Machinery Protection System platforms. It converts raw physical displacement signals into calibrated voltage outputs suitable for monitor module processing.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Validation

The 1X35869 interface is engineered to maintain high linearity across the designated linear range of the associated eddy-current probe. To ensure measurement integrity, technicians must perform gap voltage validation during installation. A target gap voltage of -10 VDC typically represents the mechanical midpoint of the sensor’s linear range. Cross-talk suppression is managed through controlled impedance matching within the circuitry, preventing interference between adjacent probe signals in high-density rotor dynamics monitoring environments.

Frequently Asked Questions

Q: What is the primary cause of signal clipping in the 1X35869 interface?

A: Signal clipping occurs if the gap voltage is set outside the specified linear range (typically -2 VDC to -18 VDC) or if the power supply voltage drops below the minimum threshold required for the probe driver.

Q: Can this module be used with non-standard cable lengths?

A: Accuracy is dependent on total system capacitance. Using cable lengths other than the specified 5 or 9 meter standards without recalibration will result in scale factor errors.

Field Installation Guidelines

• Shielding and Grounding: Ensure the coaxial cable shield is isolated from the machine ground and terminated only at the designated 3500 rack system ground point to prevent ground loops.
• Mounting Stability: The interface must be secured to a rigid surface or DIN-rail to minimize mechanical vibration, which can induce noise into the high-impedance transducer circuit.
• Terminal Torque: Use a calibrated screwdriver to torque terminal block screws to 0.5 N-m to ensure consistent electrical contact without damaging the PCB headers.
• Clearance: Maintain a minimum 50 mm clearance from high-voltage AC lines to prevent electromagnetic interference (EMI) from affecting the low-voltage DC displacement signal.
