Description

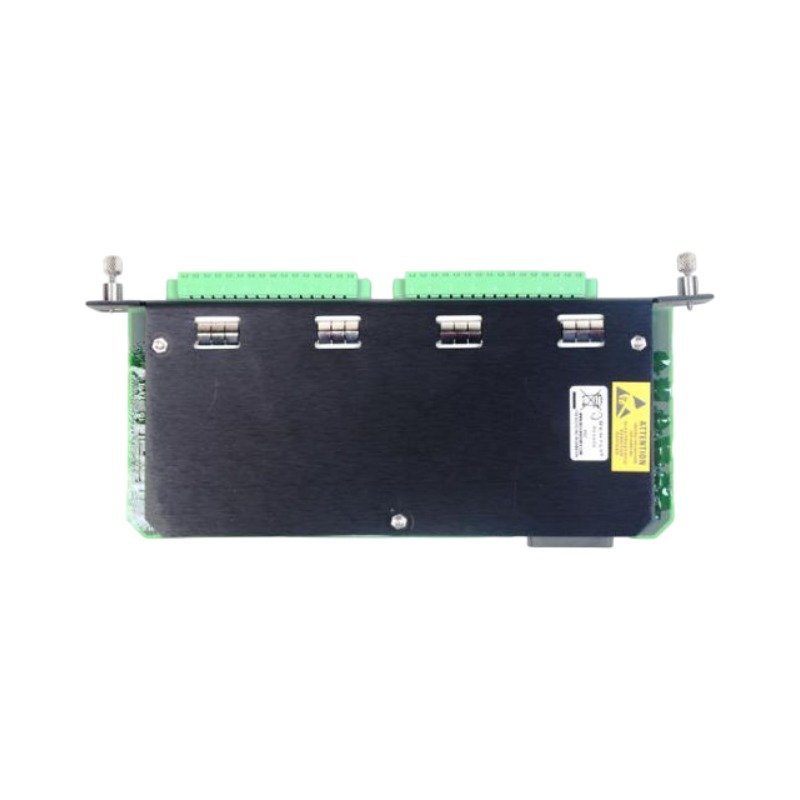

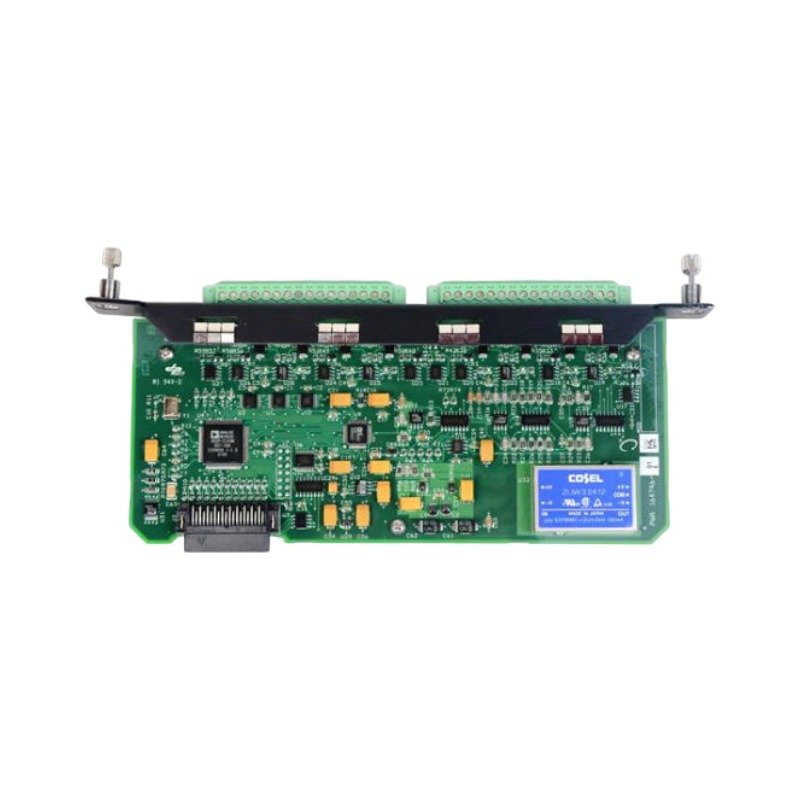

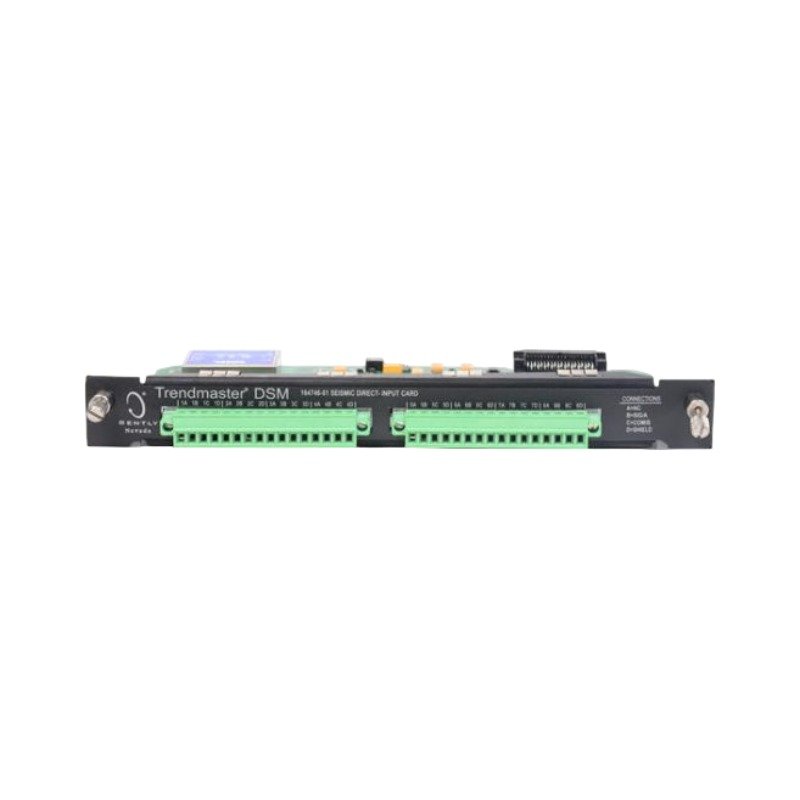

The Bently Nevada 164746-01, also cataloged as the 164746-01 Seismic Direct Input Card, serves as the primary 164746-01 input card utilized to execute high-resolution seismic vibration data acquisition across Trendmaster Dynamic Scanning Module (DSM) platforms. The hardware acts as a dedicated 8-input interface designed to condition, filter, and digitize low-voltage analog signals from case-mounted seismic sensors. It transforms raw mechanical acceleration and velocity waveforms into high-fidelity digital streams for real-time asset tracking.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 164746-01 coordinates case-mounted casing vibration loops for Turbomachinery Instrumentation (TSI) diagnostic routines, utilizing independent 16-bit analog-to-digital converter channels. The hardware architecture enforces explicit internal cross-talk suppression paths across the 8-channel circuit block, preventing high-frequency gearmesh or structural resonance waves on one input from corrupting adjacent signal paths. The card interfaces seamlessly with Trendmaster software matrices to establish baseline eddy-current probe scaling protocols when run in parallel with proximity networks. Throughout synchronous and asynchronous processing sweeps, the card executes gap voltage validation parameters by constantly tracking sensor bias lines; if an attached 2-wire transducer shifts away from nominal operating windows, the processor logs a channel fault while continuing to capture raw rotor dynamics data across the remaining input paths.

Frequently Asked Questions

Q: What specific sensor architecture is the 164746-01 input card engineered to power and monitor?

A: The card is engineered explicitly for 2-wire constant-current mode sensors, such as the Bently Nevada AM Series Accelerometers. It maintains an internal 3.3 mA constant bias current supply over a +24 VDC rail to power the internal electronics of the accelerometer while simultaneously extracting the differential AC vibration signal over the exact same two wires.

Q: Does the 164746-01 require manual jumper configuration to toggle between synchronous and asynchronous sampling?

A: No. The card architecture switches dynamically between synchronous and asynchronous processing states based on direct configuration commands sent over the 149744 Trendmaster DSM mainframe communication network, allowing the system to match data acquisition speeds with transient or steady-state machine states.

Field Installation Guidelines

• Mainframe Insertion and ESD Grounding: Disconnect main power from the 149744 Trendmaster DSM rack before handling the hardware. Slide the conformal-coated 164746-01 board smoothly into its designated slot track, pressing firmly until the rear connector seats into the backplane, then lock the faceplate screws to establish chassis ground continuity.
• Shield Continuity and Signal Isolation: Route sensor lines through dedicated, grounded conduits separate from high-voltage AC motor lines. Terminate the twisted-pair cable shield only at the DSM rack panel enclosure ground terminal; leave the field sensor end isolated and taped back to block parasitic plant ground loop currents from destabilizing the 16-bit signal conversion.
• Terminal Wiring Specifications: Strip the field wiring insulation jacket back by 6 mm before securing the leads to the terminal strip block. Ensure all termination terminal screws are tightened to a torque limit of 0.51 N-m (4.5 in-lb) to maintain low-resistance signal contacts under conditions of persistent structural machine vibration.
