Description

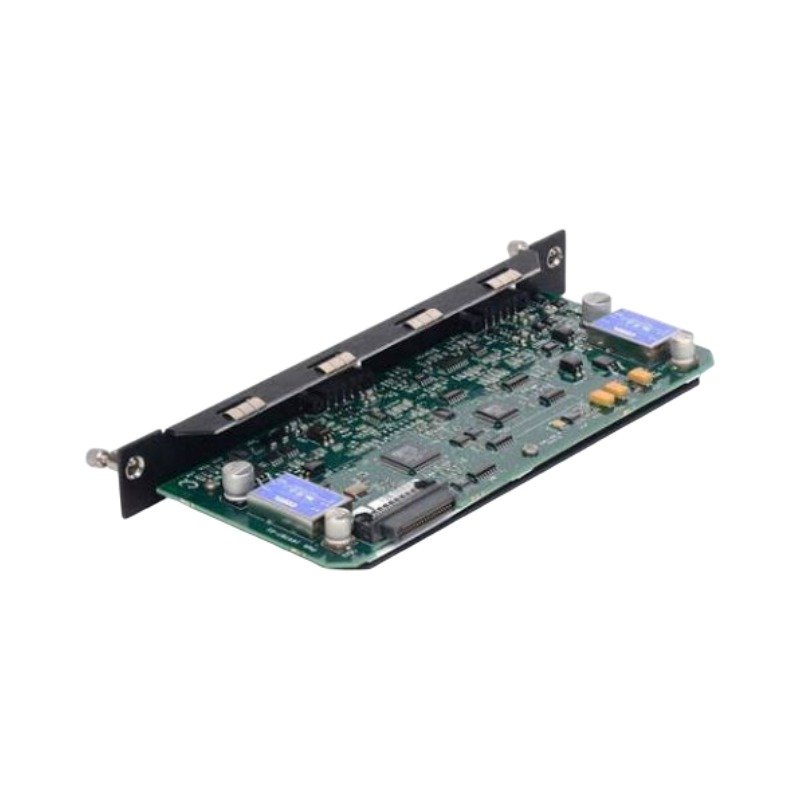

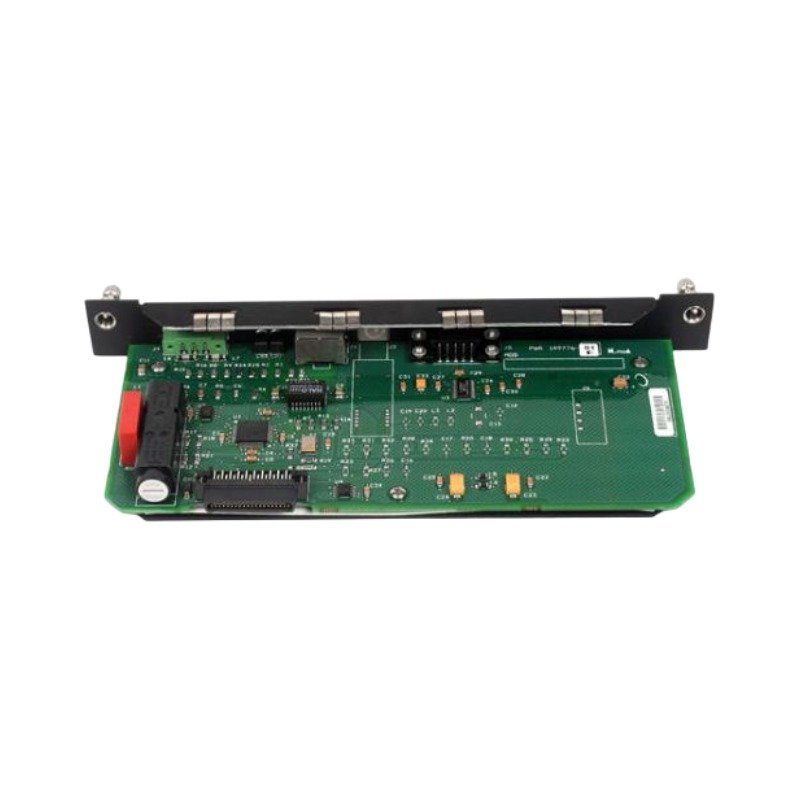

The Bently Nevada 149832-01, also cataloged as the 149832-01 Transducer Interface Module (TIM) Line Driver Card, operates as a dedicated hardware component for high-density sensor bus management within the Bently Nevada Trendmaster Dynamic Scanning Module (DSM) system. The module installs into the 149744 Trendmaster chassis to provide execution power and communication polling for long-distance, multi-drop sensor loops. It serves as the primary master controller for downstream TIM networks, coordinating data retrieval from multiple localized machine nodes.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 149832-01 manages transmission pipelines for plantwide Turbomachinery Instrumentation (TSI) layouts, converting raw multi-drop register bytes into standardized machinery parameters. The dual-line driver framework utilizes strict electronic cross-talk suppression paths to keep the high-frequency multiplexing pulses of Line A from bleeding into the data streams of Line B. The module continuously loops through connected nodes to extract digital variables mapped from eddy-current probe scaling configurations and accelerometer sensors. During active scanning sweeps, the card verifies downstream gap voltage validation indices; if a remote sensor drops outside target thresholds (such as standard -10 VDC targets), the driver logs a physical channel error while preserving the rotor dynamics scanning sequence across the remaining operational bus nodes.

Frequently Asked Questions

Q: What is the maximum physical cable length supported by the 149832-01 for a single TIM line loop?

A: The high-power line driver circuits on the 149832-01 can drive a single multi-drop cable run up to a maximum physical length of 305 meters (1000 feet). Exceeding this distance compromises signal rise-time parameters and causes serial data dropouts during active polling sweeps.

Q: Can this module be hot-swapped while the Trendmaster DSM system is powered and logging active plant assets?

A: Yes. The 149832-01 supports physical extraction and insertion under power. However, pulling the module instantly terminates power and communications to all downstream TIMs attached to Line A and Line B, resulting in an immediate loss of data tracking for those specific asset groups until the replacement module initializes.

Field Installation Guidelines

• Chassis Positioning: Turn off any high-voltage sources near the enclosure. Slide the 149832-01 card edge precisely into the plastic guide tracks of an available I/O slot (typically slots 3 through 5) in the 149744 DSM chassis. Press firmly until the rear connector seats into the backplane, then hand-tighten the integrated faceplate retaining screws.
• Terminal Wiring and Bus Polarity: Connect the multi-drop field cables to the matching removable terminal blocks on the card faceplate. Maintain strict polarity matching for the signal pair (Line + and Line -) and power pairs across the entire multi-drop run, and torque terminal clamping screws to 0.51 N-m (4.5 in-lb).
• Line Termination Requirements: Install a dedicated 120 Ohm end-of-line termination resistor assembly across the physical terminal points of the very last TIM housing on both Line A and Line B loops. Omitting this termination allows signal reflections to bounce back along the cable, corrupting the synchronous data bytes and lowering overall noise suppression.
