Description

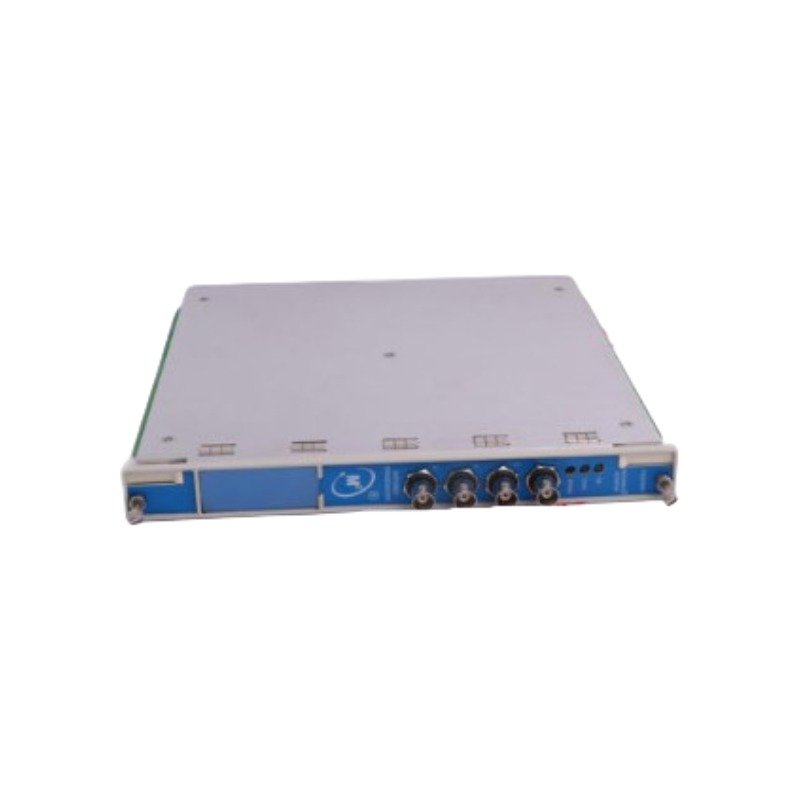

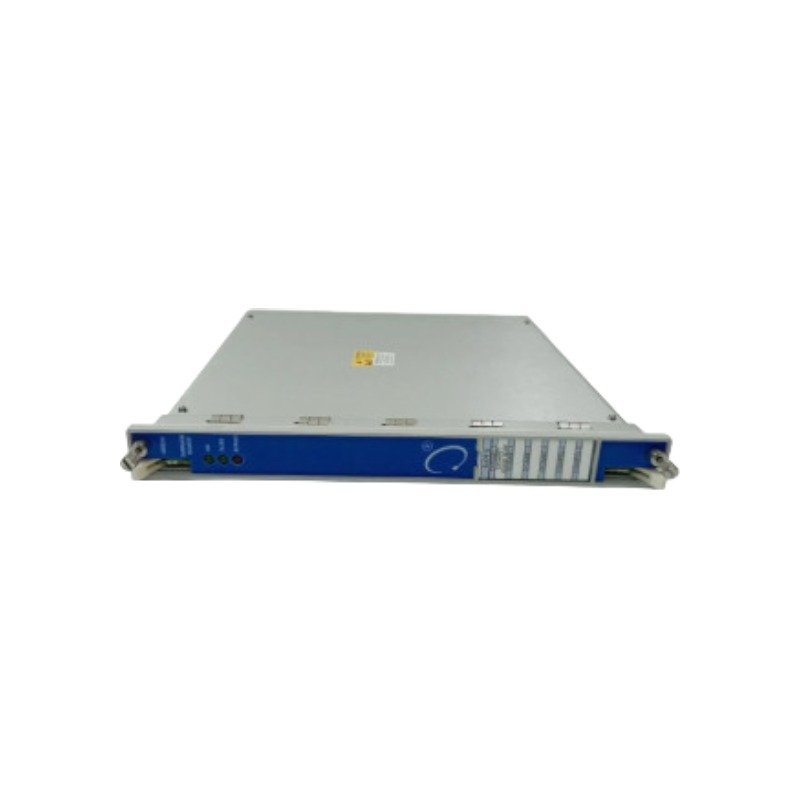

The Bently Nevada 163179-02, also cataloged as the Bently Nevada 3500/61 Temperature Monitor, operates as a dedicated hardware component for continuous machinery thermal tracking within 3500 Series Machinery Protection System platforms. Specifically, this six-channel module accepts signals from external resistance temperature detectors (RTDs) and thermocouples (TCs). Consequently, the hardware processes raw analog thermal variations and presents proportional values across the internal backplane network to enable automatic protective trip evaluation.

Hardware Specifications

Proximity Probe Scaling and Gap Voltage Validation

Although this module processes static thermal vectors, its internal firmware executes structural filtering routines that isolate low-voltage sensor circuits from nearby high-frequency machinery networks. This dedicated signal path setup ensures that high-power industrial installations do not disrupt adjacent eddy-current probe scaling configurations or corrupt gap voltage validation (-10 VDC targets) data runs. Meanwhile, the integrated recorder output circuitry delivers robust cross-talk suppression between the separate temperature loops and regional field networks. As a result, operators monitor absolute casing temperatures and bearing states alongside complex rotor dynamics without experiencing inductive data drift.

Frequently Asked Questions

Q: What specific functional characteristic differentiates the 163179-02 monitor card from the 163179-01 component?

A: The 163179-02 module supports dedicated, individual continuous recorder outputs for each of its six monitoring channels. Conversely, the 163179-01 version lacks these analog output paths while preserving identical sensor processing capabilities.

Q: How do you configure this card to transition from an RTD input matrix to a Thermocouple signal source?

A: The internal hardware relies on parameter definitions managed through the 3500 Rack Configuration Software. Therefore, users must select the proper sensor option within the digital setup utility to automatically modify internal conditioning coefficients.

Field Installation Guidelines

• Slide the monitor assembly into any open slot of the 3500 main rack frame, pressing the card edge firmly until the internal pins seat completely into the structural backplane socket.
• Tighten both front-panel thumb fasteners to a limit of 0.5 N-m (4.4 in-lb). This mechanical contact ensures a continuous low-resistance chassis ground path to block external electrical interference.
• Isolate all external RTD and thermocouple field cables from high-voltage AC motor lines. Thus, you prevent magnetic field induction from adding measurement errors to the millivolt-level sensor data.
• Terminate all unused channels using jumper links or deactivate them entirely within the system software setup to prevent open-circuit monitoring paths from initiating false system fault conditions.
