Description

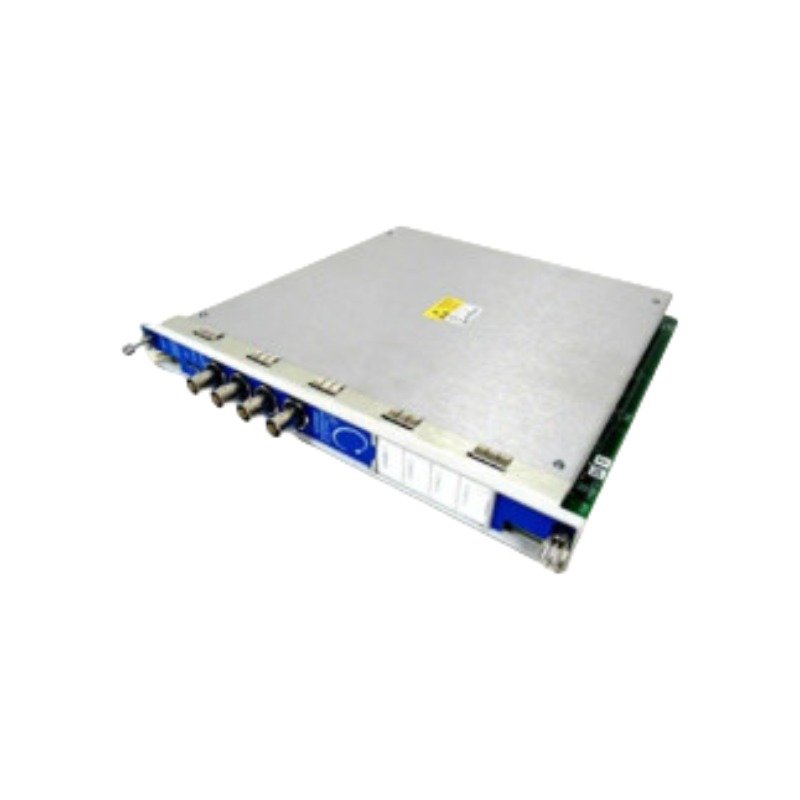

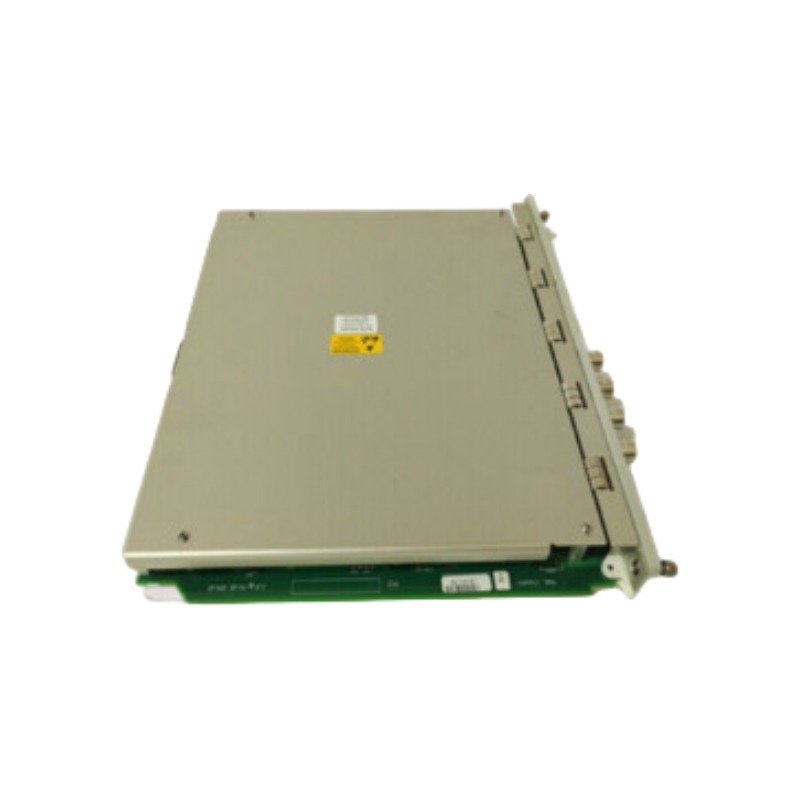

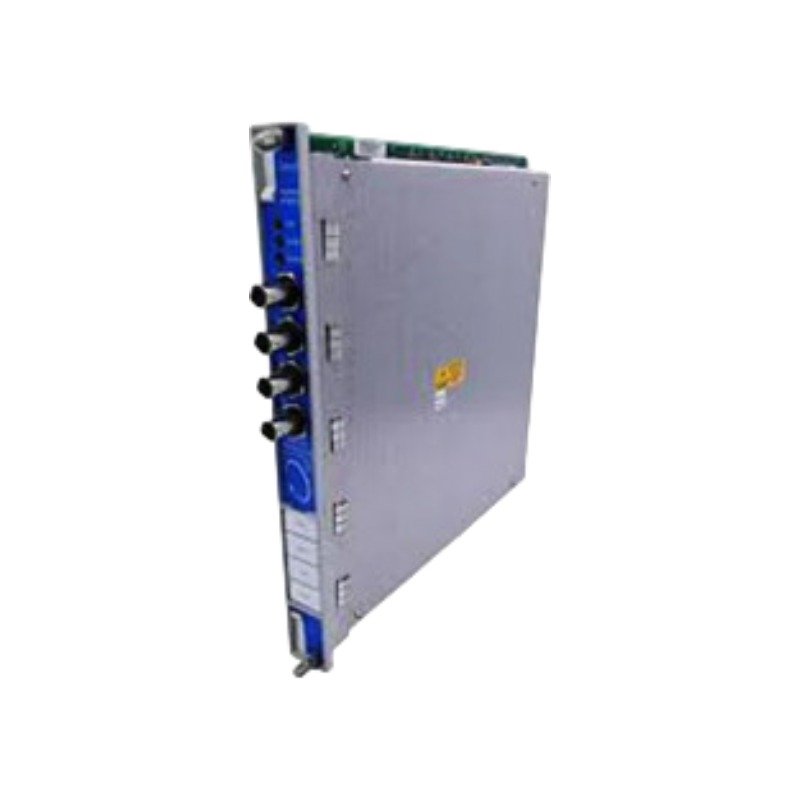

The Bently Nevada 140734-04 serves as the primary 3500/45 Position Monitor Module utilized to execute real-time thrust and axial position monitoring across 3500 Series Machinery Protection System platforms. The hardware processes input signals from proximity probes, rotary position transducers, linear variable differential transformers, and rotary potentiometers to calculate physical displacement. It compares measured variables against programmed alarm setpoints to drive hardware-level relay outputs, protecting critical turbomachinery from mechanical contact and structural damage.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 140734-04 circuit board architecture is designed for turbomachinery thrust tracking and thermal growth quantification. The module implements rigorous eddy-current probe scaling to convert dynamic radio frequency impedance variations into exact physical displacement measurements. During configuration, field engineers execute mandatory gap voltage validation targeting a nominal -10 VDC baseline to place the non-contacting sensors within their optimal linear operating range. This continuous voltage tracking enables precise mapping of rotor dynamics and prevents false trips caused by structural shifting. Furthermore, integrated cross-talk suppression algorithms isolate active transducer signals from neighboring channels, filtering out electromagnetic interference in multi-probe proximity networks.

Frequently Asked Questions

Q: Does the 140734-04 module support hot-swapping inside an energized 3500 system rack?

A: Yes, the module supports online insertion and removal under power. This hot-swap capability requires that the rack backplane remains continuously powered, though any associated control loops must be bypassed to prevent unintended safety trips during removal.

Q: How does the module handle a sudden transducer signal failure or open-circuit condition?

A: The hardware incorporates automatic transducer limit checking. If an input signal drifts outside the defined linear range or a wire breaks, the channel asserts a Not OK condition, illuminates the front-panel LED, and clamps the channel output to prevent erratic alarm execution.

Field Installation Guidelines

1. Ensure the 3500 system rack slot is clear of debris before inserting the 140734-04 module into the chassis.
2. Tighten the rear and front panel retention screws to secure the physical module ground connection to the rack framing.
3. Terminate proximity transducer wiring with a minimum of 5 threads of engagement on NPT conduit fittings to seal out moisture.
4. Connect all sensor shield drains to the designated instrument ground busbar inside the cabinet enclosure, ensuring no ground loops are formed.
5. Verify that field wiring routing maintains an separation distance of at least 15 cm from high-voltage AC electrical lines.
