Description

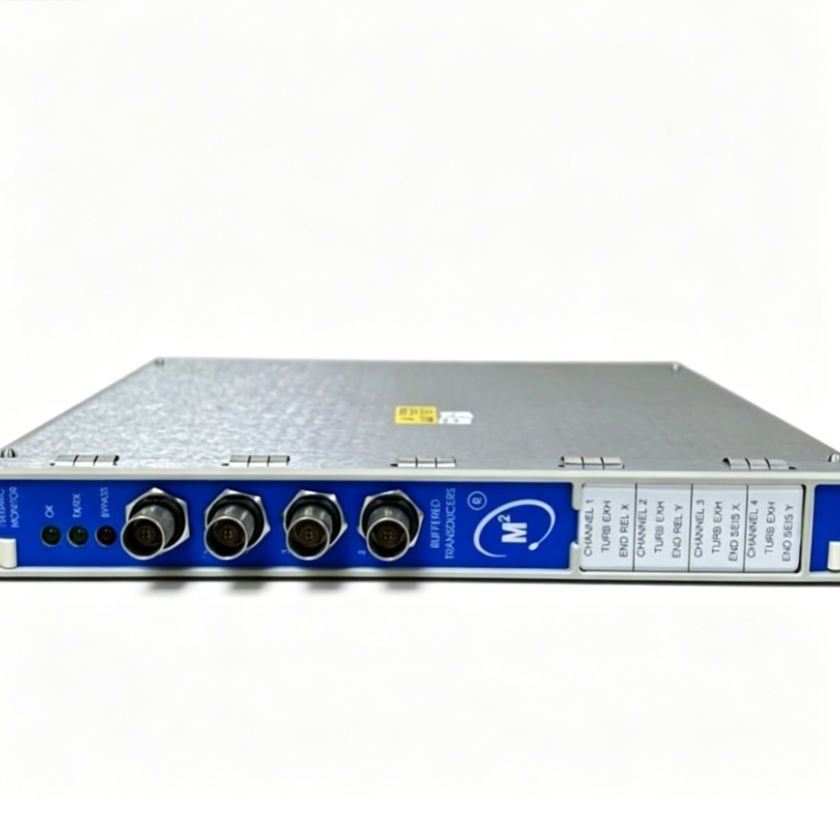

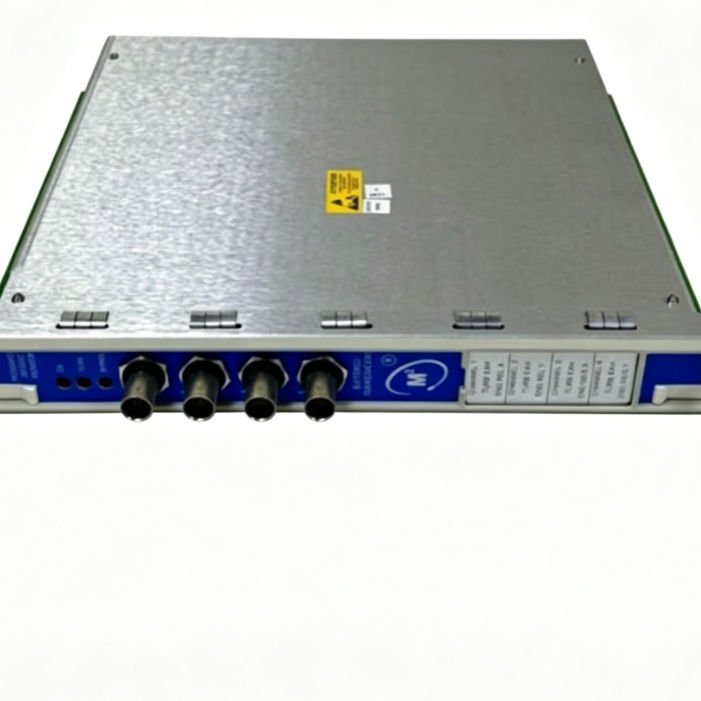

The Bently Nevada 140734-02, also cataloged as the 140734-02 Proximitor Seismic Monitor Module, operates as a dedicated hardware component for continuous machinery vibration monitoring and protection within 3500 Series Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 140734-02 executes precise rotor dynamics tracking to maintain machinery protection. Consequently, field technicians must calibrate the eddy-current probe scaling to match the target material, which prevents linearization errors. Furthermore, engineers perform gap voltage validation to ensure the static DC voltage sits near the -10 VDC target; as a result, the proximity probe operates safely within its linear range. Additionally, the internal digital signal processing circuitry applies cross-talk suppression algorithms, thereby eliminating electromagnetic interference between adjacent transducer channels that share routing conduits.

Frequently Asked Questions

Q: Does the 140734-02 monitor module support hot-swapping while the 3500 rack remains under power?

A: Yes. The module allows hot-swapping under power without disrupting the operation of adjacent modules in the same rack. However, technicians must ensure the rack utilizes a redundant power supply configuration to handle transient current surges safely.

Q: What specific event triggers an unexpected “Not OK” status LED on this module?

A: The module triggers an active “Not OK” status when the field transducer supply voltage or the static gap voltage drifts outside the designated operating window. Therefore, operators should inspect the system for probe tip damage or loose wiring terminal connections.

Field Installation Guidelines

• Verify that the 3500 rack power is stable or completely isolated before inserting the module into its assigned chassis slot, thereby minimizing backplane stress.
• Implement proper shielding practices on all transducer coaxial cables. Specifically, ground the outer shield at the 3500 rack terminal block only, while maintaining a floating configuration at the sensor end to eliminate ground loops.
• Secure all terminal block screws using standard torque guidelines, which prevents intermittent signal losses caused by structural machinery vibrations.
