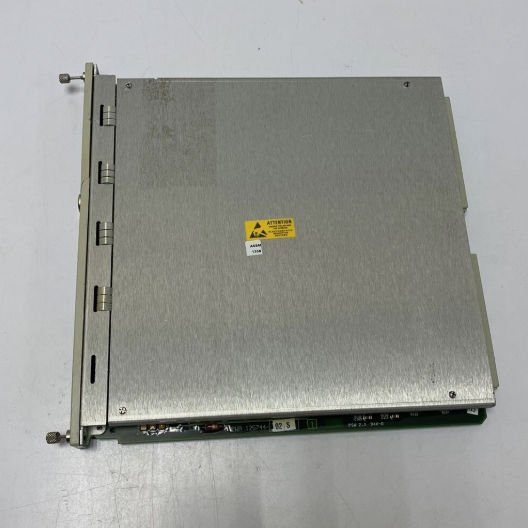

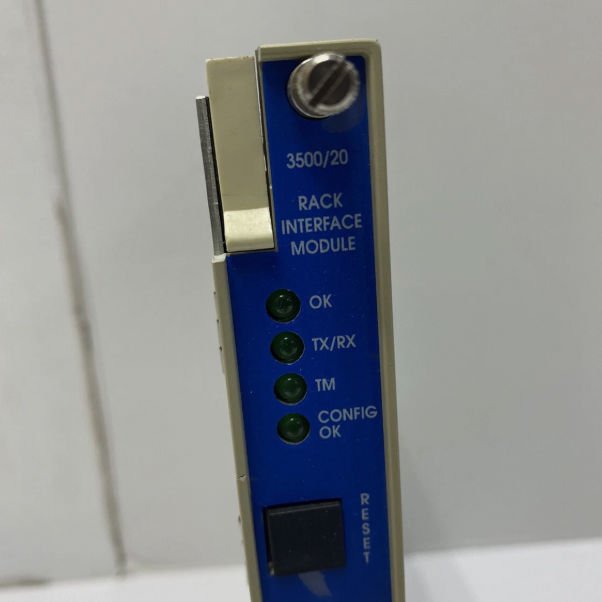

Bently Nevada 125744-02 3500/20 Standard Rack Interface Module
Bently Nevada 125744-02 standard rack interface module. Brand New, Original Stock, Global Shipping available.
Description
The Bently Nevada 125744-02 serves as the primary 125744-02 Standard Rack Interface Module utilized to execute system-level configuration, internal data collection, and external system cross-linking across Bently Nevada 3500 Machinery Protection System platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 125744-02 |
| Brand | Bently Nevada |
| Origin | United States |
| Module Type | Standard Rack Interface Module (RIM) |
| Power Consumption | 4.75 W typical |
| Serial Data Rate (Front Port) | RS232 at 38.4 k baud maximum |
| Backplane Interfaces | Dedicated communication lines to adjacent monitoring slots |
| Operating Temperature | -30 deg C to +65 deg C (-22 deg F to +149 deg F) |
| Storage Temperature | -40 deg C to +85 deg C (-40 deg F to +185 deg F) |
| Relative Humidity | 95% non-condensing, maximum |
| Weight | 1.36 kg (3.0 lb) |
| Dimensions | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
Eddy-Current Probe Scaling and Rotor Dynamics
The 125744-02 functions as the main gateway to retrieve machinery information and transfer configuration profiles down to the individual vibration and position monitors. While the hardware does not directly process the raw signals from proximity sensors, it acts as the centralized coordinator to enforce overall rack integrity during gap voltage validation operations. The module manages the System Event List and Alarm Event List, logging steady-state voltage deviations or anomalies that disrupt cross-talk suppression. When static or dynamic parameters shift beyond predefined constraints, the rack interface module captures these changes via internal bus communications, securing consistent rotor dynamics oversight for downstream diagnostic software.
Frequently Asked Questions
Q: Can this module be installed into any open slot of the 3500 monitoring rack?
A: No. The 125744-02 is mechanically and logically restricted for installation solely in Slot 1 of the 3500 chassis, which is located directly adjacent to the main power supplies.
Q: What is the purpose of the front panel configuration keylock switch?
A: The physical keylock toggles the rack between RUN mode and PROGRAM mode. Placing the switch in RUN mode enforces hardware security by blocking remote configuration overrides, while PROGRAM mode opens the backplane routing for system modifications.
Q: Does a failure within the 125744-02 interrupt active machine protection loops?
A: No. The rack interface module is isolated from the critical monitoring path. A failure or extraction of this card does not affect the continuous protective relay execution or signal processing of adjacent modules.
Field Installation Guidelines
- Slot Allocation and Latching: Ensure the rack power supply lines are secure before seating the module. Slide the 125744-02 into Slot 1 along the upper and lower chassis guide rails. Push firmly until the backplane pin connectors align and seat fully, then secure the top and bottom captive panel screws.
- Serial Cable Connection Constraints: When interfacing with the front RS232 configuration port, utilize a dedicated serial cable with a maximum length of 2.1 m (7 ft). Exceeding this distance limit can cause serial packet corruption and data transfer attenuation.
- Hardware Fastener Torque: Tighten the front panel captive retaining hardware to a torque specification of 0.56 N-m (5 in-lb) to maintain appropriate physical grounding against the structural framework of the instrument rack.
Additional information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 40 × 16 × 12 mm |
