Description

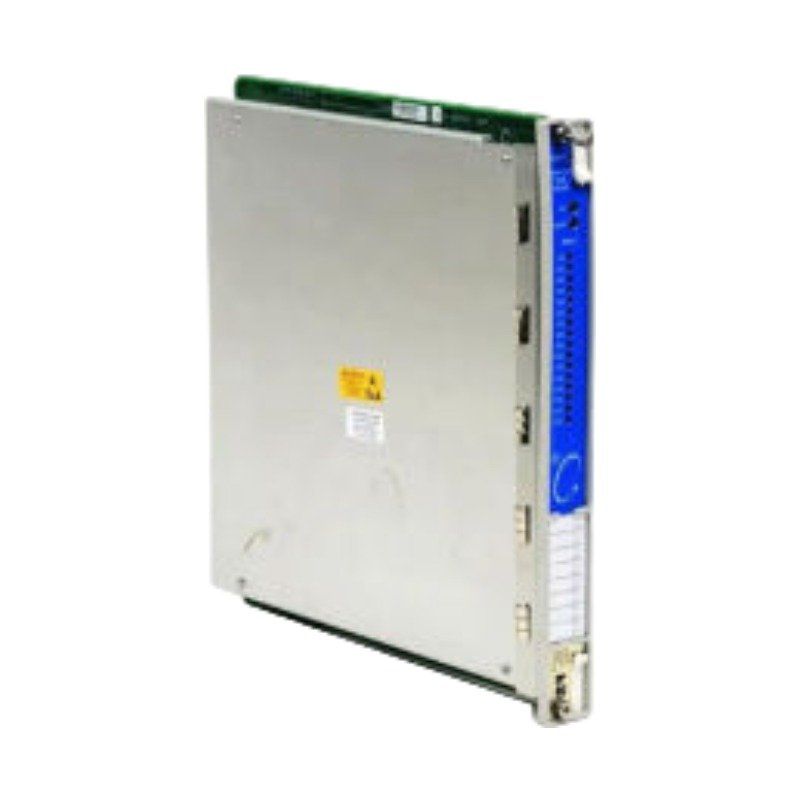

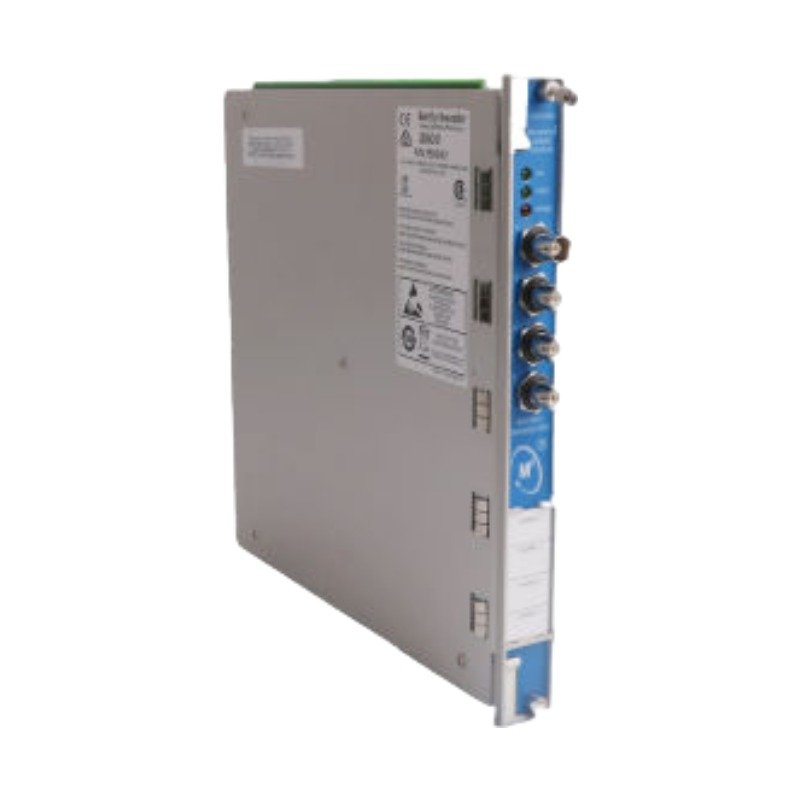

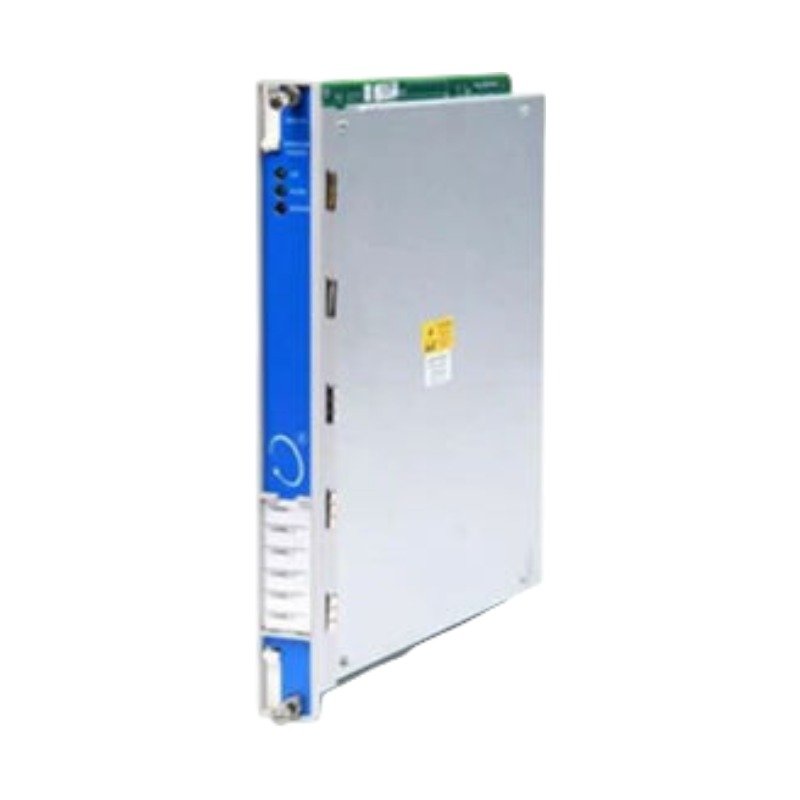

Configured for continuous machinery protection and vibration monitoring in 3500 monitoring systems, the Bently Nevada 125672-02, also cataloged as the 3500/42 Proximitor Seismic Monitor Module, provides direct physical/electrical execution. This four-channel instrument processes input signals from proximity transducers, seismic transducers, and accelerometers. It continuously compares these conditioned signals against user-defined alarm setpoints to drive internal alert statuses, executing essential signal conditioning and relay triggering routines directly via the 3500 backplane.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module interfaces directly with eddy-current probe scaling architectures to translate voltage modulations into physical displacement values. During commissioning, field engineers perform gap voltage validation (-10 VDC targets) to ensure the proximity probe operates within its linear range. Because rotor dynamics demand high-frequency fidelity, the card incorporates active cross-talk suppression algorithms. This specific processing structure eliminates inductive interference between adjacent transducer lines, ensuring stable orbital and cascade plots within the turbomachinery monitoring network.

Frequently Asked Questions

Q: Does the 3500/42 module support live hot-swap replacement during system operation?

A: Yes, the module supports hot-swapping under powered conditions. However, removing the module will interrupt the monitoring of its associated channels, and users must bypass connected trip relays beforehand to prevent accidental machinery shutdown.

Q: What are the backplane current consumption limits for this specific card?

A: The module draws a maximum current of 0.7 A from the 3500 system internal 5 VDC backplane supply, which must be factored into the overall rack power budget calculation.

Q: How does the module handle transducer fault conditions?

A: The internal hardware continuously monitors the transducer circuit integrity. If the gap voltage moves outside the valid linear operational window, the module automatically trips a “Not OK” status, illuminates the front panel LED, and suppresses false vibration alarms.

Field Installation Guidelines

• DIN-Rail and Rack Grounding: Secure the 3500 rack into the main cabinet infrastructure and establish a low-impedance connection to the central instrumentation ground. The grounding strap resistance must not exceed 1 Ohm.
• Transducer Shielding Regulation: Terminate all proximity probe extension cable shields strictly at the 3500/42 I/O module terminal strip block. Cut and isolate the shield at the transducer junction box to eliminate ground loops.
• Wiring Separation Constraints: Route the 4-20 mA recorder outputs and transducer input cables through dedicated, grounded steel conduits. Keep these low-voltage signal lines isolated from high-voltage AC power distribution wiring.
• Terminal Torque Configuration: Tighten all field wiring terminal screws to a torque specification of 0.56 N-m (5.0 in-lb) to maintain secure physical connections and prevent signal degradation under machinery vibration.
