Description

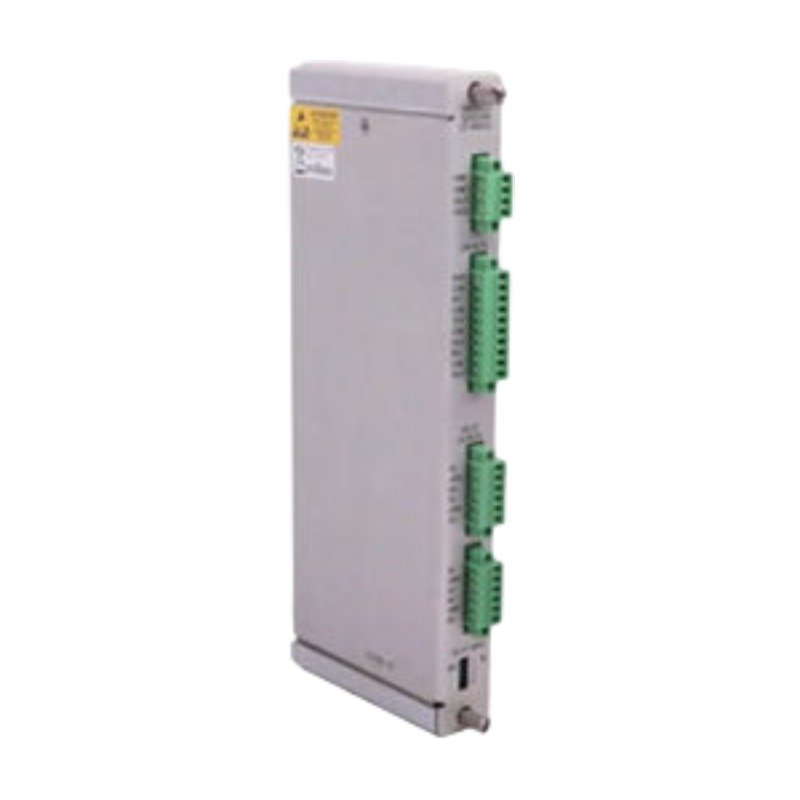

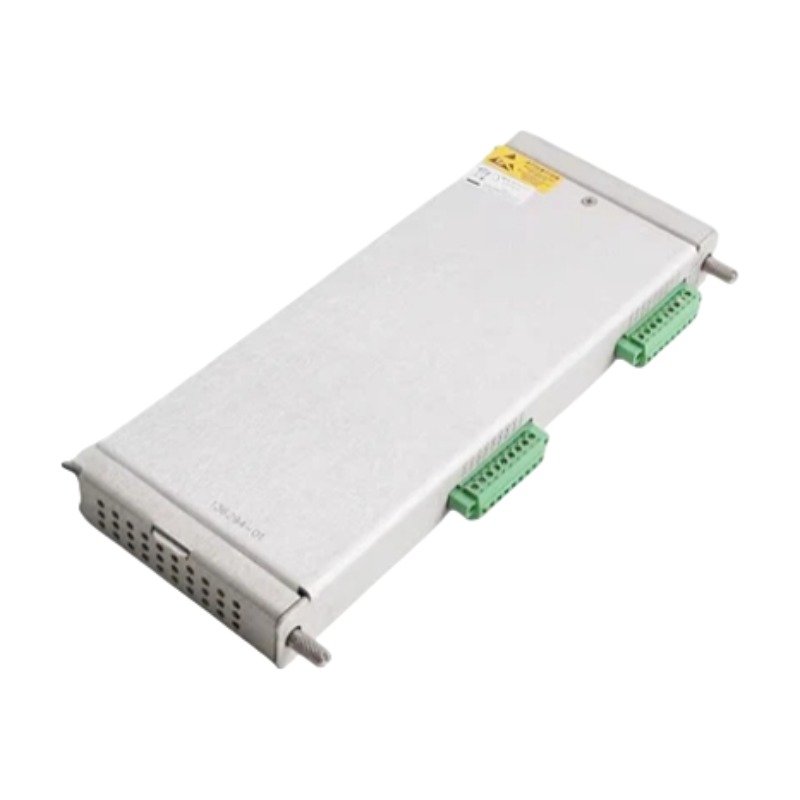

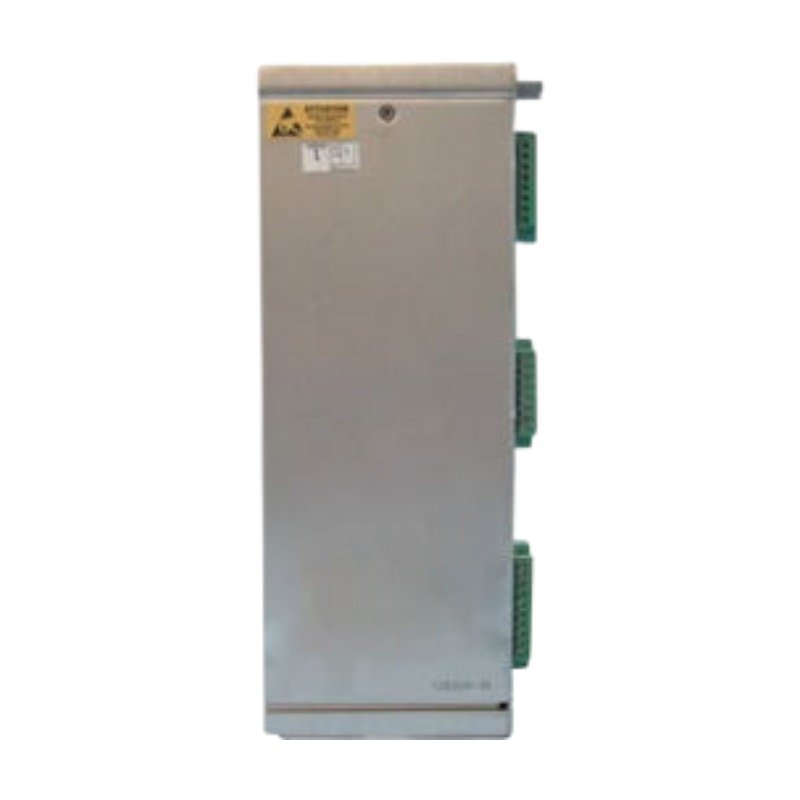

Configured for power conversion and regulation in 3500 Monitoring Systems, the Bently Nevada 125489-01, also cataloged as the 125489-01 Power Supply Module, provides direct physical/electrical execution. This half-height hardware component accepts high-voltage AC input signals and transforms them into regulated DC voltages for the 3500 rack backplane. It interfaces directly with the lower slot of the power supply chassis, utilizing internal filtering circuits to eliminate electromagnetic interference prior to distribution.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

This power supply module yields highly regulated -15 VDC rails that act as the fundamental reference voltage for proximity transducer systems. Consequently, any voltage drift on this rail directly compromises eddy-current probe scaling accuracy and rotor dynamics data logging. The internal circuitry enforces strict cross-talk suppression between adjacent monitor cards by isolating the input line transients from the rack backplane. During routine maintenance, technicians must perform gap voltage validation to ensure that the proximity sensor output targets exactly -10 VDC when the target is at the physical midpoint of the linear range. This module maintains this target within a tight tolerance, preventing false alarms caused by supply-induced signal fluctuations.

Frequently Asked Questions

Q: Can the 125489-01 module be hot-swapped while the 3500 rack is energized?

A: Yes. In a redundant supply configuration, you can replace one 125489-01 supply module without interrupting rack operation, provided the secondary supply remains active and connected to an independent power source.

Q: What is the switching delay when a power loss occurs in a redundant configuration?

A: There is 0 ms switching delay. Redundant modules share the backplane load simultaneously via internal auctioneering diodes, ensuring an instantaneous takeover if one line fails.

Q: Does this module require specialized firmware matching with the 3500 rack?

A: No. The 125489-01 operates strictly as an electrical power conversion component and does not contain programmable firmware requiring validation against the 3500 Rack Configuration Software.

Field Installation Guidelines

• Chassis Slot Allocation: Install the module exclusively into the designated power supply slots located on the left side of the 3500 rack. Slide the module along the chassis card guides until the rear connector seats firmly into the backplane.
• Wiring and Grounding Specifications: Use a minimum of 1.5 mm sq (16 AWG) copper wire rated for 105 deg C for all AC input connections. Connect the primary earth ground wire directly to the dedicated ground terminal on the power input module.
• Shielding Protocols: Terminate all external monitor and transducer shields at the instrument ground bus bar; do not connect signal shields to the power supply chassis ground terminals.
• Fastener Torque: Secure the module to the rack faceplate by tightening the two integrated retaining screws to a maximum torque specification of 0.6 N-m.
