Description

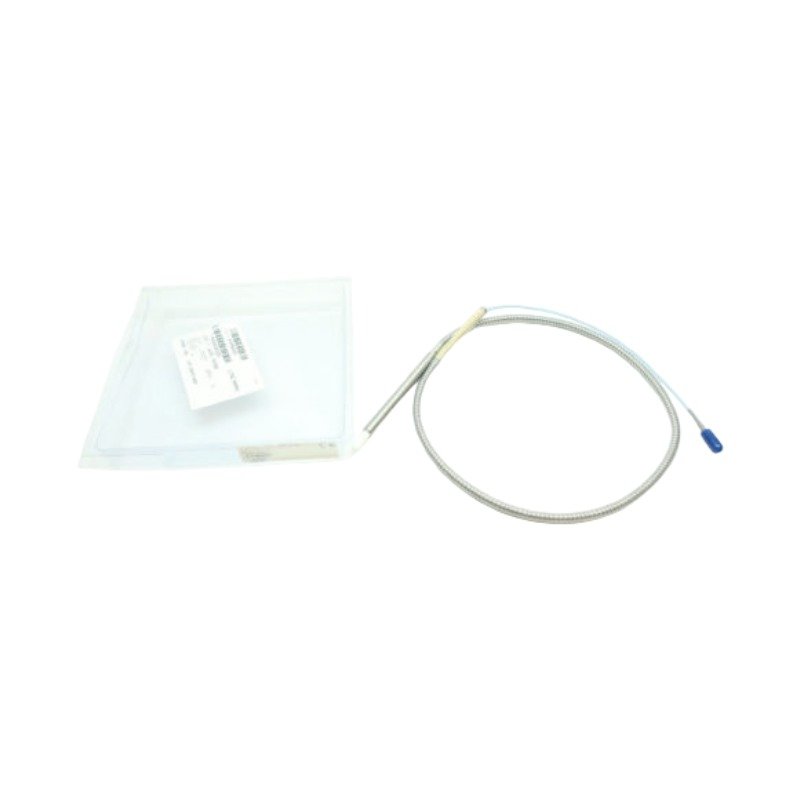

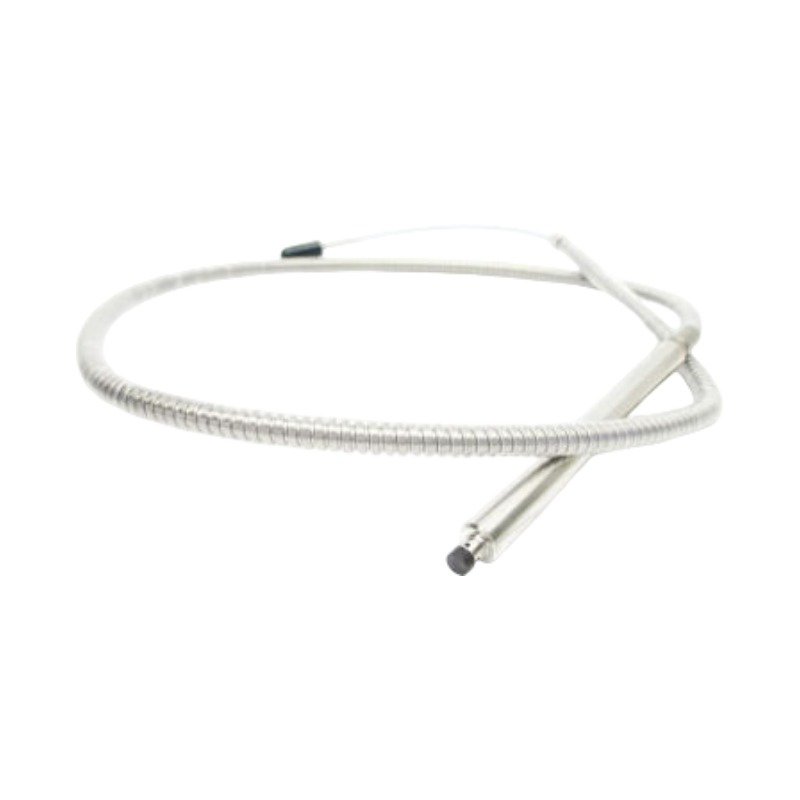

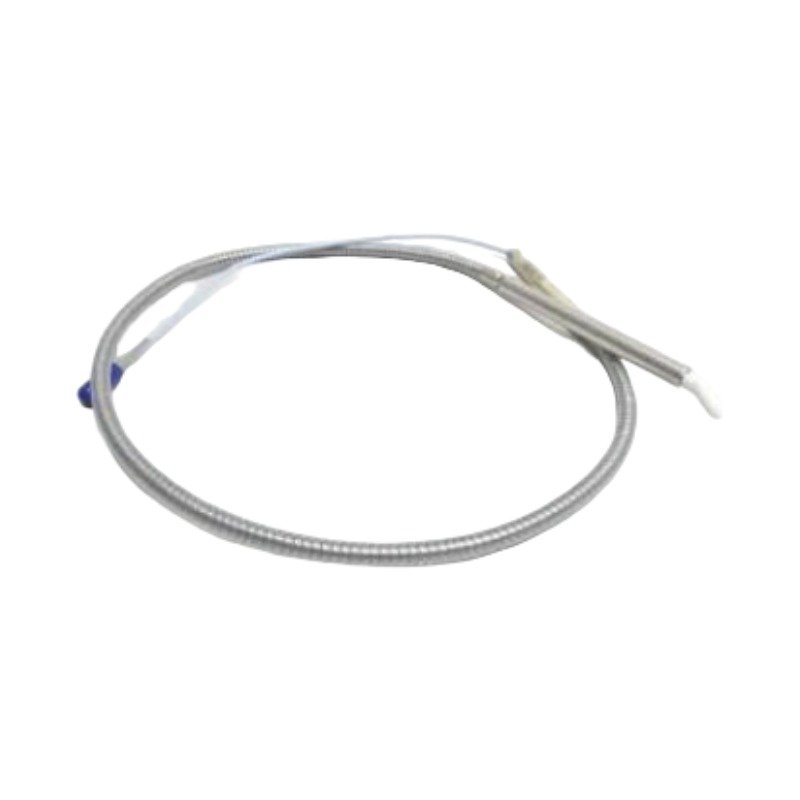

The Bently Nevada 109549-01, also cataloged as the 109549-01 3300 XL NSv Proximity Probe, operates as a dedicated hardware component for high-precision radial vibration and axial position measurement within tight-clearance turbomachinery monitoring systems. This transducer system utilizes eddy-current induction to track shaft displacement, providing raw dynamic voltage signals to the monitoring instrumentation. The hardware interfaces directly with proximity monitoring networks to establish reliable rotor dynamics surveillance where space constraints prohibit standard probe sizing.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 109549-01 functions as the primary ingestion point for Turbomachinery Instrumentation (TSI) data collection on fluid-film bearing machines. The sensing element employs an eddy-current probe scaling technique, converting shaft-to-casing gaps into accurate electrical voltage offsets. System integrity depends on maintaining rigorous gap voltage validation targets—typically centered around -10 VDC—to ensure linear output across the operating range. The internal coil winding geometry minimizes cross-talk suppression by shielding the active sensor signal from external electromagnetic interference. These probes monitor rotor dynamics with high resolution, effectively detecting sub-micron vibration signatures that standard sensors often miss in compact installation environments.

Frequently Asked Questions

Q: Can this probe be installed in high-pressure gas compressor environments?

A: Yes. The probe tip design includes a Viton O-ring seal intended to manage differential pressure across the probe mounting point. However, users must verify that the machine casing thread engagement meets Bently Nevada pressure-rating specifications before final commissioning.

Q: Is the 109549-01 electrically compatible with standard 3300 XL 8 mm Proximitor sensors?

A: No. The NSv system possesses unique linear range and scale factor characteristics compared to standard 8 mm probes. You must pair this probe specifically with a 3300 XL NSv Proximitor sensor to maintain the system-wide 7.87 V/mm (200 mV/mil) output accuracy.

Field Installation Guidelines

• Mounting Protocol: Clean the machine casing thoroughly to remove residual oil, carbon, or oxidation before installation. Thread the probe into the mounting hole until the tip makes contact with the target surface, then back it off to the required gap (typically 1.0 mm or 40 mils) using the supplied jam nut for physical locking.
• Shielding and Grounding: Route the probe coaxial cable through grounded metallic conduit separate from high-voltage AC lines. Terminate the cable shield at the monitoring system terminal strip using a single-point ground configuration to eliminate ground loops that introduce 50 Hz or 60 Hz noise into the signal path.
• Cable Handling: Maintain a minimum bend radius of 25 mm for the coaxial cable assembly during routing. Excessively tight bends stress the internal center conductor and dielectric, potentially causing erratic gap voltage readings or total transducer failure during thermal machine cycling.
